Bilstein 47-251588 B14 (PSS) - Suspension Kit
Bilstein 47-251588 B14 (PSS) - Suspension Kit
Low stock: 2 left
Couldn't load pickup availability
Description & Features

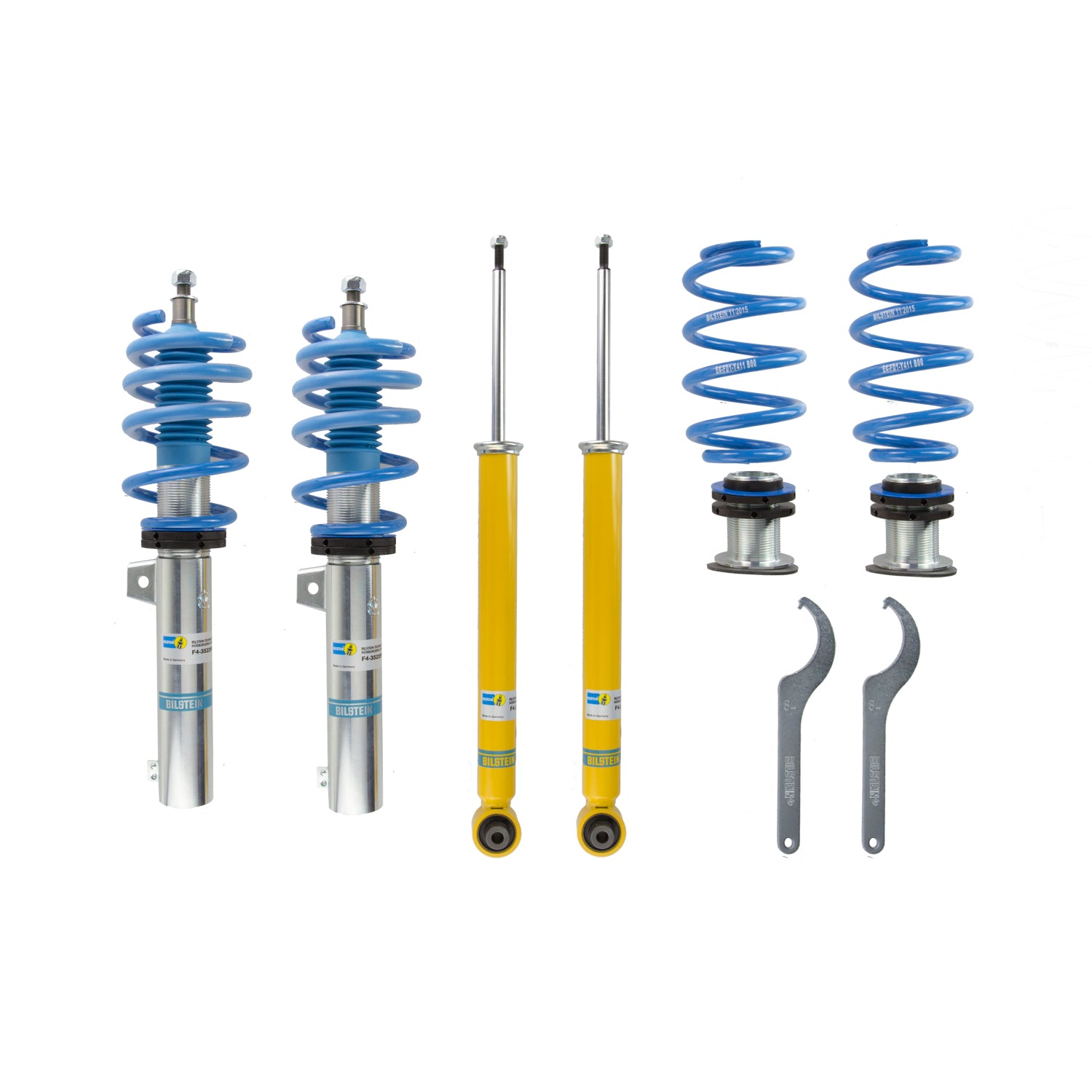

Bilstein 47-251588 B14 (PSS) - Suspension Kit
Bilstein B14 (PSS) suspension kits feature ride height adjustability in an OE quality, direct fit package. These kits offer monotube performance dampers with matched springs that are tuned for each specific application. The zinc coated and threaded body design will give you the flexibility to find the perfect ride height setting for your intended use while providing unsurpassed protection against the harshest road elements. B14 (PSS) suspension kits are made in Germany and feature technology tested on the famed Nürburgring.
- Threaded body allows lowering of approximately 30mm to 50mm
- Tested by our engineers under motorsport conditions
- Triple-C-Technology surface coating for long lasting corrosion resistance
Specifications
| Front Main Spring Type | Progressive |
| Rear Main Spring Rate (lbs/in) | 302 |
| Rear Tender Spring Rate (lbs/in) | N/A |
| Internal Design | Monotube |
| Front Main Spring Rate (lbs/in) | 399 |
| Front Tender Spring Rate (lbs/in) | N/A |
| Segment | Tuning |
| Rear Main Spring Type | Linear |
| Series | B14 (PSS) |
| Finish | Dampers: Zinc Front Yellow Rear/Springs: Blue |
Packaging Information
Weight: 48.66 lbs
Dimensions: 30.3 x 11 x 8.3 IN
Safety
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
Warranty
60 Month Warranty
⚠ Fitment Notes
- Front Lowered Height: 30-50mm; Rear Lowered Height: 30-50mm; Without Electronic Suspension; With 55mm Outside Strut Diameter
- Front Lowered Height: 30-50mm; Rear Lowered Height: 30-50mm; Without Electronic Suspension; With Independent Rear Suspension; With 55mm Outside Strut Diameter
- Front Lowered Height: 15-35mm; Rear Lowered Height: 15-35mm; Without Electronic Suspension; With Independent Rear Suspension; With 55mm Outside Strut Diameter
- Front Lowered Height: 30-50mm, up to 1200kg Axle Load; Rear Lowered Height: 30-50mm, up to 1253kg Axle Load
- Front Lowered Height: 30-50mm, up to 1160kg Axle Load; Rear Lowered Height: 30-50mm, up to 1220kg Axle Load
- Front Lowered Height: 15-30mm, up to 1090kg Axle Load; Rear Lowered Height: 15-30mm, up to 1065kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter
- Front Lowered Height: 15-35mm, up to 1160kg Axle Load; Rear Lowered Height: 15-35mm, up to 1220kg Axle Load; Without Electronic Suspension
Share
Vehicle Fitment
Vehicle Fitment
- 2015-2020 Audi A3 Premium — Front and Rear
- 2015-2020 Audi A3 Premium Plus — Front and Rear
- 2015-2019 Audi A3 Prestige — Front and Rear
- 2015-2019 Audi A3 Quattro Premium — Front and Rear
- 2015-2019 Audi A3 Quattro Premium Plus — Front and Rear
- 2015-2019 Audi A3 Quattro Prestige — Front and Rear
- 2015-2016 Audi A3 TDI Premium — Front and Rear
- 2015-2016 Audi A3 TDI Premium Plus — Front and Rear
- 2015-2016 Audi A3 TDI Prestige — Front and Rear
- 2017-2020 Audi RS3 Base — Front and Rear
- 2020 Audi S3 Premium — Front and Rear
- 2015-2020 Audi S3 Premium Plus — Front and Rear
- 2015-2019 Audi S3 Prestige — Front and Rear
- 2019-2021 Volkswagen Arteon SE — Front and Rear
- 2019-2020 Volkswagen Arteon SEL — Front and Rear
- 2019-2021 Volkswagen Arteon SEL Premium R-Line — Front and Rear
- 2019-2021 Volkswagen Arteon SEL R-Line — Front and Rear
- 2017-2019 Volkswagen Golf Alltrack S — Front and Rear
- 2017-2019 Volkswagen Golf Alltrack SE — Front and Rear
- 2017-2019 Volkswagen Golf Alltrack SEL — Front and Rear
- 2015-2019 Volkswagen Golf R Base — Front and Rear
- 2015-2021 Volkswagen GTI Autobahn — Front and Rear
- 2019 Volkswagen GTI Rabbit Edition — Front and Rear
- 2015-2021 Volkswagen GTI S — Front and Rear
- 2015-2021 Volkswagen GTI SE — Front and Rear
- 2017 Volkswagen GTI Sport — Front and Rear
