Bilstein

Bilstein 47-309524 B8 6112 - Suspension Kit

$923.00 USD

⬡Mechanic Division pricing available

Sale Sold out

Shipping calculated at checkout.

10 in stock

Description & Features

Bilstein 47-309524 B8 6112 - Suspension Kit

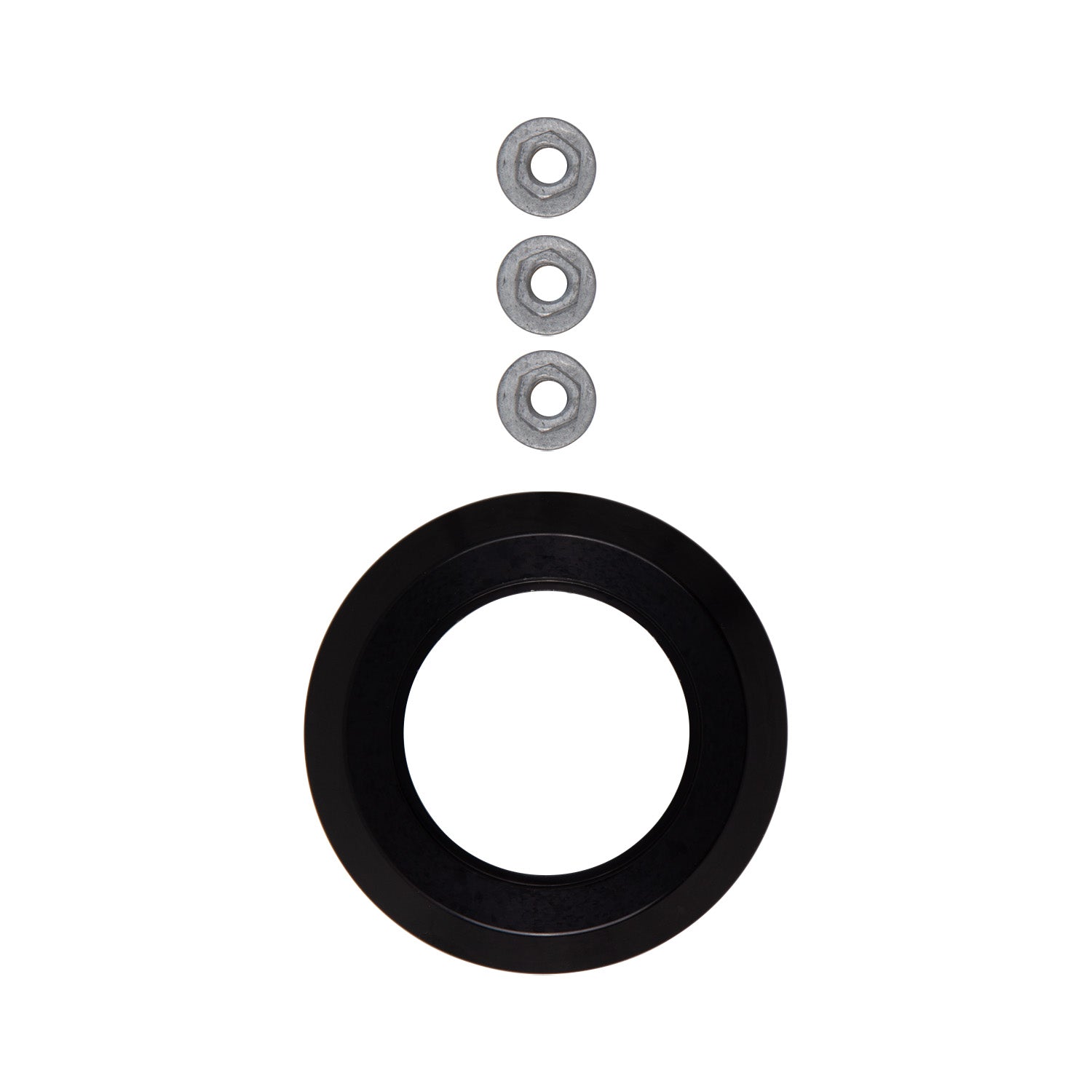

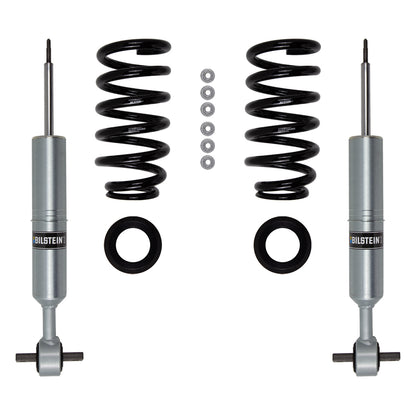

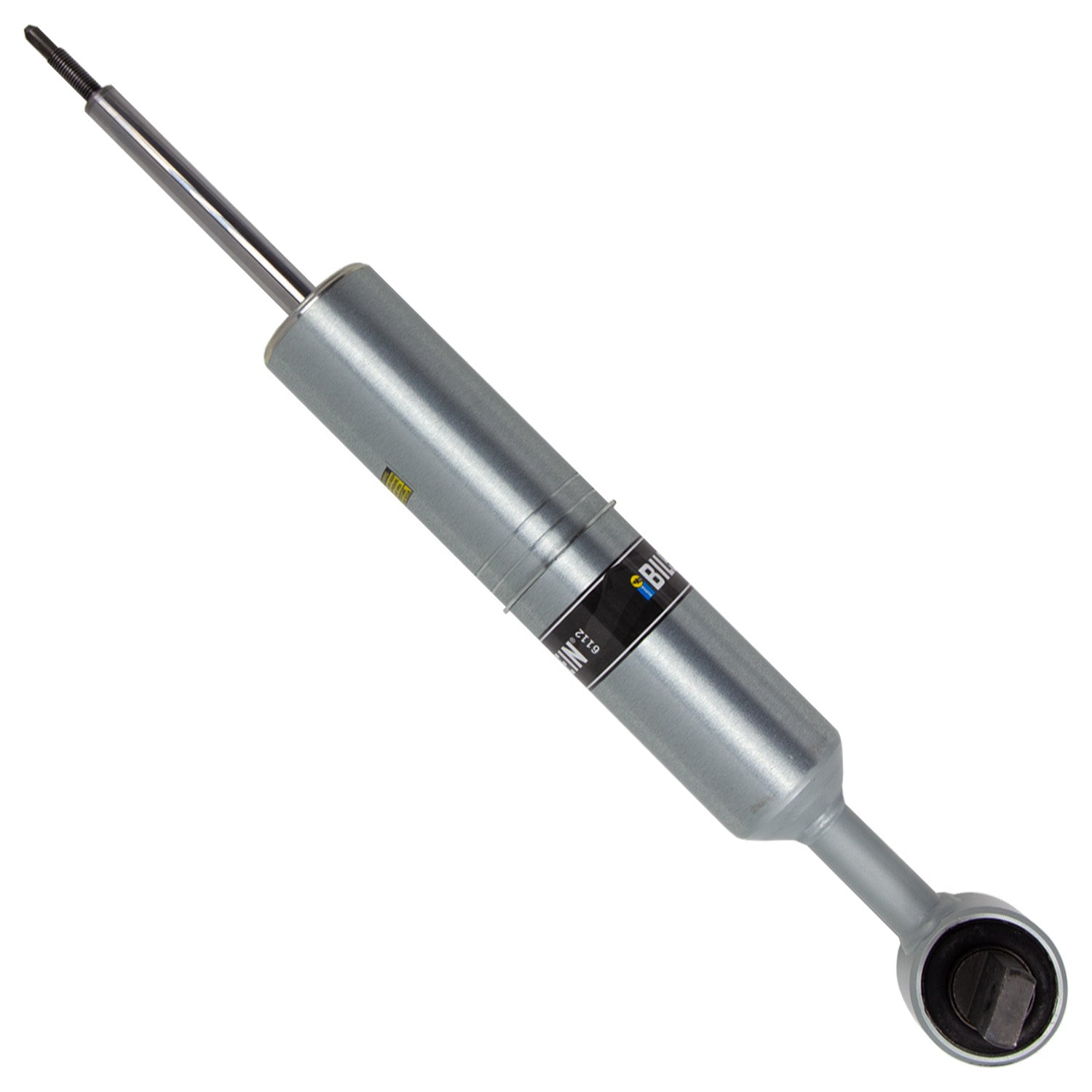

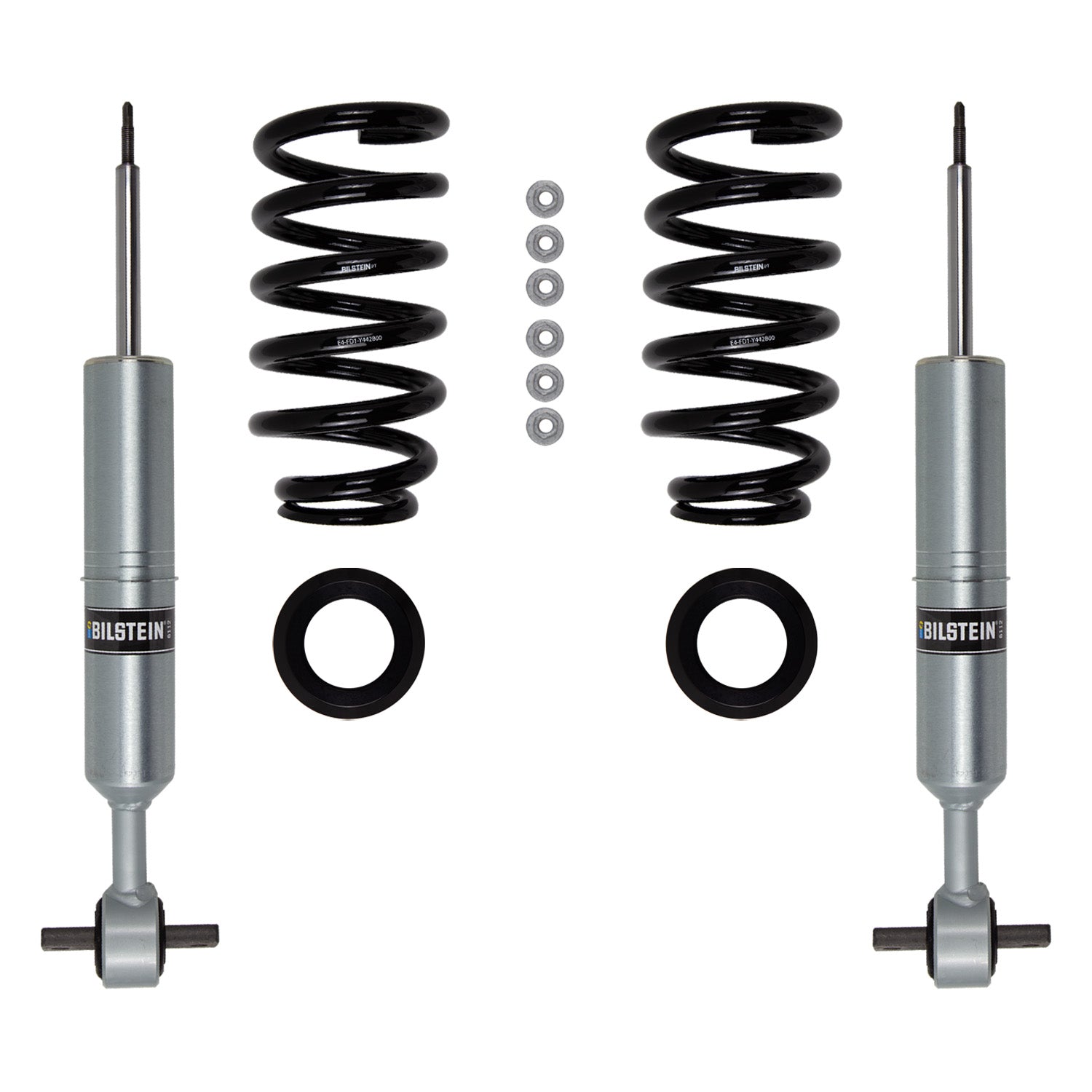

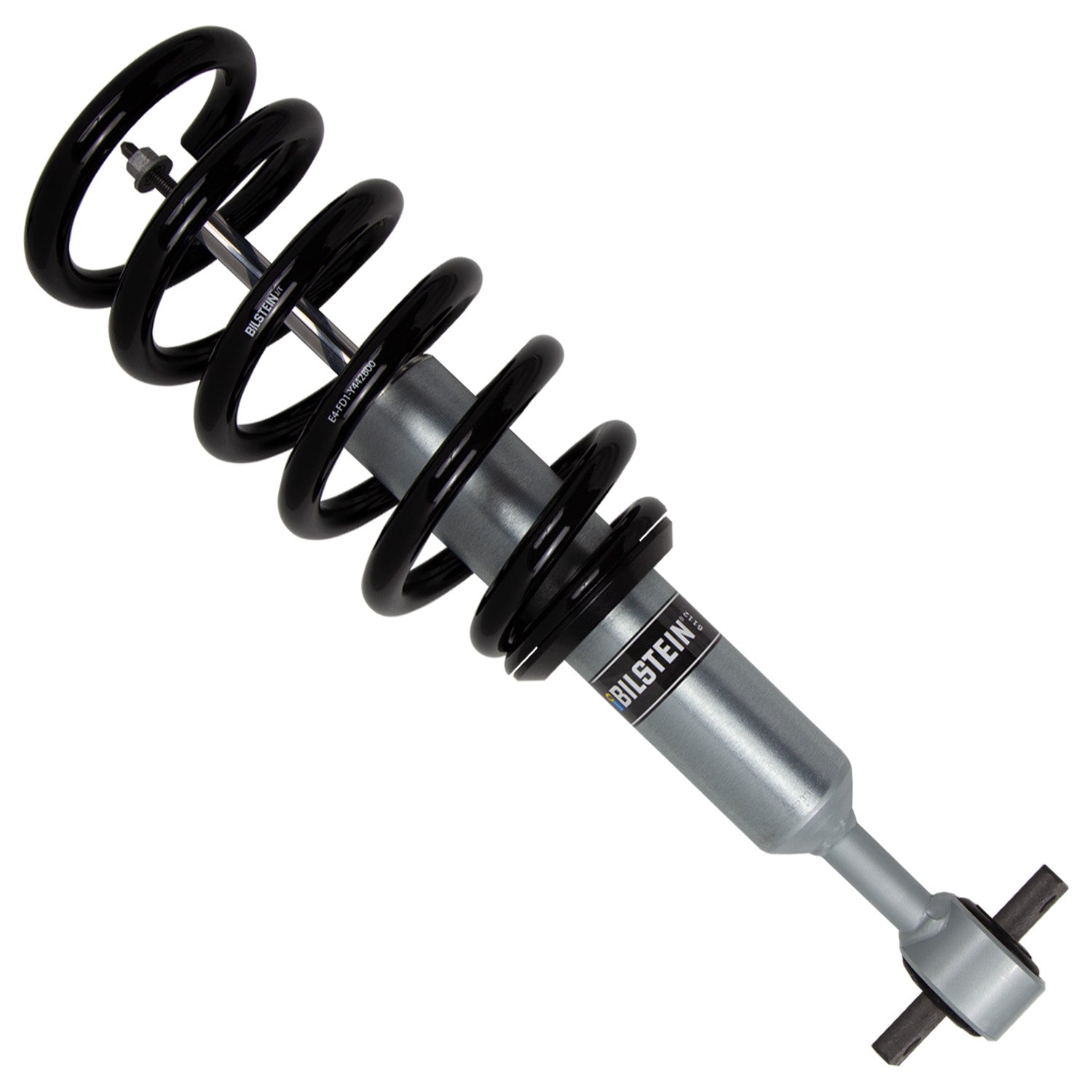

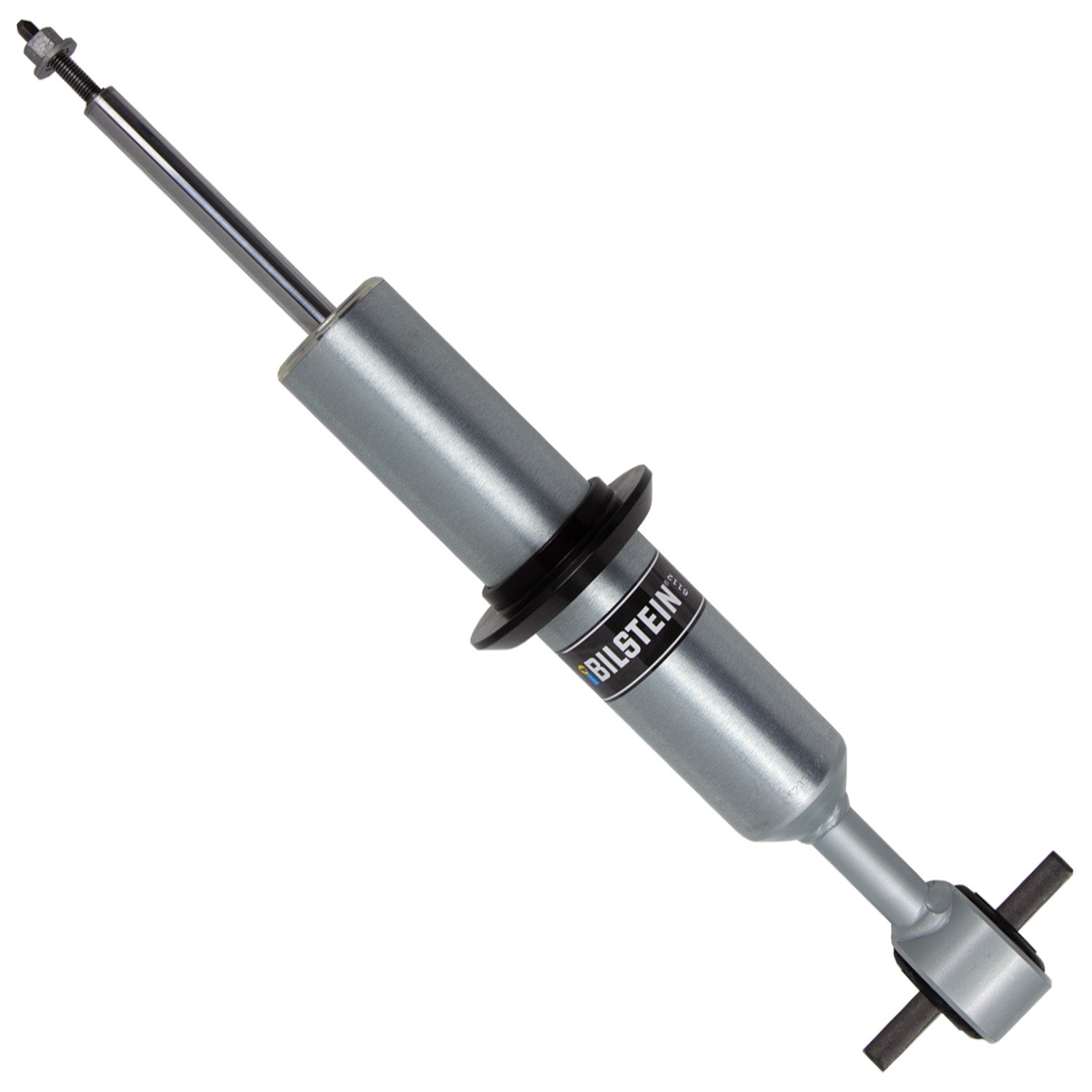

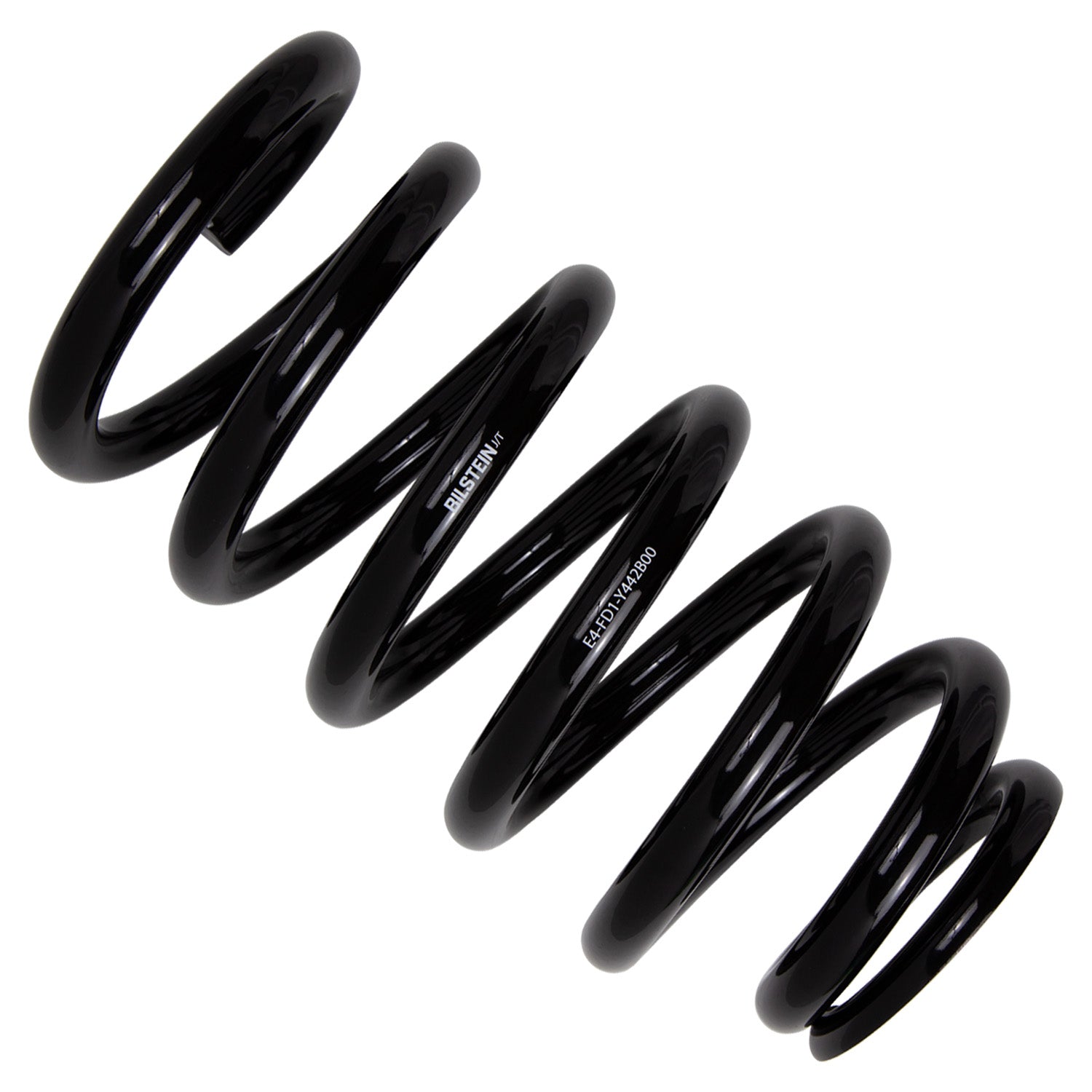

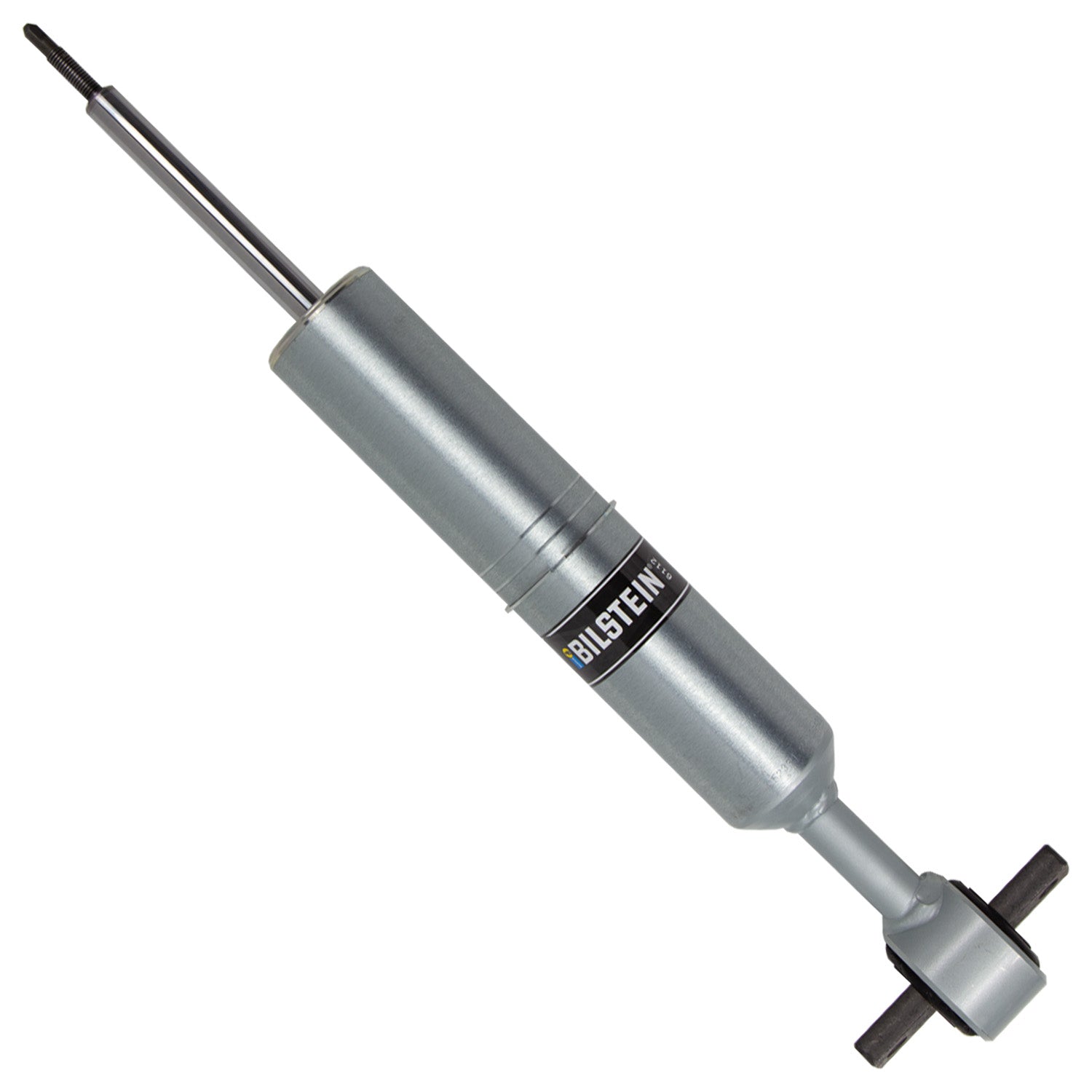

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

Large 60mm body for increased oil capacity, cooling, and long-term durability
60mm digressive piston improves ride comfort and control over rough terrain
Vehicle specific tuning

Specifications

Front Main Spring Rate (lbs/in)	600
Collapsed Length (mm)	451.6
Stroke/Travel Length (IN)	4.19
Boot Included	No
Stroke/Travel Length (mm)	106.4
Body Design	Snap Ring Grooved Body (Coilover)
Reservoir	No
Internal Design	Monotube
Shaft Diameter	18mm
Spring Seat Included	Yes
Extended Length (mm)	558.0
Segment	Light Truck
Extended Length (IN)	21.97
Collapsed Length (IN)	17.78
Series	B8 6112
Finish	Dampers: Zinc Plated/Springs: Black
Piston Diameter	60mm
