Bilstein 47-325753 B8 6112 - Suspension Kit
Bilstein 47-325753 B8 6112 - Suspension Kit
Low stock: 2 left
Couldn't load pickup availability
Description & Features
Bilstein 47-325753 B8 6112 - Suspension Kit

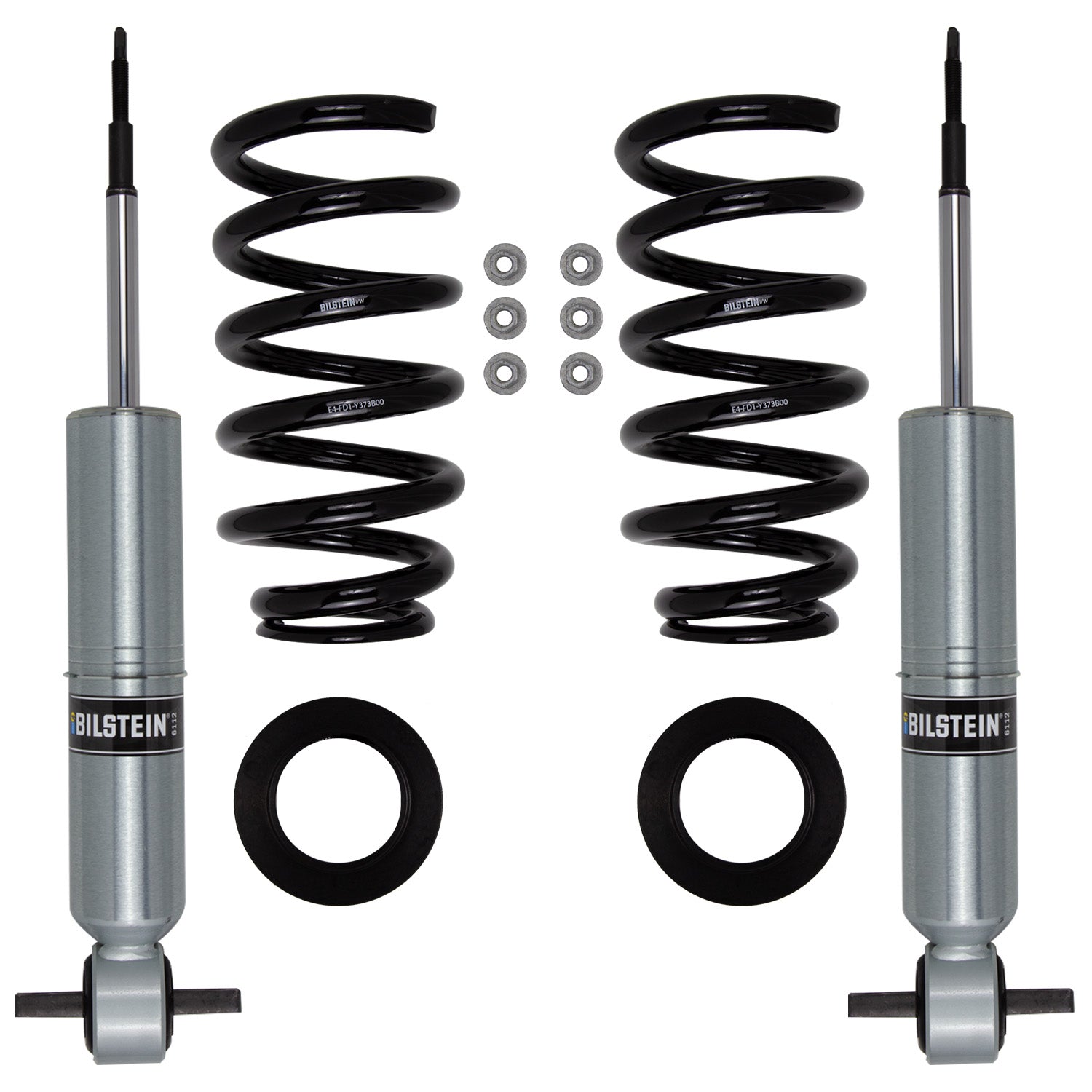

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.
- Large 60mm body for increased oil capacity, cooling, and long-term durability
- 60mm digressive piston improves ride comfort and control over rough terrain
- Vehicle specific tuning
Specifications
| Shaft Diameter | 18mm |
| Spring Seat Included | Yes |
| Adjustable Damping | Non-Adjustable |
| Extended Length (mm) | 499.1 |
| Boot Included | No |
| Aftermarket Upper Arms Required | Yes |
| Extended Length (IN) | 19.65 |
| Collapsed Length (IN) | 14.96 |
| Series | B8 6112 |
| Finish | Dampers: Zinc Plated/Springs: Black |
| Piston Diameter | 60mm |
| Front Main Spring Rate (lbs/in) | 750 |
| Collapsed Length (mm) | 380.0 |
| Stroke/Travel Length (IN) | 4.69 |
| Segment | Light Truck |
| Stroke/Travel Length (mm) | 119.1 |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Reservoir | No |
| Internal Design | Monotube |
Packaging Information
Weight: 54.65 lbs
Dimensions: 26.75 x 11 x 8.44 IN
Safety
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
⚠ Fitment Notes
- Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended
- Provides 1.85-2.75" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304669 or 51-304676 recommended depending on OE arm style - see catalog for details
- Provides 1.85-2.75" Front Lift; Without Magnetic Ride Control Suspension; For Silverado 1500 LD only – same as 2014-2018 body style.; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended
- Provides 1.85-2.75" Front Lift; Without Magnetic Ride Control Suspension; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended
- Provides 1.85-2.75" Front Lift; Without Magnetic Ride Control Suspension; For Sierra 1500 Limited only – same as 2014-2018 body style; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended
Share
Vehicle Fitment
Vehicle Fitment
- 2016-2018 Chevrolet Silverado 1500 Custom — Front
- 2014-2018 Chevrolet Silverado 1500 High Country — Front
- 2019 Chevrolet Silverado 1500 LD Custom — Front
- 2019 Chevrolet Silverado 1500 LD LT — Front
- 2019 Chevrolet Silverado 1500 LD WT — Front
- 2015-2018 Chevrolet Silverado 1500 LS — Front
- 2014-2018 Chevrolet Silverado 1500 LT — Front
- 2014-2018 Chevrolet Silverado 1500 LTZ — Front
- 2014-2018 Chevrolet Silverado 1500 WT — Front
- 2014-2018 GMC Sierra 1500 Base — Front
- 2014 GMC Sierra 1500 Denali — Front
- 2019 GMC Sierra 1500 Limited Base — Front
- 2019 GMC Sierra 1500 Limited SLE — Front
- 2014-2018 GMC Sierra 1500 SLE — Front
- 2014-2018 GMC Sierra 1500 SLT — Front
