Bilstein
Bilstein 48-101288 B16 (PSS9) - Suspension Kit
Bilstein 48-101288 B16 (PSS9) - Suspension Kit
Low stock: 1 left
Couldn't load pickup availability
Description & Features

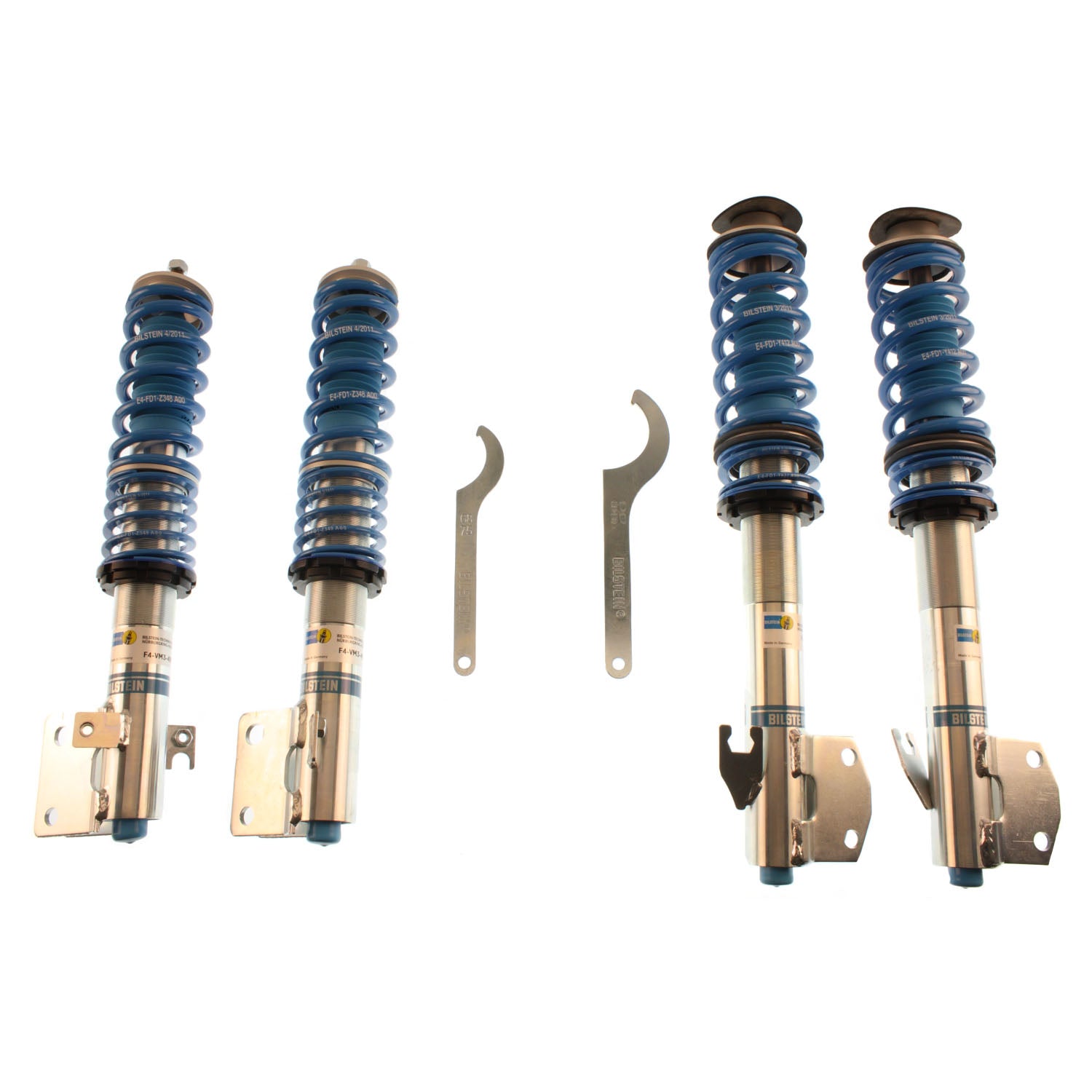

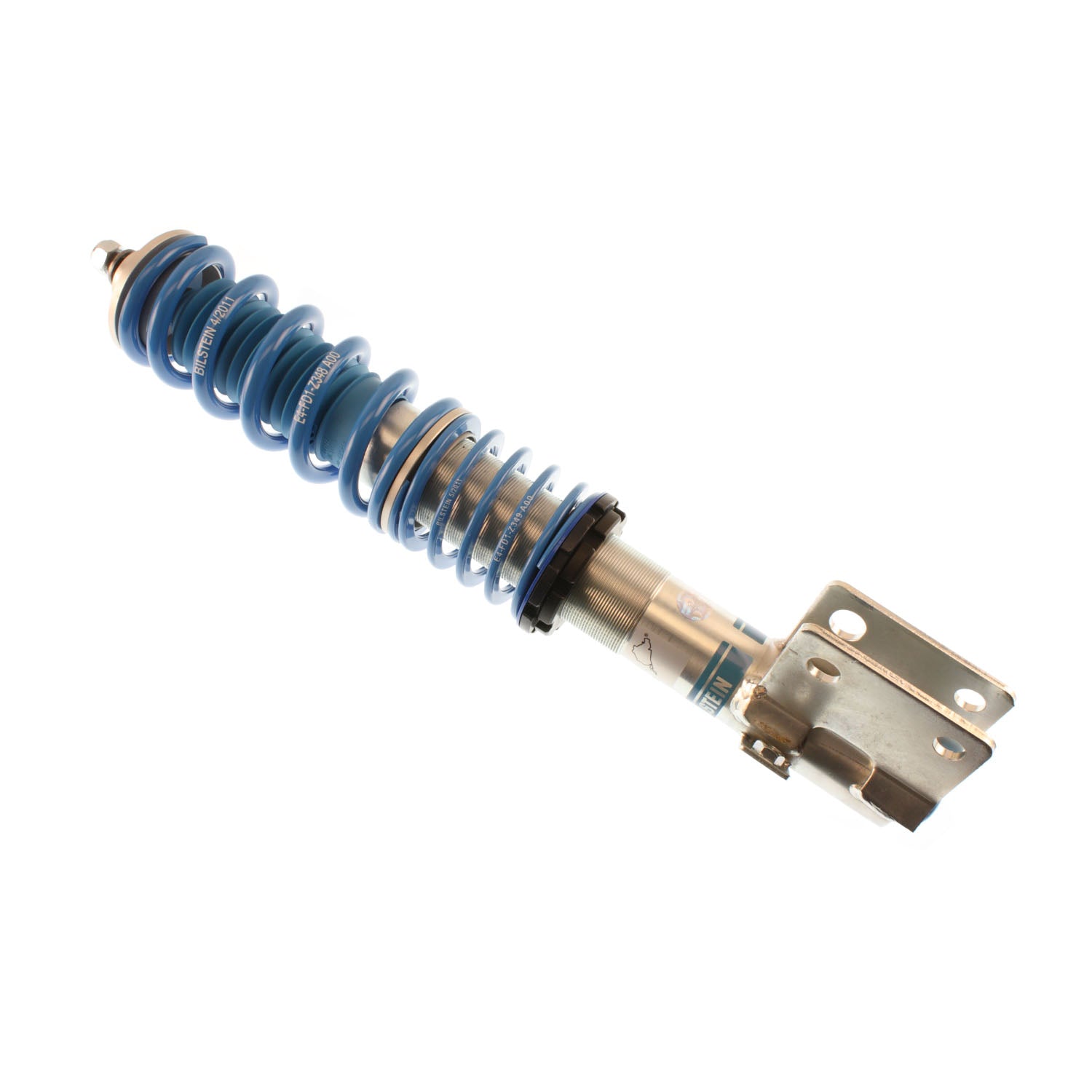

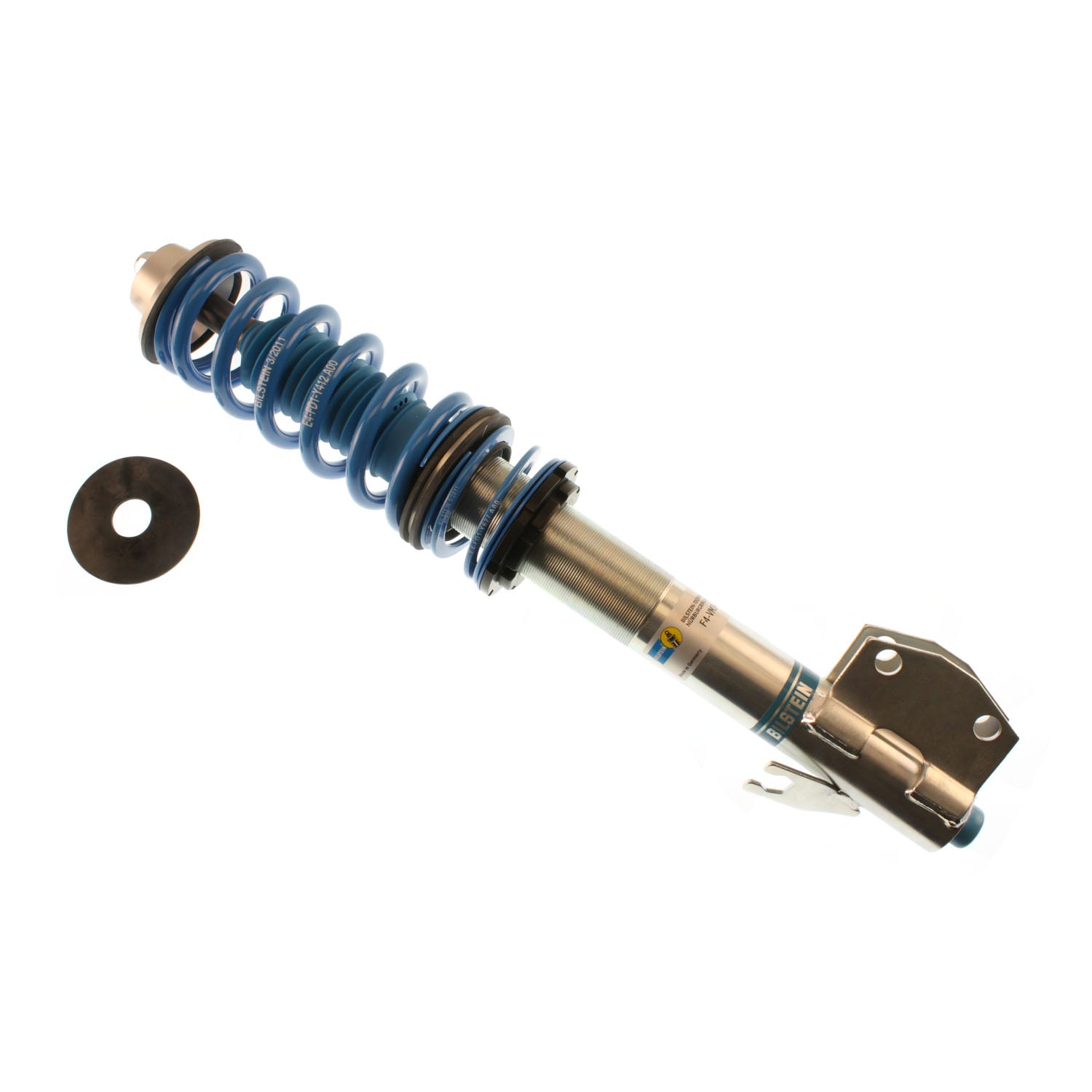

Bilstein 48-101288 B16 (PSS9) - Suspension Kit
Bilstein B16 (PSS9) suspension kits feature ride height adjustability with 9-stage manually adjustable dampers in an OE quality, direct fit package. The 9-stage damping system adjusts both rebound and compression with each click to provide the best handling performance in any condition. These kits offer monotube performance dampers with matched springs that are tuned for each specific application. The zinc coated and threaded body design will give you the flexibility to find the perfect ride height setting for your intended use while providing unsurpassed protection against the harshest road elements. B16 (PSS9) suspension kits are made in Germany and feature technology tested on the famed Nürburgring.
- Quick and easy damping level adjustment
- Threaded body allows lowering of approximately 30mm to 50mm
- Tested by our engineers under motorsport conditions
Specifications
| Finish | Dampers: Zinc Plated/Springs: Blue |
| Internal Design | Monotube |
| Front Main Spring Rate (lbs/in) | 405 |
| Front Main Spring Type | Linear |
| Front Tender Spring Rate (lbs/in) | 114 |
| Segment | Tuning |
| Rear Main Spring Rate (lbs/in) | 371 |
| Rear Main Spring Type | Linear |
| Rear Tender Spring Rate (lbs/in) | 142 |
| Series | B16 (PSS9) |
Packaging Information
Weight: 55.25 lbs
Dimensions: 30.3 x 11 x 8.3 IN
Safety
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
Warranty
60 Month Warranty
⚠ Fitment Notes
- Requires 15mm rear wheel spacers
- Requires 2001-2003 rear upper mounts; Requires 15mm rear wheel spacers
Share
Vehicle Fitment
Vehicle Fitment
- 2006-2007 Subaru Impreza 2.5i — Front and Rear
- 2001 Subaru Impreza L — Front and Rear
- 2001-2004 Subaru Impreza Outback — Front and Rear
- 2005-2007 Subaru Impreza Outback Sport — Front and Rear
- 2002-2005 Subaru Impreza RS — Front and Rear
- 2002-2004 Subaru Impreza TS — Front and Rear
- 2002-2007 Subaru Impreza WRX — Front and Rear
- 2006-2007 Subaru Impreza WRX Limited — Front and Rear
- 2004 Subaru Impreza WRX STI — Front and Rear
- 2006-2007 Subaru Impreza WRX TR — Front and Rear
