Bilstein 48-249546 B16 (PSS10) - Suspension Kit
Bilstein 48-249546 B16 (PSS10) - Suspension Kit
Low stock: 2 left
Couldn't load pickup availability
Description & Features

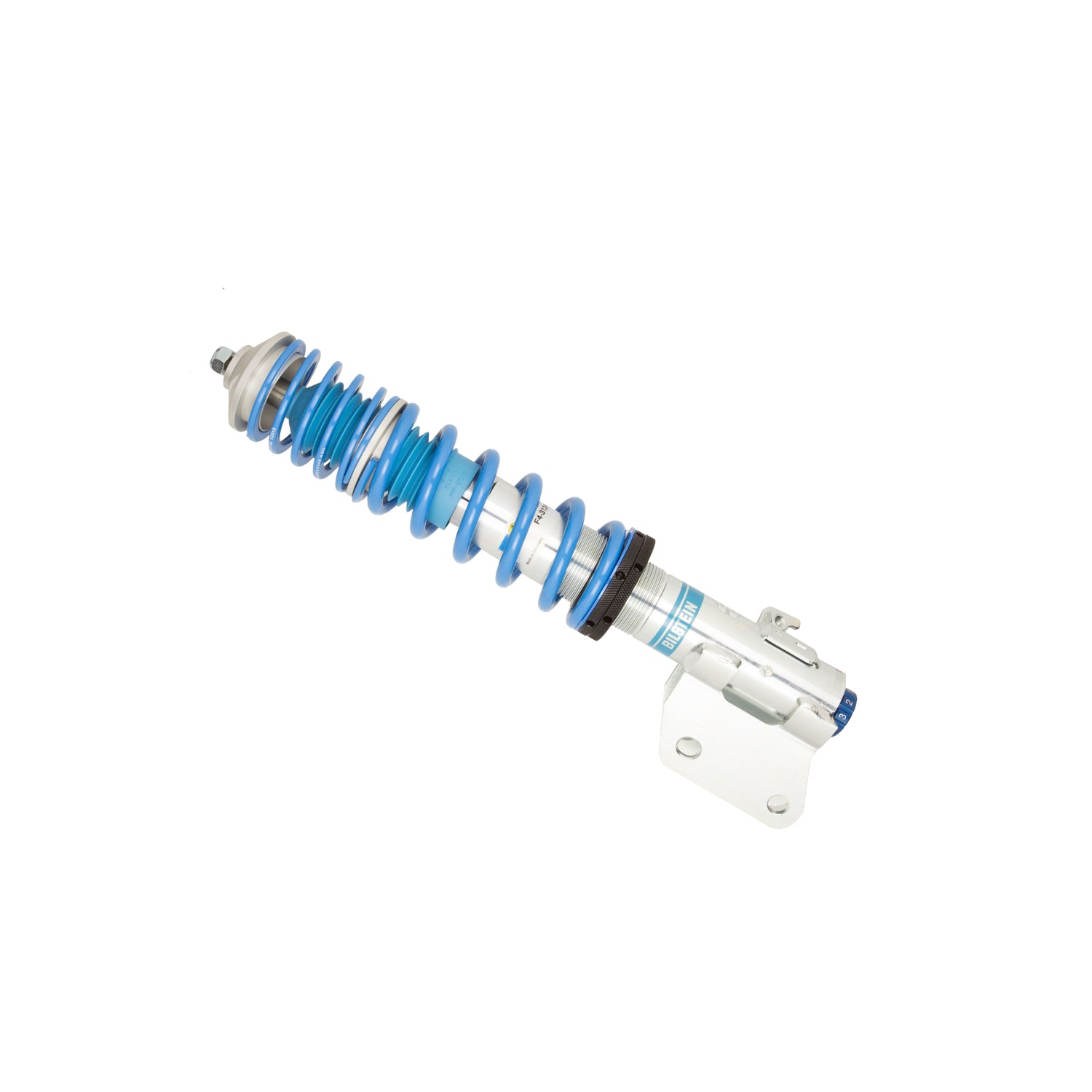

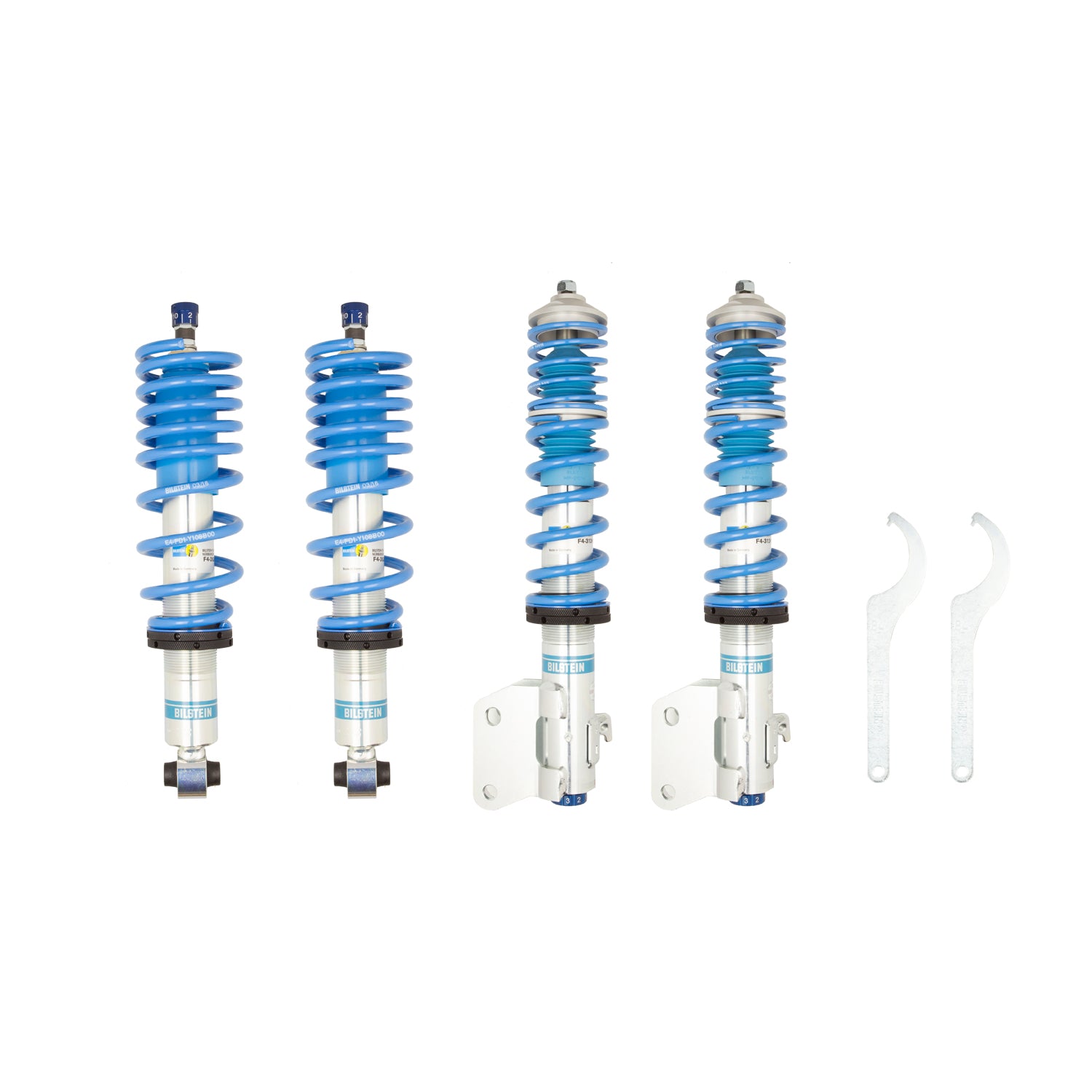

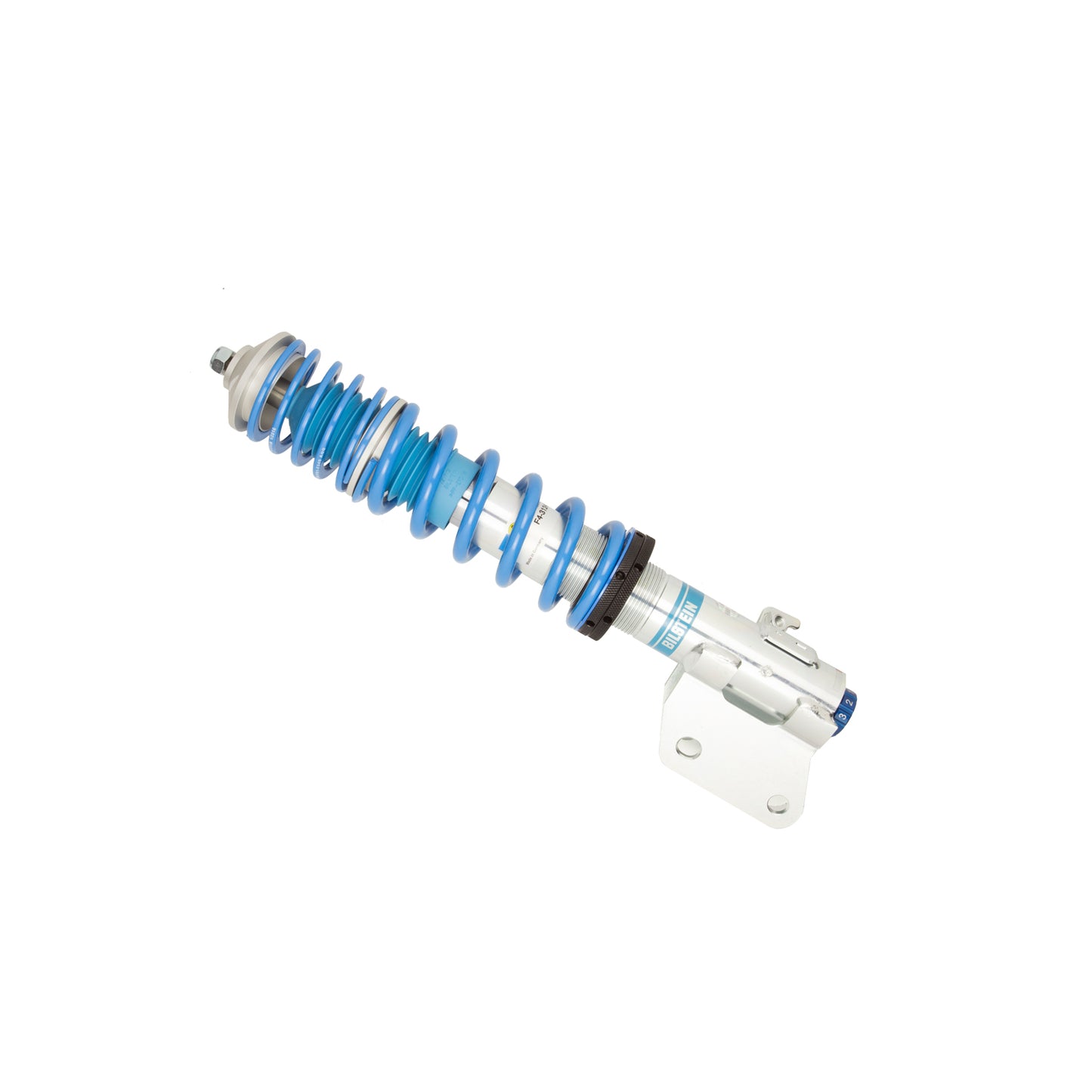

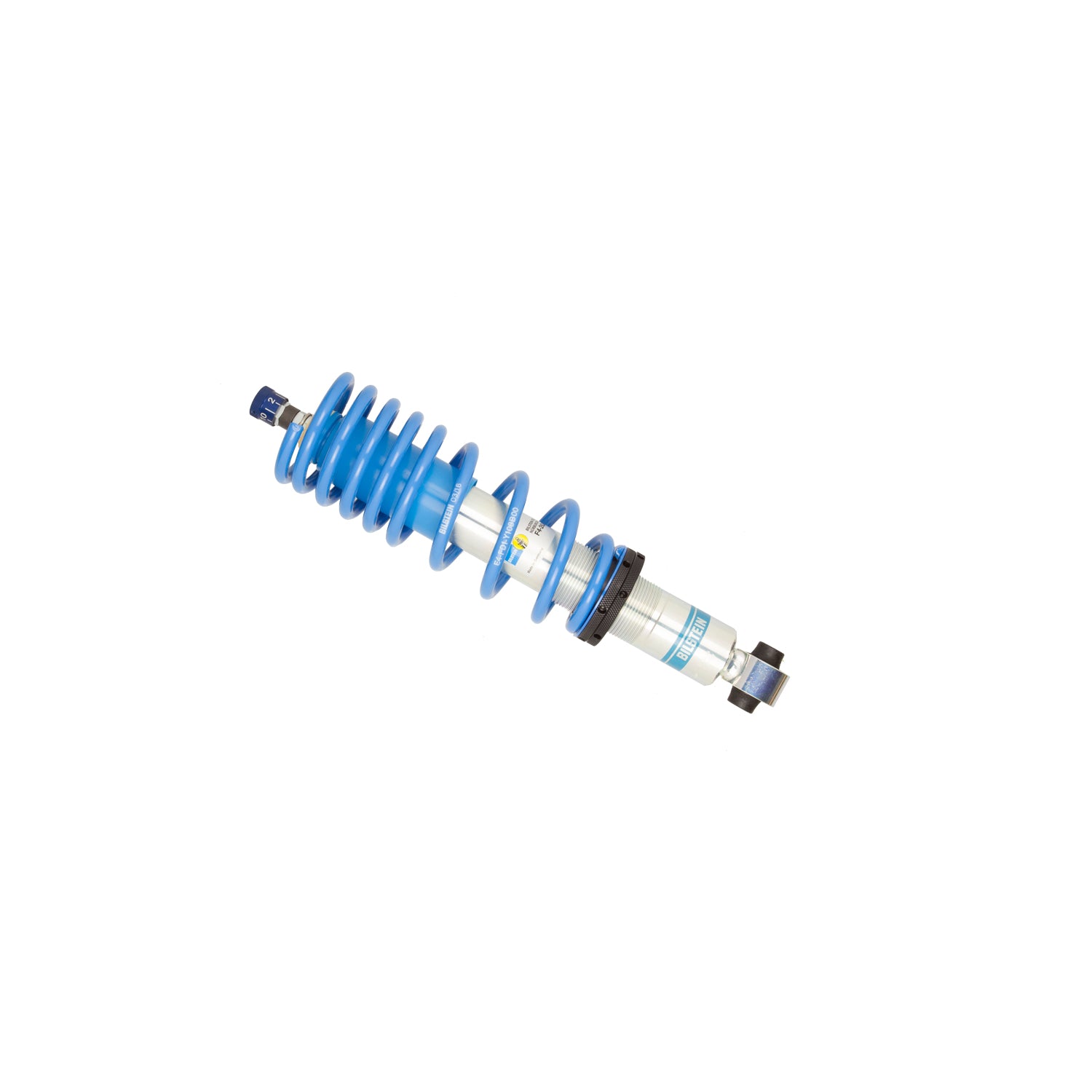

Bilstein 48-249546 B16 (PSS10) - Suspension Kit
Bilstein B16 (PSS10) suspension kits feature ride height adjustability with 10-stage manually adjustable dampers in an OE quality, direct fit package. The 10-stage damping system adjusts both rebound and compression with each click to provide the best handling performance in any condition. These kits offer monotube performance dampers with matched springs that are tuned for each specific application. The zinc coated and threaded body design will give you the flexibility to find the perfect ride height setting for your intended use while providing unsurpassed protection against the harshest road elements. B16 (PSS10) suspension kits are made in Germany and feature technology tested on the famed Nürburgring.
- Quick and easy damping level adjustment
- Threaded body allows lowering of approximately 30mm to 50mm
- Tested by our engineers under motorsport conditions
Specifications
| Front Main Spring Type | Linear |
| Rear Main Spring Rate (lbs/in) | 285.7 |
| Rear Tender Spring Rate (lbs/in) | N/A |
| Internal Design | Monotube |
| Front Main Spring Rate (lbs/in) | 405.69 |
| Front Tender Spring Rate (lbs/in) | 114.28 |
| Segment | Tuning |
| Rear Main Spring Type | Double Linear |
| Series | B16 (PSS10) |
| Finish | Dampers: Zinc/Springs: Blue |
Packaging Information
Weight: 49.89 lbs
Dimensions: 30.3 x 11 x 8.3 IN
Safety
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
Warranty
60 Month Warranty
⚠ Fitment Notes
- Front Lowered Height: 15-20mm, up to 1075kg Axle Load; Rear Lowered Height: 15-25mm, up to 1040kg Axle Load; Wheel spacers may be required for some wheel/tire combinations
Share
Vehicle Fitment
Vehicle Fitment
- 2015-2021 Subaru WRX Base — Front and Rear
- 2015-2021 Subaru WRX Limited — Front and Rear
- 2015-2021 Subaru WRX Premium — Front and Rear
- 2017-2018 Subaru WRX Sport — Front and Rear
- 2017-2018 Subaru WRX Sport-tech — Front and Rear
- 2015-2021 Subaru WRX STI Base — Front and Rear
- 2015 Subaru WRX STI Launch Edition — Front and Rear
- 2015-2021 Subaru WRX STI Limited — Front and Rear
- 2019 Subaru WRX STI S209 — Front and Rear
- 2016 Subaru WRX STI Series.HyperBlue — Front and Rear
- 2018 Subaru WRX STI Type RA — Front and Rear
