Bilstein AK7114R04 M 7100 - Suspension Shock Absorber
Bilstein AK7114R04 M 7100 - Suspension Shock Absorber
Low stock: 2 left
Couldn't load pickup availability
Description & Features

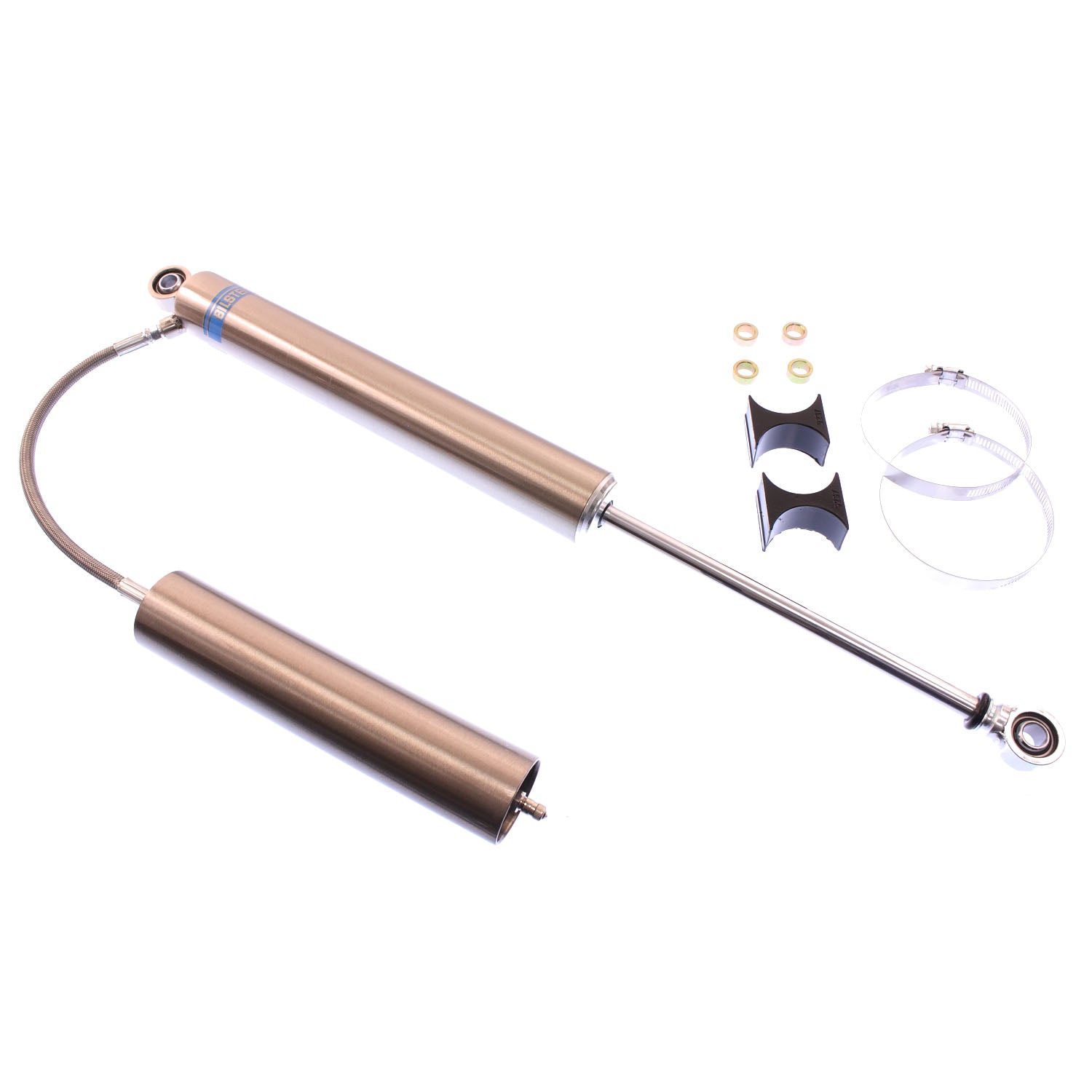

Bilstein AK7114R04 M 7100 - Suspension Shock Absorber

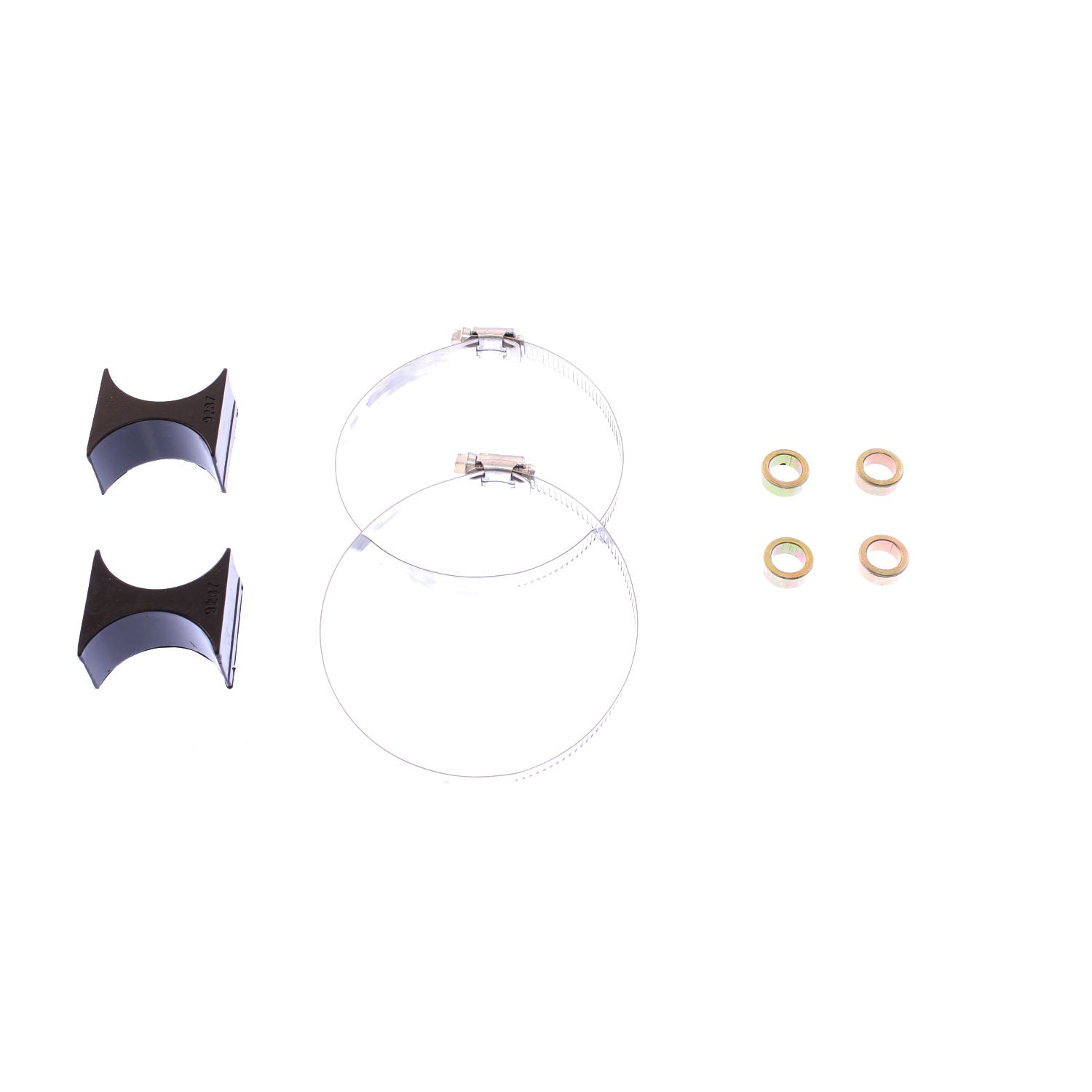

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
- High-flow piston reduces harshness
Specifications
| Collapsed Length (IN) | 20.83 |
| Shaft Diameter (mm) | 14.0 |
| Segment | Motorsports |
| Stroke/Travel Length (IN) | 14.39 |
| Extended Length (IN) | 35.22 |
| Finish | Nickel Plated with Clear Powder Coat |
| Upper Mount Type | 1/2in Heim |
| Stroke/Travel Length (mm) | 365.5 |
| Collapsed Length (MM) | 529.1 |
| Optional Reservoir Clamp | N/A |
| Internal Design | Monotube |
| Extended Length (MM) | 894.6 |
| Lower Mount Type | 1/2in Heim |
| Series | M 7100 |
| Rebound @0.52m/s | 2550 |
| Mount Type | Eye-to-Eye |
| Body Design | Smooth Body (Non-Coilover) |
| Compression @0.52m/s | 700 |
| Piston Diameter | 46mm |
| Reservoir | Yes |
| Spring Seat Included | No |
Packaging Information
Weight: 10.91 lbs
Dimensions: 37 x 7 x 2 IN
