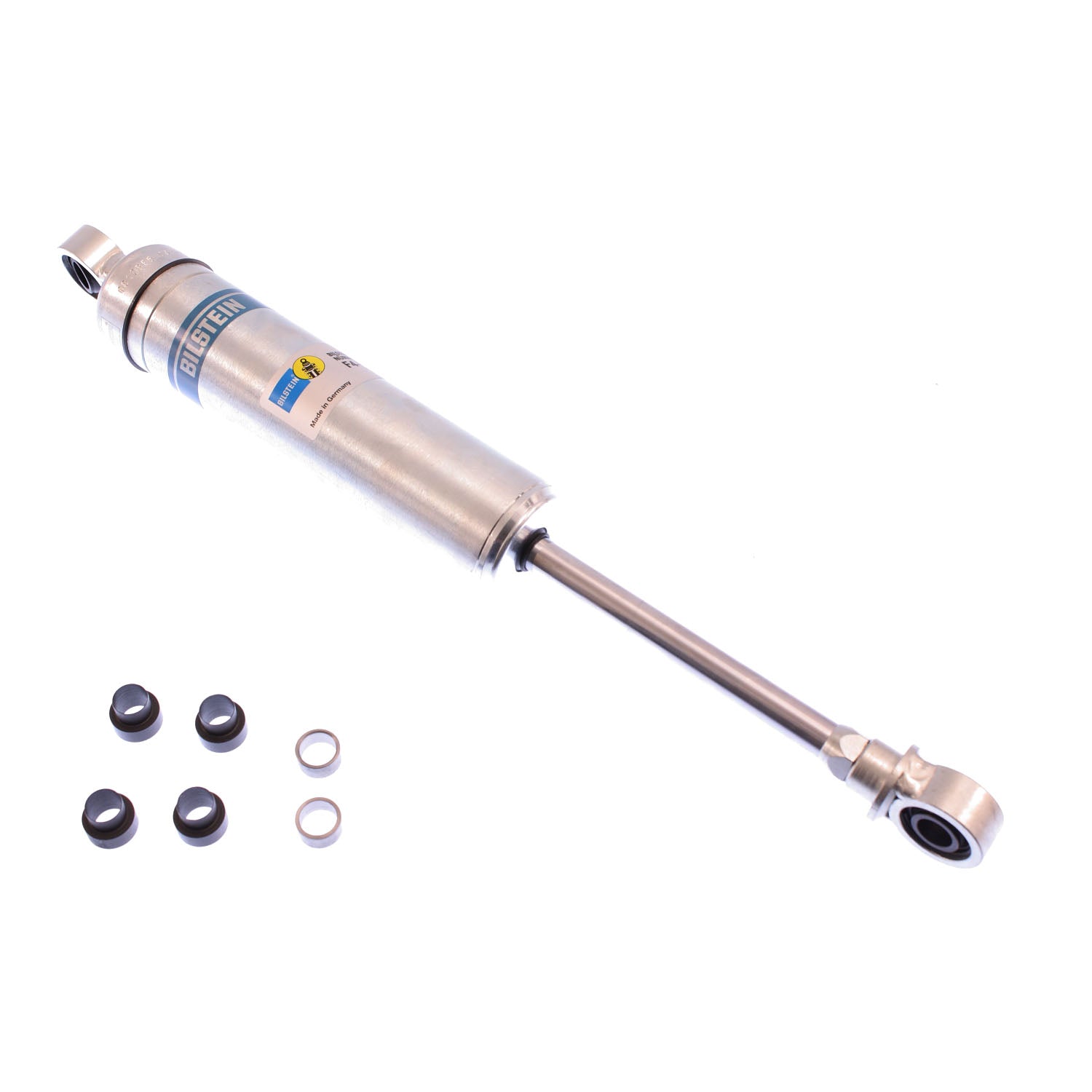

Bilstein F4-B46-0930-H0 M 7100 Classic - Suspension Shock Absorber
Bilstein F4-B46-0930-H0 M 7100 Classic - Suspension Shock Absorber
10 in stock
Couldn't load pickup availability
Description & Features
Bilstein F4-B46-0930-H0 M 7100 Classic - Suspension Shock Absorber
Bilstein M 7100 Classic shock absorbers are the most successful shock absorbers in off-road racing history. Since their inception in the early 70's, these 46mm monotube shock absorbers are equipped on more winning off-road cars and trucks than any other shock absorber. Today, the M 7100 Classic shock absorbers are perfect for meeting the demands of vintage off road race cars and VW based off-road recreational vehicles. Withstanding the test of time, the M 7100 Classic shock absorber will deliver period correct performance.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Available for standard and coilover applications in a wide variety of lengths
- Self-adjusting deflective disc valving
Specifications
| Shaft Diameter (mm) | 14.0 |
| Stroke/Travel Length (IN) | 5.00 |
| Upper Mount Type | 1/2in Heim |
| Collapsed Length (IN) | 11.24 |
| Internal Design | Monotube |
| Lower Mount Type | 1/2in Heim |
| Rebound @0.52m/s | 3500 |
| Mount Type | Eye-to-Eye |
| Body Design | Smooth Body (Coilover) |
| Piston Diameter | 46mm |
| Segment | Motorsports |
| Extended Length (IN) | 16.24 |
| Finish | Zinc Plated |
| Stroke/Travel Length (mm) | 127.0 |
| Optional Reservoir Clamp | N/A |
| Extended Length (MM) | 412.5 |
| Compression @0.52m/s | 1600 |
| Collapsed Length (MM) | 285.5 |
| Series | M 7100 Classic |
| Reservoir | No |
| Spring Seat Included | No |
Packaging Information
Weight: 3.66 lbs
Dimensions: 21.45 x 2.95 x 2.95 IN
Safety
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
Warranty
3 Month Warranty
