Bilstein
Bilstein F4-BOA-0000304 M 7100 Classic - Suspension Shock Absorber
Bilstein F4-BOA-0000304 M 7100 Classic - Suspension Shock Absorber
Low stock: 4 left
Couldn't load pickup availability
Description & Features

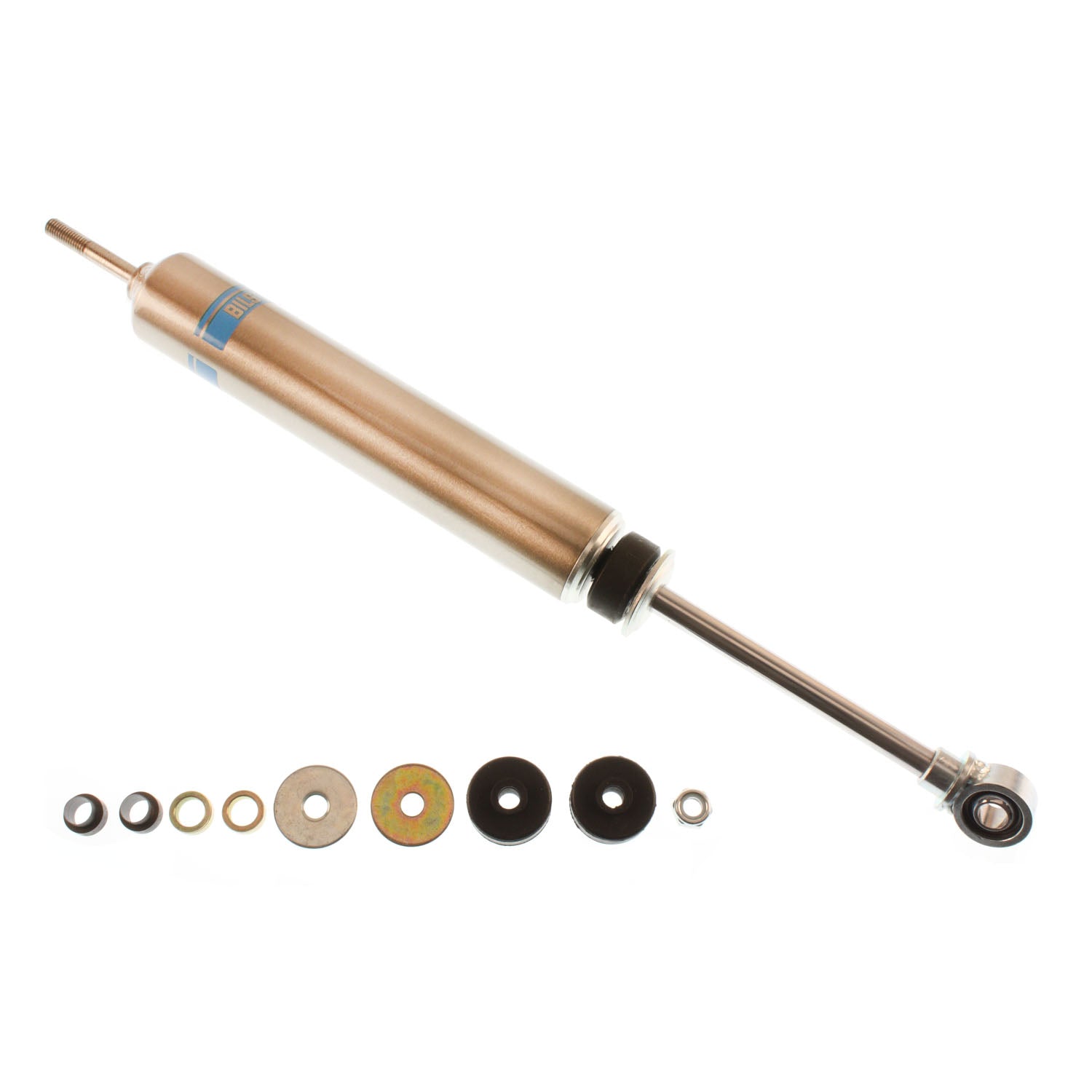

Bilstein F4-BOA-0000304 M 7100 Classic - Suspension Shock Absorber
Bilstein M 7100 Classic shock absorbers are the most successful shock absorbers in off-road racing history. Since their inception in the early 70's, these 46mm monotube shock absorbers are equipped on more winning off-road cars and trucks than any other shock absorber. Today, the M 7100 Classic shock absorbers are perfect for meeting the demands of vintage off road race cars and VW based off-road recreational vehicles. Withstanding the test of time, the M 7100 Classic shock absorber will deliver period correct performance.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Available for standard and coilover applications in a wide variety of lengths
- Self-adjusting deflective disc valving
Specifications
| Segment | Motorsports |
| Stroke/Travel Length (IN) | 6.59 |
| Finish | Nickel Plated with Clear Powder Coat |
| Stroke/Travel Length (mm) | 167.4 |
| Optional Reservoir Clamp | N/A |
| Extended Length (MM) | 476.0 |
| Compression @0.52m/s | 1150 |
| Collapsed Length (MM) | 308.6 |
| Series | M 7100 Classic |
| Spring Seat Included | No |
| Shaft Diameter (mm) | 11.0 |
| Body Design | Smooth Body (Non-Coilover) |
| Upper Mount Type | Stem |
| Extended Length (IN) | 18.74 |
| Internal Design | Monotube |
| Lower Mount Type | 12mm Heim |
| Rebound @0.52m/s | 2200 |
| Mount Type | Stem-to-Eye |
| Reservoir | No |
| Collapsed Length (IN) | 12.15 |
| Piston Diameter | 46mm |
Packaging Information
Weight: 4.3 lbs
Dimensions: 26 x 2.75 x 2.5 IN
Safety
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
Warranty
3 Month Warranty
