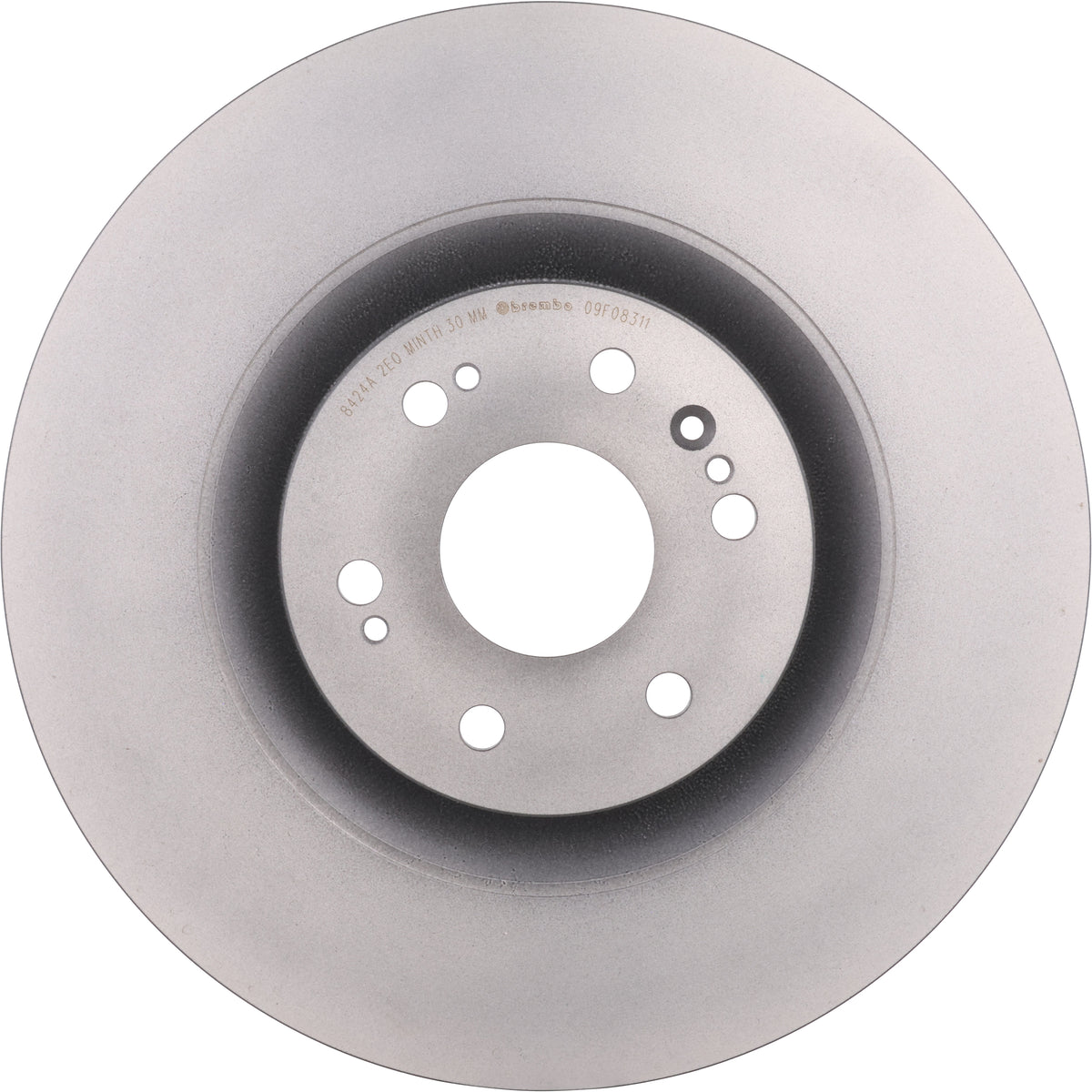

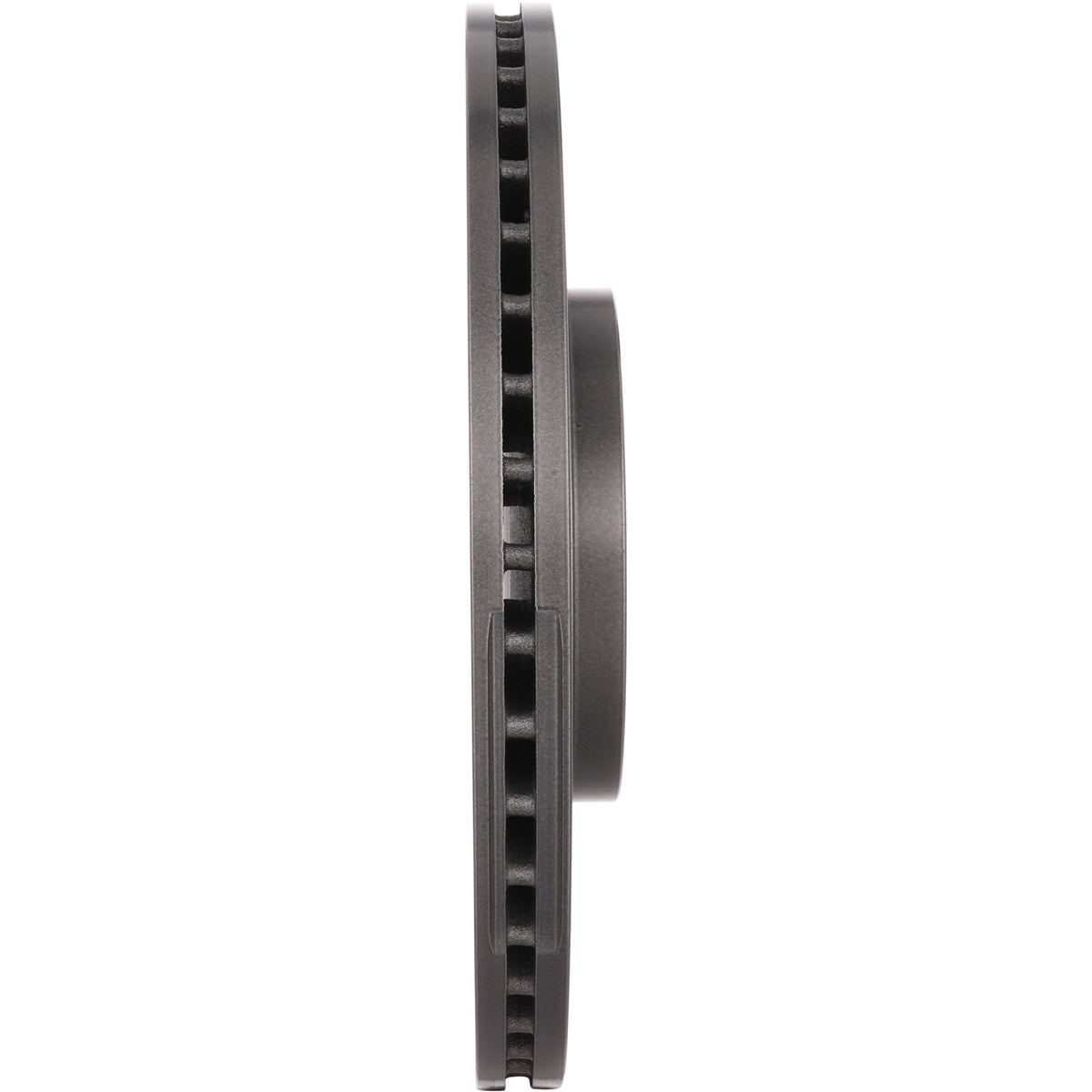

Brembo 09.F083.11 PRIME Disc Brake Rotor – Front
Brembo 09.F083.11 PRIME Disc Brake Rotor – Front
Low stock: 2 left
Couldn't load pickup availability
Description & Features
Brembo 09.F083.11 PRIME Disc Brake Rotor – Front
Brembo brake rotors embody the brand’s legacy of innovation, precision, and racing pedigree, delivering superior braking performance, durability, and safety for every vehicle and driving style. Designed and manufactured with the same engineering rigor found in Brembo’s original equipment for the world’s leading automakers, these rotors ensure consistent stopping power, smooth operation, and long-lasting reliability. Each rotor is crafted from premium cast iron formulations optimized for strength, heat dissipation, and vibration control. Many applications feature elevated or high-carbon metallurgy that enhances thermal stability and reduces the risk of distortion or cracking under extreme conditions. Brembo’s signature UV coating protects the entire rotor surface, including internal ventilation chambers, against corrosion to ensure lasting performance and a clean, refined appearance even after extended use. Advanced venting designs, including Brembo’s exclusive Pillar Venting Technology (PVT), increase airflow through the rotor for up to 40% greater resistance to thermal cracking compared to conventional vane systems. Precision balancing and tight manufacturing tolerances minimize runout and vibration, promoting smooth and confident braking performance. From solid and vented discs to drilled and slotted designs, each rotor is engineered to match or exceed OE specifications for fit, function, and performance. Brembo rotors undergo strict electronic testing and quality control to ensure perfect balance and reliability right out of the box, delivering the craftsmanship, confidence, and comfort expected from the global leader in braking systems
- VENTED COOLING: OE based vane design promotes effective heat dissipation and consistent braking performance, ensuring thermal stability and reliable operation
- FULLY COATED: Brembo's signature UV coating protects the entire rotor surface, including the internal ventilation chambers, against corrosion, keeping rotors looking new and maintaining long lasting performance
- ELEVATED CARBON CONTENT: Optimized metallurgy provides increased strength, heat dissipation, and reduced vibration, engineered to help prevent runout and deliver reliable, fade-resistant braking performance
- OE REPLACEMENT: Engineered to meet or exceed OE specifications, delivering precise fit, consistent braking, and Brembo-certified quality with ECE R-90 compliance
- QUAILTY: Top of the line manufacturing standards help deliver a reliable fitment, performance and product quality
- Necessary Hardware: Fixing screws and all necessary hardware required by the manufacturer in the box
Specifications
| Center Hole Diameter | 78.6 |
| Brake Surface Finish | Coated |
| Construction | Full Cast |
| Material | High Carbon Cast Iron |
| ABS Tone Ring Included | No |
| Grade Type | Premium |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| Overall Height | 55 |
| Outside Diameter | 410 |
| Nominal Thickness | 32 |
| Discard Thickness | 1.181 |
| Weight | 18.6 |
Packaging Information
Weight: 19.3 lbs
Dimensions: 41.7 x 41.7 x 8 CM
Warranty
2 YR
Share
Vehicle Fitment
Vehicle Fitment
- 2023 Cadillac Escalade BASE (with Brake Code J55 + with Heavy Duty Brakes)
- 2023 Cadillac Escalade ESV BASE (with Brake Code J55 + with Heavy Duty Brakes)
- 2023-2024 Cadillac Escalade ESV V (with Brake Code J55 + with Heavy Duty Brakes)
- 2023-2024 Cadillac Escalade V (with Brake Code J55 + with Heavy Duty Brakes)
- 2023 Chevrolet Silverado 1500 BASE (with Brake Code J55 + with Heavy Duty Brakes)
- 2023-2024 Chevrolet Silverado 1500 PPV (with Brake Code J55 + with Heavy Duty Brakes)
- 2023 Chevrolet Tahoe BASE (6 Piston Caliper + with Brake Code J55 OR with Brake Code J55 + with Heavy Duty Brakes + with Police Package)
- 2022 Chevrolet Tahoe BASE (with Brake Code J55 + with Heavy Duty Brakes + with Police Package)
- 2023-2024 Chevrolet Tahoe PPV (6 Piston Caliper + with Brake Code J55 OR with Brake Code J55 + with Heavy Duty Brakes + with Police Package)
- 2021-2022 Chevrolet Tahoe PPV (with Brake Code J55 + with Heavy Duty Brakes + with Police Package)
- 2025 Chevrolet Tahoe RST
- 2023-2024 Chevrolet Tahoe RST (6 Piston Caliper + with Brake Code J55 OR with Brake Code J55 + with Heavy Duty Brakes + with Police Package)
- 2023-2024 Chevrolet Tahoe SSV (6 Piston Caliper + with Brake Code J55 OR with Brake Code J55 + with Heavy Duty Brakes + with Police Package)
- 2021-2022 Chevrolet Tahoe SSV (with Brake Code J55 + with Heavy Duty Brakes + with Police Package)
