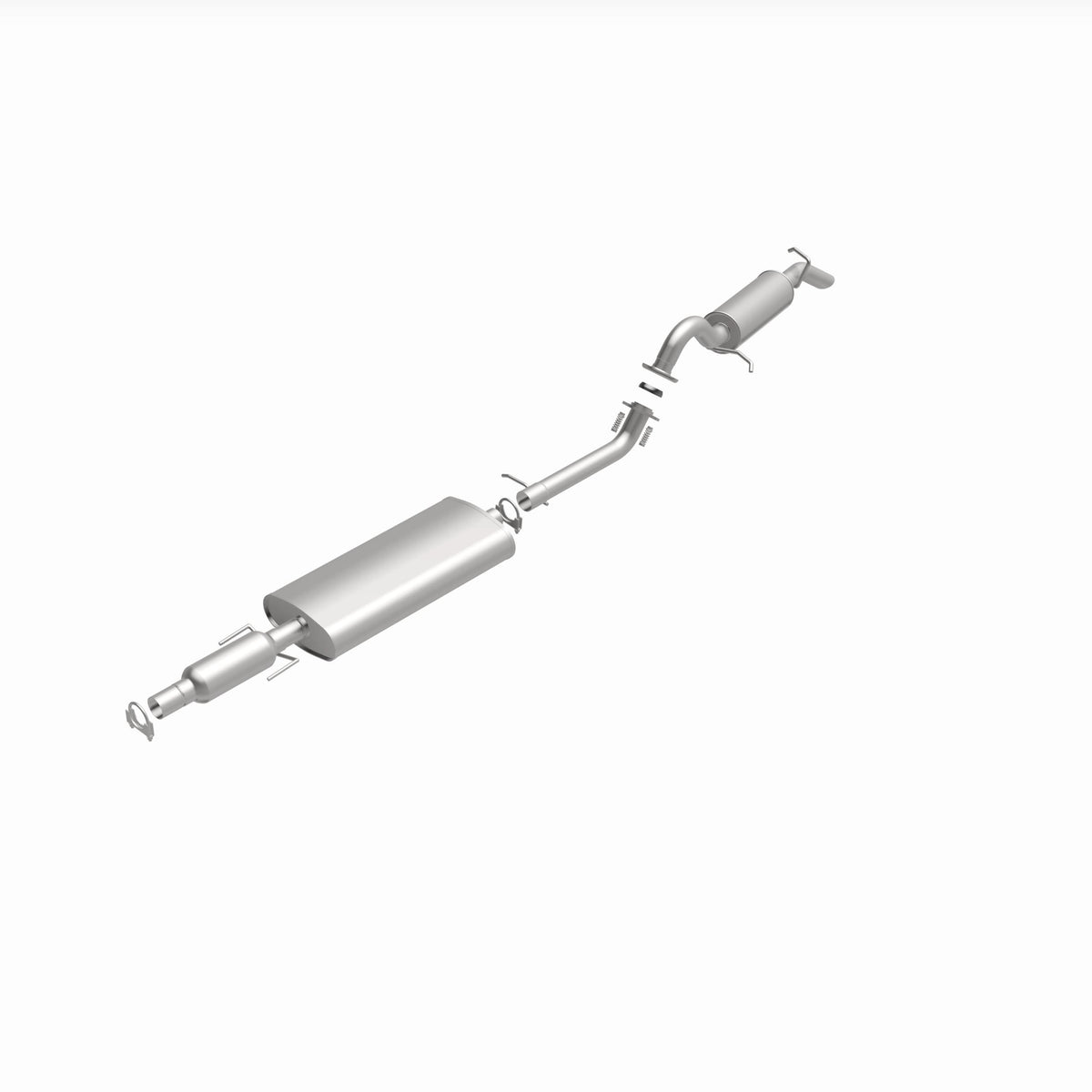

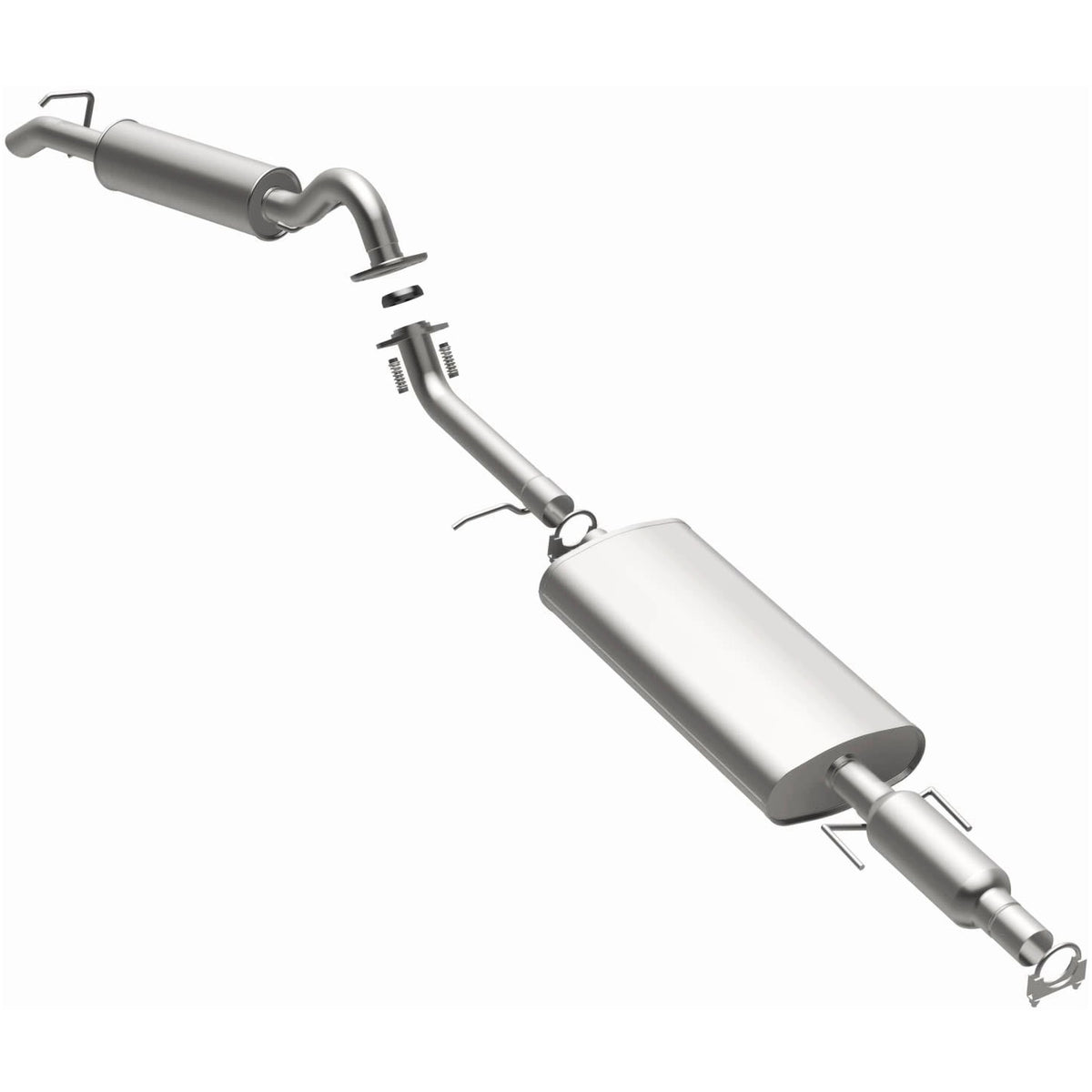

BRExhaust 106-0062 Direct-Fit Exhaust System Replacement Kit

BRExhaust 106-0062 Direct-Fit Exhaust System Replacement Kit

Regular price $475.00 USD
Regular price Sale price $475.00 USD
Mechanic Division pricing available
Sale Sold out
Shipping calculated at checkout.

Low stock: 3 left

Quantity
Description & Features

BRExhaust 106-0062 Direct-Fit Exhaust System Replacement Kit

BRExhaust Direct-Fit Replacement Exhaust Kit 106-0062 takes the guesswork out of replacing your exhaust system while providing a reliable and high-quality alternative to the OEM exhaust. You will find all of the gaskets and clamps needed to get the job done in the carefully packaged box. 106-0062’s precision mandrel bent pipes facilitate superior exhaust flow compared to the crush-bent pipes commonly used in competing aftermarket replacement exhaust systems. The multi-piece, bolt-on design ensures the exhaust system is easy to install yourself and fits perfectly to help get you back on the road in no time. No bending or welding is required for installation. BRExhaust Direct-Fit Replacement Exhaust Kit 106-0062 includes (1) Donut Gasket, (1) 2.25in. U-Bolt Clamp, (2) Bolts, (2) Nuts and interchanges with OE parts 9L8Z-5230-C, 9L8Z-5A212-A, 9L8Z-5A212-B, 9L8Z-5A212-C, AL8Z-5230-A, AL8Z-5230-B, AL8Z-5K256-A. BRExhaust Direct-Fit Replacement Exhaust Kit 106-0062 features durable Aluminized Steel construction and is covered by a 2 year warranty.

  • Two year, unlimited mileage warranty
  • Leaves all emissions equipment intact, maintaining emissions compliance

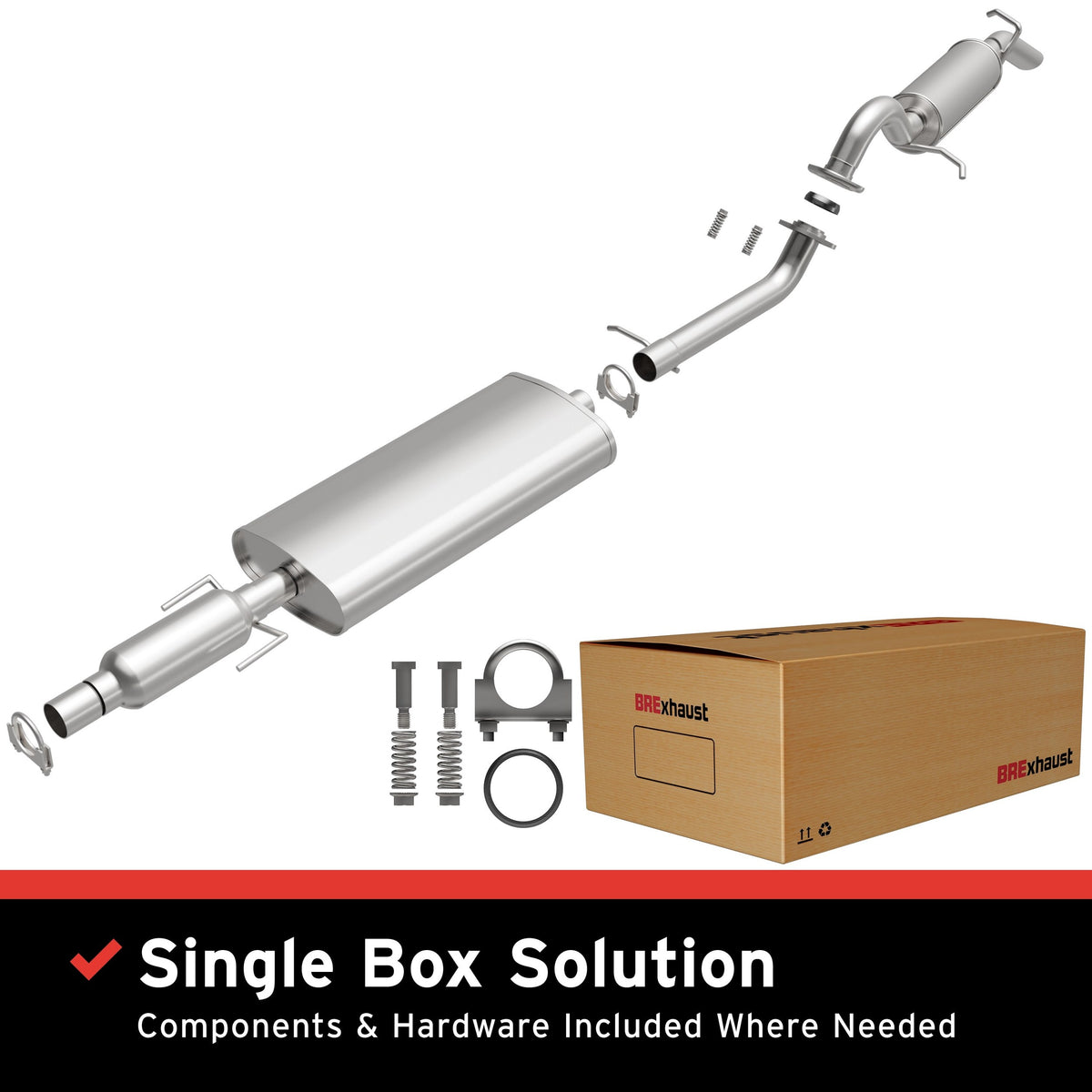

  • All components, gaskets, clamps, and hardware required, along with installation instructions, are packaged together in a single protective box
  • Bolt-on, multi-piece design for smooth and easy DIY installation around obstructions, ensuring quality fitment and function without requiring fabrication
  • Complete mandrel-bent replacement of all parts from behind or near the last catalytic converter, offering long-lasting, high corrosion resistance and durability
Specifications
Catalytic Converter Quantity 0
Exhaust Tip Quantity 1
Grade Type Regular
Hangers Included Yes
Inlet Type Clamp On
Main Piping Diameter 2.25
Mounting Bracket Included No
Muffler (Center) Body Height 5
Muffler (Center) Body Length 25
Muffler (Center) Body Width 11
Muffler (Front) Body Height 4
Muffler (Front) Body Length 12.5
Muffler (Front) Body Width 4
Muffler (Rear) Body Height 4
Muffler (Rear) Body Length 12.5
Muffler (Rear) Body Width 4
Muffler Body Material Aluminized Steel
Muffler Finish Aluminized
Muffler Quantity 3
Pipe Material Aluminized Steel
Spring Bolt Kit Included No
Type Cat-Back
Valve Included No
Gasket Or Seal Included No
Finish Satin
Exit Style OEM Location
Exhaust Tip Resonated No
Clamps Included Yes
Clamping Type U Bolt
Hardware Included Yes
Series Direct-Fit Exhaust
Catalytic Converter Included No
Packaging Information

Weight: 45 lbs
Dimensions: 46 x 22 x 12.75 IN

Warranty

2 YR

Installation Instructions

View Installation Instructions (PDF)

Vehicle Fitment

  • 2009-2012 Ford Escape BASE
  • 2009-2012 Ford Escape Limited
  • 2009-2012 Ford Escape XLS
  • 2009-2012 Ford Escape XLT
  • 2009-2011 Mazda Tribute BASE
  • 2009-2010 Mazda Tribute GX
  • 2009-2010 Mazda Tribute i
