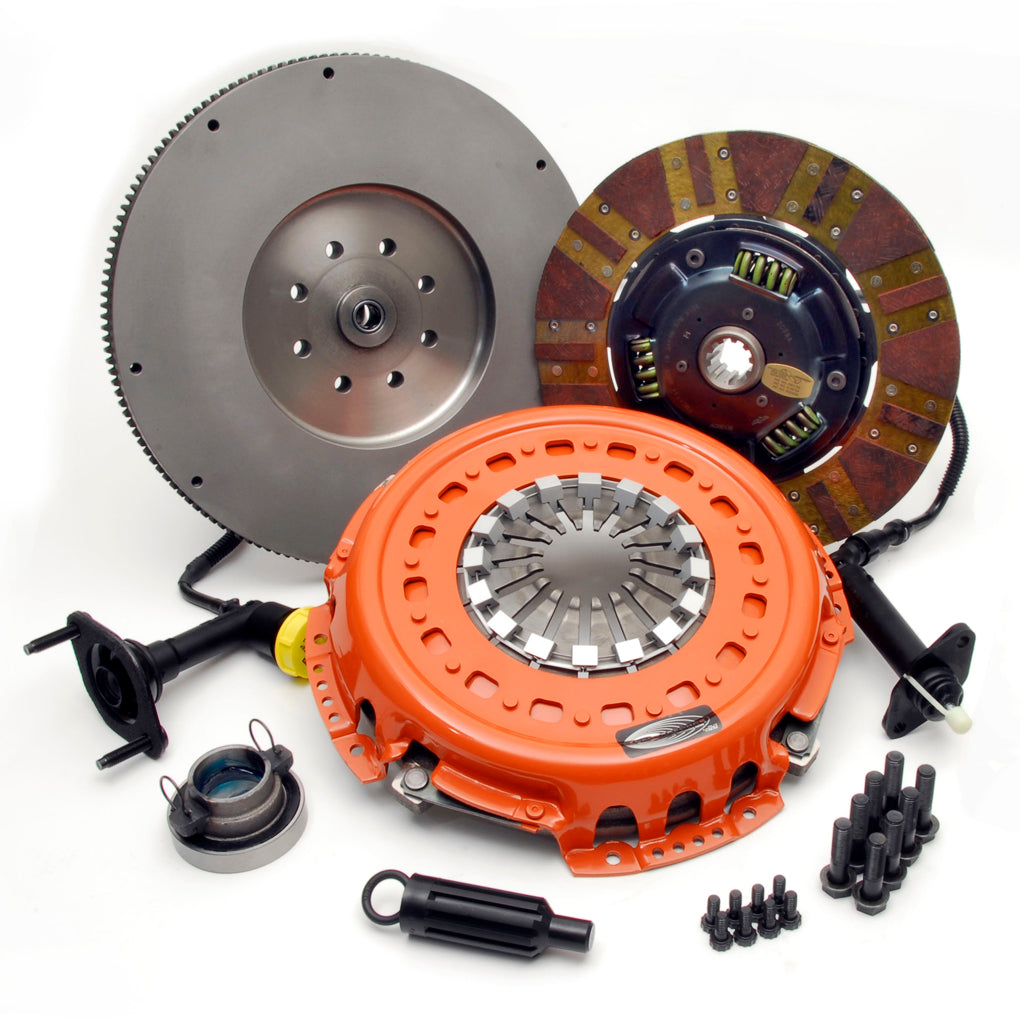

Centerforce DF143253 Dual Friction(R), Clutch Pressure Plate, Disc, and Flywheel Set
Centerforce DF143253 Dual Friction(R), Clutch Pressure Plate, Disc, and Flywheel Set
Low stock: 1 left
Couldn't load pickup availability
Description & Features
Centerforce DF143253 Dual Friction(R), Clutch Pressure Plate, Disc, and Flywheel Set
The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.
Specifications
| Flywheel Counter Balance Weight | 0 |
| Disc Quantity | 1 |
| Input Shaft Diameter | 1-3/8 |
| Input Spline Quantity | 10 |
| Flywheel Crank Bolt Size | 12 |
| Clutch Disc Diameter | 330.2 |
| Ring Gear O.D. | 15.625 |
| Tooth Quantity | 152 |
| Clutch Bolt Pattern | 23 |
| Crankshaft Bolt Hole Quantity | 8 |
| Torque Capacity | 900 |
| Made In The USA | Assembled |
| Material | Cast Iron Flywheel / Cast Iron Pressure Plate / Segmented Organic Friction |
| Disc Material | Organic/Carbon Composite |
| Disc Type | Segmented face |
| Disc Type Sprung Solid | Sprung |
| California Proposition 65 | WARNING - includes Nickel - cancer. www.P65Warnings.ca.gov. |
| Alignment Tool Included | Yes |
| Counterweight Assist | YES |
| Mounting Hardware Included | Yes |
| Pilot Bushing Included | Yes |
| Release Bearing Included | Yes |
Packaging Information
Weight: 109 lbs
Dimensions: 18 x 18 x 5.5 IN
Safety
⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov
Warranty
12 Month Warranty
Installation Instructions
⚠ Fitment Notes
- G56 - Single Mass Flywheel Conversion, May Cause Drivetrain Noise
Share
Vehicle Fitment
Vehicle Fitment
- 2005-2010 Dodge Ram 2500
- 2005-2010 Dodge Ram 3500
- 2008-2010 Dodge Ram 4500
- 2008-2010 Dodge Ram 5500
- 2011-2018 Ram 2500
- 2011-2018 Ram 3500
- 2011-2017 Ram 4500
- 2011-2016 Ram 5500
