Centerforce
Centerforce DF148552 Dual Friction(R), Clutch Pressure Plate and Disc Set
Centerforce DF148552 Dual Friction(R), Clutch Pressure Plate and Disc Set
Low stock: 4 left
Couldn't load pickup availability
Description & Features

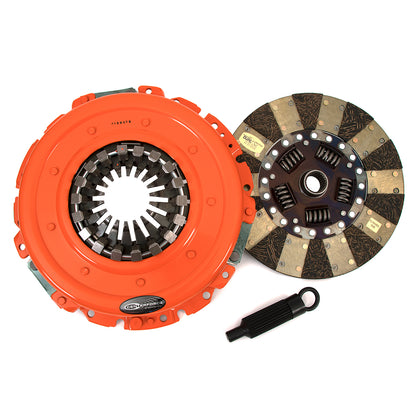

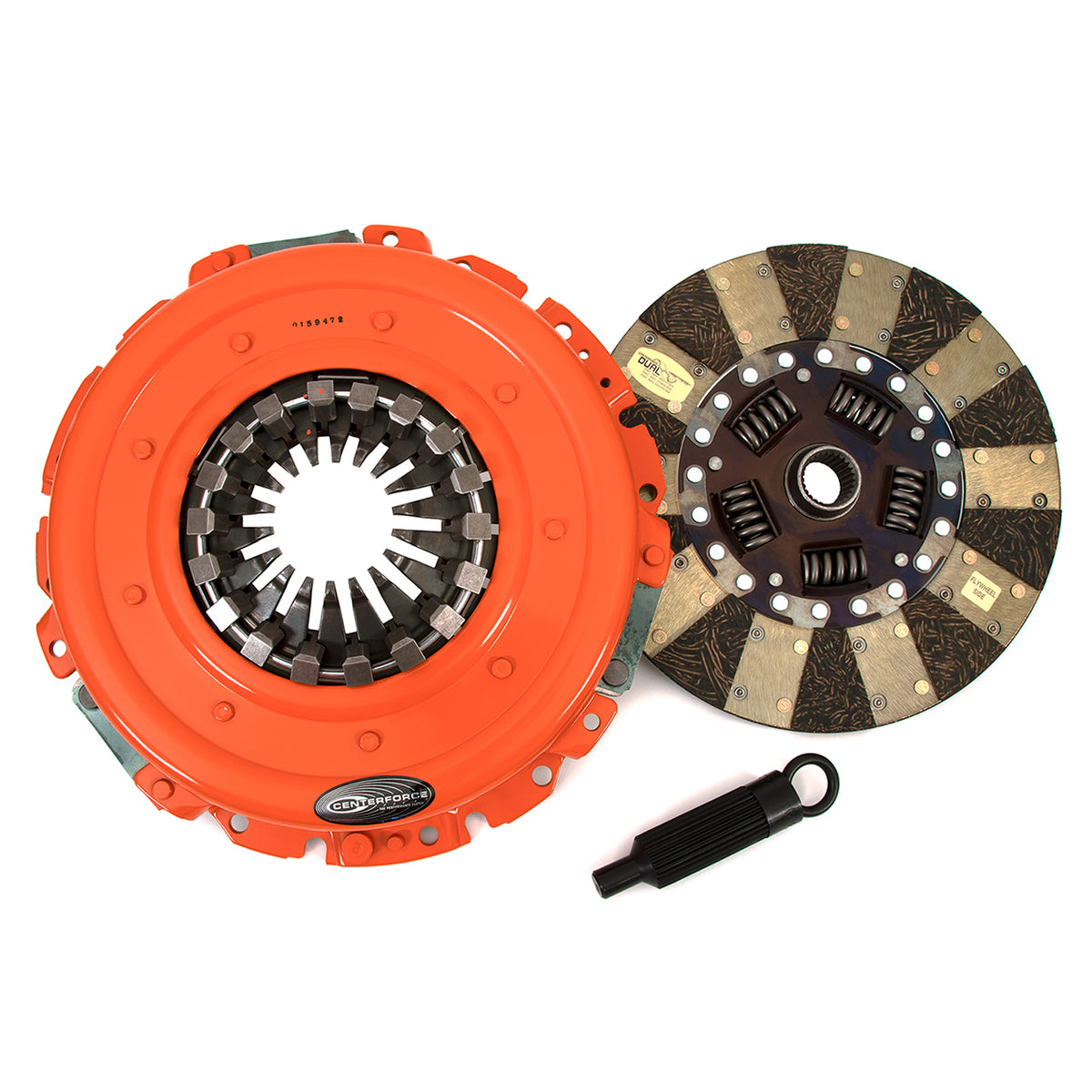

Centerforce DF148552 Dual Friction(R), Clutch Pressure Plate and Disc Set
The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.
Specifications

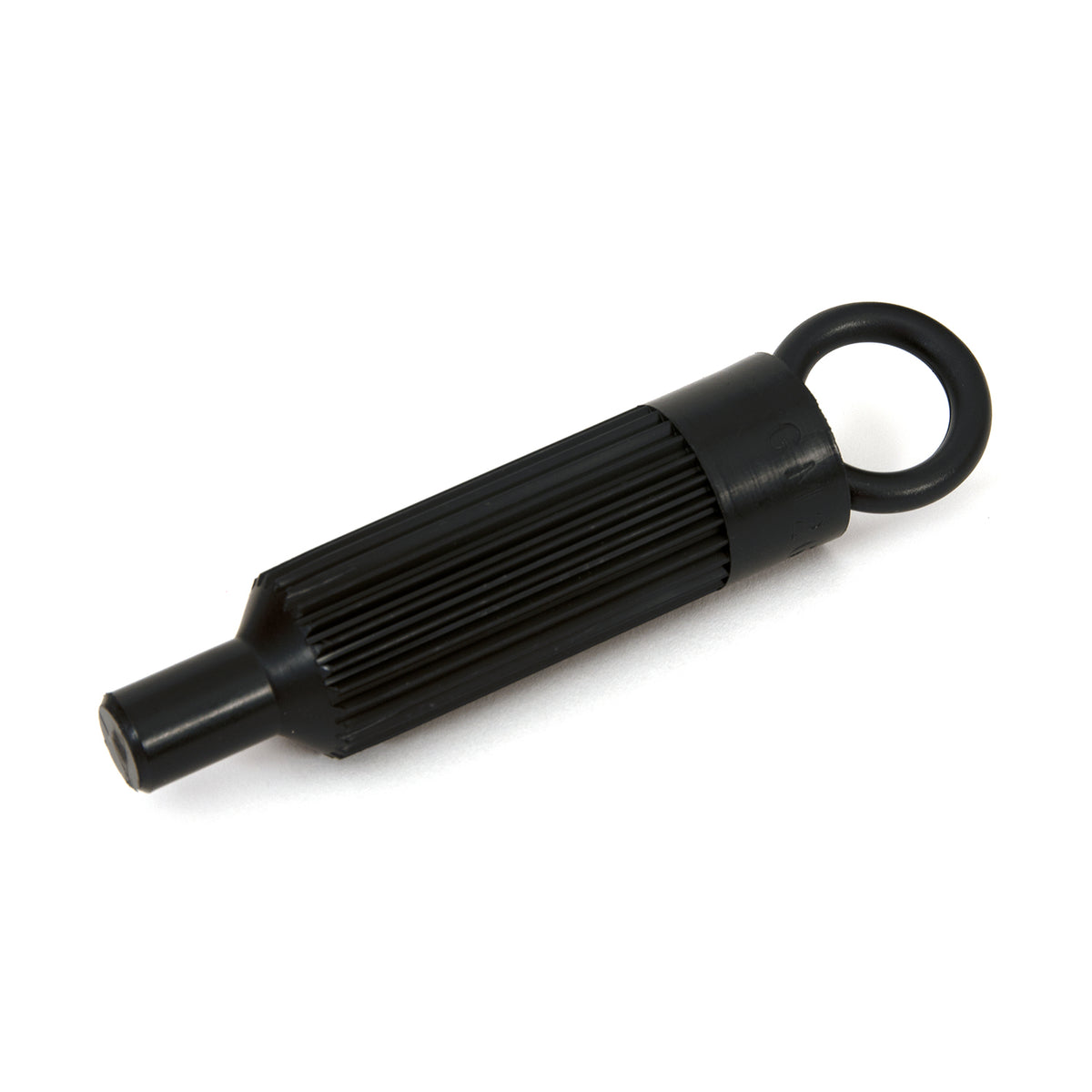

| Alignment Tool Included | Yes |
| California Proposition 65 | WARNING - includes Nickel - cancer. www.P65Warnings.ca.gov. |
| Clutch Bolt Pattern | 3 |
| Clutch Disc Diameter | 279.4 |
| Counterweight Assist | YES |
| Disc Material | Organic/Carbon Composite |
| Disc Type Sprung Solid | Sprung |
| Disc Type | Full face/Segmented face |
| Flywheel Step Type | Flat |
| Input Shaft Diameter | 1-1/8 |
| Input Spline Quantity | 26 |
| Made In The USA | Assembled |
| Material | Nodular Iron Pressure Plate / Full Face and Segmented Organic Friction |
| Torque Capacity | 622 |
Packaging Information
Weight: 31.3 lbs
Dimensions: 14 x 14 x 4 IN
Safety
⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov
Warranty
12 Month Warranty
Installation Instructions
⚠ Fitment Notes
- Optional 1-1/8 Inch-26 Spline Transmission
- Muncie Transmission
- 26 Spline
- 11 Inch Clutch, Except California
- W31 Only
- High Preformance Engine
- Optional Transmission
Share
Vehicle Fitment
Vehicle Fitment
- 1971-1973 Buick Centurion
- 1971-1973 Buick Electra
- 1971-1973 Buick LeSabre
- 1973 Buick Regal
- 1971 Buick Skylark
- 1966-1969 Chevrolet Bel Air
- 1971 Chevrolet Bel Air
- 1965-1969 Chevrolet Biscayne
- 1971 Chevrolet Biscayne
- 1969-1974 Chevrolet Blazer
- 1975-1979 Chevrolet C10
- 1962-1974 Chevrolet C10 Pickup
- 1968-1974 Chevrolet C10 Suburban
- 1977-1979 Chevrolet C10 Suburban
- 1975-1979 Chevrolet C20
- 1962-1974 Chevrolet C20 Pickup
- 1968-1974 Chevrolet C20 Suburban
- 1977-1979 Chevrolet C20 Suburban
- 1975-1979 Chevrolet C30
- 1962-1974 Chevrolet C30 Pickup
- 1967-1980 Chevrolet Camaro
- 1981 Chevrolet Camaro Z28
- 1966-1969 Chevrolet Caprice
- 1971 Chevrolet Caprice
- 1966-1972 Chevrolet Chevelle
- 1968 Chevrolet Chevy II
- 1970-1981 Chevrolet Corvette
- 1966-1974 Chevrolet El Camino
- 1965-1969 Chevrolet Impala
- 1971 Chevrolet Impala
- 1975-1979 Chevrolet K10
- 1962-1974 Chevrolet K10 Pickup
- 1968-1973 Chevrolet K10 Suburban
- 1977-1979 Chevrolet K10 Suburban
- 1975-1979 Chevrolet K20
- 1962-1974 Chevrolet K20 Pickup
- 1968-1974 Chevrolet K20 Suburban
- 1978 Chevrolet K20 Suburban
- 1977-1979 Chevrolet K30
- 1968-1974 Chevrolet K30 Pickup
- 1975-1979 Chevrolet K5 Blazer
- 1970-1974 Chevrolet Monte Carlo
- 1969-1970 Chevrolet Nova
- 1962-1966 Chevrolet Suburban
- 1975-1978 GMC C15
- 1975-1978 GMC C15 Suburban
- 1968-1974 GMC C15/C1500 Pickup
- 1968-1974 GMC C15/C1500 Suburban
- 1979-1984 GMC C1500
- 1979 GMC C1500 Suburban
- 1981-1984 GMC C1500 Suburban
- 1975-1978 GMC C25
- 1975-1978 GMC C25 Suburban
- 1968-1974 GMC C25/C2500 Pickup
- 1968-1974 GMC C25/C2500 Suburban
- 1979-1984 GMC C2500
- 1979 GMC C2500 Suburban
- 1982-1984 GMC C2500 Suburban
- 1975-1978 GMC C35
- 1968-1974 GMC C35/C3500 Pickup
- 1979 GMC C3500
- 1970-1984 GMC Jimmy
- 1975-1978 GMC K15
- 1975-1978 GMC K15 Suburban
- 1968-1974 GMC K15/K1500 Pickup
- 1968-1974 GMC K15/K1500 Suburban
- 1979 GMC K1500
- 1981-1984 GMC K1500
- 1979 GMC K1500 Suburban
- 1982 GMC K1500 Suburban
- 1975-1978 GMC K25
- 1975-1978 GMC K25 Suburban
- 1968-1974 GMC K25/K2500 Pickup
- 1968-1974 GMC K25/K2500 Suburban
- 1979 GMC K2500
- 1979 GMC K2500 Suburban
- 1977-1978 GMC K35
- 1968-1974 GMC K35/K3500 Pickup
- 1979 GMC K3500
- 1971-1974 GMC Sprint
- 1971 Oldsmobile 442
- 1971-1973 Oldsmobile Cutlass
- 1971-1973 Oldsmobile Delta 88
- 1973 Oldsmobile Omega
- 1971-1973 Oldsmobile Vista Cruiser
- 1967-1972 Pontiac Bonneville
- 1967-1972 Pontiac Catalina
- 1967-1970 Pontiac Executive
- 1973-1976 Pontiac Firebird
- 1973-1979 Pontiac Firebird Trans Am
- 1981 Pontiac Firebird Trans Am
- 1973 Pontiac Grand Am
- 1967-1972 Pontiac Grand Prix
- 1971-1972 Pontiac Grandville
- 1971-1973 Pontiac GTO
- 1970-1973 Pontiac LeMans
