Fabtech FTS28001 Auxiliary Shock Kit

Fabtech FTS28001 Auxiliary Shock Kit

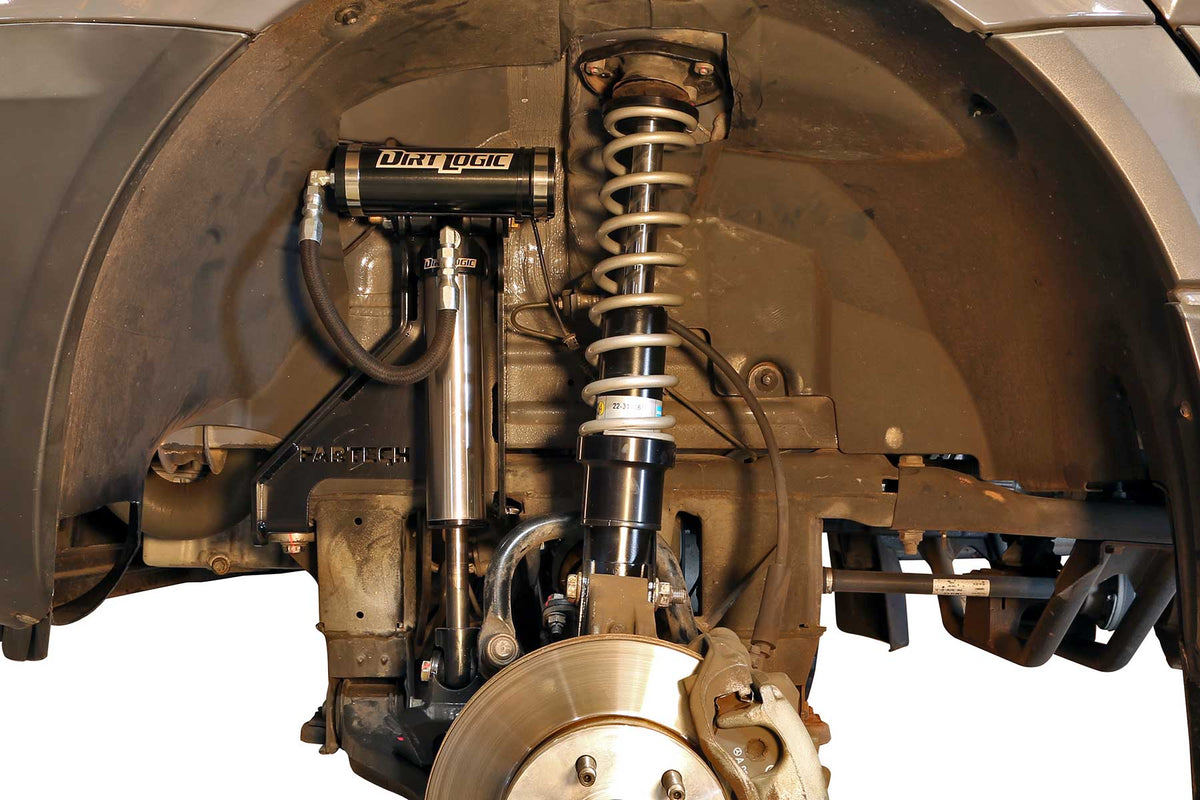

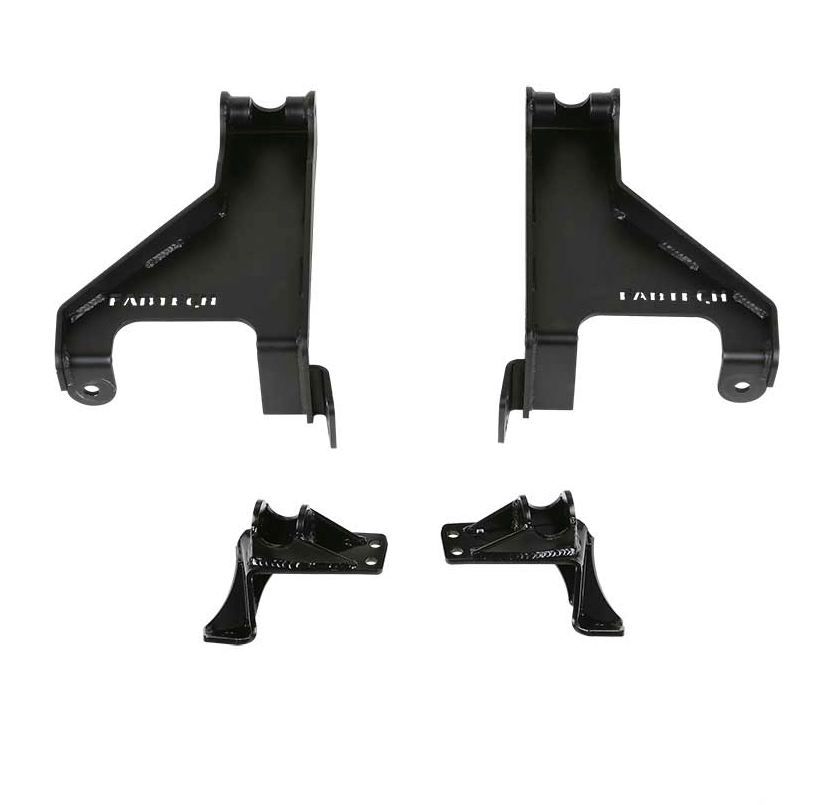

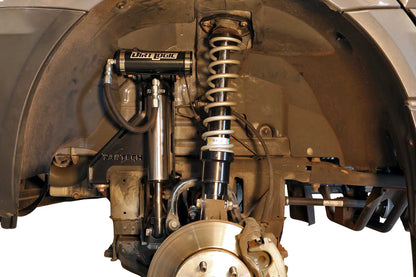

Sprinter vans that have been upfitted for overlanding and /or carrying additional cargo weight often need more damping capacity than what the factory struts and shocks can provide. Fabtech addresses this problem with our heavy-duty auxiliary shock kit. These heavy-duty front auxiliary shock mounts are built with 1/4 in. thick steel and attach to the suspension subframe only. There is no attachment to the unibody structure. This type of mounting is vastly superior to other shock kits that mount to the unibody. By mounting to the subframe it helps isolate road noise and eliminates potential stress to the unibody. With only two holes to drill for installation it takes about 1-2 hours with no removal of the interior required.

• Additional Shock Damping For Upfitted Van And/Or Hauling Heavy Cargo
• Brackets Attach To Subframe For A Quiet Ride
• No Interior Removal Required For Installation
• Compatible With Fabtech Coil Assist Kit

Weight: 31 lbs
Dimensions: 43.5 x 12.5 x 8.04 IN

WARNING: Cancer and Reproductive Harm-www.P65Warnings.ca.gov

For more information visit www.P65Warnings.ca.gov

Lifetime Warranty

View Installation Instructions (PDF)

• 1.5 in. Lift; For PN[K9003/K9003DL/K9004DL/K9005/K9005DL/K9006/K9010/K9010DL/K9011DL/K9012/K9012DL/K9013]; Use 275/75R16 Tire w/16x8 Wheel w/6 in. BS w/Minor Trimming
• Use 275/75R16 Front Tire w/16X5.5 Wheel w/8 in. BS w/Minor Trimming
• Use 275/75R16 Rear Tire w/16X5.5 Wheel w/-2.16 in. BS
• 1.5 in. Lift; For PN[K9003/K9003DL/K9004DL/K9005/K9005DL/K9006/K9010/K9010DL/K9011DL/K9012/K9012DL/K9013]; Use 275/75R16 Tire w/16x8 Wheel w/6 in. BS w/Minor Trimming~Use 275/75R16 Front Tire w/16X5.5 Wheel w/8 in. BS w/Minor Trimming~Use 275/75R16 Rear Tire w/16X5.5 Wheel w/-2.16 in. BS
• 1.5 in. Lift; For PN[K9003/K9003DL/K9004DL/K9005/K9005DL/K9006/K9010/K9010DL/K9011DL/K9012/K9012DL/K9013]
