Fabtech K1063DL Uniball Control Arm Lift System

Fabtech K1063DL Uniball Control Arm Lift System

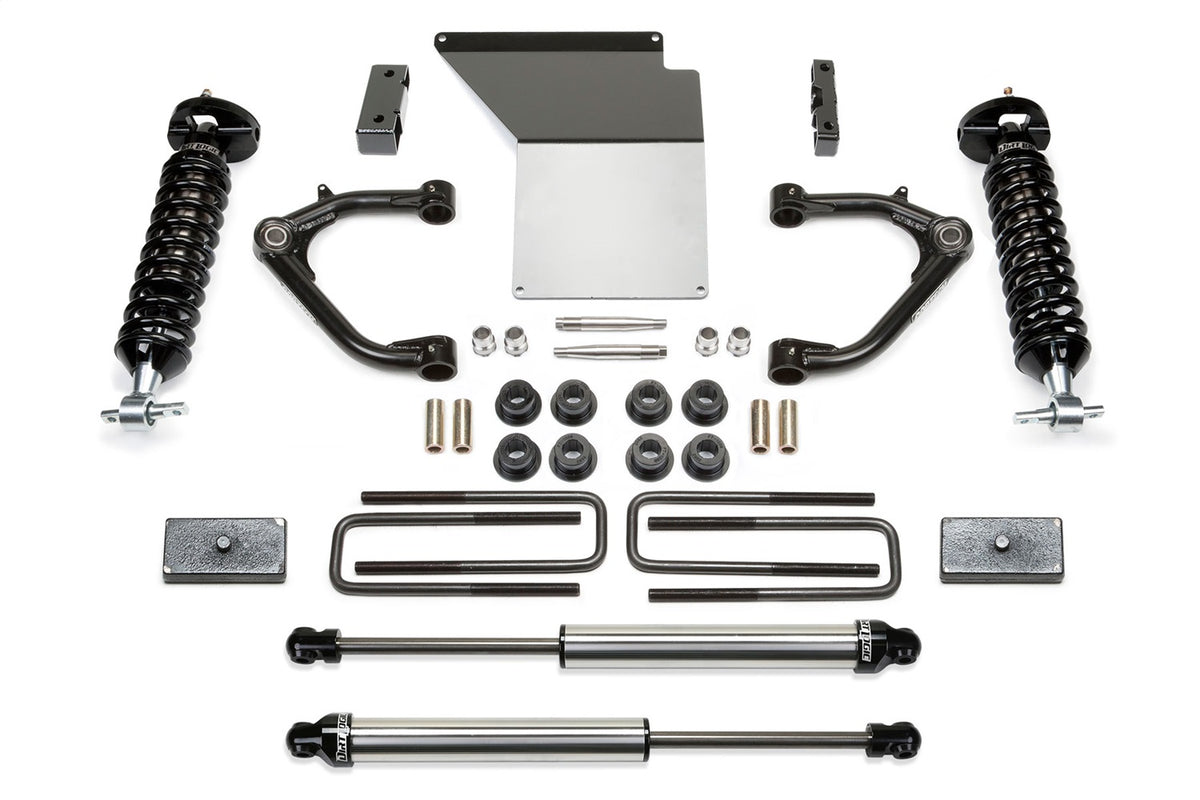

This system offers a mild lift height with easy installation for clearance of 33” tall tires on GM C/K1500s. Lift is accomplished with Dirt Logic 2.5 Coilovers that provide superior damping for aggressive offroad use and a good highway ride. The stock upper control arms are replaced with high quality tubular Uniball arms that allow unrestricted movement throughout the travel range. The arms are constructed of top quality material including .120” wall 4130 Chromoly tubing with a 1.50” OD and 1” FK Stainless PTFE Uniballs. These arms are the best on the market for aggressive offroad driving in harsh conditions. The front differential is relocated to keep CV angles proper with the new lift height while a 1/4” thick steel skid plate provides protection against offroad obstacles. Rear lift is accomplished with 1 1/2" rear lift block and u-bolts to help level the stance of the vehicles. Dirt Logic 2.25 rear shock absorbers replace the stock units for increased damping for both on and offroad use.

• Simplified Design With Fast Install
• Steering Knuckles Retain Proper ESC
• No Loss Of Ground Clearance

Weight: 124.2 lbs
Dimensions: 45.5 x 13 x 14.5 IN

WARNING: Cancer and Reproductive Harm-www.P65Warnings.ca.gov.

For more information visit www.P65Warnings.ca.gov

Lifetime Warranty

View Installation Instructions (PDF)

• w/DLSS Shocks; 4 in. Lift; Incl. Uniball Upper Control Arms; Differential Drop Brackets; Differential Skid Plate; Block/U-Bolts; Can Not Use OEM Wheel And Tire
• Use 33/12.50R17 Tire w/17X8 Wheels w/4.5 in. BS; Minor Trim
• Use 275/65R18 Tire w/18X8 Wheels w/4.5 in. BS; Minor Trim
• Use 295/55R20 Tire w/20X9 Wheels w/5 in. BS; Minor Trim
• w/DLSS Shocks; 4 in. Lift; Incl. Uniball Upper Control Arms; Differential Drop Brackets; Differential Skid Plate; Block/U-Bolts; Fits Vehicles w/Rear Auto Ride Suspension
• Fits Vehicles w/Rear Standard Suspension
• Can Not Use OEM Wheel And Tire
• w/DLSS Shocks; 4 in. Lift; Incl. Uniball Upper Control Arms; Differential Drop Brackets; Differential Skid Plate; Block/U-Bolts
• w/DLSS Shocks; 4 in. Lift; Incl. Uniball Upper Control Arms; Differential Drop Brackets; Differential Skid Plate; Block/U-Bolts; Fits Vehicles w/Rear Auto Ride Suspension~Fits Vehicles w/Rear Standard Suspension~Can Not Use OEM Wheel And Tire~Use 33/12.50R17 Tire w/17X8 Wheels w/4.5 in. BS; Minor Trim~Use 275/65R18 Tire w/18X8 Wheels w/4.5 in. BS; Minor Trim~Use 295/55R20 Tire w/20X9 Wheels w/5 in. BS; Minor Trim
• w/DLSS Shocks; 4 in. Lift; Incl. Uniball Upper Control Arms; Differential Drop Brackets; Differential Skid Plate; Block/U-Bolts; Can Not Use OEM Wheel And Tire~Use 33/12.50R17 Tire w/17X8 Wheels w/4.5 in. BS; Minor Trim~Use 275/65R18 Tire w/18X8 Wheels w/4.5 in. BS; Minor Trim~Use 295/55R20 Tire w/20X9 Wheels w/5 in. BS; Minor Trim
