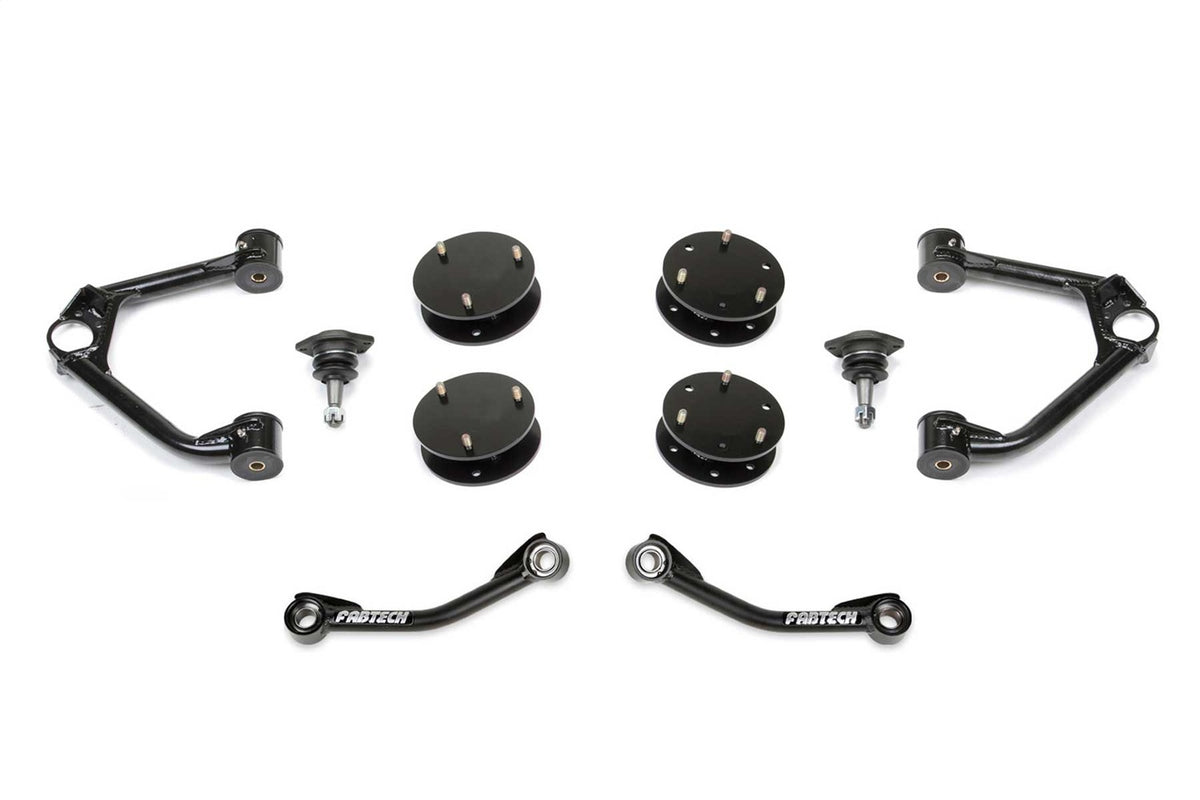

Fabtech K1184 Ball Joint Control Arm Lift System

Fabtech K1184 Ball Joint Control Arm Lift System

Fabtech's GM 3 in. Lift Kit has been designed to upgrade late model 1500 SUV's equipped with factory standard suspension with increased clearance to run 35 in. tall tires while retaining the stock ride quality. The front suspension receives Fabtech's high quality Ball Joint Upper Control Arms that are vastly superior to the stock arms providing strength and longevity to the vehicle. They are construction of 1.25 in. OD, .120 in. wall DOM tubing with heavy duty high angle ball joints. These ball joints are substantially larger than the factory and offer increased operating angles without bind at full droop. The replacement UCA's have been designed to work in conjunction with Fabtech's coil spring spacers providing 3 in. of lift utilizing the factory GM Coilover shocks. The rear receives extended length upper li nk arms to allow for increased travel without bind. The geometry of these links allows for proper alignment to the rear independent suspension with the new ride height. As with the front the rear also receives coil spring spacers that utilize the factory GM Coilover shocks. This popular lift kit is perfect for GM SUV owners looking to run larger tires and retain the factory ride with proper alignablity at an economical price.

• Heavy Duty DOM Tube Ctrl Arms For Additional Suspension Strength
• Large High Angle Ball Joint
• Allows For Factory Specification Alignment Front And Rear
• Retains Factory Coilover For A Stock Ride Quality
• Free 5 year 60000 Mile Powertrain Warranty
• Economically Priced GM Lift Kit With Fabtech Quality

Weight: 48.8 lbs
Dimensions: 15.5 x 12 x 15.5 IN

WARNING: Cancer and Reproductive Harm-www.P65Warnings.ca.gov

For more information visit www.P65Warnings.ca.gov

Lifetime Warranty

View Installation Instructions (1) (PDF)
View Installation Instructions (2) (PDF)

• 3 in.LIft; w/Ball Joint; Shock Spacers
• 3 in.LIft; w/Ball Joint; Shock Spacers; Will Not Fit Models w/Factory Magneride Shocks
• Will Not Fit Models Equipped w/Adaptive Air Ride Suspension
• 3 in.LIft; w/Ball Joint; Shock Spacers; Will Not Fit Models w/Factory Magneride Shocks~Will Not Fit Models Equipped w/Adaptive Air Ride Suspension
