Fabtech K2181 Budget Lift System w/Shock

Fabtech K2181 Budget Lift System w/Shock

The 4 Budget System utilizes the factory front coil springs with a steel upper spacer providing 4 of lift. Radius Arm drop brackets retain the factory arms with correct caster setting for the increase ride height. System includes a Trac Bar relocation bracket that has been designed to center the axle under the vehicle and still works properly with the factory Pitman Arm. This eliminates the need to replace the Pitman Arm resulting in a lower cost and faster installation time. Rear lift is accomplished with lift blocks and extended length u-bolts. System allows installation of 35 tall tires with required inner fenderwell trimming for adequate tire clearance for street driving and light offroad use.

• Retains Factory Front Coil Springs For Stock Ride
• Drop Brackets For Proper Caster w/Increased Height
• Trac Bar Works w/Factory Pitman Arm
• Trac Bar Relocated To Center Axle
• Includes Driveshaft Carrier Bearing
• Ample Clearance For 33 in. Tires

Weight: 133.8 lbs
Dimensions: 24 x 24.52 x 15.59 IN

WARNING: Cancer and Reproductive Harm-www.P65Warnings.ca.gov.

For more information visit www.P65Warnings.ca.gov

Lifetime Warranty

View Installation Instructions (PDF)

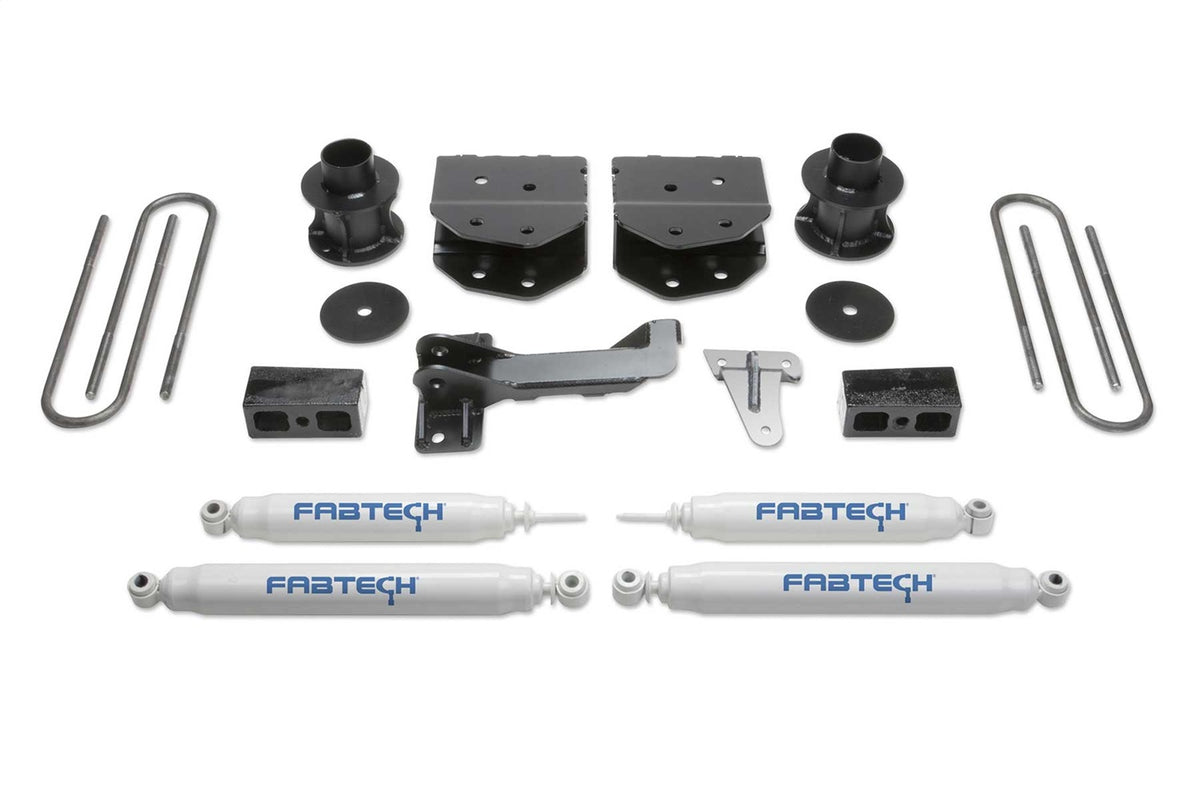

• w/Performance Shocks; 4 in. Lift; Incl. Coil Spacers/Trac Bar Relocation Bracket/Trac Bar Drop/Shim Kit
• Radius Arm Drops/Bump Stops/Steering Stabilizer Drop
• Blocks And U-Bolts/Front And Rear Shocks/All Required Hardware
• w/Performance Shocks; 4 in. Lift; Incl. Coil Spacers/Trac Bar Relocation Bracket/Trac Bar Drop/Shim Kit~Radius Arm Drops/Bump Stops/Steering Stabilizer Drop~Blocks And U-Bolts/Front And Rear Shocks/All Required Hardware
• w/Performance Shocks; 4 in. Lift
