Fabtech K2293DL Radius Arm Lift System

Fabtech K2293DL Radius Arm Lift System

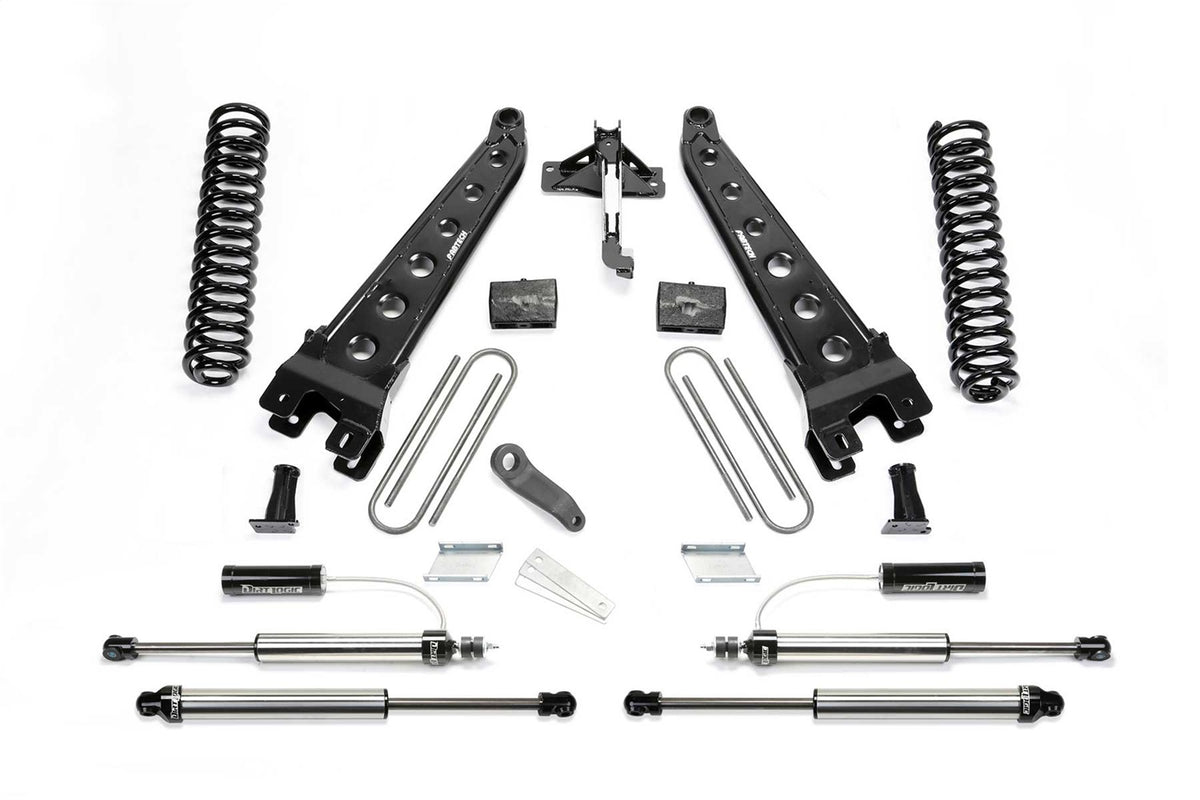

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift options includes 6 replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, and a rear Block & U-bolt kit.

• Unsurpassed Strength And Performance
• Patent Pending Radius Arms
• Fully Tubular Structure
• Dimple Die Side Plates
• Adjustable Alignment Cam Allows Caster Adjustment

Weight: 288 lbs
Dimensions: 45.5 x 45 x 15 IN

WARNING: Cancer and Reproductive Harm-www.P65Warnings.ca.gov.

For more information visit www.P65Warnings.ca.gov

Lifetime Warranty

View Installation Instructions (PDF)

• 6 in. Lift; Incl. Front Dirt Logic 2.25 Resi Shocks and Rear Dirt Logic 2.25 Shocks; Single Rear Wheels; May Req. Dual Steering Stabilizer For Oversized Tires Order PN[FTS220512]
• 6 in. Lift; Incl. Front Dirt Logic 2.25 Resi Shocks and Rear Dirt Logic 2.25 Shocks; May Req. Dual Steering Stabilizer For Oversized Tires Order PN[FTS220512]
• 6 in. Lift; Incl. Front Dirt Logic 2.25 Resi Shocks and Rear Dirt Logic 2.25 Shocks
