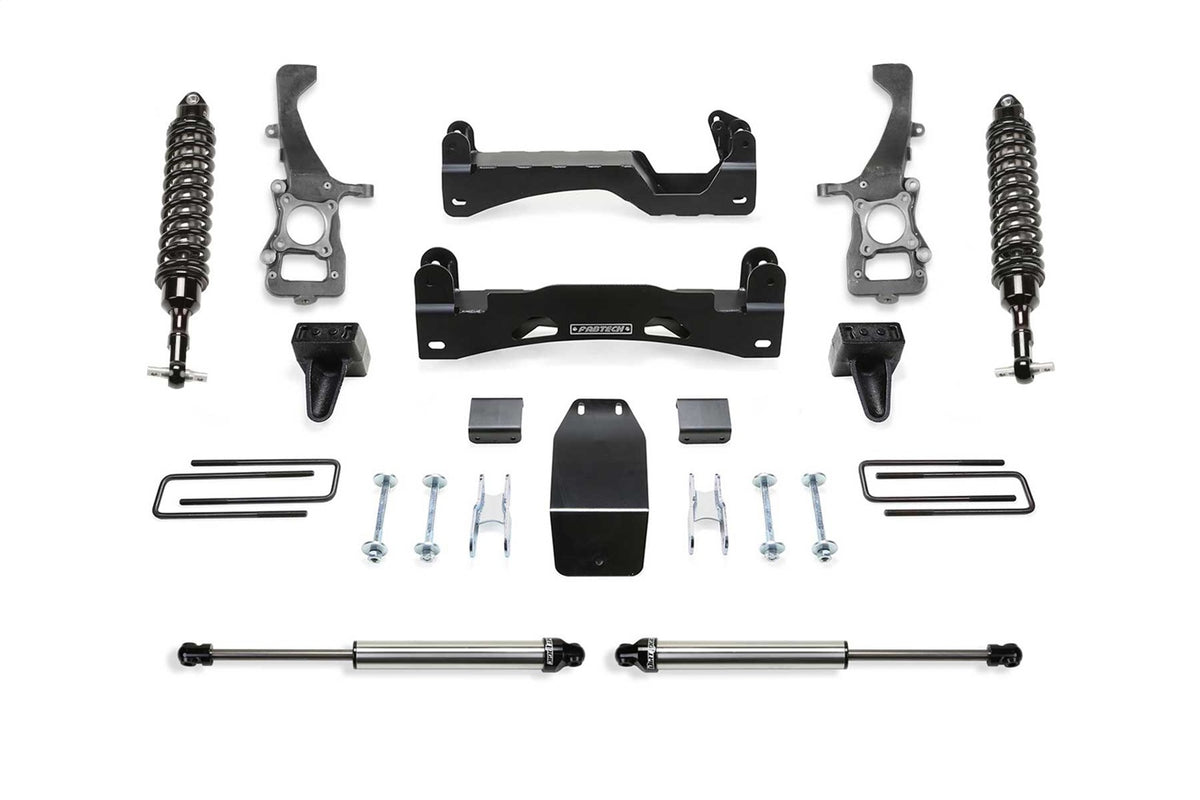

Fabtech K2372DL Performance Lift System w/Shocks

Fabtech K2372DL Performance Lift System w/Shocks

Fabtech's world-renowned IFS suspension design for the Ford F150 provides excellent drive ability both on and off road. There is zero bump steer throughout the suspension cycle that helps reduce driver fatigue while improving the overall drive ability of the vehicle. The near-stock track width keeps the tires under the fenders for a clean appearance. Fabtech's proprietary steering knuckle geometry provides an excellent lock to lock turning radius to maneuver in tight spots. Heavy-duty 1/4 in. thick steel crossmembers feature eccentric style alignment cams for easy adjustment. Triple front diff mounts reposition the differential for vibration-free operation at high speed. The stainless-steel Dirt Logic 2.5 Coil overs provide 6 in. of lift with an outstanding ride quality both on and off road. They are designed for aggressive off-road use yet have a supple on road feel. Rear Dirt Logic 2.25 shocks aid in damping the vehicle for a balanced ride. At the rear of the vehicle, the factory 2 in. block is replaced with a 5 in. Block and U-bolt system. Fabtech has addressed all aspects of the suspension for proper wheel travel and lock to lock steering without over cycling. For added confidence, this lift comes with a free 5-year 60,000-mile Powertrain Warranty.

• Everything You Will Need To Lift Your Vehicle
• No Driveshaft Change Required For Auto Trac
• Increased Caster For More Control
• Retains Factory Steering Centerlink
• Retains Factory Upper Control Arms
• Quick No Weld Installation
• Allows Use Of Stock Tires And Wheels

Weight: 317 lbs
Dimensions: 45.5 x 43.75 x 15.13 IN

WARNING: Cancer and Reproductive Harm-www.P65Warnings.ca.gov

For more information visit www.P65Warnings.ca.gov

Lifetime Warranty

View Installation Instructions (PDF)

• 6 in. Lift; w/Front Dirt Logic 2.5 Coilovers; Rear Dirt Logic Shocks
• 6 in. Lift; w/Front Dirt Logic 2.5 Coilovers; Rear Dirt Logic Shocks; For Gas Models Only
• Can Not Use OEM Wheel And Tire
• Will Not Fit Raptor Models
• For Use w/SuperCrew Models Only
• Does Not Fit Models Equipped w/Continuously Controlled Damping System
• Does No Fit Hybrid Models
• 6 in. Lift; w/Front Dirt Logic 2.5 Coilovers; Rear Dirt Logic Shocks; For Gas Models Only~Can Not Use OEM Wheel And Tire~Will Not Fit Raptor Models~For Use w/SuperCrew Models Only~Does Not Fit Models Equipped w/Continuously Controlled Damping System~Does No Fit Hybrid Models
