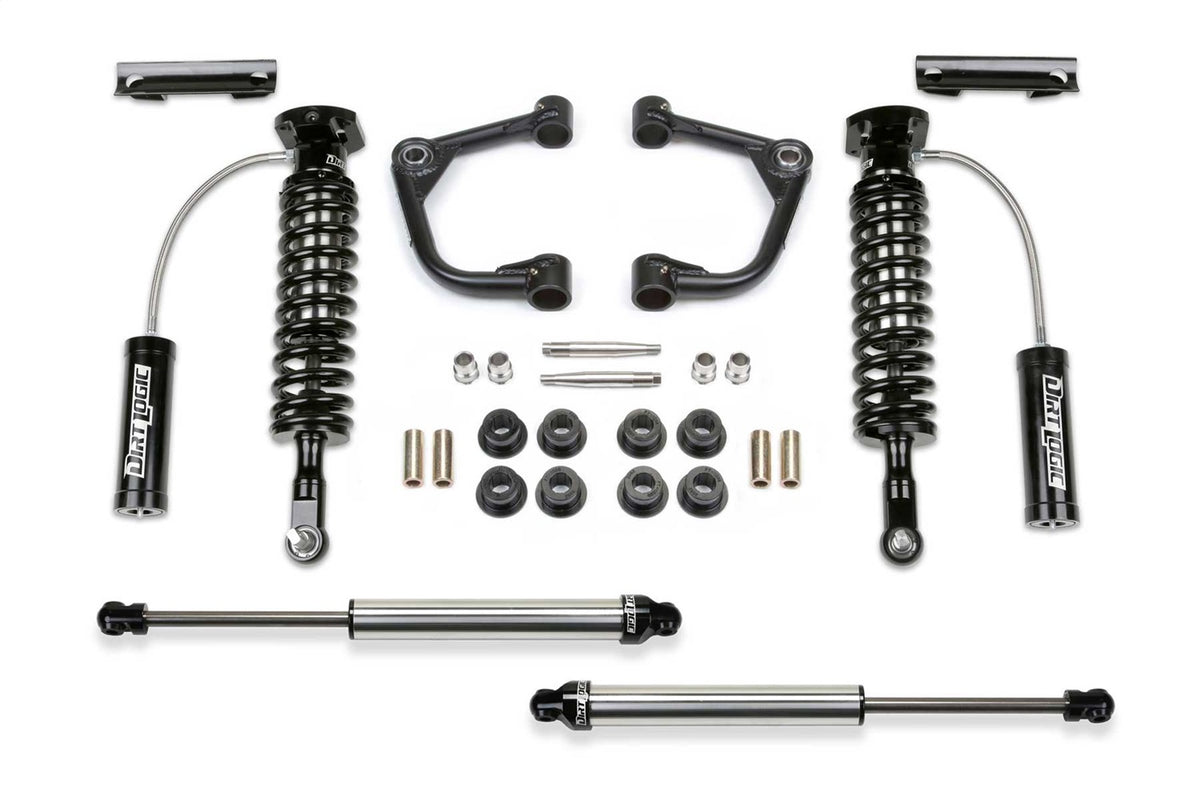

Fabtech K2375DL Uniball UCA Lift System w/Shocks

Fabtech K2375DL Uniball UCA Lift System w/Shocks

Obtain increased wheel travel and mild lift height with this heavy duty Upper Control Arm system. The tubular Upper Control Arms feature 1.25 OD. .120 wall thick chromoly tube construction with 1 diameter Stainless Steel Uniballs that attach to the factory spindle without drilling. These heavy duty UCAs have been designed to work in conjunction with Fabtechs legendary Dirt Logic 2.5 Coilover shocks for a complete front suspension system upgrade. The F150s offroad suspension performance will be greatly enhanced due to the extensive ride tuning of the stainless steel Dirt Logic 2.5 Coilovers and rear Dirt Logic 2.25s.

• Arms Eliminate Upper Ball Joint
• Arms Super Strong 1 in. ID Stainless American Uniball
• 17-4 Stainless Steel Heat Treated Uniball Pin
• Arms Are Direct Replacements For Factory Arms
• For Suspensions That Require Additional Strength/Alignability

Weight: 110 lbs
Dimensions: 35.75 x 23.75 x 15.5 IN

WARNING: Cancer and Reproductive Harm-www.P65Warnings.ca.gov.

For more information visit www.P65Warnings.ca.gov

Lifetime Warranty

View Installation Instructions (1) (PDF)
View Installation Instructions (2) (PDF)
View Installation Instructions (3) (PDF)

• 2 in. Lift w/Front Dirt Logic 2.5 Resi Coilovers And Rear Dirt Logic 2.25 Shocks
