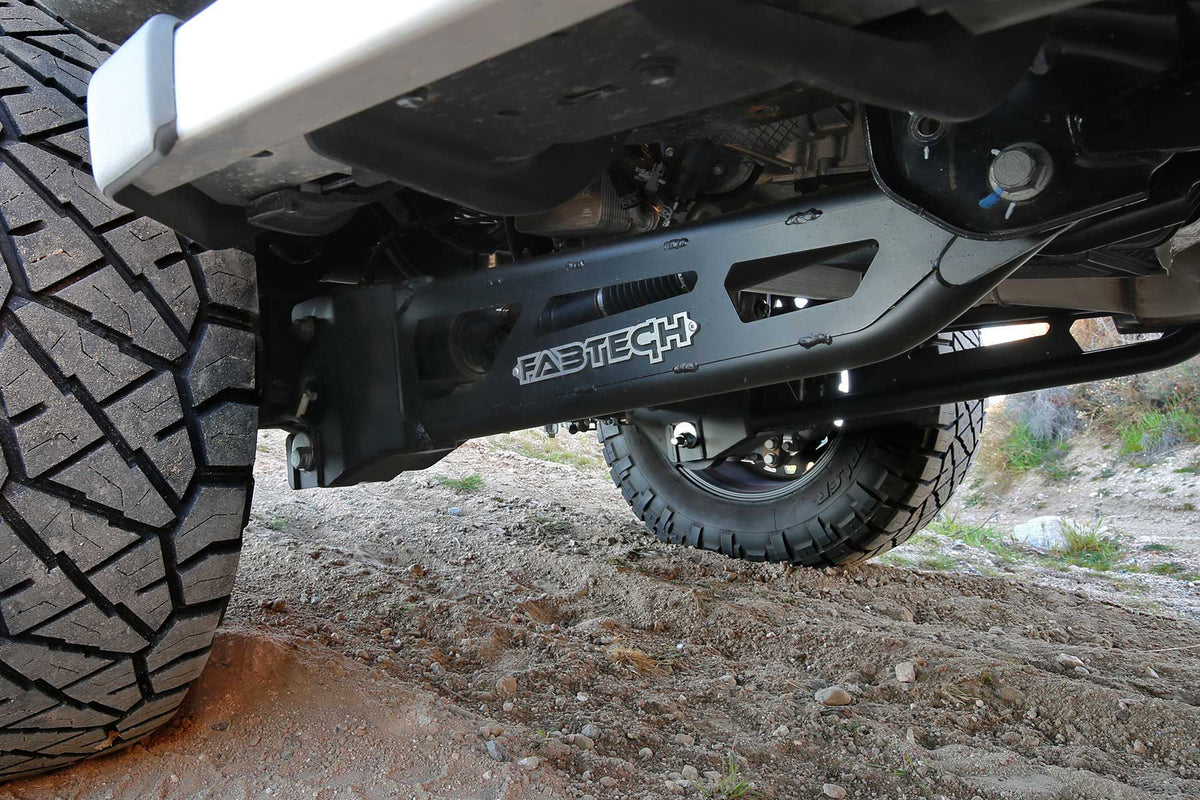

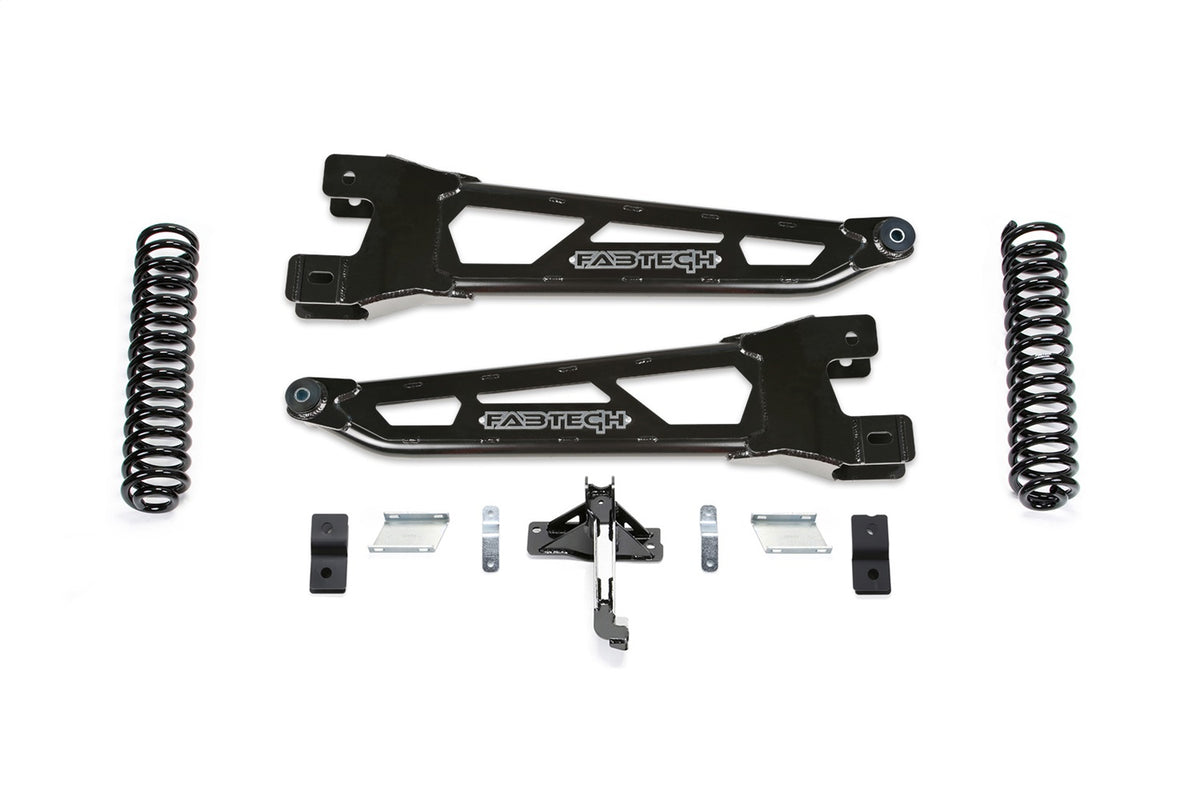

Fabtech K2400 Radius Arm Lift System

Fabtech K2400 Radius Arm Lift System

Fabtechs 2.5 in. Radius Arm lift kit has been built for the Ford Super Duty to handle the on and offroad demands of the truck enthusiast. This system is a heavy-duty upgrade to the factory suspension and will provide additional strength to the vehicle. This Super Duty lift kit is perfect for the enthusiast looking to run oversized tires and wants additional wheel travel for offroad use. With the large Super Duty wheel well openings and this quality 2.5 in. lift kit, you can run 35 in. tall tires with ease. This lift kit is backed by our free 5-year 60,000 mile powertrain warranty.

• Unsurpassed Strength And Performance
• Patent Pending Radius Arms
• Fully Tubular Structure
• Dimple Die Side Plates
• Adjustable Alignment Cam Allows Caster Adjustment

Weight: 128.6 lbs
Dimensions: 48 x 40 x 12 IN

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

For more information visit www.P65Warnings.ca.gov

Lifetime Warranty

View Installation Instructions (1) (PDF)
View Installation Instructions (2) (PDF)

• 2.5 in. Lift Kit; w/Coils; Incl. Front Shocks Extension Brackets; Tire Size - 35/12.50R18 Wheel - 18x9.5 w/4 3/4 in. BS w/Minor Trimming
• Non Dually Models Only
• Does Not Fit Vehicles Equipped With Ford Onboard Scale System
• Tire Size - 35/12.50R17 Wheel - 17x9 w/4 3/4 in. BS w/Minor Trimming
• Tire Size - 35/12.50R20 Wheel - 20x9 w/5 in. BS w/Minor Trimming
• 2.5 in. Lift Kit; w/Coils; Incl. Front Shocks Extension Brackets; Tire Size - 35/12.50R18 Wheel - 18x9.5 w/4 3/4 in. BS w/Minor Trimming~Non Dually Models Only~Does Not Fit Vehicles Equipped With Ford Onboard Scale System~Tire Size - 35/12.50R17 Wheel - 17x9 w/4 3/4 in. BS w/Minor Trimming~Tire Size - 35/12.50R20 Wheel - 20x9 w/5 in. BS w/Minor Trimming
• 2.5 in. Lift Kit; w/Coils; Incl. Front Shocks Extension Brackets
