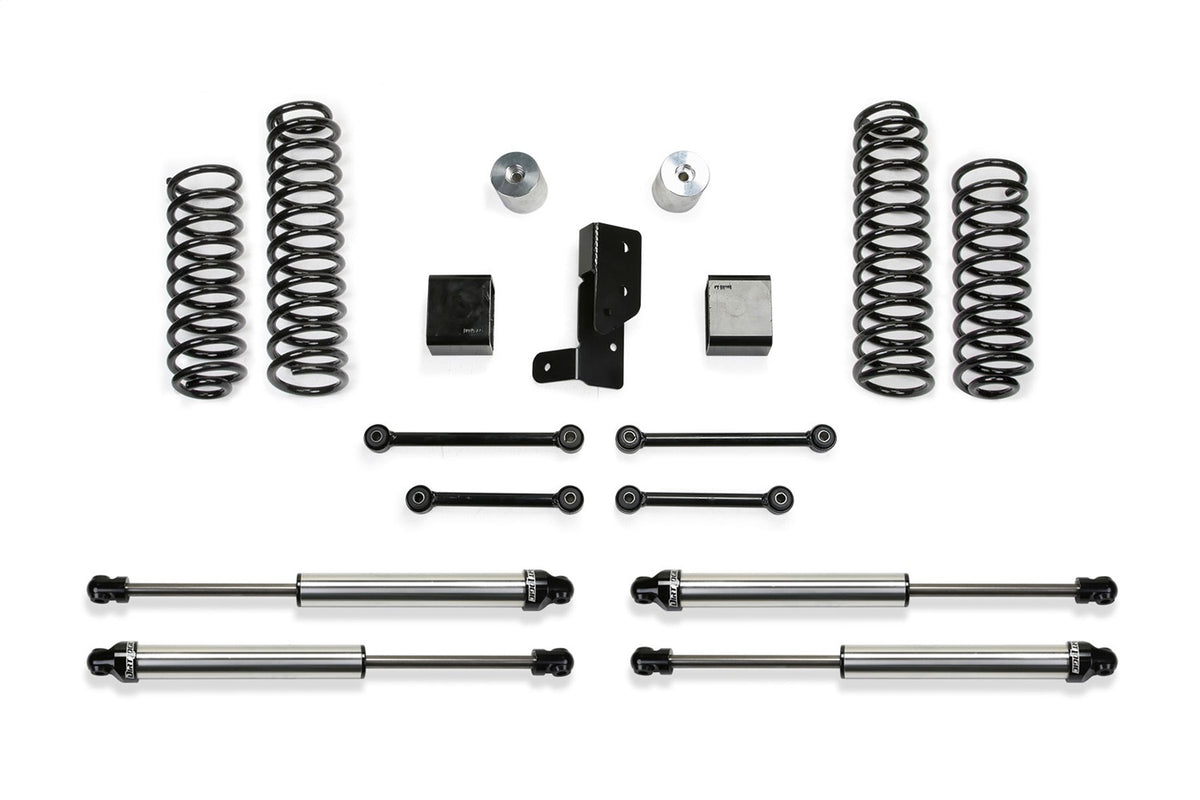

Fabtech K4107DL Sport Lift System w/Shock

Fabtech K4107DL Sport Lift System w/Shock

The Sport system features American made coil springs that are a Dual Rate design allowing for long travel suspension use offroad with a smooth highway ride. The first stage of the spring provides a soft ride with the ability to extend for additional travel. The second stage is designed to handle the payload of the vehicle and address large impact absorption at higher speeds. The Dual Rate coil springs are corner specific to the JL. This keeps the vehicle level side to side while allowing for increased suspension travel. Four bump stops extensions utilize the factory bump stops for compliant cushioning at full compression. The extensions retain the stock down travel to eliminate over cycling of the suspension and driveline. The extended length front and rear sway bar links with urethane bushings reposition the bars to work within the factory operating planes. By extending the length of the links, it prevents the sway bar from going over center and creating bind at full extension travel. A heavy duty rear track bar bracket re-centers the axle while retaining the factory roll center of the vehicle with the increased ride height.

• Everything You Will Need To Lift Your Vehicle
• Increased Leaf Spring Flexibility
• No Welding Or Cutting
• Ride Quality Enhancement
• Increased Travel And Articulation
• Easy Installation

Weight: 116.3 lbs
Dimensions: 39 x 31.58 x 15 IN

WARNING: Cancer and Reproductive Harm-www.P65Warnings.ca.gov.

For more information visit www.P65Warnings.ca.gov

Lifetime Warranty

View Installation Instructions (PDF)

• 3 in. Lift; w/Spacers; Front And Rear Dirt Logic 2.25 Shock; 35/12.50R20 Tires w/20x9 Wheels w/5 in. BS w/Minor Trimming
• 35/12.50R17 Tires w/17x9 Wheels w/4.5 in. BS w/Minor Trimming
• 35/12.50R18 Tires w/18x9 Wheels w/4.5 in. BS w/Minor Trimming
• 325/65R18 Tires w/18x9 Wheels w/4.5 in. BS w/Minor Trimming
• 325/60R20 Tires w/20x9 Wheels w/5 in. BS w/Minor Trimming
• 37/12.50R17 Tires w/17x9 Wheels w/4.5 in. BS w/Cutting
• 37/12.50R18 Tires w/18x9 Wheels w/4.5 in. BS w/Cutting
• 37/12.50R20 Tires w/20x9 Wh
• 37/12.50R20 Tires w/20x9 Wheels w/5 in. BS w/Cutting
• Install Time 1-2 Hours; Cutting Req; No Welding Or Driveshaft Modification; DOES NOT FIT 4XE or 392 MODELS
• Install Time 1-2 Hours; Cutting Req; No Welding Or Driveshaft Modification
• 3 in. Lift; w/Spacers; Front And Rear Dirt Logic 2.25 Shock; 35/12.50R20 Tires w/20x9 Wheels w/5 in. BS w/Minor Trimming~35/12.50R17 Tires w/17x9 Wheels w/4.5 in. BS w/Minor Trimming~35/12.50R18 Tires w/18x9 Wheels w/4.5 in. BS w/Minor Trimming~325/65R18 Tires w/18x9 Wheels w/4.5 in. BS w/Minor Trimming~325/60R20 Tires w/20x9 Wheels w/5 in. BS w/Minor Trimming~37/12.50R17 Tires w/17x9 Wheels w/4.5 in. BS w/Cutting~37/12.50R18 Tires w/18x9 Wheels w/4.5 in. BS w/Cutting~37/12.50R20 Tires w/20x9 Wheels w/5 in. BS w/Cutting~Install Time 1-2 Hours; Cutting Req; No Welding Or Driveshaft Modification; DOES NOT FIT 4XE or 392 MODELS
• 3 in. Lift; w/Spacers; Front And Rear Dirt Logic 2.25 Shock; 35/12.50R20 Tires w/20x9 Wheels w/5 in. BS w/Minor Trimming~35/12.50R17 Tires w/17x9 Wheels w/4.5 in. BS w/Minor Trimming~35/12.50R18 Tires w/18x9 Wheels w/4.5 in. BS w/Minor Trimming~325/65R18 Tires w/18x9 Wheels w/4.5 in. BS w/Minor Trimming~325/60R20 Tires w/20x9 Wheels w/5 in. BS w/Minor Trimming~37/12.50R17 Tires w/17x9 Wheels w/4.5 in. BS w/Cutting~37/12.50R18 Tires w/18x9 Wheels w/4.5 in. BS w/Cutting~37/12.50R20 Tires w/20x9 Wheels w/5 in. BS w/Cutting~Install Time 1-2 Hours; Cutting Req; No Welding Or Driveshaft Modification
• 3 in. Lift; w/Spacers; Front And Rear Dirt Logic 2.25 Shock
