Fabtech K5000 Performance Lift System w/Shocks

Fabtech K5000 Performance Lift System w/Shocks

Fabtechs development capabilities are second to none with over 20 years of experience in aftermarket suspension design. State of the art software; fabrication equipment along with our seasoned engineers and fabricators allow the company to develop products that are constantly on the cutting edge. Fabtech has received numerous awards for our designs that continue to lead the market.

• Everything You Will Need To Lift Your Vehicle
• No Driveshaft Change Required For Auto Trac
• Increased Caster For More Control
• Retains Factory Steering Centerlink
• Retains Factory Upper Control Arms
• Quick No Weld Installation
• Allows Use Of Stock Tires And Wheels

Weight: 354.3 lbs
Dimensions: 45.5 x 46.82 x 22 IN

WARNING: Cancer and Reproductive Harm-www.P65Warnings.ca.gov.

For more information visit www.P65Warnings.ca.gov

Lifetime Warranty

View Installation Instructions (PDF)

• w/Performance Shocks; 6 in. Lift; w/Coil Springs; 6 in. Lift Use 40/1350R17 Tire w/17x10 in.Wheel w/4.625 in. BS w/Minor Trim
• 6 in. Lift Use 37/13.50R20 Tire w/20x10 Wheel w/5 in. BS w/Minor Trimming
• 6 in. Lift Use 38/15.50R18 Tire w/18x10 Wheel w/5 in. BS w/Minor Trimming
• 6 in. Lift Use 37/12.50R17 Tire w/17x10 Wheel w/4.625in BS w/Minor Trimming

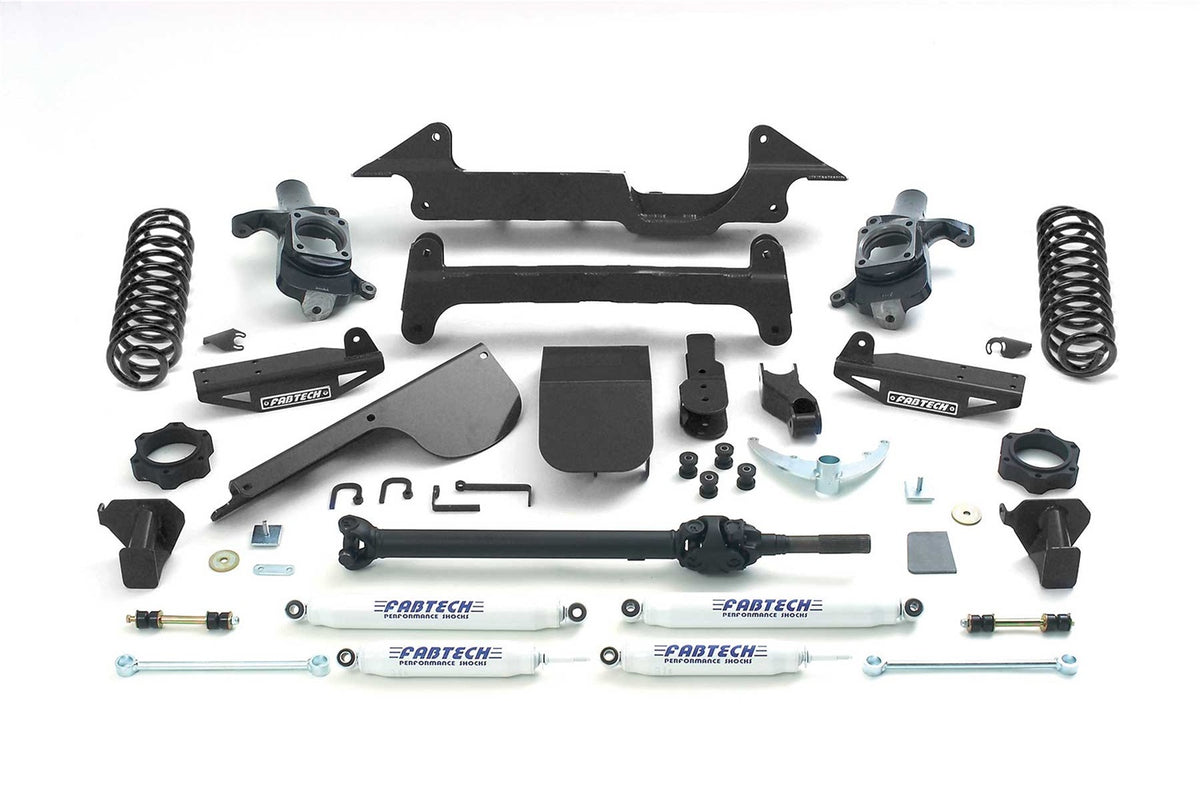

• Inc. Coil Springs/Crossmembers/Spindles/Skid Plates/Weld-In Plate
• CV Drive Shaft And Spacers/Torsion Bar And Differential Brackets
• Sway Bar End Links/
• Sway Bar End Links/All Required Hardware
• w/Performance Shocks; 6 in. Lift; w/Coil Springs; 6 in. Lift Use 40/1350R17 Tire w/17x10 in.Wheel w/4.625 in. BS w/Minor Trim~6 in. Lift Use 37/13.50R20 Tire w/20x10 Wheel w/5 in. BS w/Minor Trimming~6 in. Lift Use 38/15.50R18 Tire w/18x10 Wheel w/5 in. BS w/Minor Trimming~6 in. Lift Use 37/12.50R17 Tire w/17x10 Wheel w/4.625in BS w/Minor Trimming~Inc. Coil Springs/Crossmembers/Spindles/Skid Plates/Weld-In Plate~CV Drive Shaft And Spacers/Torsion Bar And Differential Brackets~Sway Bar End Links/All Required Hardware
• w/Performance Shocks; 6 in. Lift; w/Coil Springs
