Fabtech K7006 Basic Lift System w/Shocks

Fabtech K7006 Basic Lift System w/Shocks

Fabtechs FJ system features extended length steering knuckles attaching to one piece lower control arm crossmembers for a full 6 inches of lift to clear 35 tires. Front lower crossmembers feature adjustable alignment cams along with an integrated 1/4 thick steel differential skid plate. The Basic system retains the front strut assembly for a smooth highway ride with ease of installation. The Basic rear suspension systems include tubular upper and lower link arms, utilizing the stock rear coil springs for a supple highway ride with excellent offroad articulation. Installation does not require relocation of the Rack and Pinion or disassembly of the front strut assemblies. The stock front and rear driveshafts are retained due to Fabtechs precise suspension geometry.

• Everything You Will Need To Lift Your Vehicle
• Utilizes The Stock Radius Arm
• Designed For The Budget Minded Enthusiast

Weight: 300.7 lbs
Dimensions: 45.5 x 42.435 x 16.25 IN

WARNING: Cancer and Reproductive Harm-www.P65Warnings.ca.gov.

For more information visit www.P65Warnings.ca.gov

Lifetime Warranty

View Installation Instructions (PDF)

• w/Performance Shocks; 6 in. Lift; 6 in. Lift Use 35/12.50R17 Tire w/17X8 Wheels w/4.625 in. B.S. w/Minor Trim

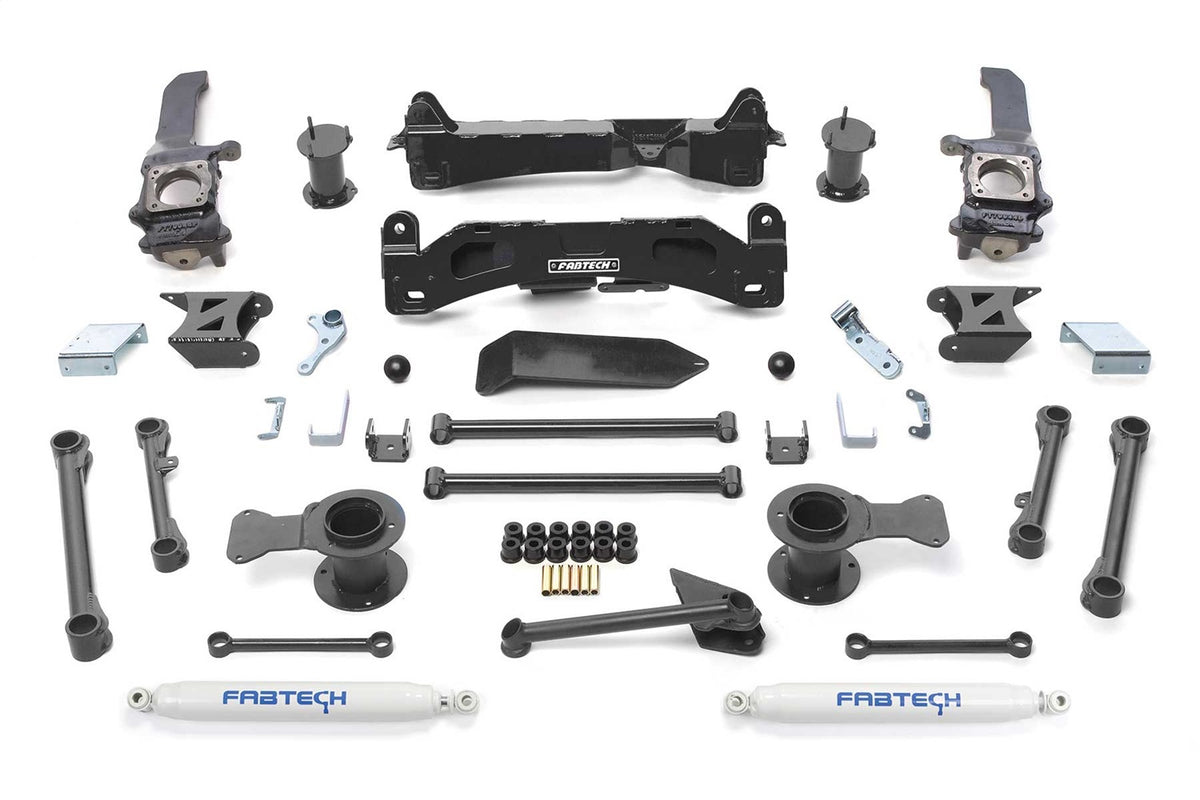

• Incl. Coil Spacers/Crossmembers/Steering Knuckles/Alignment Cams
• Upper And Lower Link Arms/Skid Plate/Spindles/Tie Rod Ends
• Weld-In Plates/Bump Stops/Mounts/Brackets/Shock Spacers
• Sway Bar Drops/End Links/Impact Struts/Mounts/Differential Brackets
• Rear Shocks/All Required Hardware
• w/Performance Shocks; 6 in. Lift; 6 in. Lift Use 35/12.50R17 Tire w/17X8 Wheels w/4.625 in. B.S. w/Minor Trim~Incl. Coil Spacers/Crossmembers/Steering Knuckles/Alignment Cams~Upper And Lower Link Arms/Skid Plate/Spindles/Tie Rod Ends~Weld-In Plates/Bump Stops/Mounts/Brackets/Shock Spacers~Sway Bar Drops/End Links/Impact Struts/Mounts/Differential Brackets~Rear Shocks/All Required Hardware
• w/Performance Shocks; 6 in. Lift
