Fabtech K7053DL Uniball Control Arm Lift System

Fabtech K7053DL Uniball Control Arm Lift System

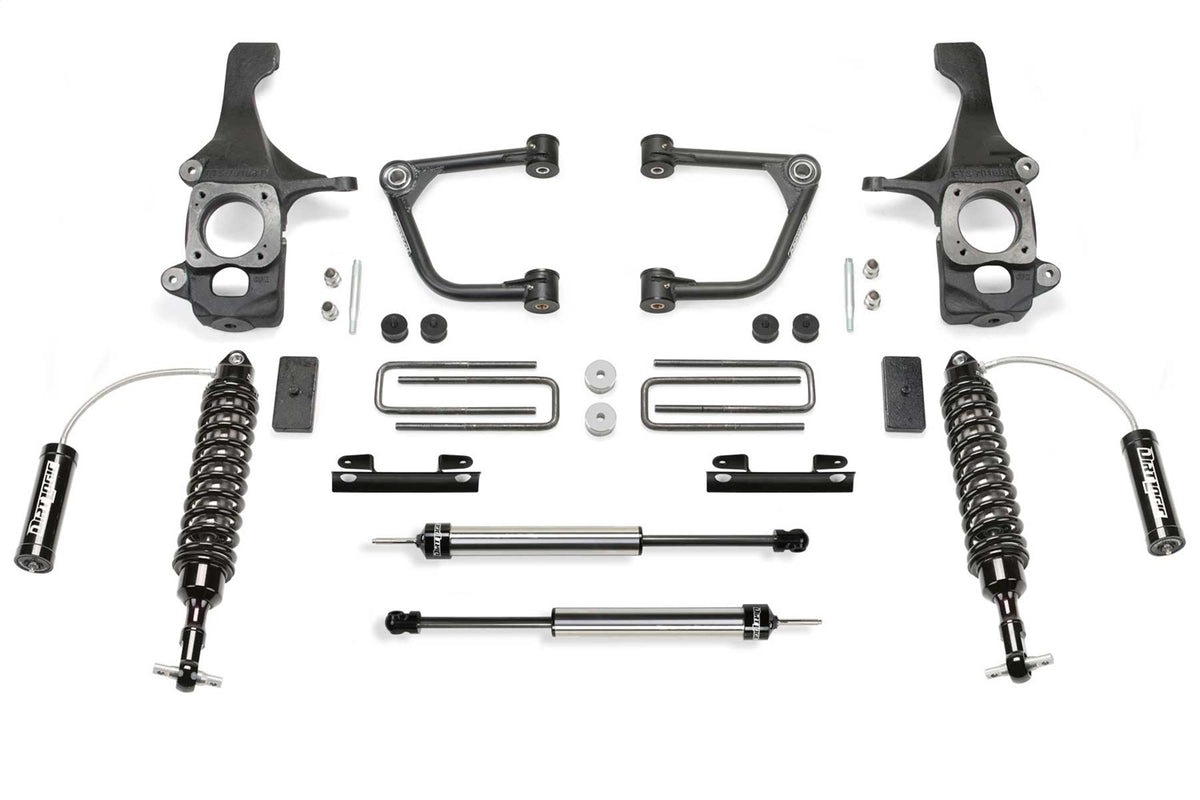

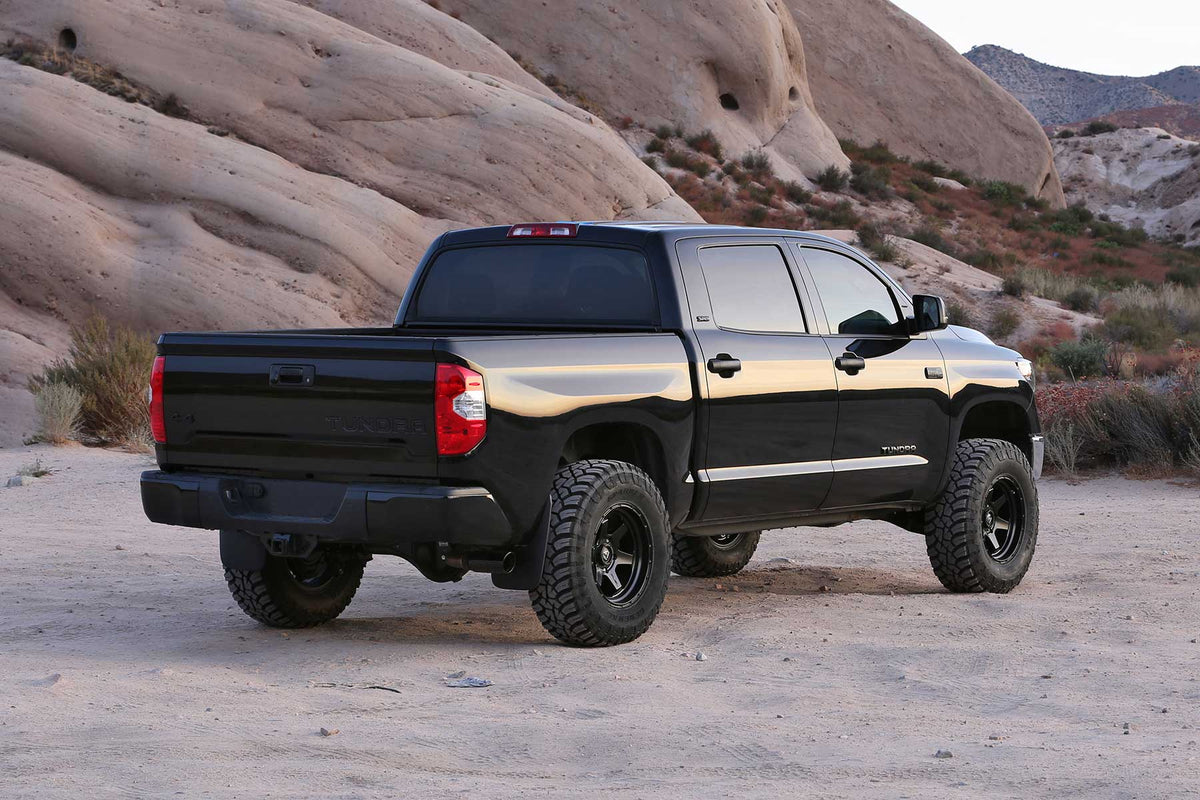

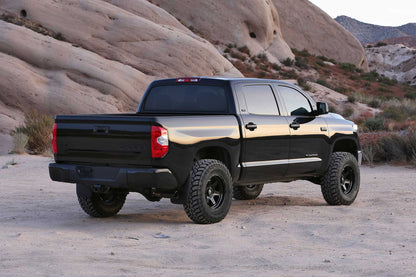

This new 4 System capitalizes on Toyota Tundras large wheelwell opening to allow use of 35 tall tires with minimum lift height. The design of this 4 System is a new style of suspension that delivers improved performance with fewer parts, and comes with an affordable price. The system includes replacement upper control with a .120 wall DOM arm with heavy duty extended range ball joints that provide additional strength to the front suspension. Heavy duty extended length steering knuckles are included to provide proper functionality of the factory ESC (Electronic Stability Control) with 35 tall tires. The knuckles retain the stock track width keeping the tires under the front fenders. The front differential is relocated to keep CV angles proper during the full range of travel. Front bump stop extensions and brake hose relocation brackets complete the front suspension. Rear lift comes from a 1 lift block and u-bolt system to level the stance of the vehicle. The 4 System is available with a spacer system to retain the factory Coilover shocks and rear Performance shocks.

• Simplified Design With Fast Install
• Steering Knuckles Retain Proper ESC
• No Loss Of Ground Clearance

Weight: 198.6 lbs
Dimensions: 35.75 x 30.25 x 22 IN

WARNING: Cancer and Reproductive Harm-www.P65Warnings.ca.gov.

For more information visit www.P65Warnings.ca.gov

Lifetime Warranty

View Installation Instructions (PDF)

• 4 in. Lift; Incl. Upper Control Arm; Uniball; Front Dirt Logic SS 2.5 Coilover Resi; Rear Dirt Logic Shocks; Double Cab And CrewMax 5.7L w/Auto Trans Only
• Will Not Allow Use Of 17 in. Wheels
• Cannot Use OEM Wheel And Tire
• 4 in. Lift; Incl. Upper Control Arm; Uniball; Front Dirt Logic SS 2.5 Coilover Resi; Rear Dirt Logic Shocks
• 4 in. Lift; Incl. Upper Control Arm; Uniball; Front Dirt Logic SS 2.5 Coilover Resi; Rear Dirt Logic Shocks; Double Cab And CrewMax 5.7L w/Auto Trans Only~Will Not Allow Use Of 17 in. Wheels~Cannot Use OEM Wheel And Tire
