Fabtech K7060DL Performance Lift System w/Shocks

Fabtech K7060DL Performance Lift System w/Shocks

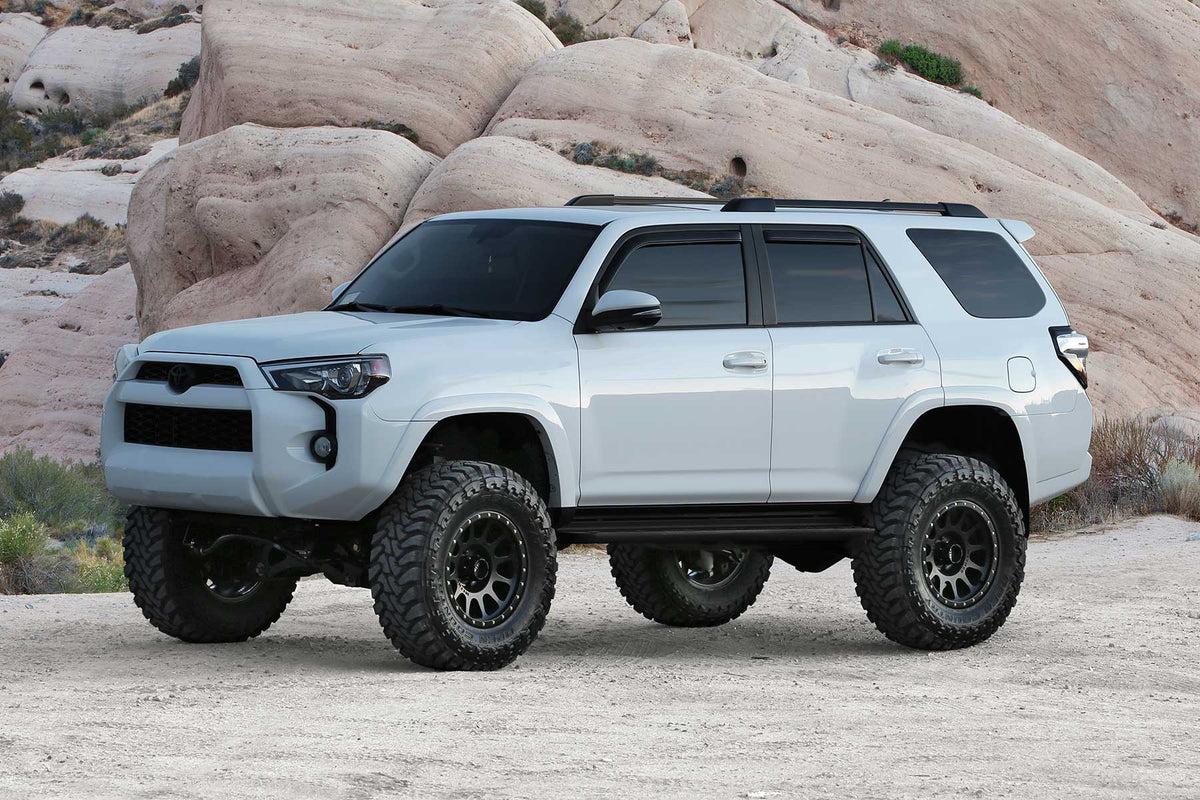

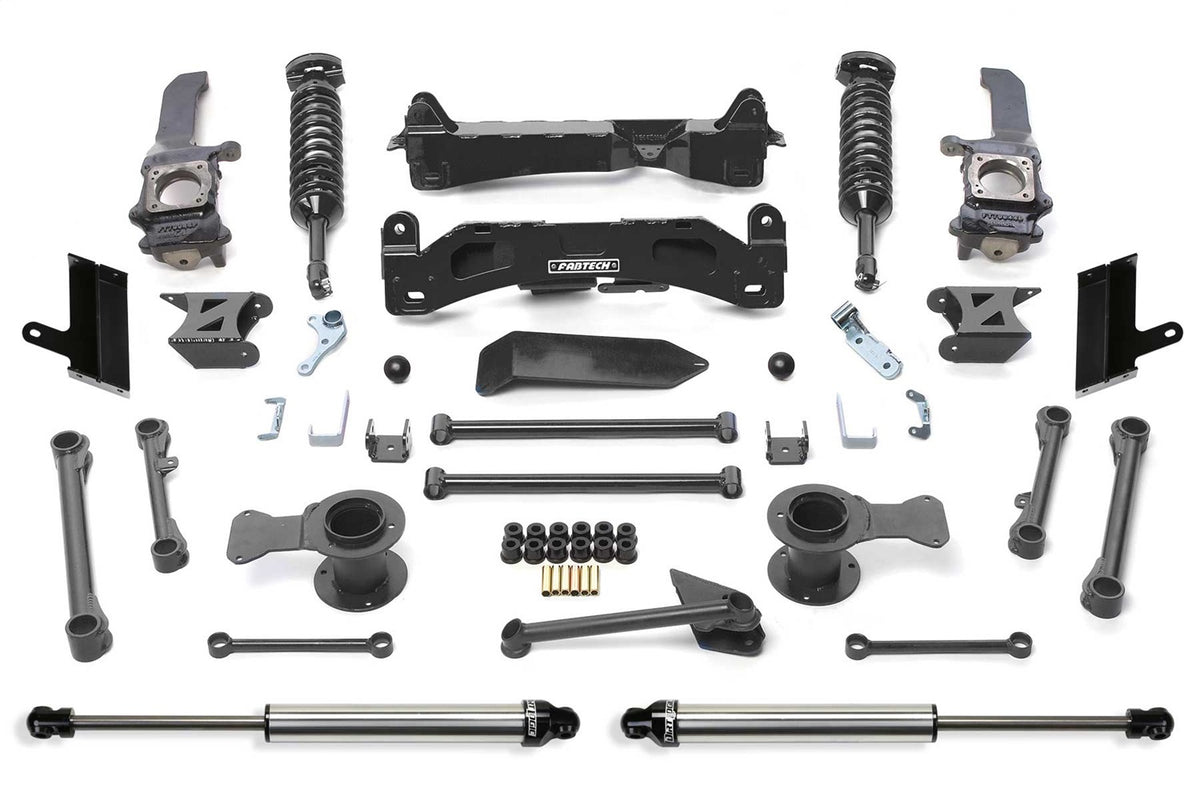

This Toyota 4Runner suspension system features Fabtechs proven IFS technology with extended length ductile iron steering knuckles for proper electronic stability control functionality. Heavy duty 1/4 thick steel lower control arm crossmembers provide superior ground clearance while the integrated front differential skid plate adds protection to the drivetrain for offroad use. The front suspension is controlled with Fabtechs legendary stainless steel Dirt Logic 2.5 Coilover shocks for outstanding damping capacity with a superior highway ride. Rear lift is accomplished with steel coil spring spacers that retain the Toyota 4Runner coil springs for a smooth ride. Heavy duty Fabtech control link arms replace the factory arms to reposition the tire in the wheel well with the additional ride height. A stout 1/4 thick steel bracket relocates the rear Track Bar to keep the vehicle tracking proper. Rear shocks include the Dirt Logic 2.25.

• Everything You Will Need To Lift Your Vehicle
• No Driveshaft Change Required For Auto Trac
• Increased Caster For More Control
• Retains Factory Steering Centerlink
• Retains Factory Upper Control Arms
• Quick No Weld Installation
• Allows Use Of Stock Tires And Wheels

Weight: 356.6 lbs
Dimensions: 45.5 x 49.125 x 16.25 IN

WARNING: Cancer and Reproductive Harm-www.P65Warnings.ca.gov.

For more information visit www.P65Warnings.ca.gov

Lifetime Warranty

View Installation Instructions (PDF)

• 6 in. Lift; w/Front Dirt Logic Resi 2.5/Rear 2.25 Shocks; Does Not Work w/KDSS Sway Bar System
• 6 in. Lift Use 35/12.50R18 Tire w/18x9 Wheel w/4.75 in. BS w/Minor Trimming
• 35/12.50R20 Tires w/20x9 Wheels w/5 in. BS w/Minor Trimming
• 6 in. Lift. Use 35/12.50R17 Tire w/17x9 Wheel 4.75 in. BS w/Minor Trimming
• 35/12.50R17 Tires w/17x9 Wheels w/4.75 in. BS w/Minor Trimming
• 35/12.50R18 Tires w/18x9 Wheels w/4.75 in. BS w/Minor Trimming
• Kit Does Not Fit Models w/Factory Electronic Controlled Shocks
• For Models w/M12-1.25 Caliper Bolts Only. Have Dealer Check VIN To V
• For Models w/M12-1.25 Caliper Bolts Only. Have Dealer Check VIN To Verify.
• 6 in. Lift; w/Front Dirt Logic Resi 2.5/Rear 2.25 Shocks; Does Not Work w/KDSS Sway Bar System~6 in. Lift Use 35/12.50R18 Tire w/18x9 Wheel w/4.75 in. BS w/Minor Trimming~35/12.50R20 Tires w/20x9 Wheels w/5 in. BS w/Minor Trimming~6 in. Lift. Use 35/12.50R17 Tire w/17x9 Wheel 4.75 in. BS w/Minor Trimming~35/12.50R17 Tires w/17x9 Wheels w/4.75 in. BS w/Minor Trimming~35/12.50R18 Tires w/18x9 Wheels w/4.75 in. BS w/Minor Trimming~Kit Does Not Fit Models w/Factory Electronic Controlled Shocks
• 6 in. Lift; w/Front Dirt Logic Resi 2.5/Rear 2.25 Shocks; Does Not Work w/KDSS Sway Bar System~6 in. Lift Use 35/12.50R18 Tire w/18x9 Wheel w/4.75 in. BS w/Minor Trimming~35/12.50R20 Tires w/20x9 Wheels w/5 in. BS w/Minor Trimming~6 in. Lift. Use 35/12.50R17 Tire w/17x9 Wheel 4.75 in. BS w/Minor Trimming~35/12.50R17 Tires w/17x9 Wheels w/4.75 in. BS w/Minor Trimming~35/12.50R18 Tires w/18x9 Wheels w/4.75 in. BS w/Minor Trimming~For Models w/M12-1.25 Caliper Bolts Only. Have Dealer Check VIN To Verify.~Kit Does Not Fit Models w/Factory Electronic Controlled Shocks
• 6 in. Lift; w/Front Dirt Logic Resi 2.5/Rear 2.25 Shocks; Does Not Work w/KDSS Sway Bar System~6 in. Lift Use 35/12.50R18 Tire w/18x9 Wheel w/4.75 in. BS w/Minor Trimming~35/12.50R20 Tires w/20x9 Wheels w/5 in. BS w/Minor Trimming~6 in. Lift. Use 35/12.50R17 Tire w/17x9 Wheel 4.75 in. BS w/Minor Trimming~Kit Does Not Fit Models w/Factory Electronic Controlled Shocks
• 6 in. Lift; w/Front Dirt Logic Resi 2.5/Rear 2.25 Shocks
