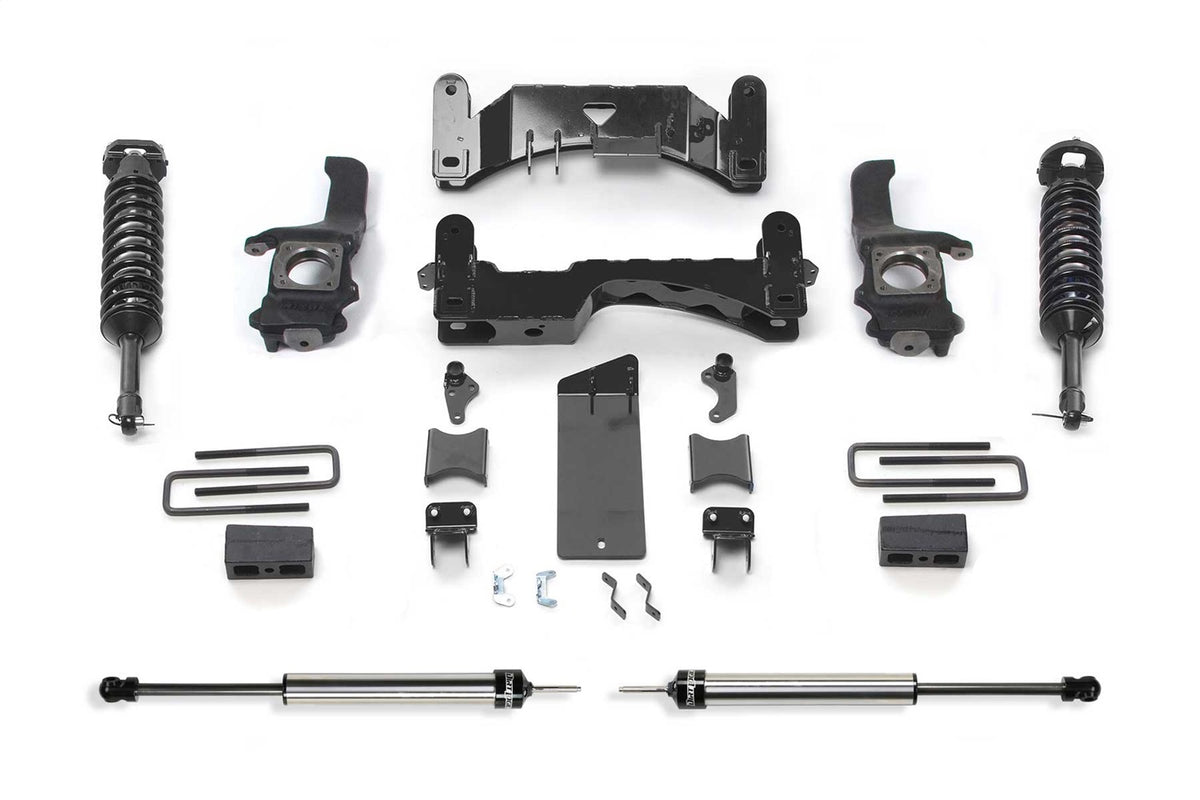

Fabtech K7077DL Performance Lift System w/Shocks

Fabtech K7077DL Performance Lift System w/Shocks

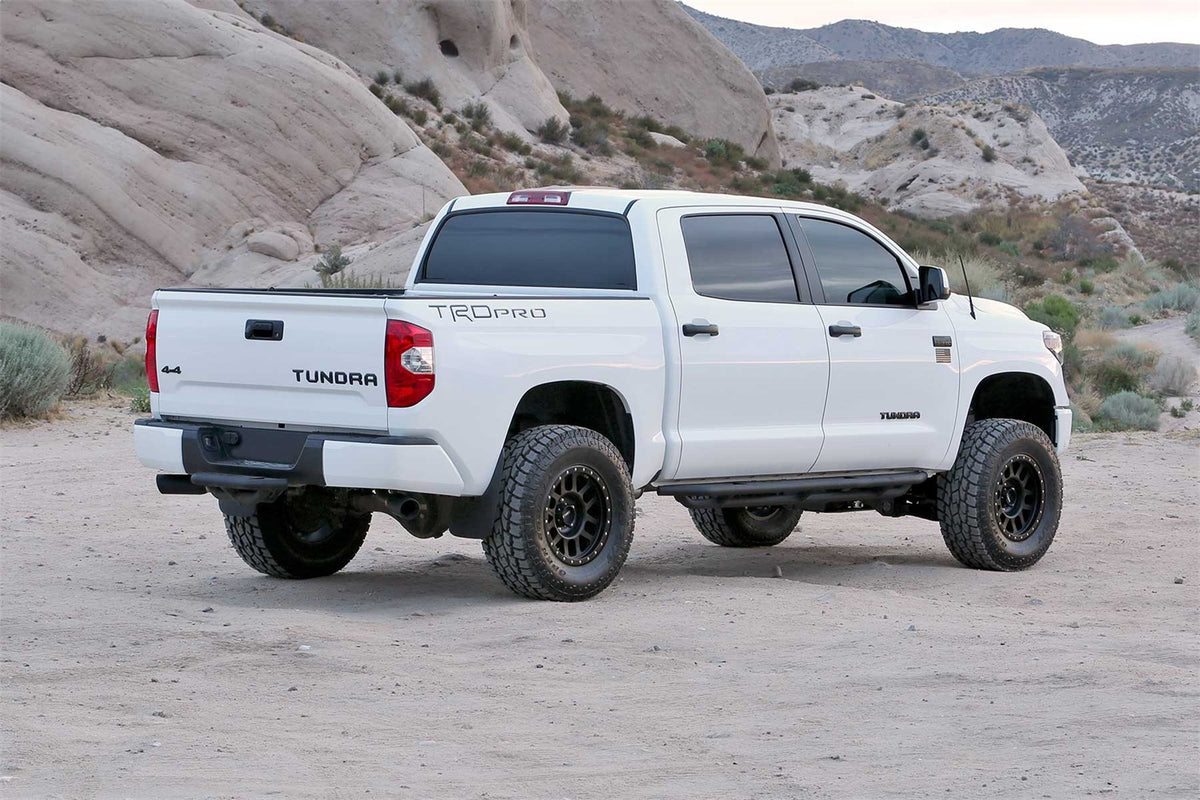

The Toyota Tundra TRD PRO comes with a factory 2 in. lift compared to other Tundra's of the same years. Fabtech's Tundra lift kit provides a 4 in. lift height on top of the factory 2 in. lift for clearance of 35 in. tall tires. Once a Tundra TRD PRO is lifted with a Fabtech 4 in. lift kit, the truck will sit at the same height as a standard Tundra with a 6 in. suspension and 35 in. tires. The near stock track width keeps the tires under the fenders for a clean appearance. Fabtech's proprietary steering knuckle geometry provides excellent lock to lock turning radius to maneuver in tight spots. Heavy duty 1/4 in. thick steel crossmembers feature OE style alignment cam pins that utilize the factory cams for easy adjustment. Triple front diff mounts reposition the differential for vibration free operation at high speed. The stainless steel Dirt Logic 2.5 Coilovers replace the TRD PRO Coilovers with an outstanding ride quality both on and offroad. They are designed for aggressive offroad use yet have a supple on road feel. Rear Dirt Logic 2.25 shocks aid in damping the vehicle for a balanced ride. Rear lift is accomplished with a 3 in. block and u-bolt system. Fabtech has addressed all aspects of the Tundra TRD PRO lift kit for full suspension travel with lock to lock steering without over cycling. Comes with a free 5 year 60,000 mile Powertrain Warranty.

• Everything You Will Need To Lift Your Vehicle
• No Driveshaft Change Required For Auto Trac
• Increased Caster For More Control
• Retains Factory Steering Centerlink
• Retains Factory Upper Control Arms
• Quick No Weld Installation
• Allows Use Of Stock Tires And Wheels

Weight: 343.6 lbs
Dimensions: 45.5 x 42.125 x 16.25 IN

WARNING: Cancer and Reproductive Harm-www.P65Warnings.ca.gov.

For more information visit www.P65Warnings.ca.gov

Lifetime Warranty

View Installation Instructions (1) (PDF)
View Installation Instructions (2) (PDF)
View Installation Instructions (3) (PDF)

• 4 in. Lift; w/Dirt Logic 2.5 Coilovers
