Fabtech K7091DL Uniball UCA Lift Kit

Fabtech K7091DL Uniball UCA Lift Kit

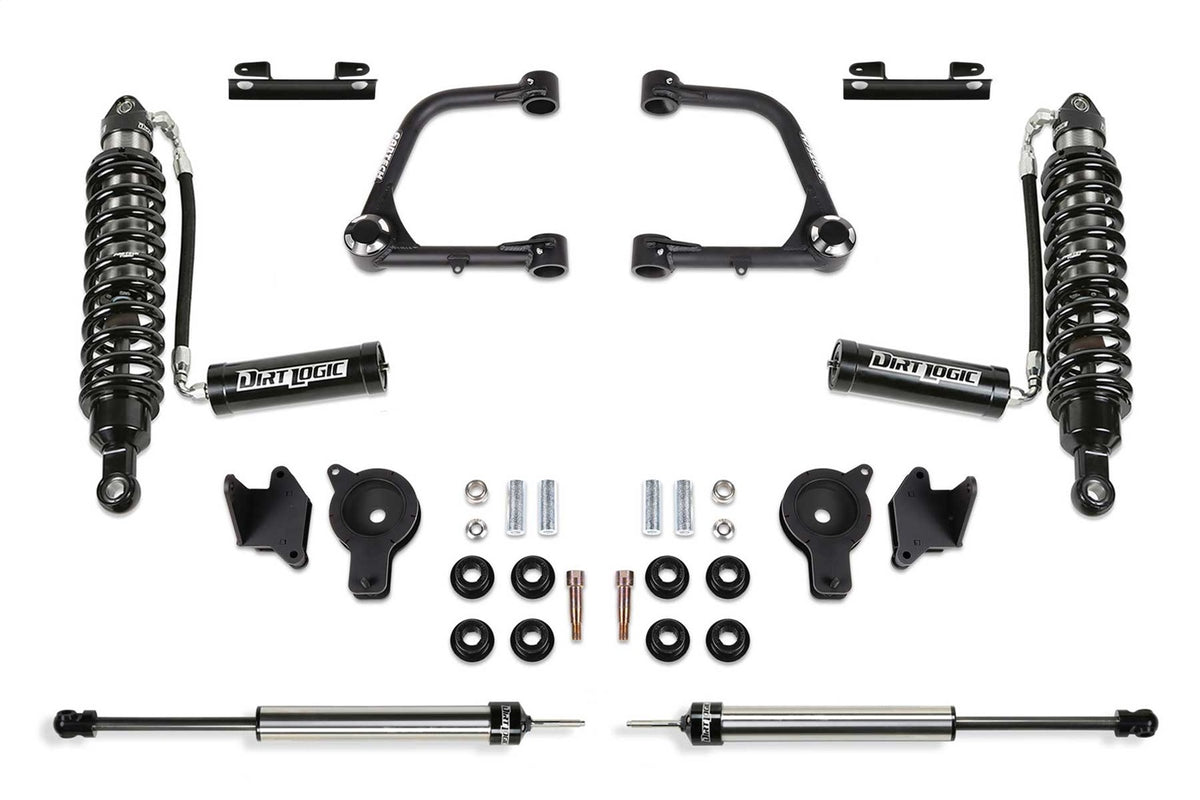

Fabtech's high quality Tundra lift kit offers increased height to run 33 in. or 35 in. tall tires with additional front suspension strength. This kit helps level the vehicle stance front to rear for a more aggressive appearance. The factory Tundra upper control arms are replaced with Fabtech's Uniball Upper Control Arms that provide an extra degree of caster compared to stock arms. The increased caster helps to balance steering effort with oversized tires. The Fabtech upper control arms are constructed of the finest material with .120 in. wall 1.25 in. OD 4130 Chromoly steel tubing. High quality 1 in. FK Stainless PTFE lined Uniball bearings are utilized in place of the small factory ball joints and allow for increased travel without bind. These super stout Tundra upper control arms are designed for longevity in rugged offroad conditions while providing a more positive on road feel. The Fabtech upper control arms have been designed to work in conjunction with the Dirt Logic 2.5 Coilover shocks to provide additional front wheel travel. The rear suspension receives Dirt Logic 2.25 shocks for a balanced ride. All Dirt Logics are constructed with a stainless steel body and a NitroSteel piston rod for maximum corrosion resistance in the harshest conditions. These Dirt Logics have been extensively tested and tuned to provide a superior ride quality both on and offroad. Rear lift is accomplished using coil spring spacers that provide the additional ride height. This Tundra lift kit is an affordable suspension upgrade for enthusiasts that desire to run 33 in. or 35 in. tall tires with Fabtech quality and strength.

• Arms Eliminate The Upper Ball Joint w/Super Strong 1 in. ID Stainless American Uniball
• Chromoly Tubing Reduces Flex Found In Stock Arms For More Positive Road Feel
• 17-4 Stainless Steel Heat Treated Uniball Pin Fits Into Factory Ball Joint Taper Without Modification To The Spindle
• Front Dirt Logic 2.5 Coilovers
• Perfect System For The Daily Driver That Wants Increased Clearance To Run 33 in Or 35 in Tires
• 5 Year 60000 Mile Powertrain Warranty

Weight: 125 lbs
Dimensions: 48 x 40 x 12 IN

WARNING: Cancer and Reproductive Harm-www.P65Warnings.ca.gov

For more information visit www.P65Warnings.ca.gov

Lifetime Warranty

View Installation Instructions (1) (PDF)
View Installation Instructions (2) (PDF)
View Installation Instructions (3) (PDF)
View Installation Instructions (4) (PDF)

• 3 in. Lift; w/Uniball; Front Dirt Logic 2.5 Resi Coilover; Rear Dirt Logic 2.25 Shock; Rear Air Bag Spacers; Use 33/12.50R18 tires w/18x9 wheels w/5in BS w/minor trimming
• 33/12.50R20 Tires w/20x9 Wheels w/5 in. BS w/Minor Trimming
• Does No Fit Hybrid Models
• Fits Crewmax Models Only
• Does Not Fit Models Equipped With Adaptive Variable Suspension (AVS) Shocks
• Use 35/12.50R18 Tire w/18X9 Wheel w/5 in. BS w/Cutting
• Use 35/12.50R20 Tire w/20X9 Wheel w/5 in. BS w/Cutting
• 3 in. Lift; w/Uniball; Front Dirt Logic 2.5 Resi Coilover; Rear Dirt Logic 2.25 Shock; Rear Air Bag Spacers; Use 33/12.50R18 tires w/18x9 wheels w/5in BS w/minor trimming~33/12.50R20 Tires w/20x9 Wheels w/5 in. BS w/Minor Trimming~Does No Fit Hybrid Models~Fits Crewmax Models Only~Does Not Fit Models Equipped With Adaptive Variable Suspension (AVS) Shocks~Use 35/12.50R18 Tire w/18X9 Wheel w/5 in. BS w/Cutting~Use 35/12.50R20 Tire w/20X9 Wheel w/5 in. BS w/Cutting
• 3 in. Lift; w/Uniball; Front Dirt Logic 2.5 Resi Coilover; Rear Dirt Logic 2.25 Shock; Rear Air Bag Spacers
