Flowmaster 17470 American Thunder Cat-back Exhaust System
Flowmaster 17470 American Thunder Cat-back Exhaust System
Low stock: 2 left
Couldn't load pickup availability
Description & Features

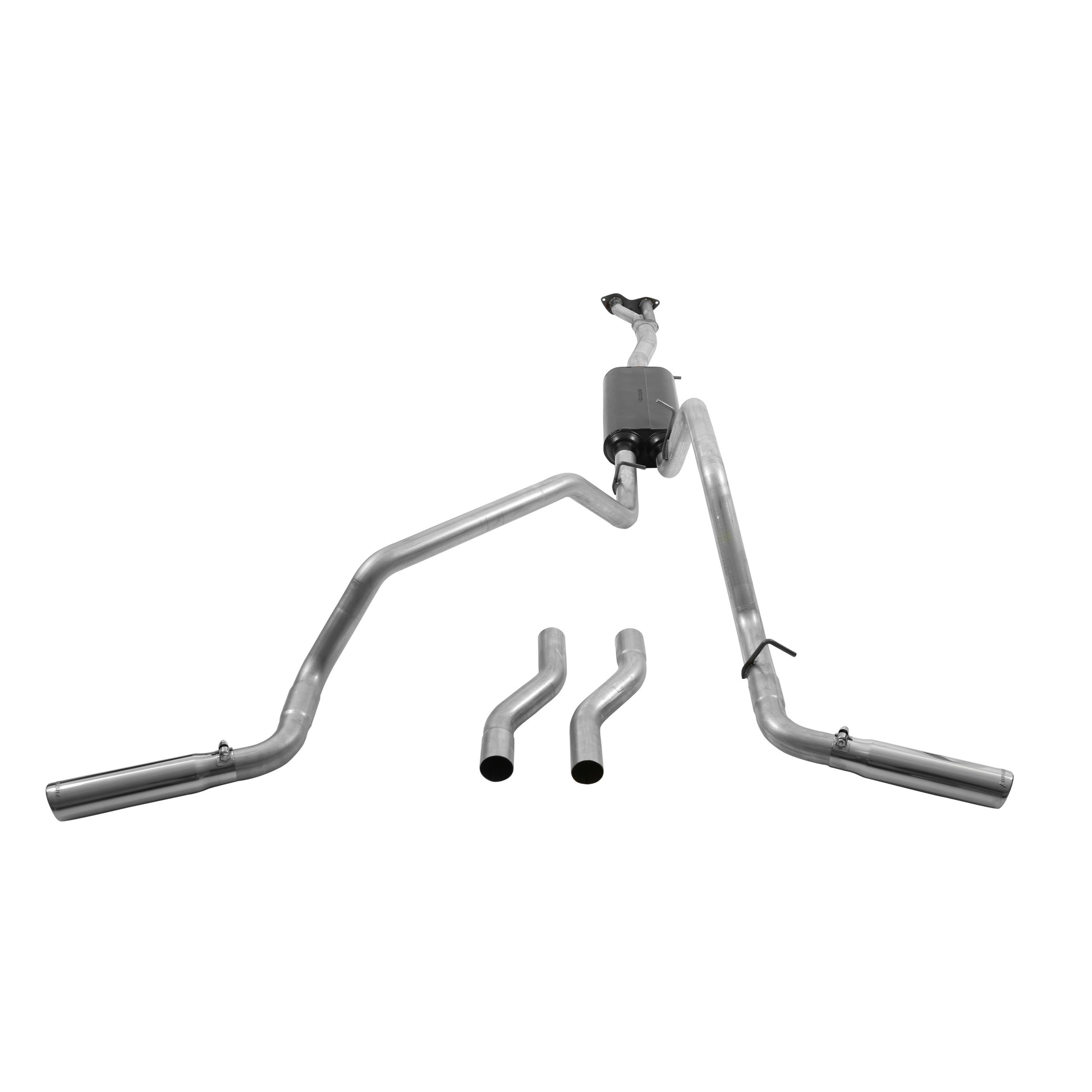

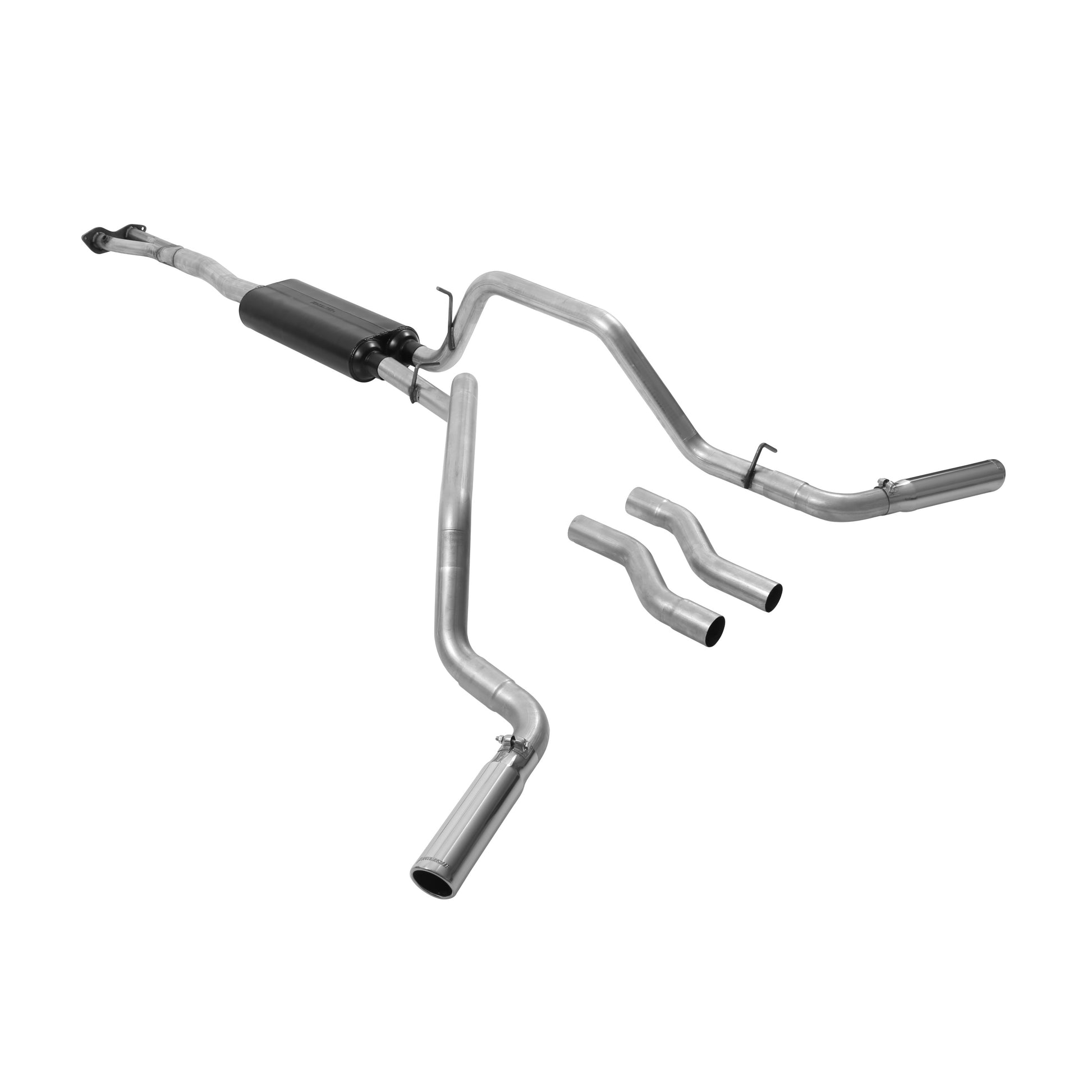

Flowmaster 17470 American Thunder Cat-back Exhaust System
For the person who is looking for an aluminized steel cat-back exhaust system with an aggressive exterior tone and moderate interior tone. The American Thunder® system is heavy 16-gauge mandrel-bent aluminized steel tubing for durability and maximum performance. Includes a aluminized steel 70™ Series Big Block II performance muffler for that perfect blend of a deep aggressive exterior sound, with a moderate interior tone that won't drive you out of the cab when having a conversation. The dual 2.50-inch tailpipes clear the factory spare tire and give you two choices of exit locations. Straight out the back for that true dual look, or exiting out each side behind the rear wheels, which is ideal for towing. The system is finished off with a pair of highly polished 3.00-inch 304 stainless steel tips embossed with the Flowmaster® name. Designed for an easy fit, these systems include all necessary parts, hardware and instructions for an easy installation you can do at home. Covered by our 3-year Limited Warranty. For those who prefer full stainless steel construction with a Lifetime Limited Warranty, check out part# 817470. Notes: Fits 2/4 wheel drive models with extended cab/short bed configuration 141-inch wheelbase.

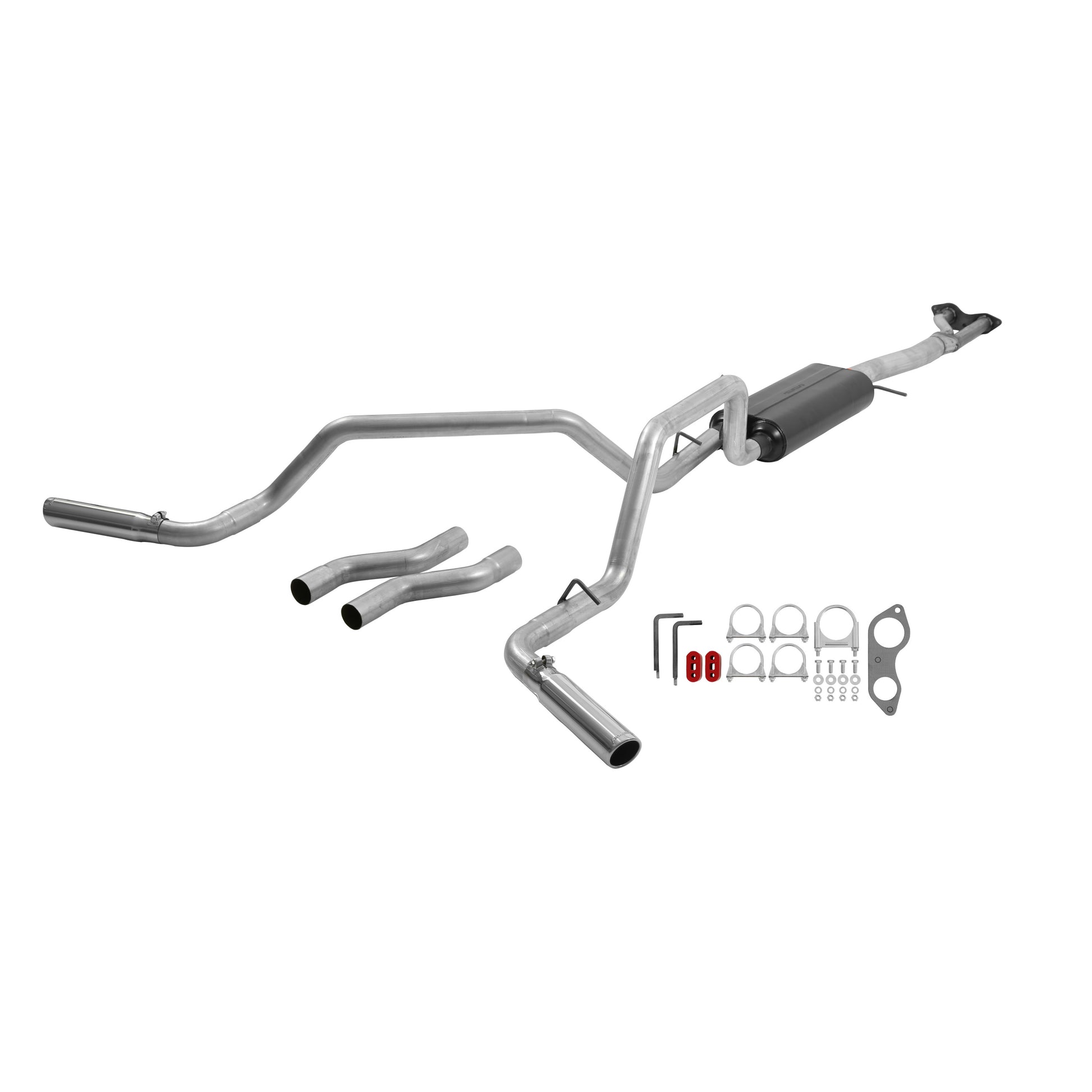

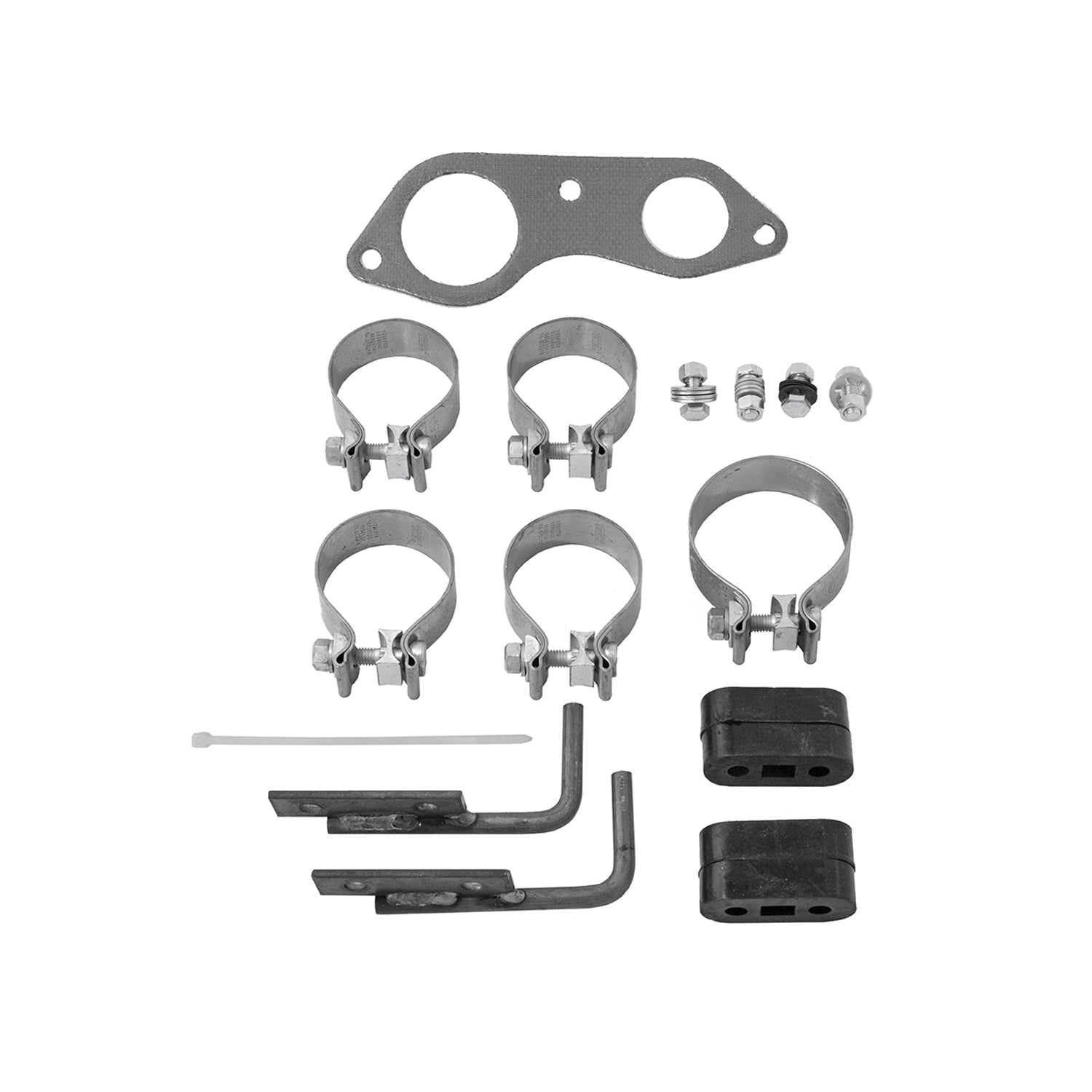

- Includes Hangers and Hardware for an Easy Installation

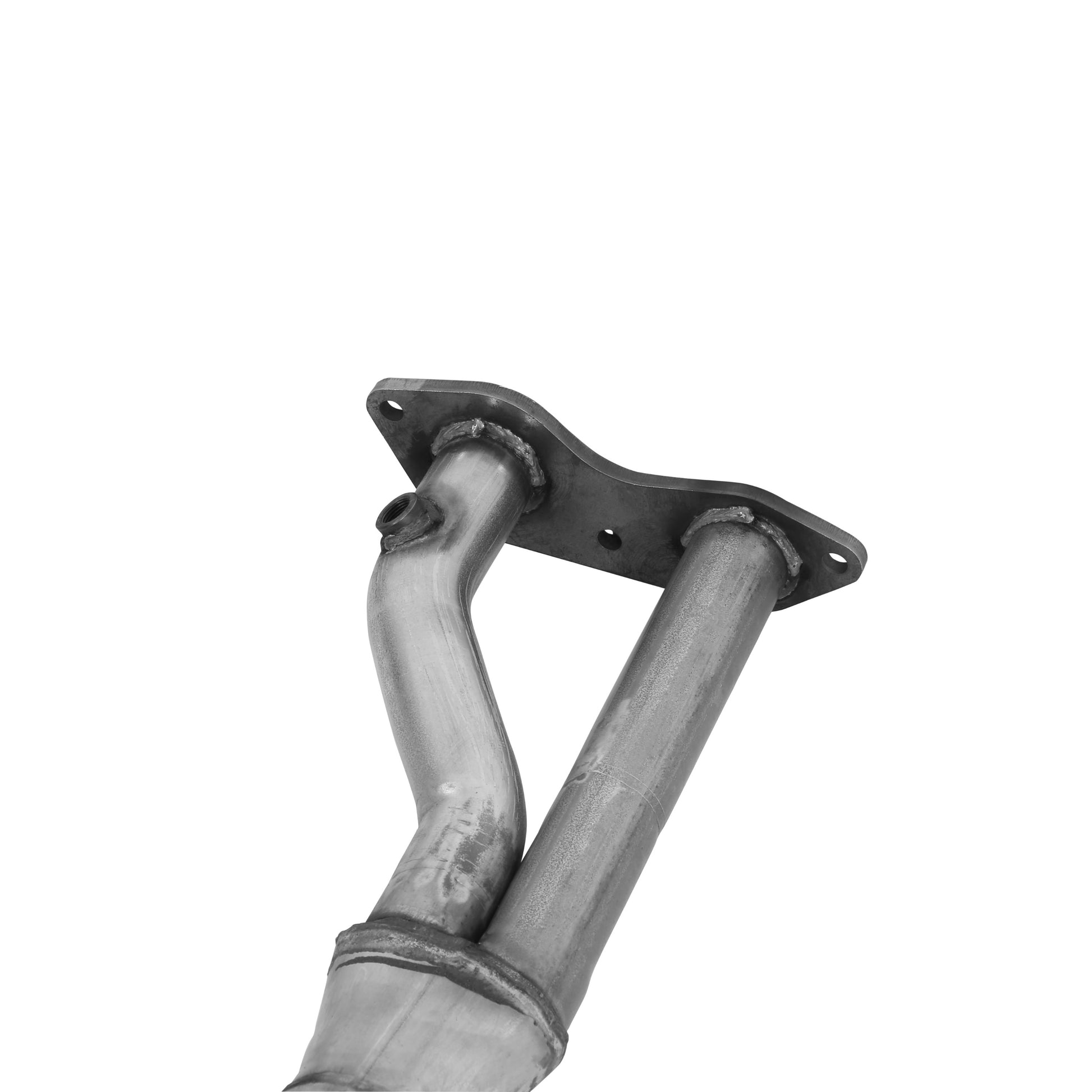

- Scavenger Series Y-collector for Improved Scavenging
- Mandrel-bent 16-gauge Aluminized Steel Tubing
- 70 Series Big Block II Performance Muffler
- Dyno Tuned for Maximum Performance

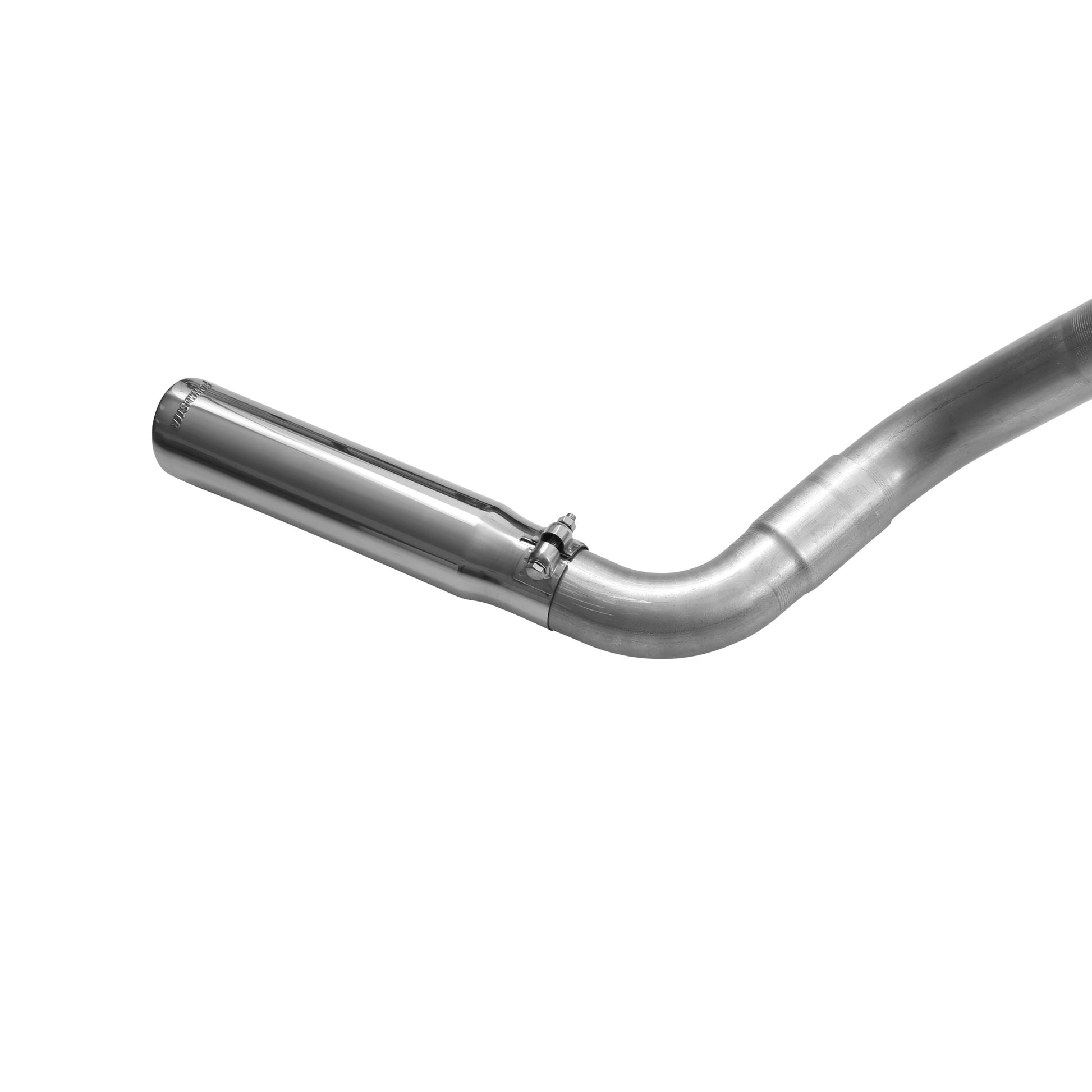

- 00-inch Polished Stainless Steel Tips
- Uses the Factory Hanger Locations
- Moderate Exterior Exhaust Tone
- Quick and Easy Installation
- 3-year Limited Warranty
Specifications
| Brand | Flowmaster |
| California Proposition 65 | Yes |
| California Proposition 65 Chemical Name | Chromium (hexavalent compounds) |
| CARB (California) Compliant | Yes |
| Catalytic Converter Included | No |
| Catalytic Converter Quantity | 0 |
| Category | Exhaust |
| Clamping Type | U-Bolt |
| Clamps Included | Yes |
| Drive | 4WD |
| Emission Code | 5 |
| Exhaust Series | American Thunder |
| Exhaust Tip Connection | Clamp-On |
| Exhaust Tip Cut | Angled |
| Exhaust Tip Diameter | 3.00 |
| Exhaust Tip Edge | Rolled Edge Angle Cut |
| Exhaust Tip Finish | Polished |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 13.00 |
| Exhaust Tip Material | 304 Stainless Steel |
| Exhaust Tip Quantity | 2 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Single Wall |
| Exit Style | Dual Out Rear |
| Finish | Aluminized |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Hangers Included | Yes |
| Heat Shield Included | No |
| Inlet Diameter | 2.00 |
| Inlet Type | Flanged |
| Main Piping Diameter | 2.50 |
| Mounting Bracket Included | Yes |
| Muffler Body Height | 5.00 |
| Muffler Body Length | 22.00 |
| Muffler Body Material | Aluminized Steel |
| Muffler Body Shape | Oval |
| Muffler Body Width | 10.00 |
| Muffler Finish | Black High-Temperature Paint Finish |
| Muffler Flanged Inlet | No |
| Muffler Flanged Outlet | No |
| Muffler Included | Yes |
| Muffler Inlet Connection | Slip-Fit |
| Muffler Inlet Inside Diameter | 3.00 |
| Muffler Inlet Outside Diameter | 3.00 |
| Muffler Outlet Connection | Slip-Fit |
| Muffler Outlet Quantity | 2 |
| Muffler Part Number | 530702 |
| Muffler Quantity | 1 |
| Muffler Series | 70 Series Big Block |
| Muffler Type | Chambered |
| part type | Exhaust System |
| Pipe Color | Silver |
| Pipe Material | Aluminized Steel |
| Product Type | Exhaust System |
| Sound Level | Aggressive / Moderate |
| Spring Bolt Kit Included | No |
| Sub Category | Exhaust and Tail Pipes |
| Tail Pipe Outlet Outside Diameter | 2.50 |
| Tail Pipe Quantity | Dual |
| Tail Pipe Tapered Outlet | No |
| Type | Cat-Back |
| Valve Included | No |
| Valve Type | Not Applicable |
| Warning | California Proposition 65 |
Packaging Information
Weight: 60.1 lbs
Dimensions: 58 x 16.1 x 13.2 IN
Safety
⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov
Warranty
Installation Instructions
⚠ Fitment Notes
- Polished Tip Finish, Dual Out Rear/Side Exit, Aggressive to Moderate Sound, With Dual Catalytic Converters, Fits 2/4 wheel drive models with extended cab/short bed, 141-inch wheelbase
- Fits 1996-1999 Chevrolet Silverado and GMC Sierra 1500 with 5.7L engine using dual catalytic converters, fits 2/4 wheel drive models with extended cab/short bed configuration 141-inch wheelbase.
Share
Vehicle Fitment
Vehicle Fitment
- 1996-1997 Chevrolet C1500 Base
- 1996-1998 Chevrolet C1500 Cheyenne
- 1999 Chevrolet C1500 LS
- 1996-1998 Chevrolet C1500 Silverado
- 1996-1997 Chevrolet K1500 Base
- 1996-1998 Chevrolet K1500 Cheyenne
- 1999 Chevrolet K1500 LS
- 1996-1998 Chevrolet K1500 Silverado
- 1996-1999 GMC C1500 Sierra SL
- 1996-1999 GMC C1500 Sierra SLE
- 1996-1999 GMC C1500 Sierra SLT
- 1996-1999 GMC K1500 Sierra SL
- 1996-1999 GMC K1500 Sierra SLE
- 1996-1999 GMC K1500 Sierra SLT
