Flowmaster

Flowmaster 717787 Flow FX Cat-Back Exhaust System

$849.95 USD

Sale Sold out

Shipping calculated at checkout.

10 in stock

Description & Features

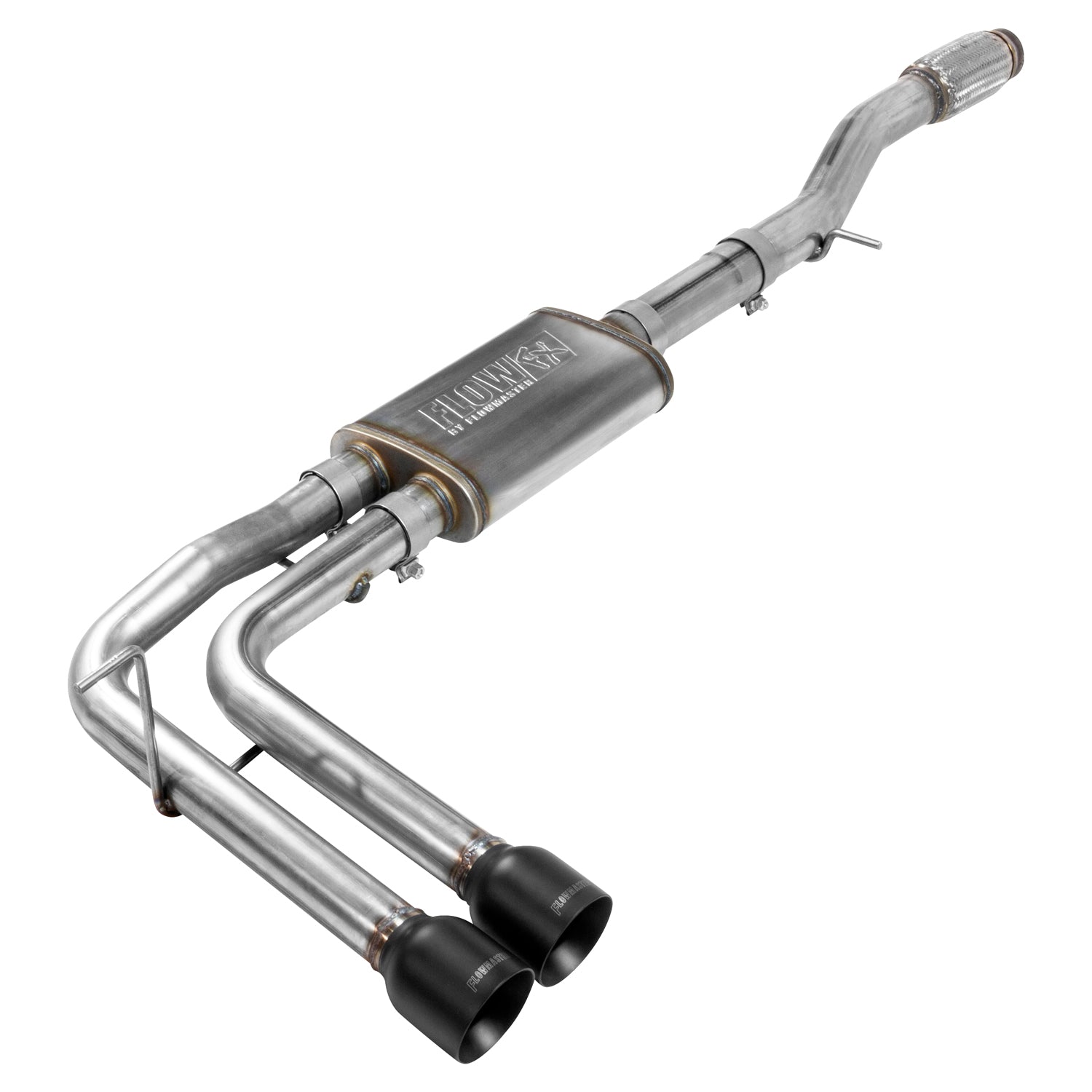

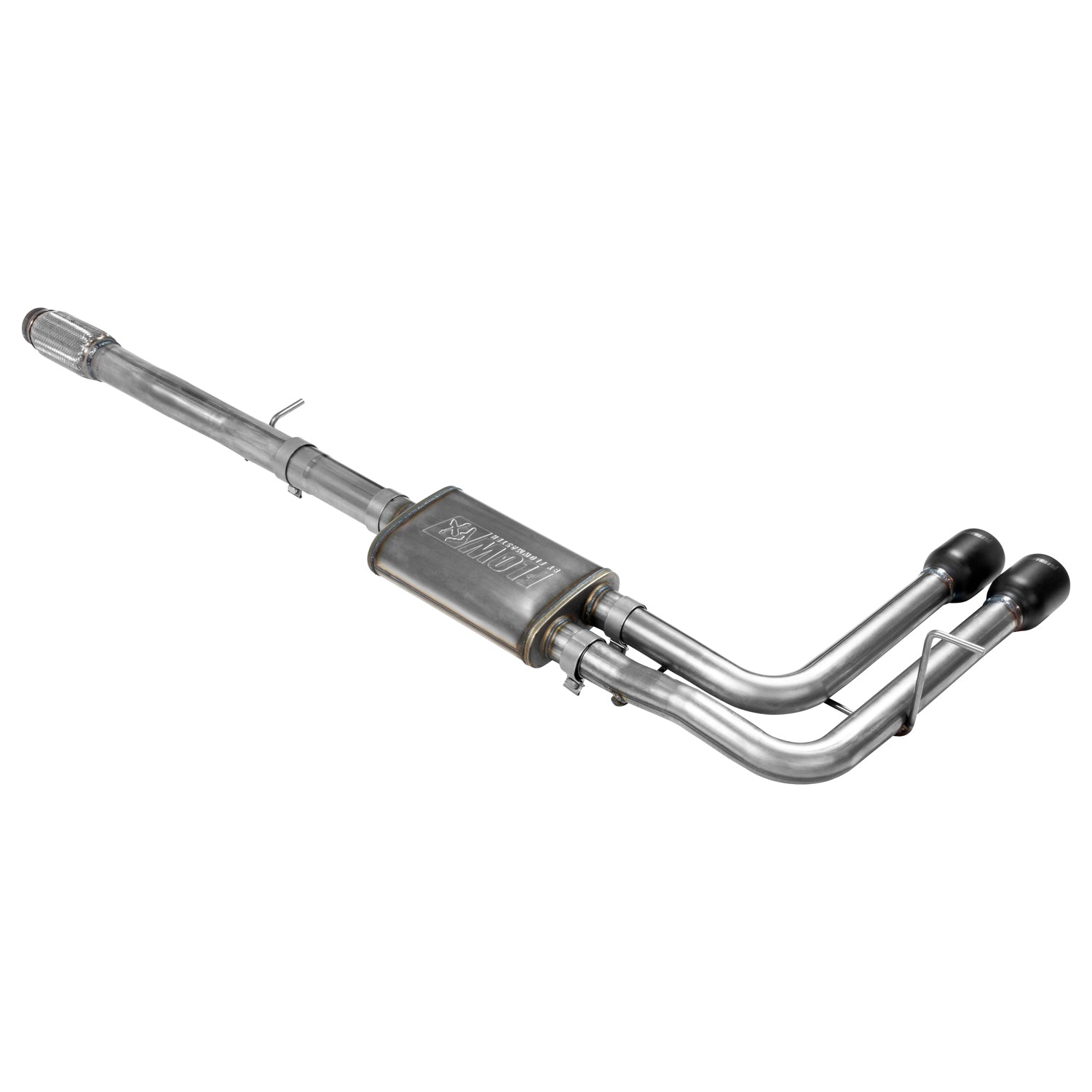

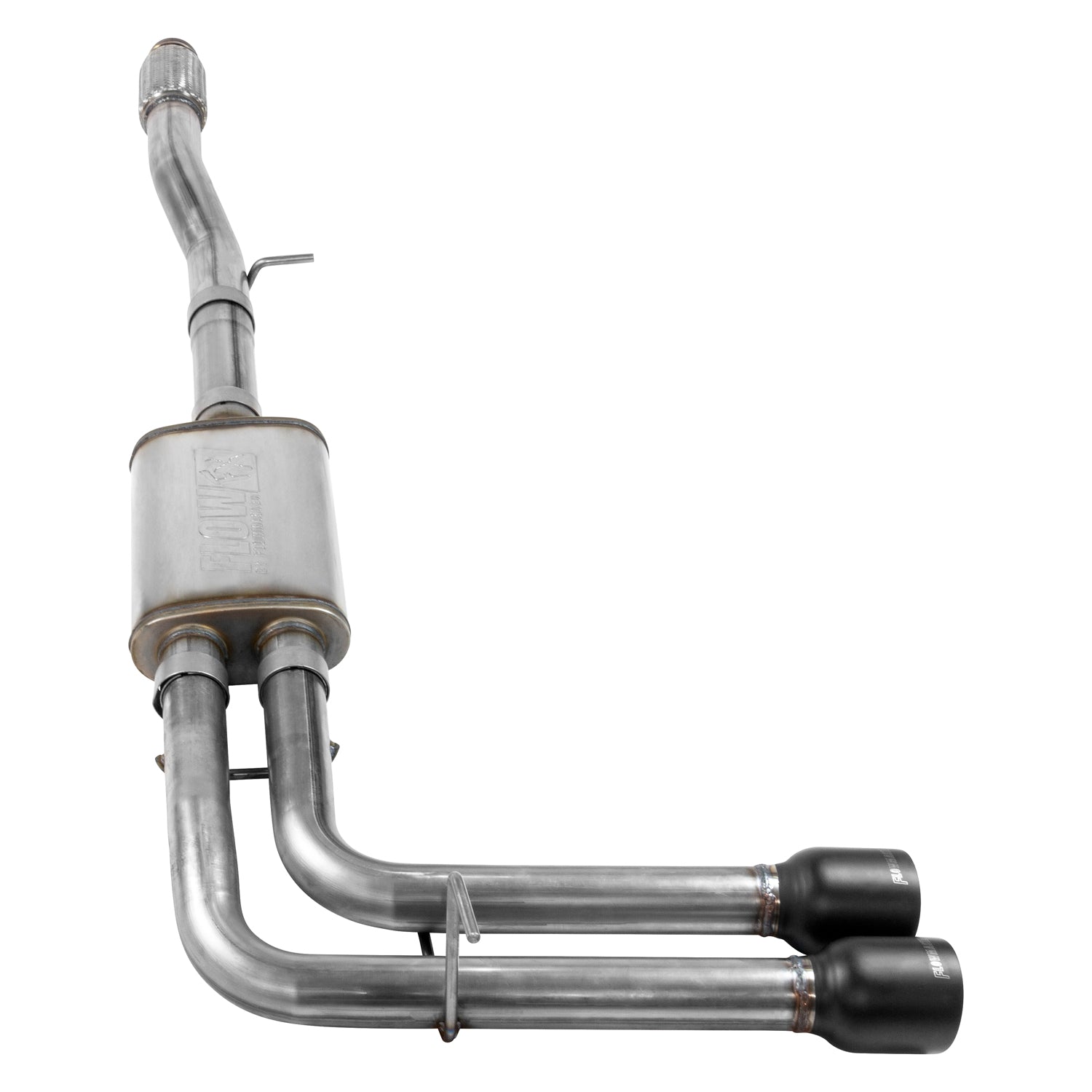

Flowmaster 717787 Flow FX Cat-Back Exhaust System

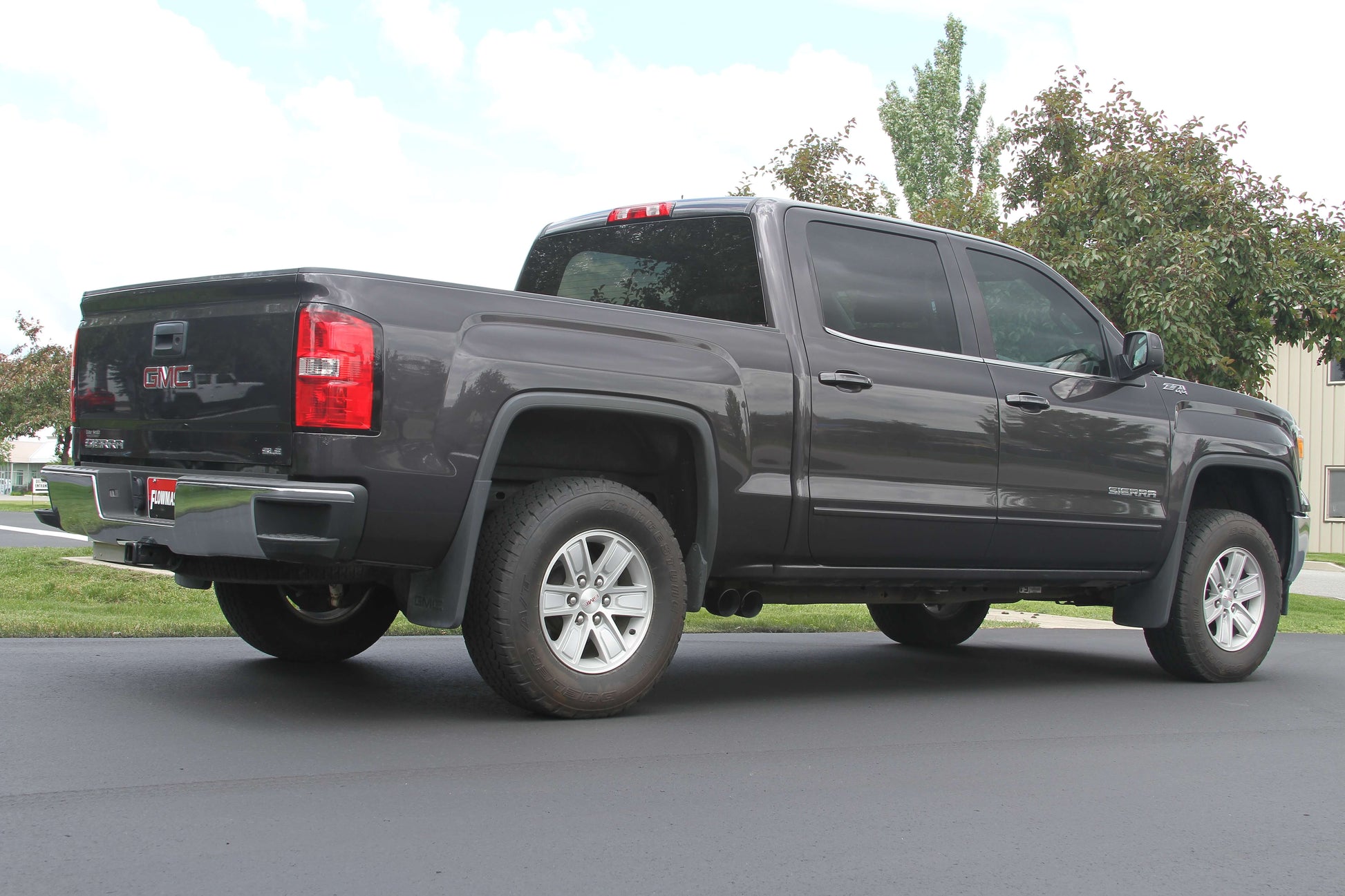

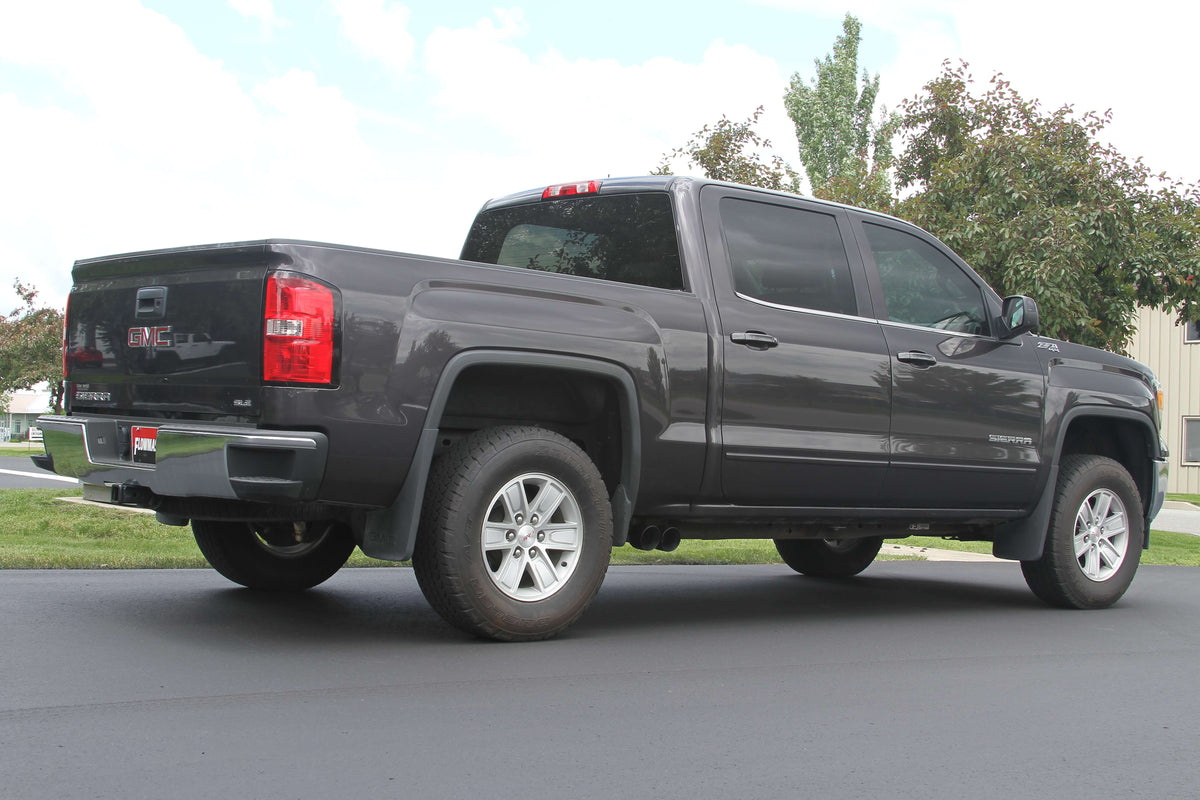

Introducing Flowmaster's new line of Flow FX Cat-back exhaust systems for the 2014-2019* (*Classic body) Chevrolet Silverado 1500 and GMC Sierra 1500 Crew Cab and Double Cab models with 4.3L and 5.3L engine. This Flow FX system is perfect for the person looking for a moderate to aggressive exterior and interior sound level with all of the performance benefits that you would expect from Flowmaster. Features include 409S stainless steel mandrel-bent tubing flowing into a Flow FX straight-through performance muffler for maximum power and a deep aggressive sound. The dual 2.50-inch tailpipes are finished off with large 4.00-inch black ceramic coated 304 stainless steel tips exiting in front of the rear passenger tire for that muscle truck look. Designed for easy installation, this system includes all necessary parts, hardware and detailed instructions.

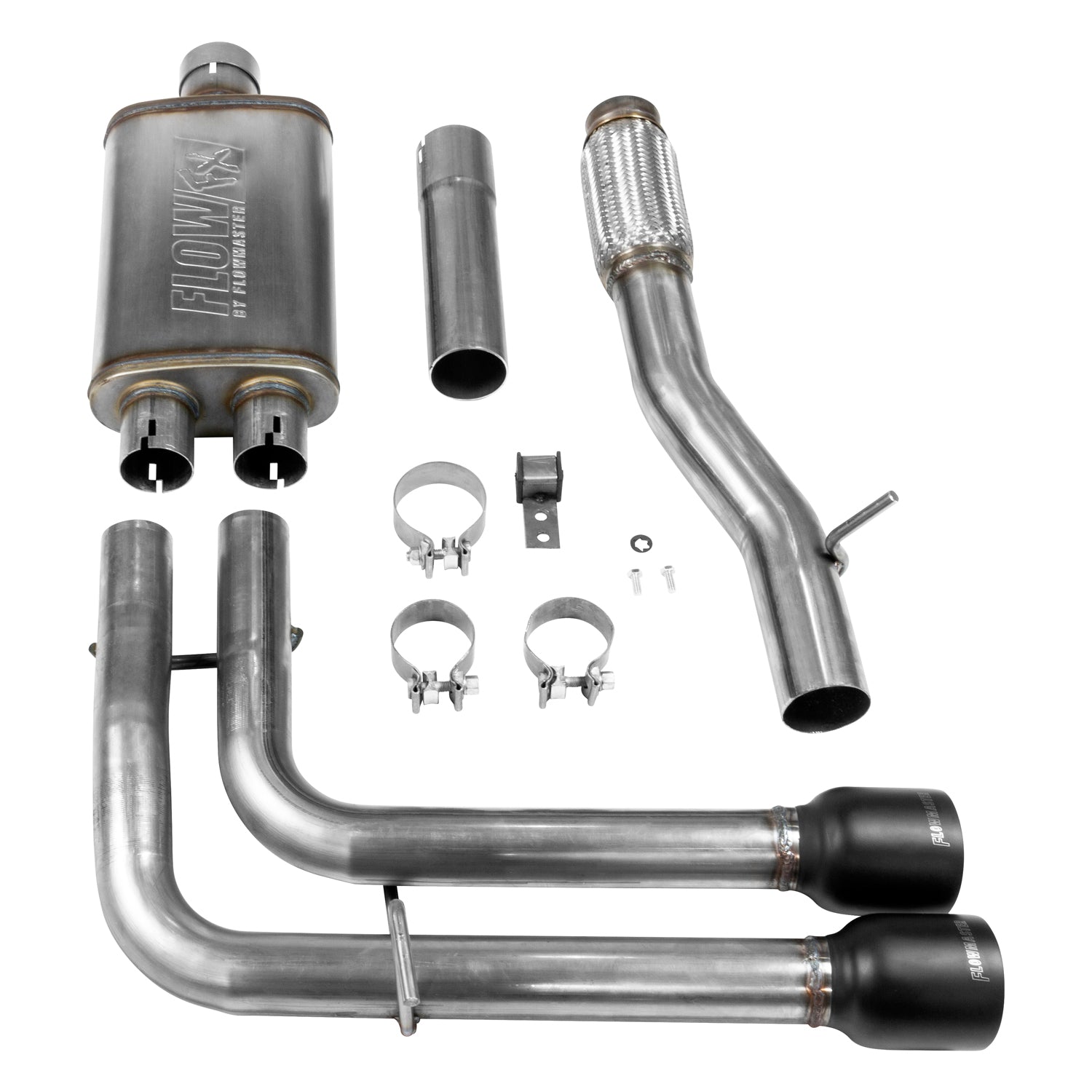

Includes all Clamps, Hangers and Necessary Hardware
Flow FX "Straight-through" Performance Muffler

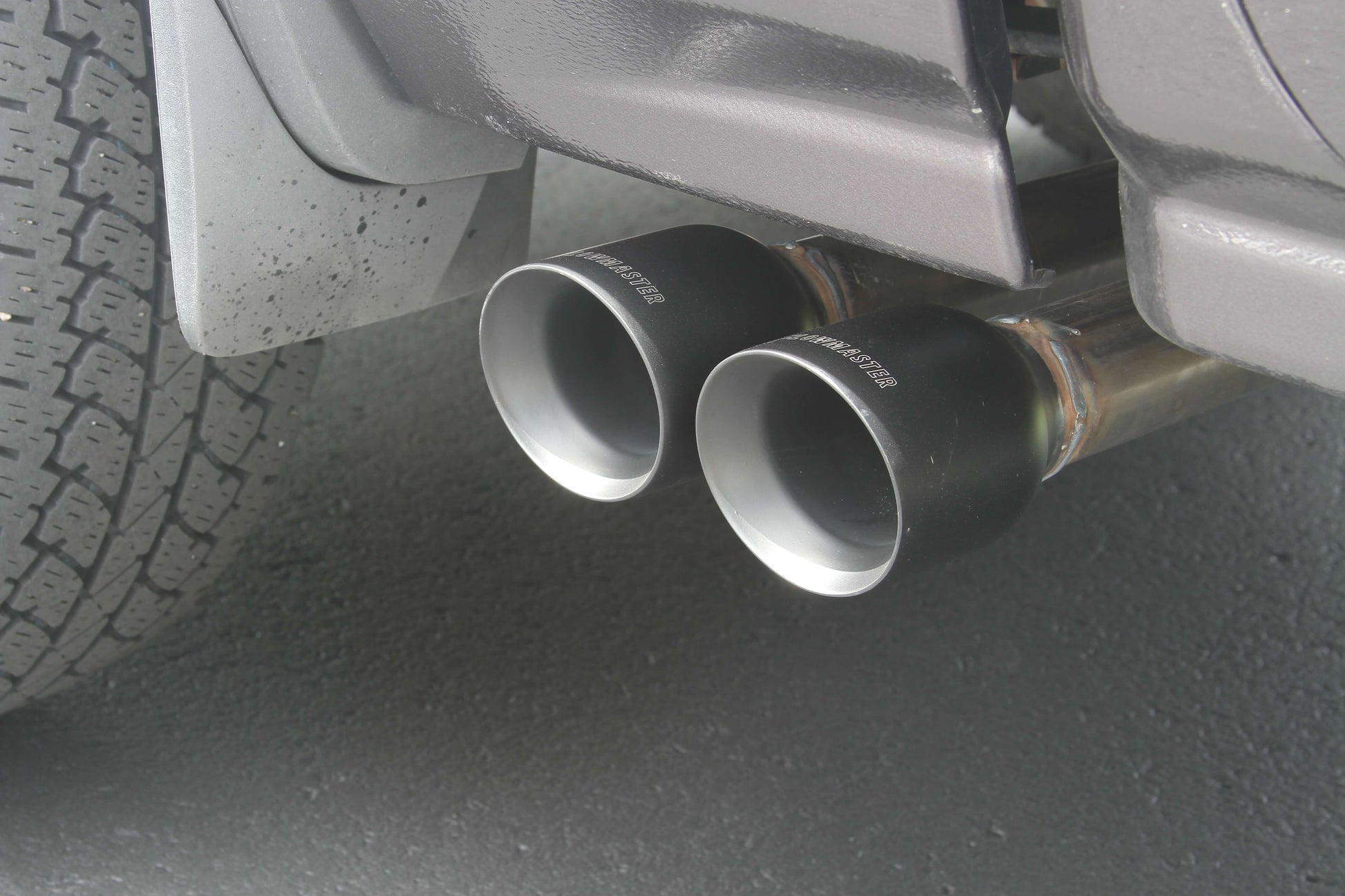

Large 4.00-inch Black Ceramic Coated Tips

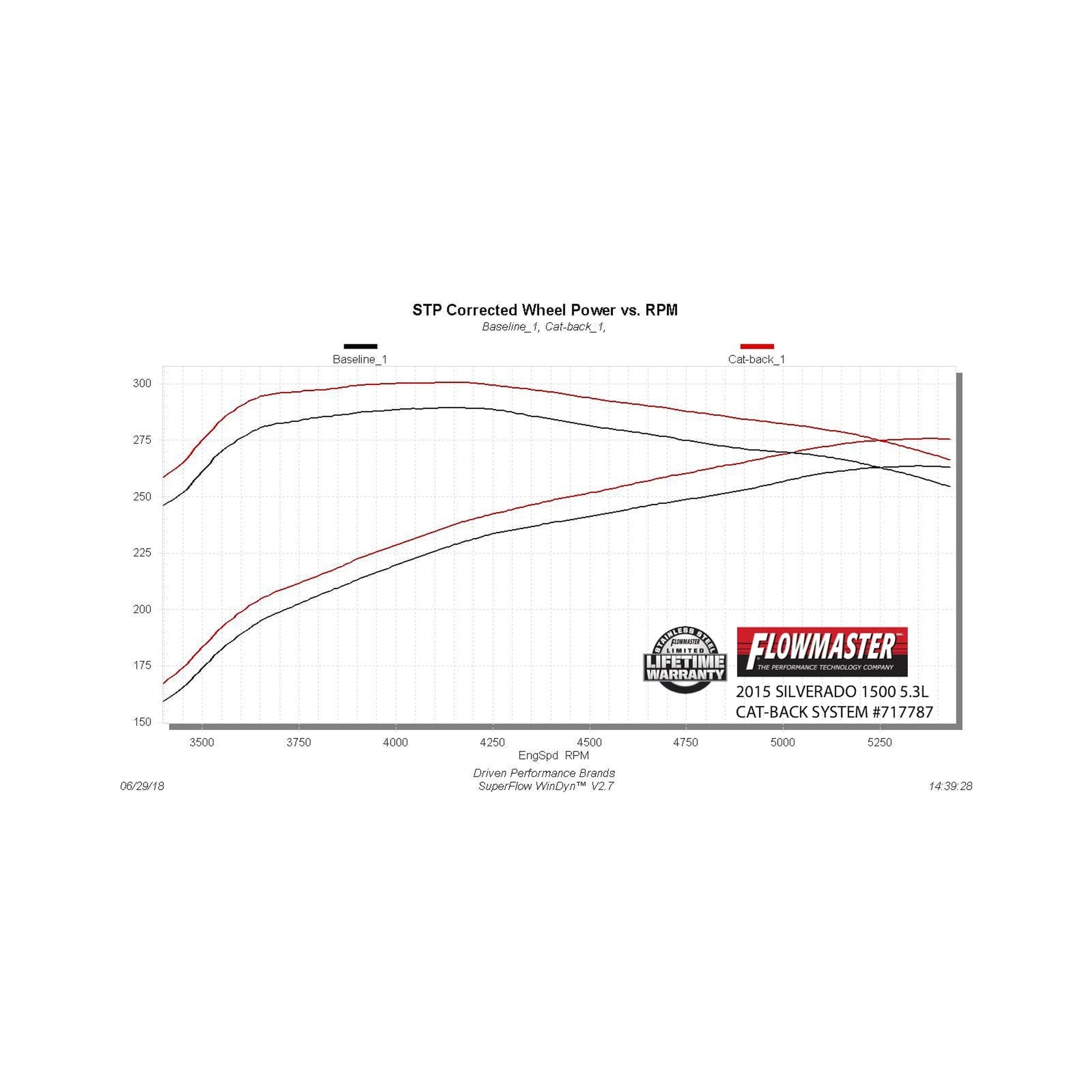

Dyno-Tuned For Maximum Performance
Stainless Steel Mandrel Bent Tubing
Moderate/Aggressive Sound
Lifetime Limited Warranty
Easy Installation

Specifications

Brand	Flowmaster
California Proposition 65	Yes
California Proposition 65 Chemical Name	Nickel (Metallic)
CARB (California) Compliant	Yes
Catalytic Converter Included	No
Catalytic Converter Quantity	0
Category	Exhaust
Clamping Type	Flat Band
Clamps Included	Yes
Emission Code	5
Exhaust Series	Flow FX
Exhaust Tip Color	Black
Exhaust Tip Connection	Welded
Exhaust Tip Cut	Angled
Exhaust Tip Diameter	4.00
Exhaust Tip Edge	Angle Cut
Exhaust Tip Finish	Black Ceramic Coating
Exhaust Tip Intercooled	No
Exhaust Tip Length	5.25
Exhaust Tip Material	304 Stainless Steel
Exhaust Tip Quantity	2
Exhaust Tip Resonated	No
Exhaust Tip Shape	Round
Exhaust Tip Wall	Double Wall
Exit Style	Dual Out Same Side
Finish	Natural
Gasket Or Seal Included	No
Grade Type	Performance
Hangers Included	Yes
Heat Shield Included	No
Inlet Type	Clamp-On
Main Piping Diameter	3.00
Mount Type	Uses Factory Hangers
Mounting Bracket Included	Yes
Muffler Body Height	4.00
Muffler Body Length	14.00
Muffler Body Material	409 Stainless Steel
Muffler Body Shape	Oval
Muffler Body Width	9.00
Muffler Color	Silver
Muffler Finish	Natural
Muffler Flanged Inlet	No
Muffler Flanged Outlet	No
Muffler Included	Yes
Muffler Inlet Connection	Slip-Fit
Muffler Inlet Inside Diameter	3.00
Muffler Inlet Location	Center
Muffler Inlet Outside Diameter	2.63
Muffler Outlet Connection	Slip-Fit
Muffler Outlet Diameter	2.50
Muffler Outlet Location	Dual
Muffler Outlet Quantity	2
Muffler Overall Length	20.00
Muffler Part Number	Kit Only
Muffler Quantity	1
Muffler Series	Flow FX
Muffler Type	Absorption
part type	Exhaust System
Pipe Color	Silver
Pipe Material	409 Stainless Steel
Product Type	Exhaust System
Sound Level	Aggressive / Moderate
Spring Bolt Kit Included	No
Sub Category	Exhaust and Tail Pipes
Tail Pipe Outlet Outside Diameter	2.50
Tail Pipe Quantity	2
Tail Pipe Tapered Outlet	No
Tip Logo	Laser
Type	Cat-Back
Valve Included	No
Valve Type	Not Applicable
Warning	California Proposition 65

Packaging Information

Weight: 30.6 lbs
Dimensions: 31.1 x 22.7 x 9.7 IN

Safety

⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov

Warranty

View Warranty (PDF)

Installation Instructions

View Installation Instructions (PDF)

⚠ Fitment Notes

Black Ceramic Tip Finish
Black Ceramic Tip Finish, Does not fit 2wd Crew Cab models with a 2 piece driveshaft.
Does Not Fit Crew Cab 2WD with 2 Pc Driveshaft
