Flowmaster 717864 Flow FX Cat-Back Exhaust System
Flowmaster 717864 Flow FX Cat-Back Exhaust System
10 in stock
Couldn't load pickup availability
Description & Features
Flowmaster 717864 Flow FX Cat-Back Exhaust System

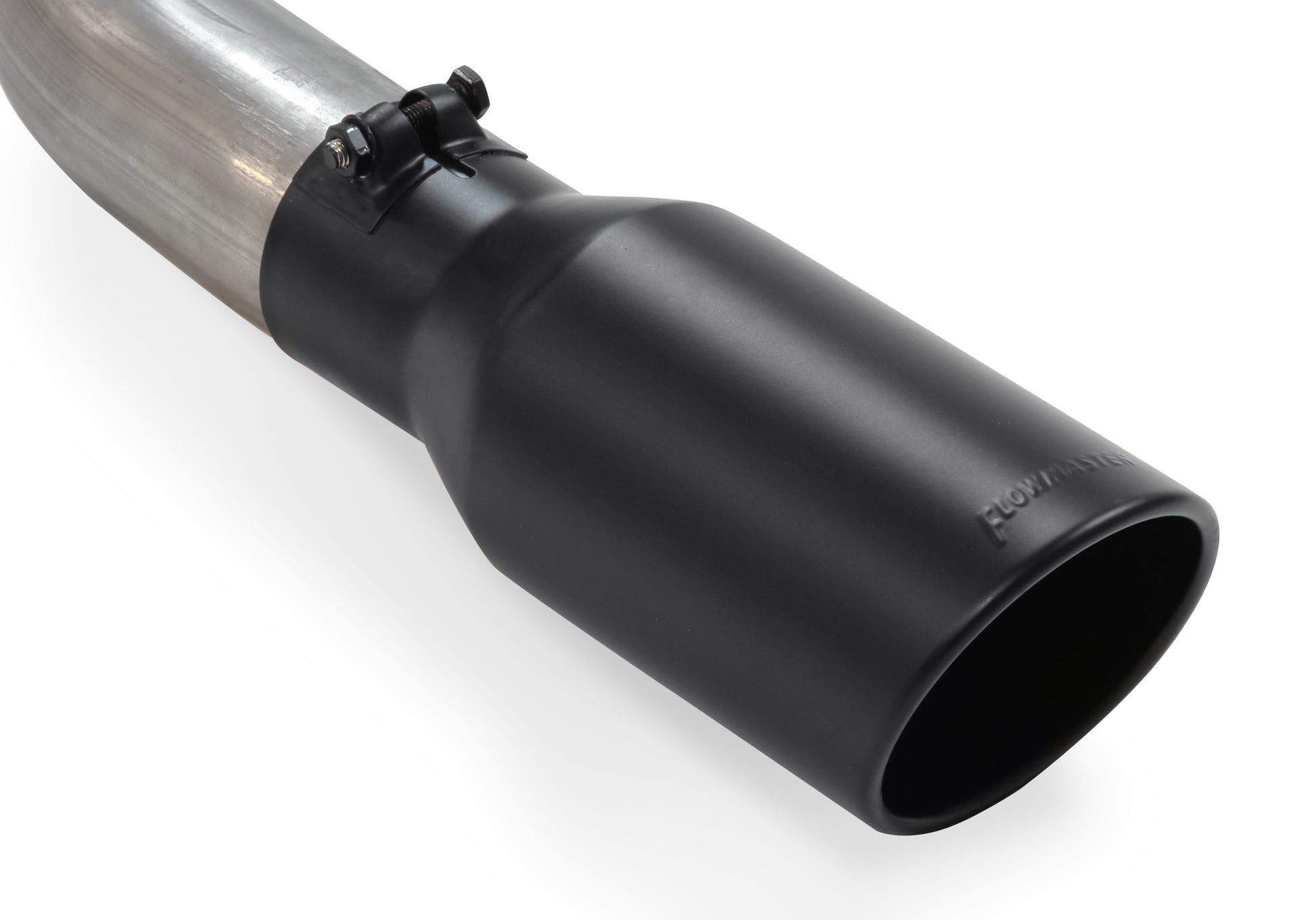

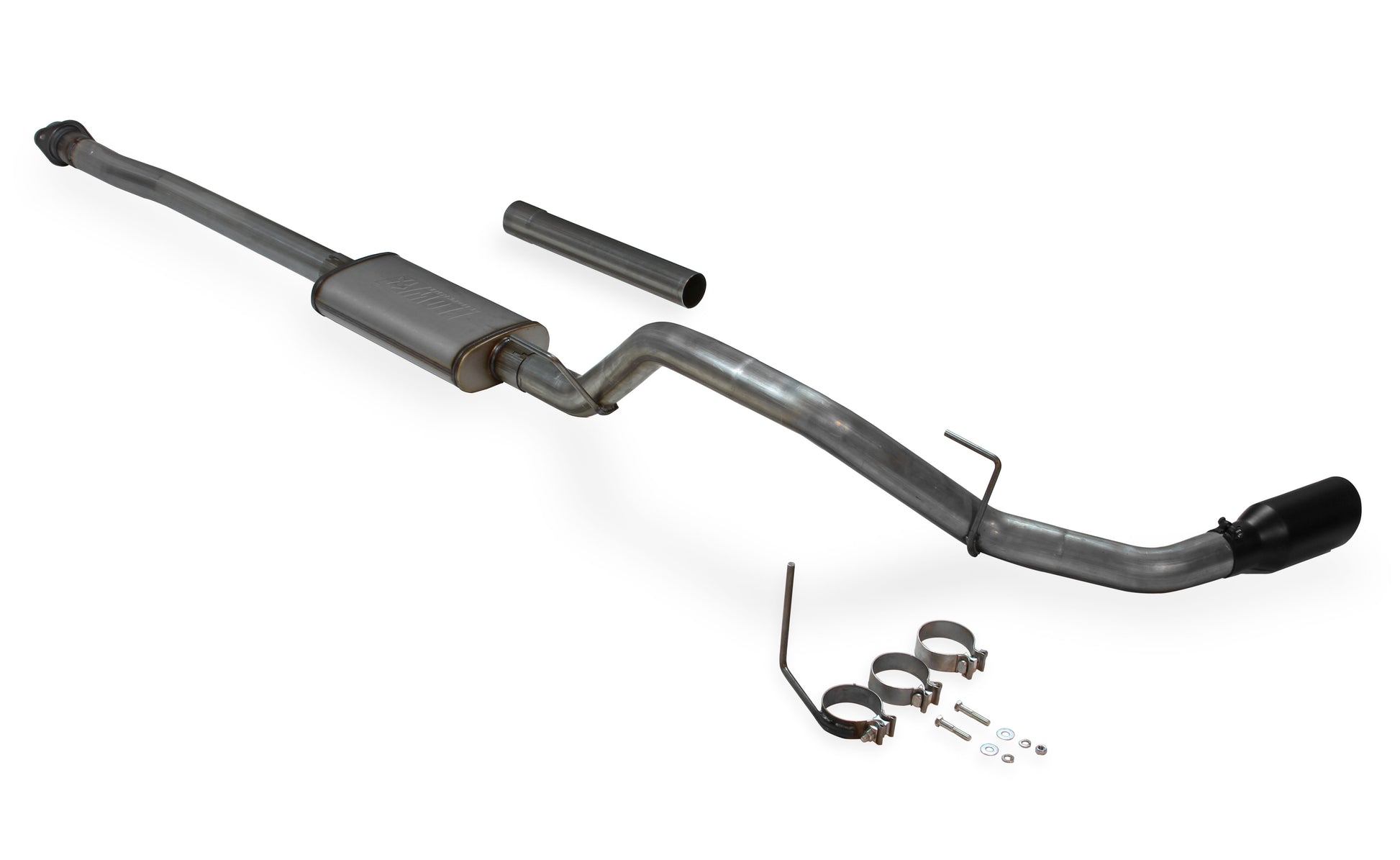

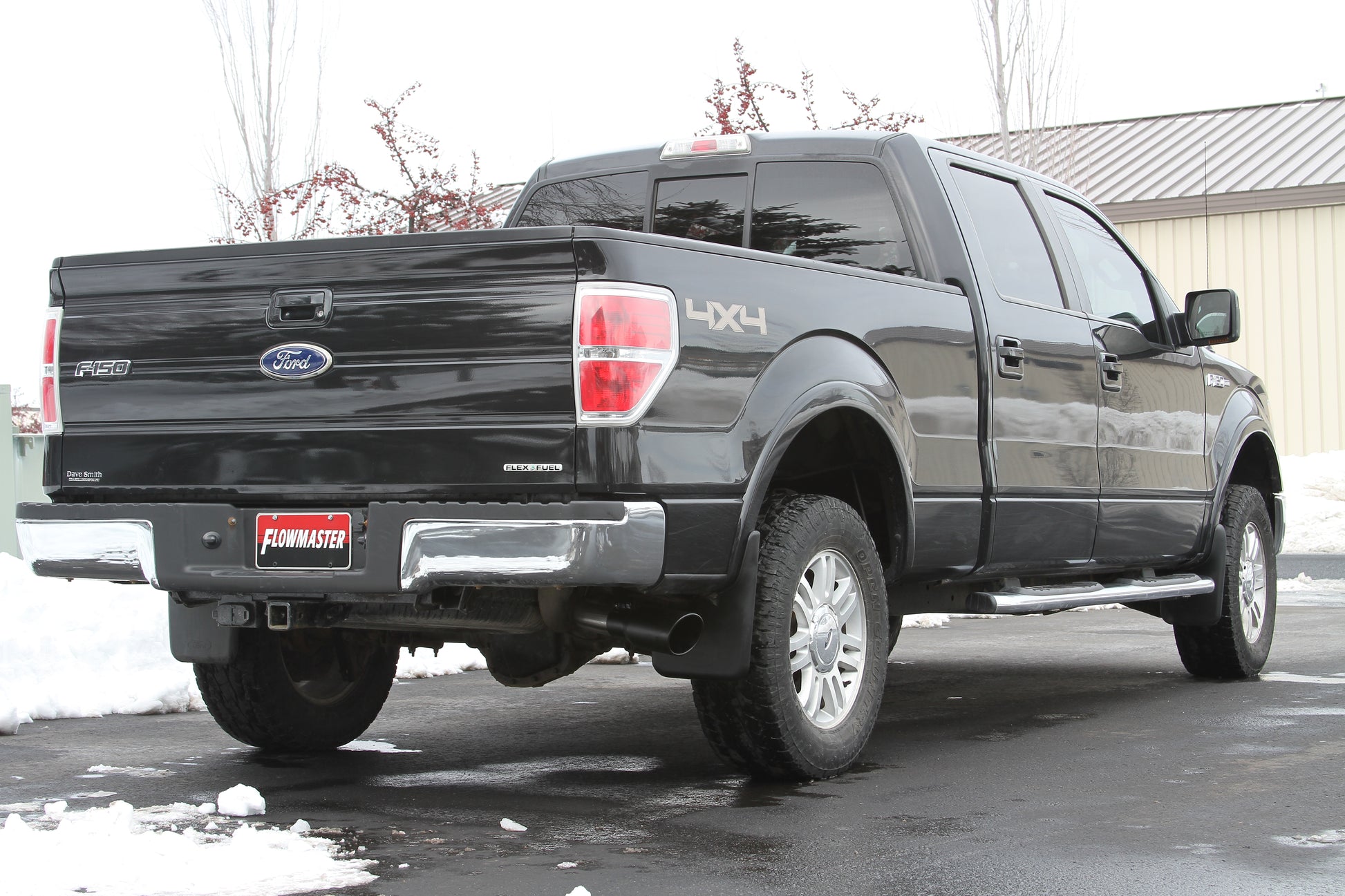

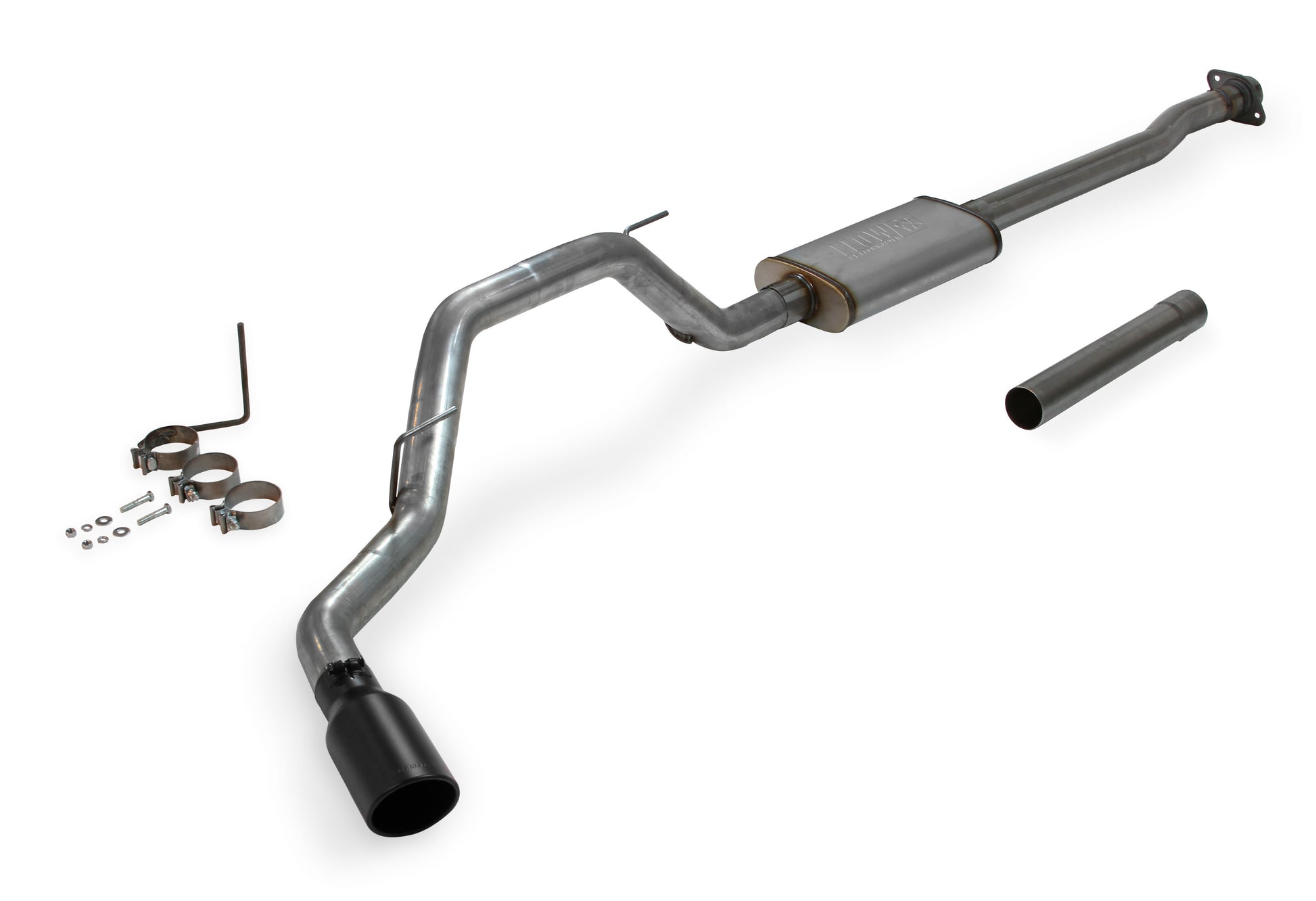

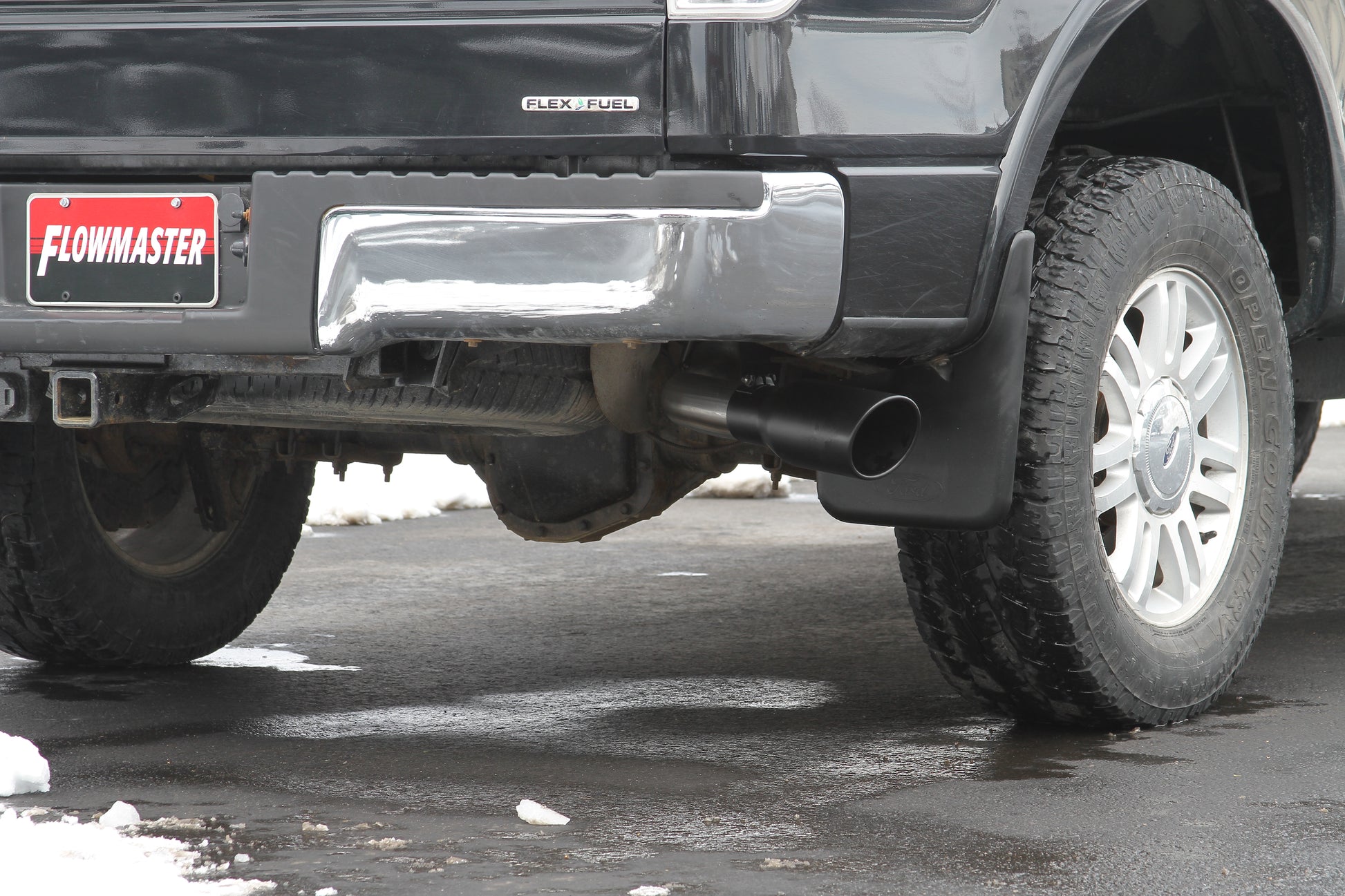

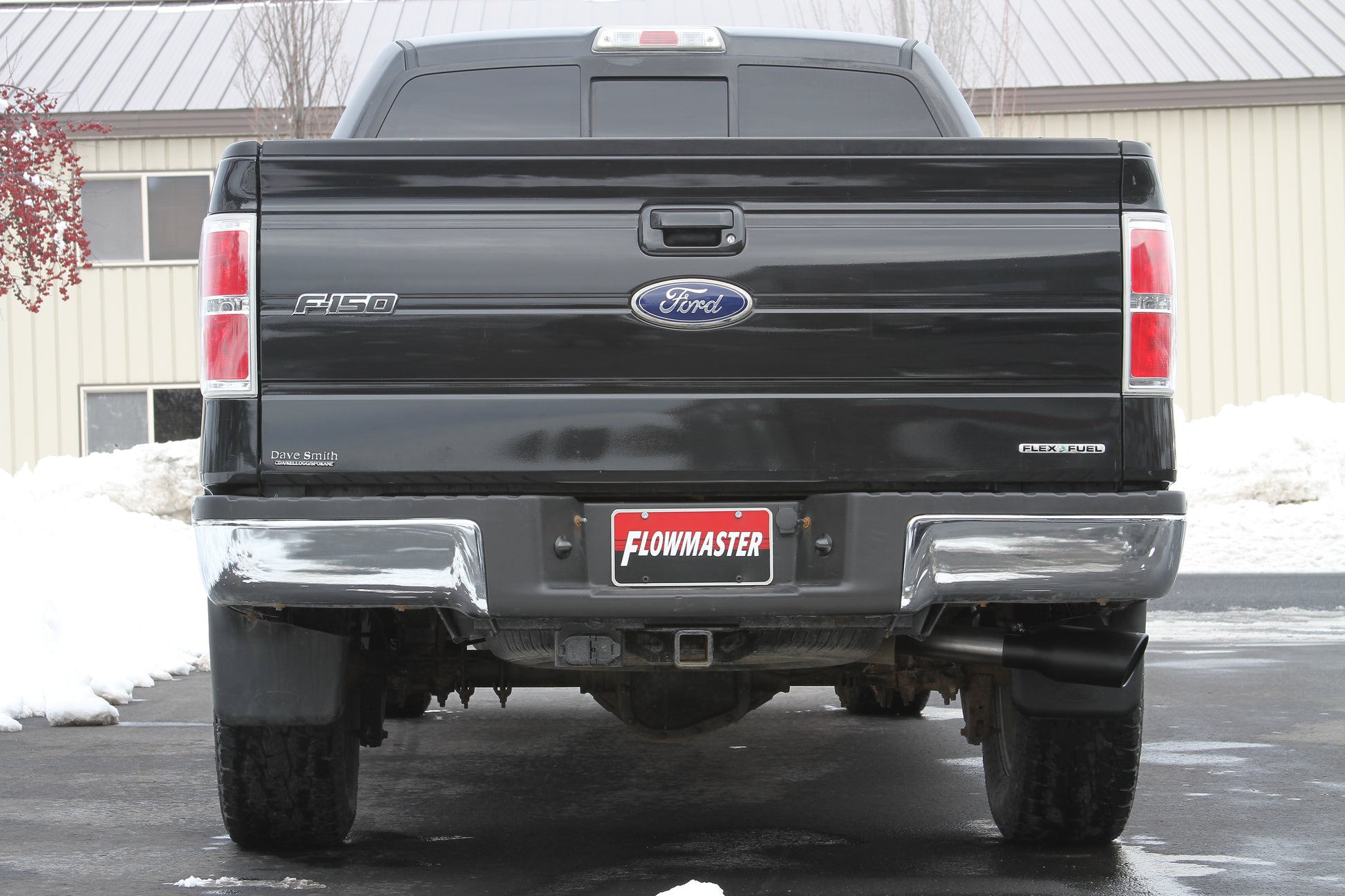

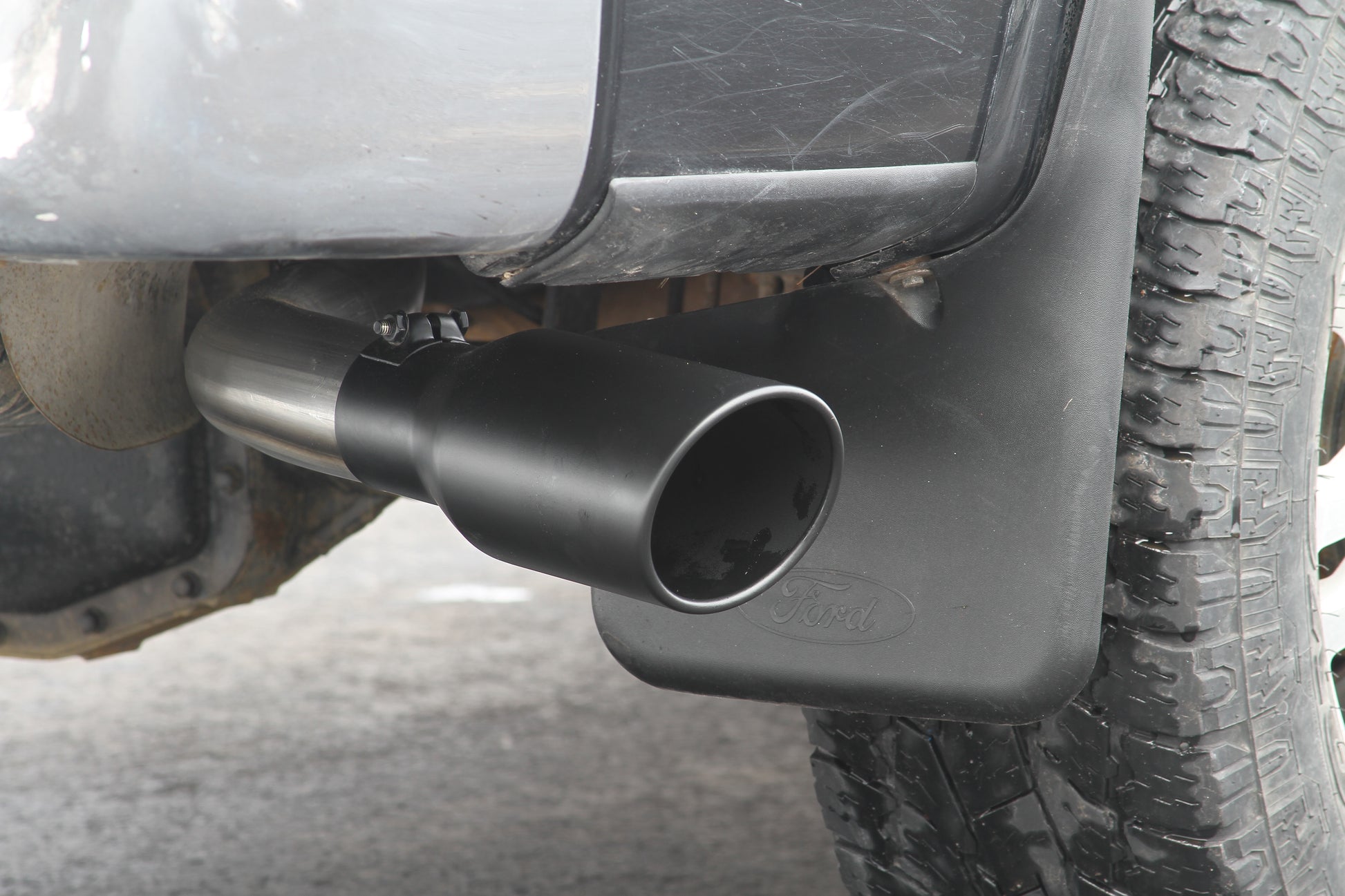

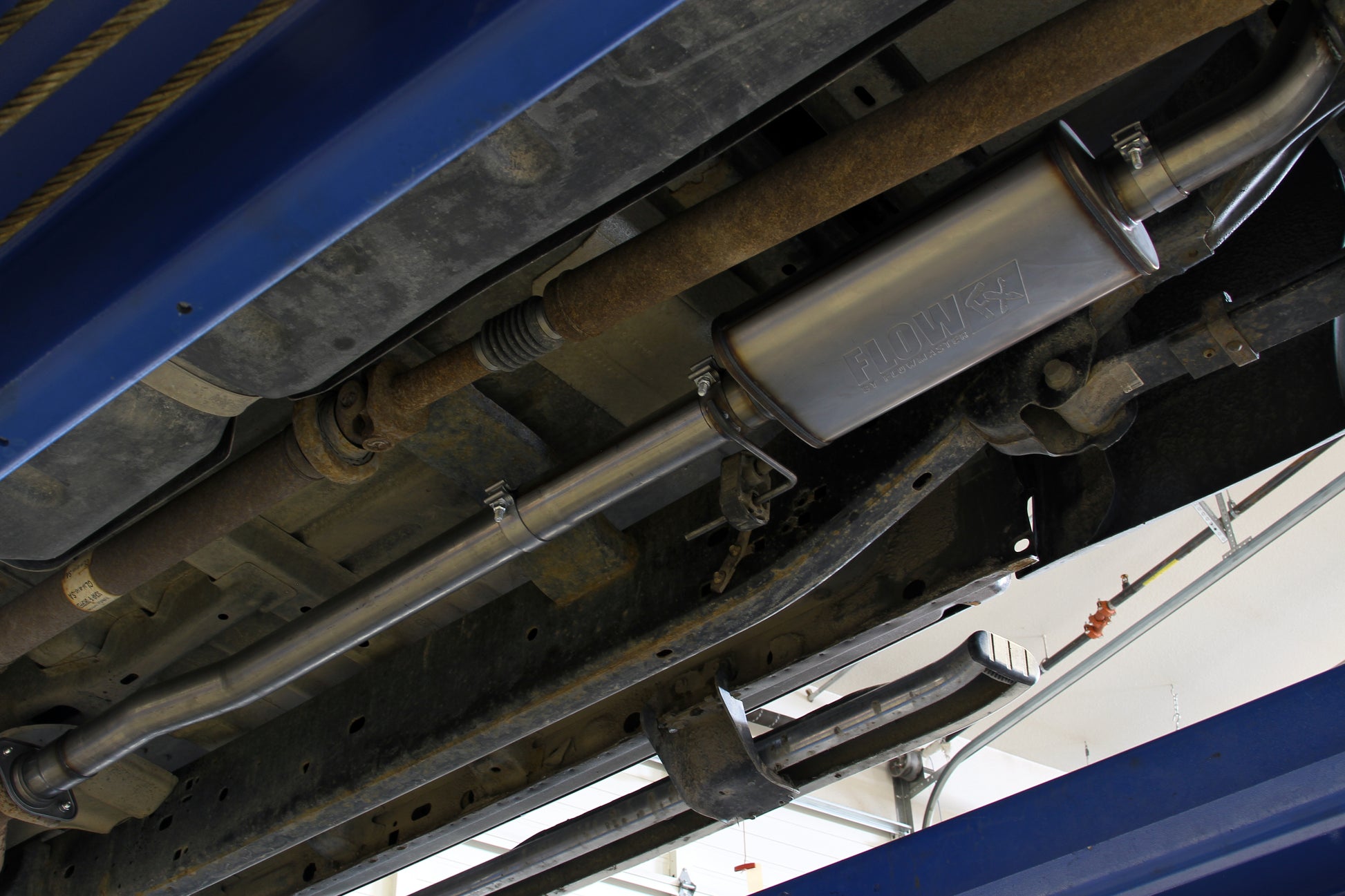

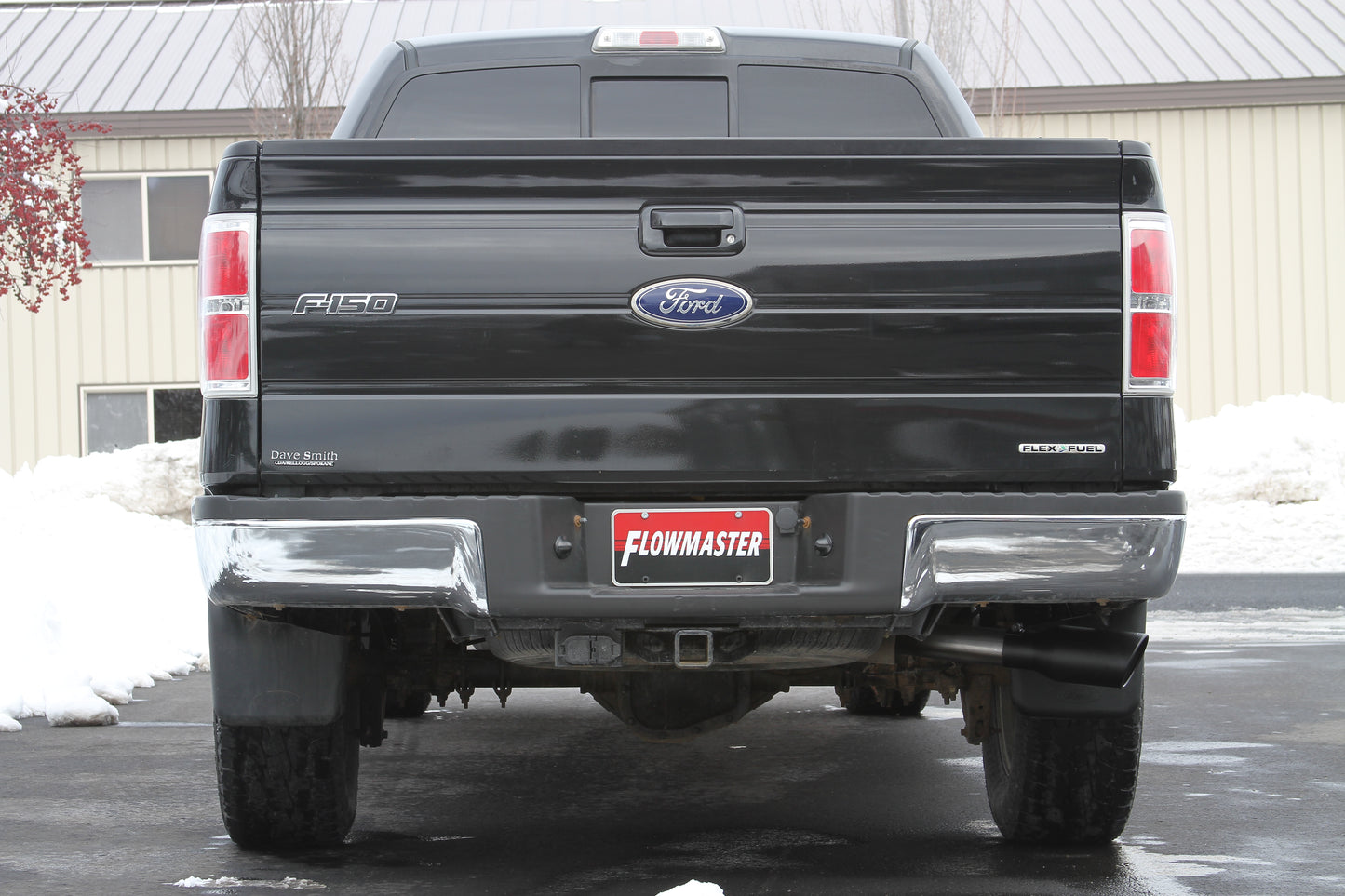

Introducing the Flow FX Cat-back exhaust system for the 2009-2014 Ford F-150 with 3.5L Ecoboost, 4.6L, 5.0L and 5.4L engines. This stainless steel performance single exhaust system bolts up to the factory catalytic converter flange with a large 3-inch mandrel-bent tubing flowing into the "straight-through" Flow FX performance muffler. The Flow FX muffler creates a deep powerful sound outside the vehicle with a moderate tone inside the cab. The mandrel-bent tailpipe exits behind the passenger side rear tire and is finished off with a large 4.50-inch black ceramic coated exhaust tip embossed with the Flowmaster name. The system utilizes the factory hanger locations and connections and includes all necessary parts, hardware and detailed instructions for an easy at home installation. Note: Fits 2/4 wheel drive and all wheelbases.
- Large 4.50-Inch Black Ceramic Coated Stainless Steel Tips
- Deep Powerful Tone Inside and Outside the Vehicle

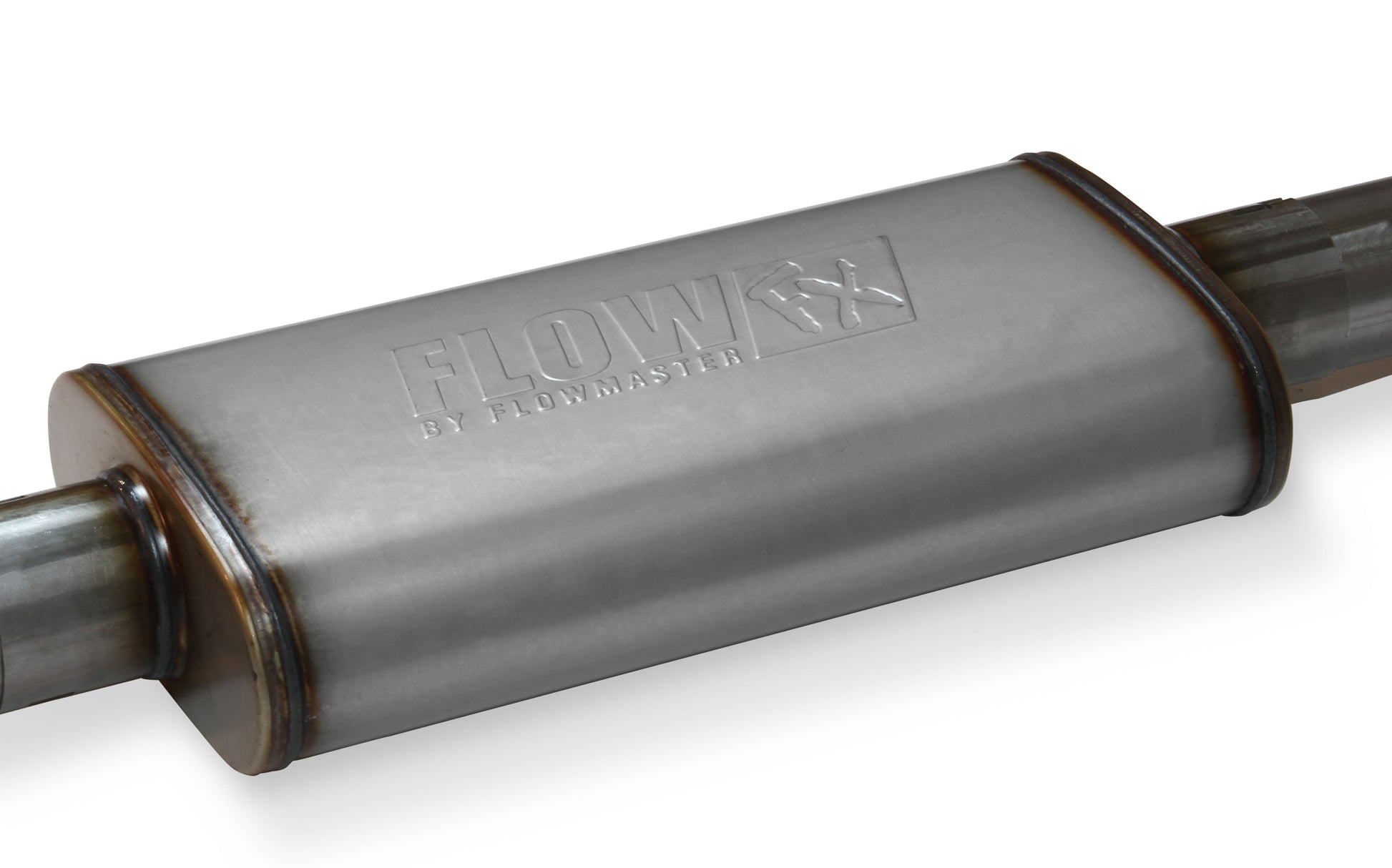

- Flow FX "Straight-through" Performance Muffler
- Mandrel-bent Stainless Steel Tubing
- Uses the Factory Hanger Locations
- Includes All Necessary Hardware
- Quick and Easy Installation
- Lifetime Limited Warranty
Specifications
| Brand | Flowmaster |
| California Proposition 65 | Yes |
| California Proposition 65 Chemical Name | Chromium (hexavalent compounds) |
| CARB (California) Compliant | Yes |
| Catalytic Converter Included | No |
| Catalytic Converter Quantity | 0 |
| Category | Exhaust |
| Clamping Type | Flat Band |
| Clamps Included | Yes |
| Emission Code | 5 |
| Exhaust Series | Flow FX |
| Exhaust Tip Color | Black |
| Exhaust Tip Connection | Clamp-On |
| Exhaust Tip Cut | Angled |
| Exhaust Tip Diameter | 4.50 |
| Exhaust Tip Edge | Rolled Edge Angle Cut |
| Exhaust Tip Finish | Black Ceramic Coating |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 11.00 |
| Exhaust Tip Material | 304 Stainless Steel |
| Exhaust Tip Quantity | 1 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Single Wall |
| Exit Style | Single Out Side |
| Finish | Natural |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Hangers Included | Yes |
| Heat Shield Included | No |
| Inlet Type | Flanged |
| Main Piping Diameter | 3.00 |
| Mount Type | Uses Factory Hangers |
| Mounting Bracket Included | No |
| Muffler Body Height | 4.00 |
| Muffler Body Length | 18.00 |
| Muffler Body Material | 409 Stainless Steel |
| Muffler Body Shape | Oval |
| Muffler Body Width | 9.00 |
| Muffler Finish | Natural |
| Muffler Flanged Inlet | No |
| Muffler Flanged Outlet | No |
| Muffler Included | Yes |
| Muffler Inlet Connection | Slip-Fit |
| Muffler Inlet Inside Diameter | 3.00 |
| Muffler Inlet Outside Diameter | 3.13 |
| Muffler Outlet Connection | Slip-Fit |
| Muffler Outlet Quantity | 1 |
| Muffler Quantity | 1 |
| Muffler Series | Flow FX |
| Muffler Type | Absorption |
| part type | Exhaust System |
| Pipe Color | Silver |
| Pipe Material | 409 Stainless Steel |
| Product Type | Exhaust System |
| Sound Level | Moderate |
| Spring Bolt Kit Included | No |
| Sub Category | Exhaust and Tail Pipes |
| Tail Pipe Outlet Outside Diameter | 3.00 |
| Tail Pipe Quantity | 1 |
| Tail Pipe Tapered Outlet | No |
| Tip Logo | Embossed |
| Type | Cat-Back |
| Valve Included | No |
| Valve Type | Not Applicable |
| Warning | California Proposition 65 |
Packaging Information
Weight: 39.35 lbs
Dimensions: 58.3 x 16 x 12 IN
Safety
⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov
Warranty
Installation Instructions
⚠ Fitment Notes
- Black Ceramic Tip Finish
- 2009-2014 Ford F-150 with 3.5L Ecoboost, 4.6L, 5.0L, 5.4L engines, 2/4 wheel drive and all wheelbases.
Share
Vehicle Fitment
Vehicle Fitment
- 2010-2014 Ford F-150 FX2
- 2009-2014 Ford F-150 FX4
- 2010 Ford F-150 Harley-Davidson Edition
- 2009-2014 Ford F-150 King Ranch
- 2009-2014 Ford F-150 Lariat
- 2013-2014 Ford F-150 Limited
- 2009-2014 Ford F-150 Platinum
- 2009-2014 Ford F-150 STX
- 2010 Ford F-150 SVT Raptor
- 2009-2014 Ford F-150 XL
- 2009-2014 Ford F-150 XLT
