Flowmaster 717869 Flow FX Cat-Back Exhaust System

$949.95 USD

Sale Sold out

Shipping calculated at checkout.

10 in stock

Description & Features

Flowmaster 717869 Flow FX Cat-Back Exhaust System

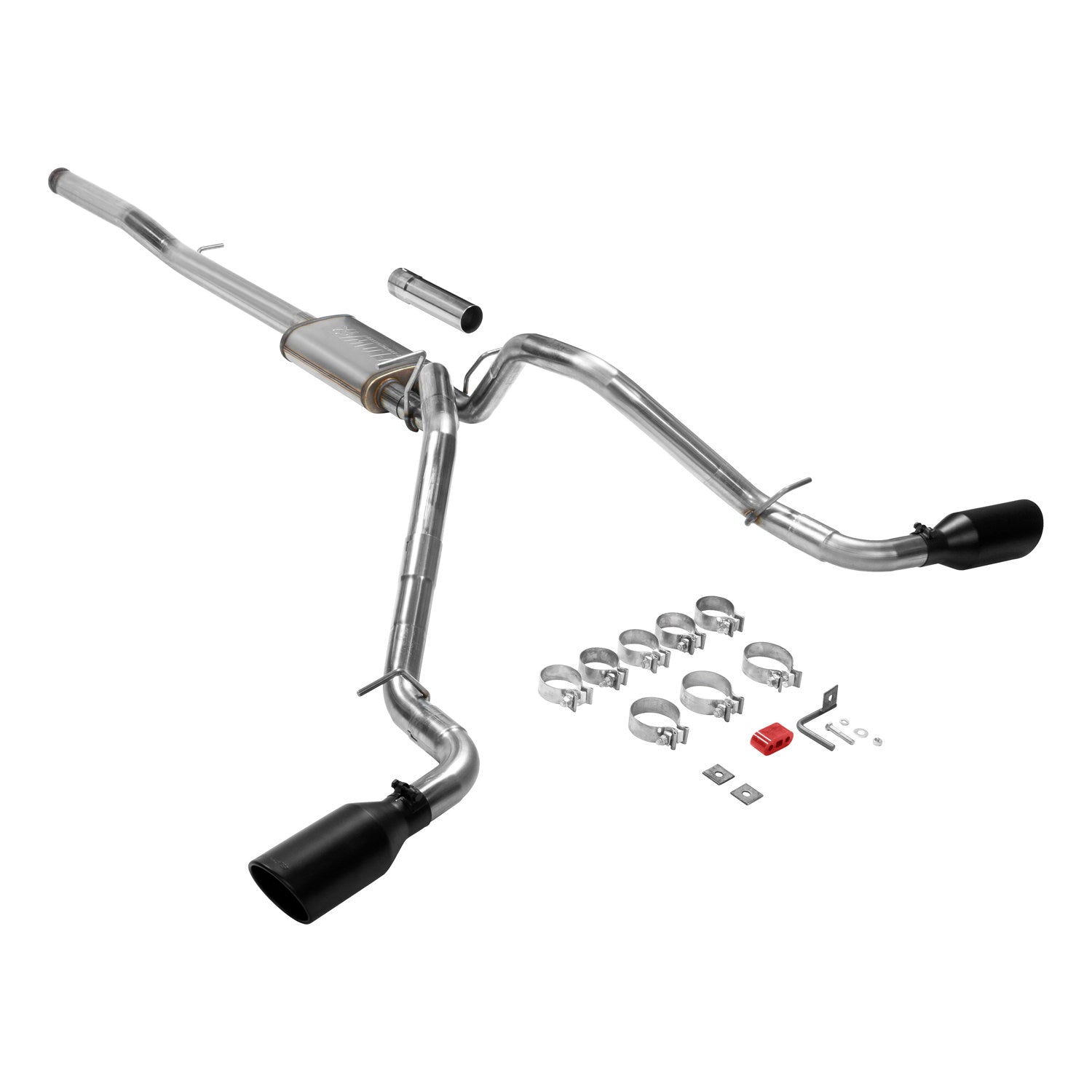

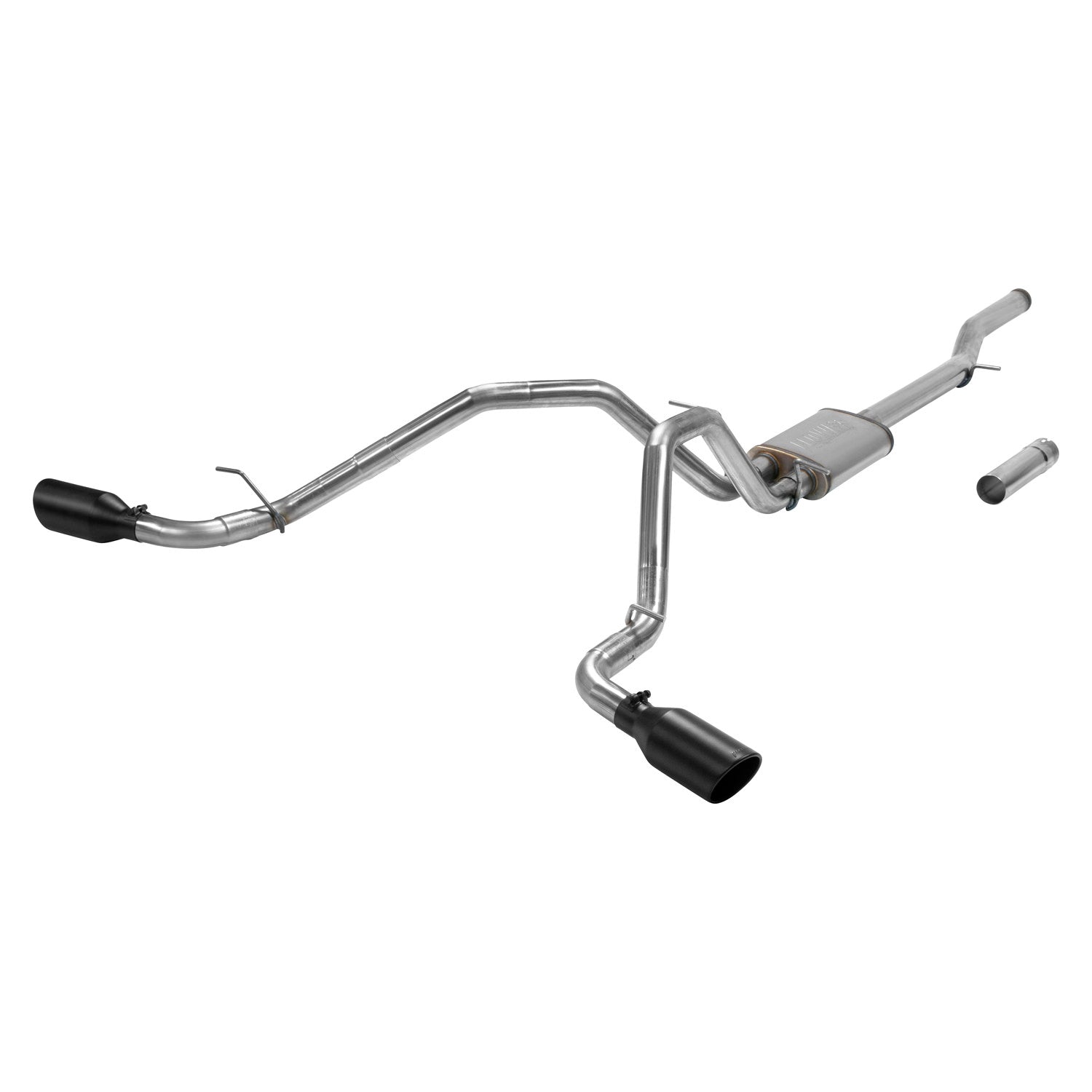

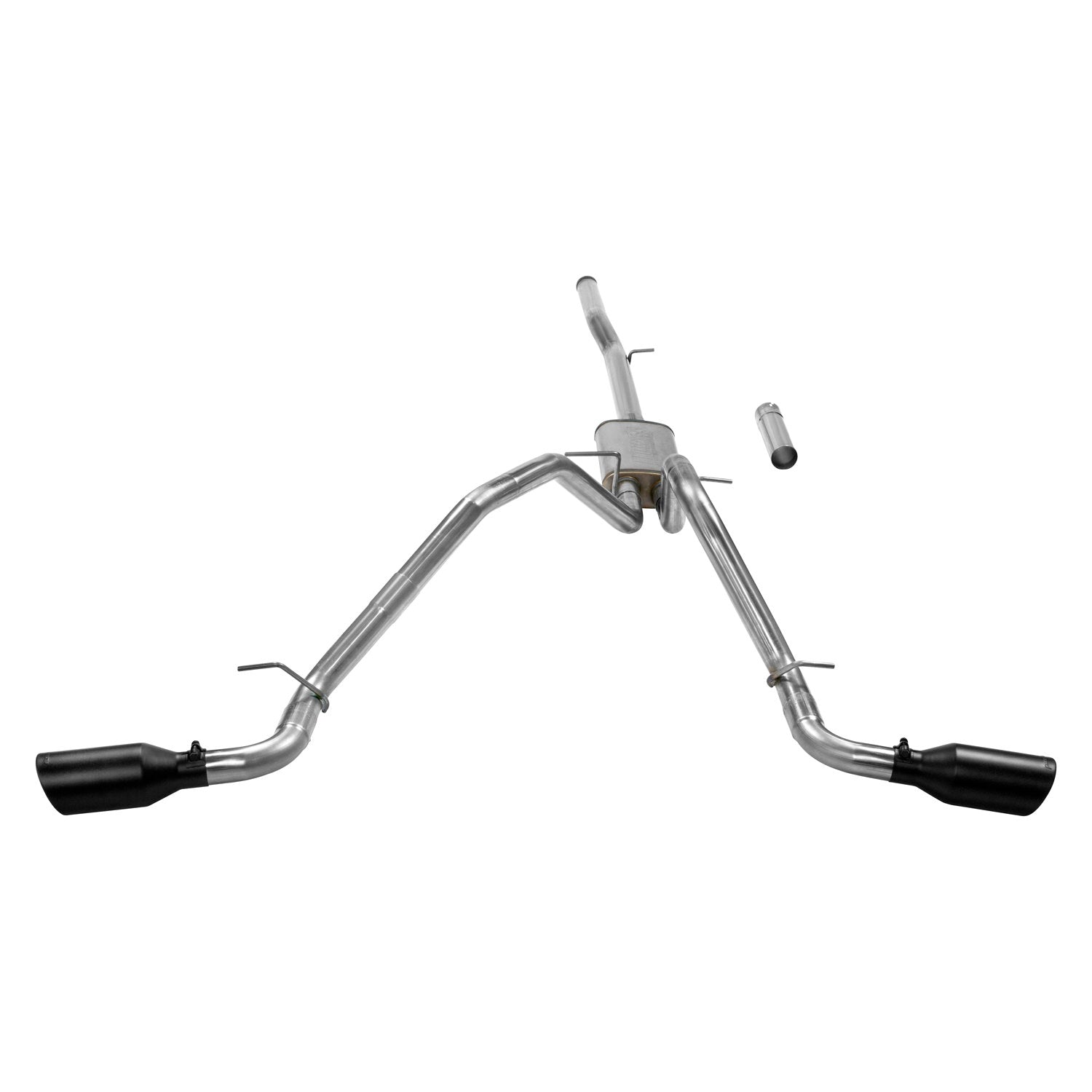

Our new Flowmaster® Flow FX® cat-back exhaust system is manufactured using durable 409 stainless steel throughout and features a 3.00-inch inlet pipe leading to a single inlet/dual outlet Flow FX "straight-through" muffler for great sound and maximum performance. The dual 2.50-inch mandrel-bent tailpipes exit out the side at an angle behind the rear wheels directing exhaust away from your boat or travel trailer when towing. The system is finished off with a pair of large 4.50-inch diameter black ceramic coated 304S stainless steel tips, giving your truck a custom look that goes hand in hand with that deep performance Flow FX sound. The system uses all the existing factory hanger locations and includes an additional hanger to install the new left side tailpipe. Includes installation instructions and all necessary hardware for an easy installation that you can do at home. Notes: Fits 2/4wd models with 143.5 and 153-inch wheelbases and *2019 Classic body models.

Large 4.5-inch Black Ceramic Coated Stainless Steel Tips
Flow FX "straight-through" Performance Muffler
Deep Powerful Tone Outside the Vehicle
Uses the Factory Hanger Locations
Full Stainless Steel Construction
Clears the Factory Spare Tire
Lifetime Limited Warranty
Easy at Home Installation
All Mandrel-bent Tubing

Specifications

Brand	Flowmaster
California Proposition 65	Yes
California Proposition 65 Chemical Name	Nickel (Metallic)
CARB (California) Compliant	Yes
Catalytic Converter Included	No
Catalytic Converter Quantity	0
Category	Exhaust
Clamping Type	Flat Band
Clamps Included	Yes
Emission Code	5
Exhaust Series	Flow FX
Exhaust Tip Color	Black
Exhaust Tip Connection	Clamp-On
Exhaust Tip Cut	Angled
Exhaust Tip Diameter	4.50
Exhaust Tip Edge	Rolled Edge
Exhaust Tip Finish	Black Ceramic Coating
Exhaust Tip Intercooled	No
Exhaust Tip Length	11.00
Exhaust Tip Material	304 Stainless Steel
Exhaust Tip Quantity	2
Exhaust Tip Resonated	No
Exhaust Tip Shape	Round
Exhaust Tip Wall	Single Wall
Exit Style	Dual Out Side
Finish	Natural
Gasket Or Seal Included	No
Grade Type	Performance
Hangers Included	Yes
Heat Shield Included	No
Inlet Type	Clamp-On
Main Piping Diameter	2.50
Mount Type	Uses Factory Hangers
Mounting Bracket Included	Yes
Muffler Body Height	4.00
Muffler Body Length	18.00
Muffler Body Material	409 Stainless Steel
Muffler Body Shape	Oval
Muffler Body Width	9.00
Muffler Color	Silver
Muffler Finish	Natural
Muffler Flanged Inlet	No
Muffler Flanged Outlet	No
Muffler Included	Yes
Muffler Inlet Connection	Slip-Fit
Muffler Inlet Inside Diameter	3.00
Muffler Inlet Location	Center
Muffler Inlet Outside Diameter	3.13
Muffler Outlet Connection	Slip-Fit
Muffler Outlet Diameter	2.50
Muffler Outlet Location	Dual
Muffler Outlet Quantity	2
Muffler Overall Length	24.00
Muffler Part Number	Kit Only
Muffler Quantity	1
Muffler Series	Flow FX
Muffler Type	Absorption
part type	Exhaust System
Pipe Color	Silver
Pipe Material	409 Stainless Steel
Product Type	Exhaust System
Sound Level	Aggressive / Moderate
Spring Bolt Kit Included	No
Sub Category	Exhaust and Tail Pipes
Tail Pipe Outlet Outside Diameter	2.50
Tail Pipe Quantity	2
Tail Pipe Tapered Outlet	No
Tip Logo	Embossed
Type	Cat-Back
Valve Included	No
Valve Type	Not Applicable
Warning	California Proposition 65

Packaging Information

Weight: 48.8 lbs
Dimensions: 57.9 x 15.9 x 12.2 IN

Safety

⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov

Warranty

View Warranty (PDF)

Installation Instructions

View Installation Instructions (PDF)

⚠ Fitment Notes
