Flowmaster
Flowmaster 717887 Flow FX Cat-back Exhaust System
Flowmaster 717887 Flow FX Cat-back Exhaust System
10 in stock
Couldn't load pickup availability
Description & Features
Flowmaster 717887 Flow FX Cat-back Exhaust System

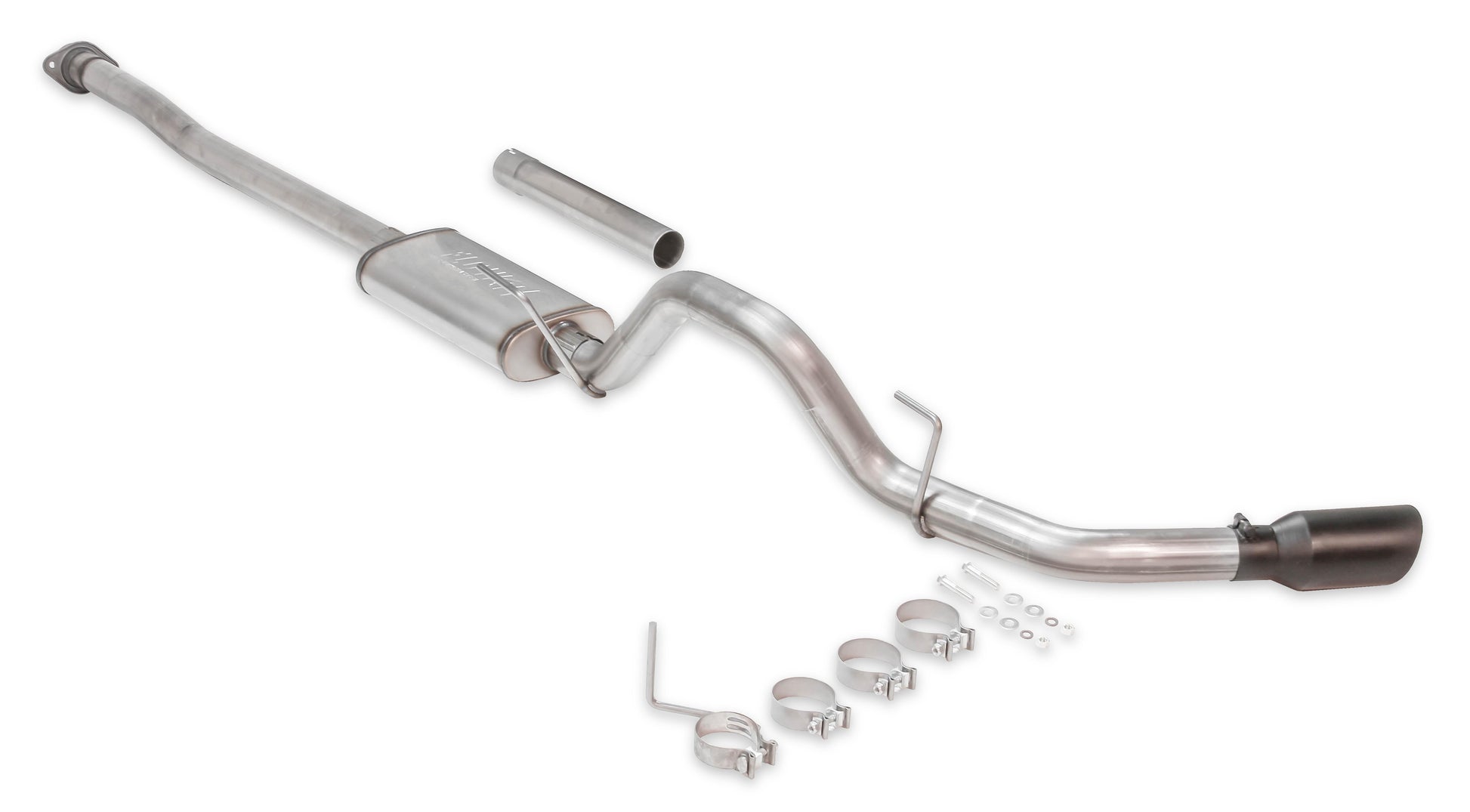

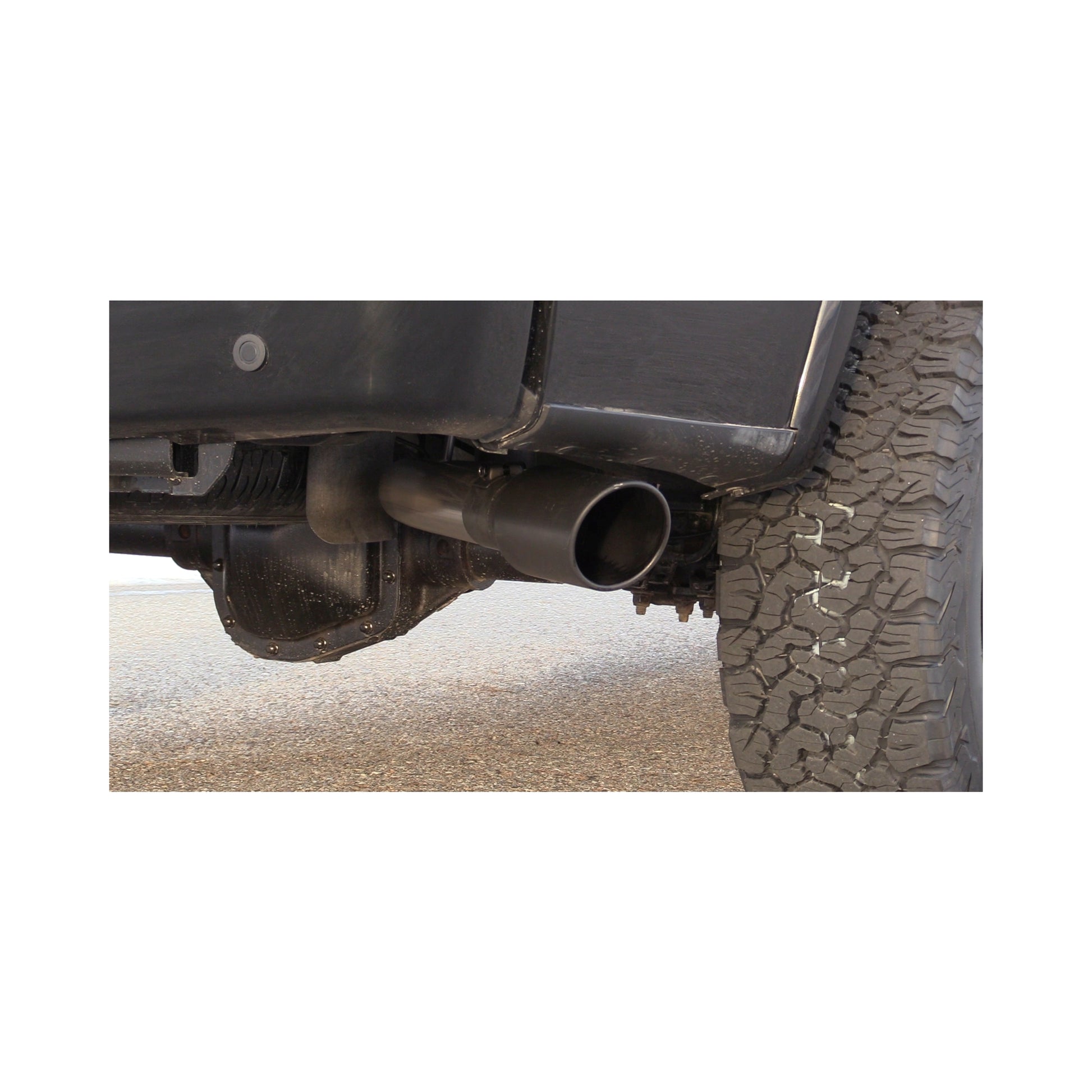

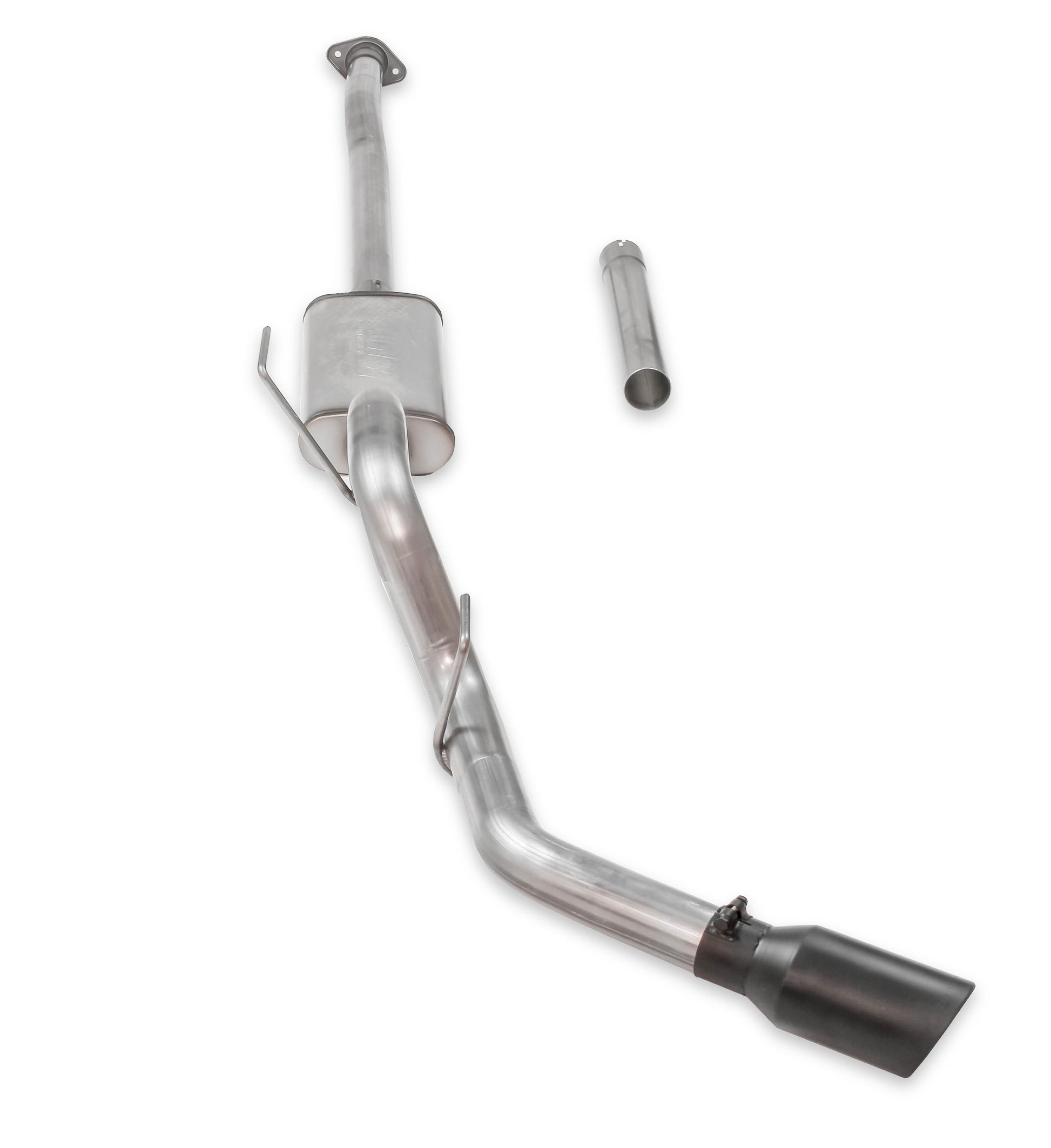

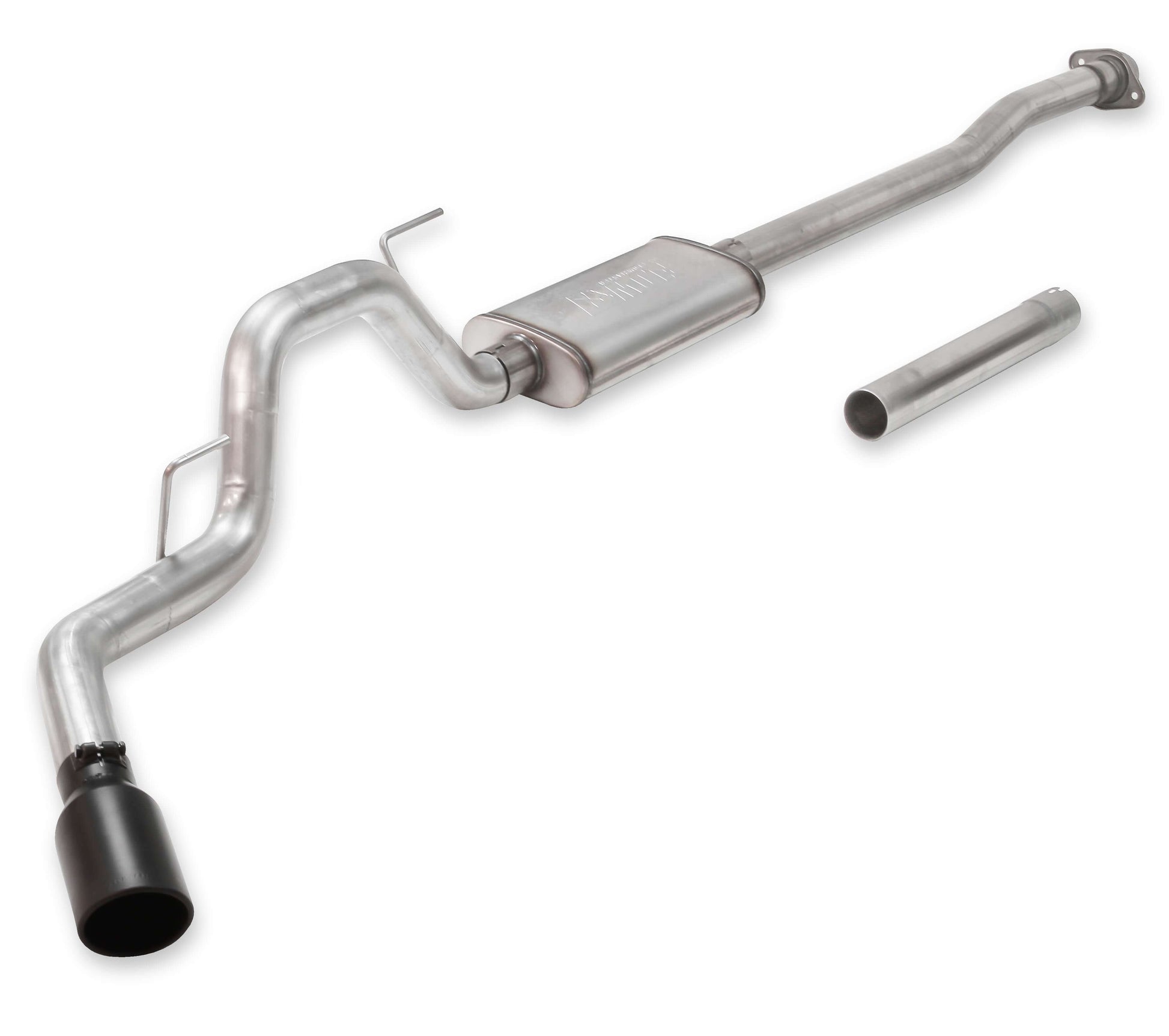

Introducing the new Flow FX® Cat-back exhaust system for the 2015-2020 Ford F-150 with 2.7L, 3.3L, 3.5L Ecoboost, 3.5L Ti-VCT and 5.0L engines. This stainless steel performance exhaust system bolts up to the factory flange with a large 3.00-inch mandrel-bent tube flowing into the "straight-through" Flow FX performance muffler. The large single mandrel-bent tailpipe exits behind the passenger side rear tire and is finished off with a large 4.50-inch black ceramic coated exhaust tip embossed with the Flowmaster® name. This system creates a deep powerful sound outside the vehicle with a moderate tone inside the cab and utilizes the factory hanger locations for an easy installation. Includes all necessary parts, hardware and easy to follow detailed instructions.
- Large 4.50-inch Black Ceramic Coated Stainless Steel Tip
- Flow FX "Straight-through" Performance Muffler
- Uses the Factory Hanger Locations
- Full Stainless Steel Construction
- Easy and Quick Installation
- Lifetime Limited Warranty
- Deep and Powerful Sound
- Mandrel-bent Tubing
Specifications
| Brand | Flowmaster |
| California Proposition 65 | Yes |
| California Proposition 65 Chemical Name | Nickel (Metallic) |
| CARB (California) Compliant | Yes |
| Catalytic Converter Included | No |
| Catalytic Converter Quantity | 0 |
| Category | Exhaust |
| Clamping Type | Flat Band |
| Clamps Included | Yes |
| Emission Code | 5 |
| Exhaust Series | Flow FX |
| Exhaust Tip Color | Black |
| Exhaust Tip Connection | Clamp-On |
| Exhaust Tip Cut | Angled |
| Exhaust Tip Diameter | 4.50 |
| Exhaust Tip Edge | Rolled Edge Angle Cut |
| Exhaust Tip Finish | Black Ceramic Coating |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 11.00 |
| Exhaust Tip Material | 304 Stainless Steel |
| Exhaust Tip Quantity | 1 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Single Wall |
| Exit Style | Single Out Side |
| Finish | Natural |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Hangers Included | Yes |
| Inlet Type | Flanged |
| Main Piping Diameter | 3.00 |
| Mount Type | Uses Factory Hangers |
| Mounting Bracket Included | No |
| Muffler Body Height | 4.00 |
| Muffler Body Length | 18.00 |
| Muffler Body Material | 409 Stainless Steel |
| Muffler Body Shape | Oval |
| Muffler Body Width | 9.00 |
| Muffler Finish | Natural |
| Muffler Flanged Inlet | No |
| Muffler Flanged Outlet | No |
| Muffler Included | Yes |
| Muffler Inlet Connection | Slip-Fit |
| Muffler Inlet Inside Diameter | 3.00 |
| Muffler Inlet Outside Diameter | 3.13 |
| Muffler Outlet Connection | Slip-Fit |
| Muffler Outlet Diameter | 3.00 |
| Muffler Outlet Quantity | 1 |
| Muffler Quantity | 1 |
| Muffler Series | Flow FX |
| Muffler Type | Absorption |
| part type | Exhaust System |
| Pipe Color | Silver |
| Pipe Material | 409 Stainless Steel |
| Product Type | Exhaust System |
| Sound Level | Moderate |
| Spring Bolt Kit Included | No |
| Sub Category | Exhaust and Tail Pipes |
| Tail Pipe Outlet Outside Diameter | 3.00 |
| Tail Pipe Quantity | 1 |
| Tail Pipe Tapered Outlet | No |
| Type | Cat-Back |
| Valve Included | No |
| Valve Type | Not Applicable |
| Warning | California Proposition 65 |
Packaging Information
Weight: 40.6 lbs
Dimensions: 58 x 17 x 12 IN
Safety
⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov
Warranty
Installation Instructions
⚠ Fitment Notes
- Black Ceramic Tip Finish
- Fits all 2/4 wheel drives and wheelbases except std cab/short bed. Does not fit the 3.5L Raptor trucks.
Share
Vehicle Fitment
Vehicle Fitment
- 2015-2020 Ford F-150 King Ranch
- 2015-2020 Ford F-150 Lariat
- 2016-2020 Ford F-150 Limited
- 2015-2020 Ford F-150 Platinum
- 2018-2019 Ford F-150 Police Responder
- 2016-2020 Ford F-150 SSV
- 2015-2020 Ford F-150 XL
- 2015-2020 Ford F-150 XLT
