Flowmaster 717910 Flow FX Cat-back Exhaust System
Flowmaster 717910 Flow FX Cat-back Exhaust System
10 in stock
Couldn't load pickup availability
Description & Features

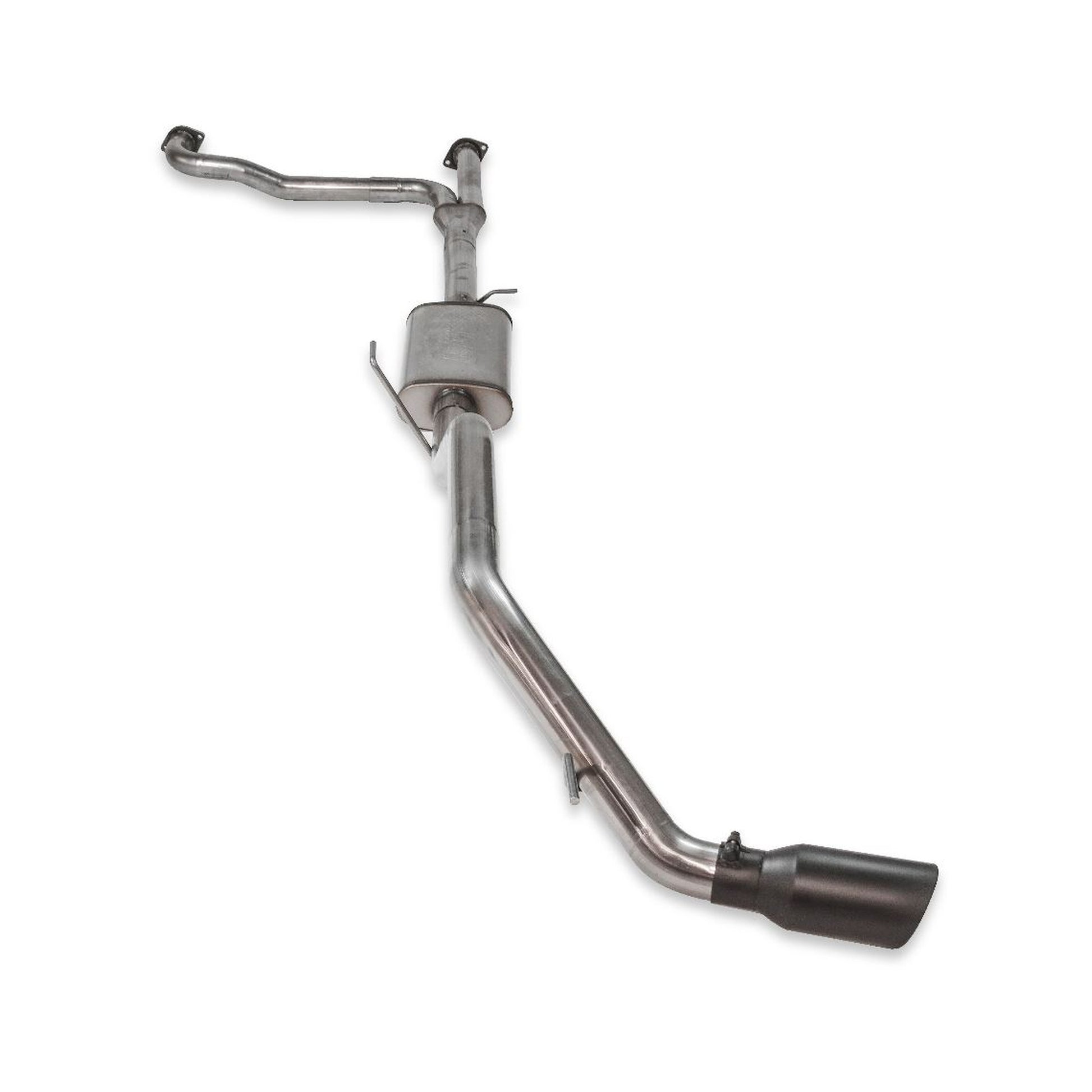

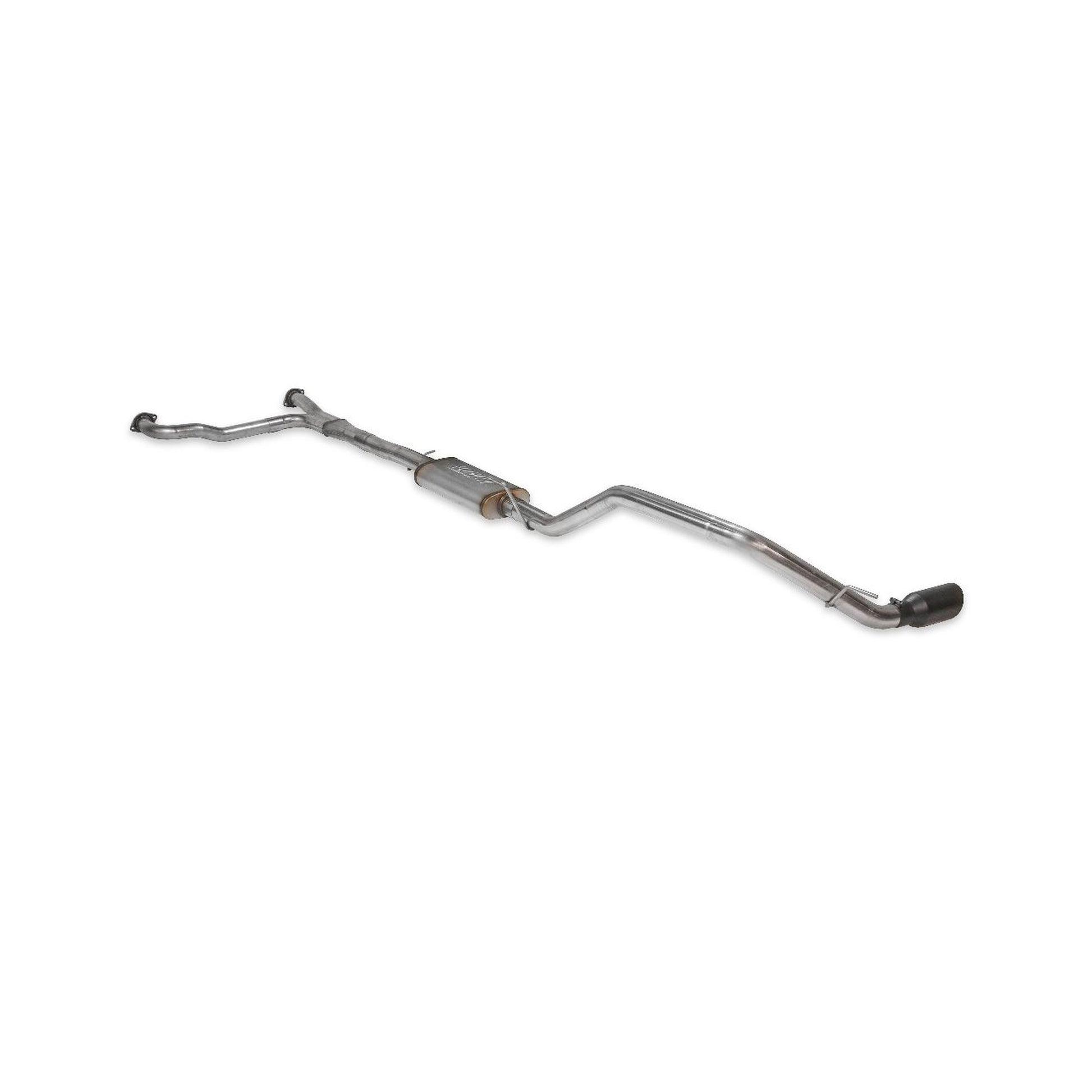

Flowmaster 717910 Flow FX Cat-back Exhaust System

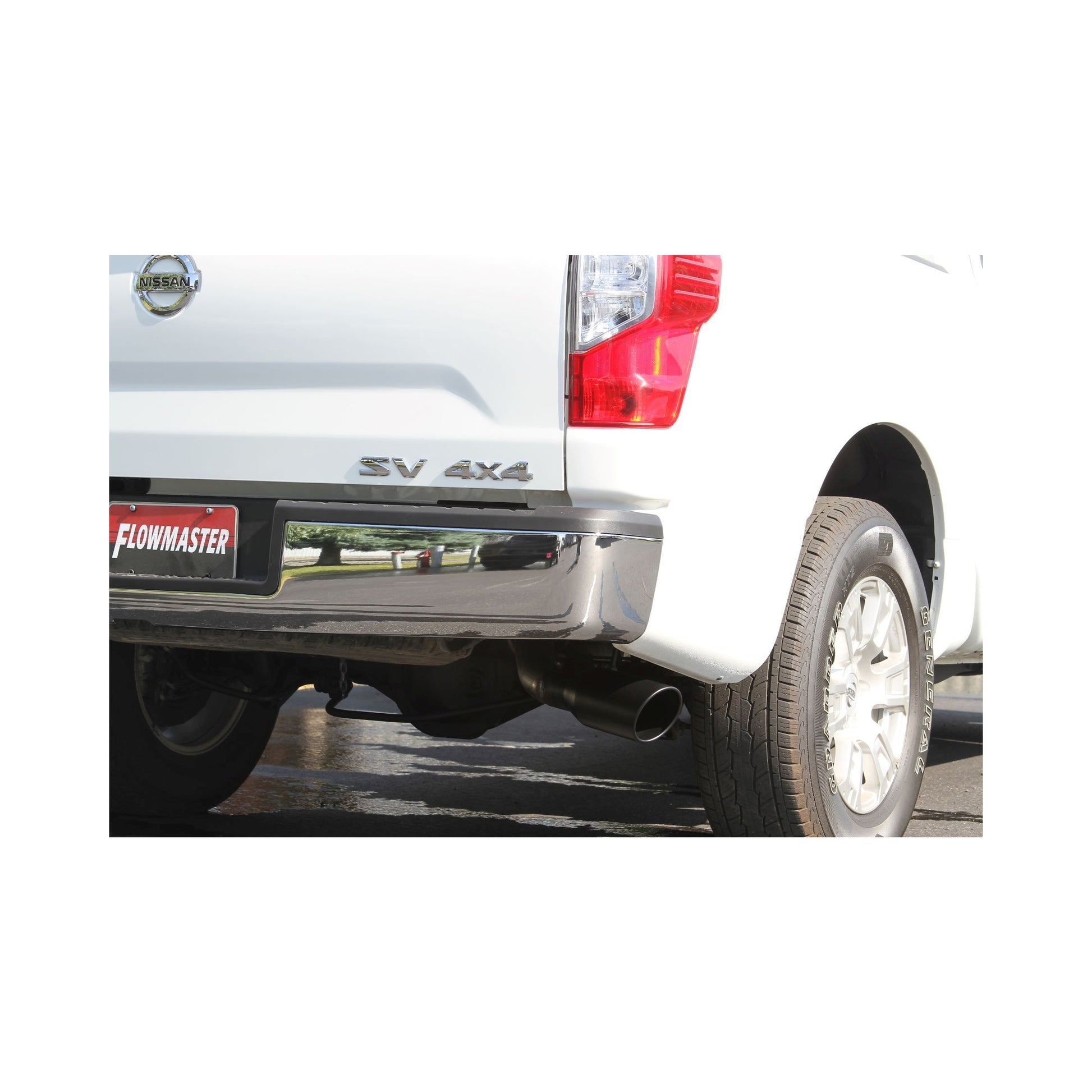

Introducing the new Flow FX® Cat-back exhaust system for the 2017-2024 Nissan Titan with the 5.6L engine. This performance exhaust system bolts up to the factory cat pipes with large dual 2.5-inch mandrel-bent tubing flowing into a Scavenger Series® Y-pipe for maximum flow. Our exclusive Scavenger Y-pipe creates a stronger signal than conventional y-pipes, by using two D-shaped ports back to back, giving a larger surface area than just two round pipes joined together. This creates a much stronger scavenging affect to help evacuate the cylinders during the exhaust stroke netting more power and torque. This is especially important for towing. The system flows out of the Scavenger series collector into 3-inch stainless steel tubing and the "straight-through" Flow FX muffler, which has a very deep powerful sound outside the vehicle, with moderate tone inside the cab. The mandrel-bent tailpipe exits behind the passenger side rear tire and is finished off with a large 4.50-inch black ceramic coated exhaust tip embossed with the Flowmaster® name. The system utilizes the factory hanger locations and connections and includes all necessary parts, hardware and detailed instructions for an easy at home installation. Notes: Fits 2/4 Wheel drive and all wheelbases. Does Not fit XD models.
- Large 4.50-inch Black Ceramic Coated Stainless Steel Tip
- Scavenger Series Y-pipe for Maximum Torque Gains
- Flow FX "Straight-through" Performance Muffler
- Mandrel-bent Stainless Steel Tubing

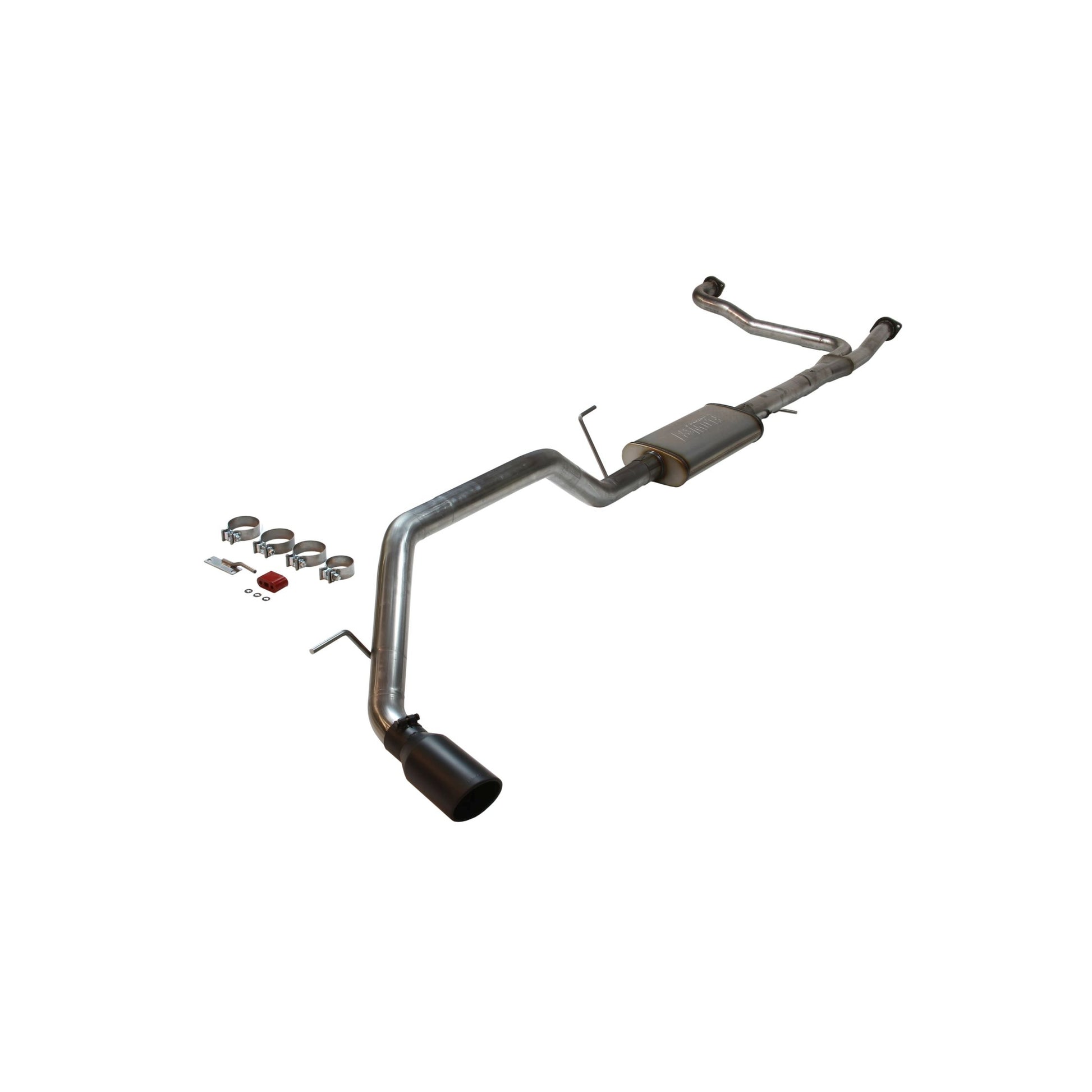

- Includes All Necessary Hardware
- Very Deep and Powerful Sound
- Easy and Quick Installation
- Lifetime Limited Warranty
Specifications
| Brand | Flowmaster |
| California Proposition 65 | Yes |
| California Proposition 65 Chemical Name | Chromium (hexavalent compounds) |
| CARB (California) Compliant | Yes |
| Catalytic Converter Included | No |
| Catalytic Converter Quantity | 0 |
| Category | Exhaust |
| Clamping Type | Flat Band |
| Clamps Included | Yes |
| Emission Code | 5 |
| Exhaust Series | Flow FX |
| Exhaust Tip Color | Black |
| Exhaust Tip Connection | Clamp-On |
| Exhaust Tip Cut | Angled |
| Exhaust Tip Diameter | 4.50 |
| Exhaust Tip Edge | Rolled Edge Angle Cut |
| Exhaust Tip Finish | Black Ceramic Coating |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 11.00 |
| Exhaust Tip Material | 304 Stainless Steel |
| Exhaust Tip Quantity | 1 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Single Wall |
| Exit Style | Single Out Side |
| Finish | Natural |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Hangers Included | Yes |
| Inlet Type | Flanged |
| Main Piping Diameter | 3.00 |
| Mount Type | Uses Factory Hangers |
| Mounting Bracket Included | No |
| Muffler Body Height | 4.00 |
| Muffler Body Length | 18.00 |
| Muffler Body Material | 409 Stainless Steel |
| Muffler Body Shape | Oval |
| Muffler Body Width | 9.00 |
| Muffler Finish | Natural |
| Muffler Flanged Inlet | No |
| Muffler Flanged Outlet | No |
| Muffler Included | Yes |
| Muffler Inlet Connection | Slip-Fit |
| Muffler Inlet Inside Diameter | 3.00 |
| Muffler Inlet Outside Diameter | 3.13 |
| Muffler Outlet Connection | Slip-Fit |
| Muffler Outlet Quantity | 1 |
| Muffler Quantity | 1 |
| Muffler Series | Flow FX |
| Muffler Type | Absorption |
| part type | Exhaust System |
| Pipe Color | Silver |
| Pipe Material | 409 Stainless Steel |
| Product Type | Exhaust System |
| Sound Level | Aggressive / Moderate |
| Spring Bolt Kit Included | No |
| Sub Category | Exhaust and Tail Pipes |
| Tail Pipe Outlet Outside Diameter | 3.00 |
| Tail Pipe Quantity | 1 |
| Tail Pipe Tapered Outlet | No |
| Type | Cat-Back |
| Valve Included | No |
| Valve Type | Not Applicable |
| Warning | California Proposition 65 |
Packaging Information
Weight: 44.85 lbs
Dimensions: 65.25 x 16.5 x 11.75 IN
Safety
⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov
Warranty
Installation Instructions
⚠ Fitment Notes
- Black Ceramic Tip Finish, DOES NOT FIT XD MODELS
- Fits 2017-2024 Nissan Titan with 5.6L engine, All Wheelbases, 2/4 Wheel Drive. Does Not fit XD models.
Share
Vehicle Fitment
Vehicle Fitment
- 2020 Nissan TITAN Platinum
- 2017-2018 Nissan TITAN Platinum Reserve
- 2020-2024 Nissan TITAN Platinum Reserve
- 2017-2024 Nissan TITAN PRO-4X
- 2017-2023 Nissan TITAN S
- 2017-2021 Nissan TITAN SL
- 2017-2024 Nissan TITAN SV
