Flowmaster 717927 Flow FX Cat-Back Exhaust System

$749.95 USD

Sale Sold out

Shipping calculated at checkout.

10 in stock

Description & Features

Flowmaster 717927 Flow FX Cat-Back Exhaust System

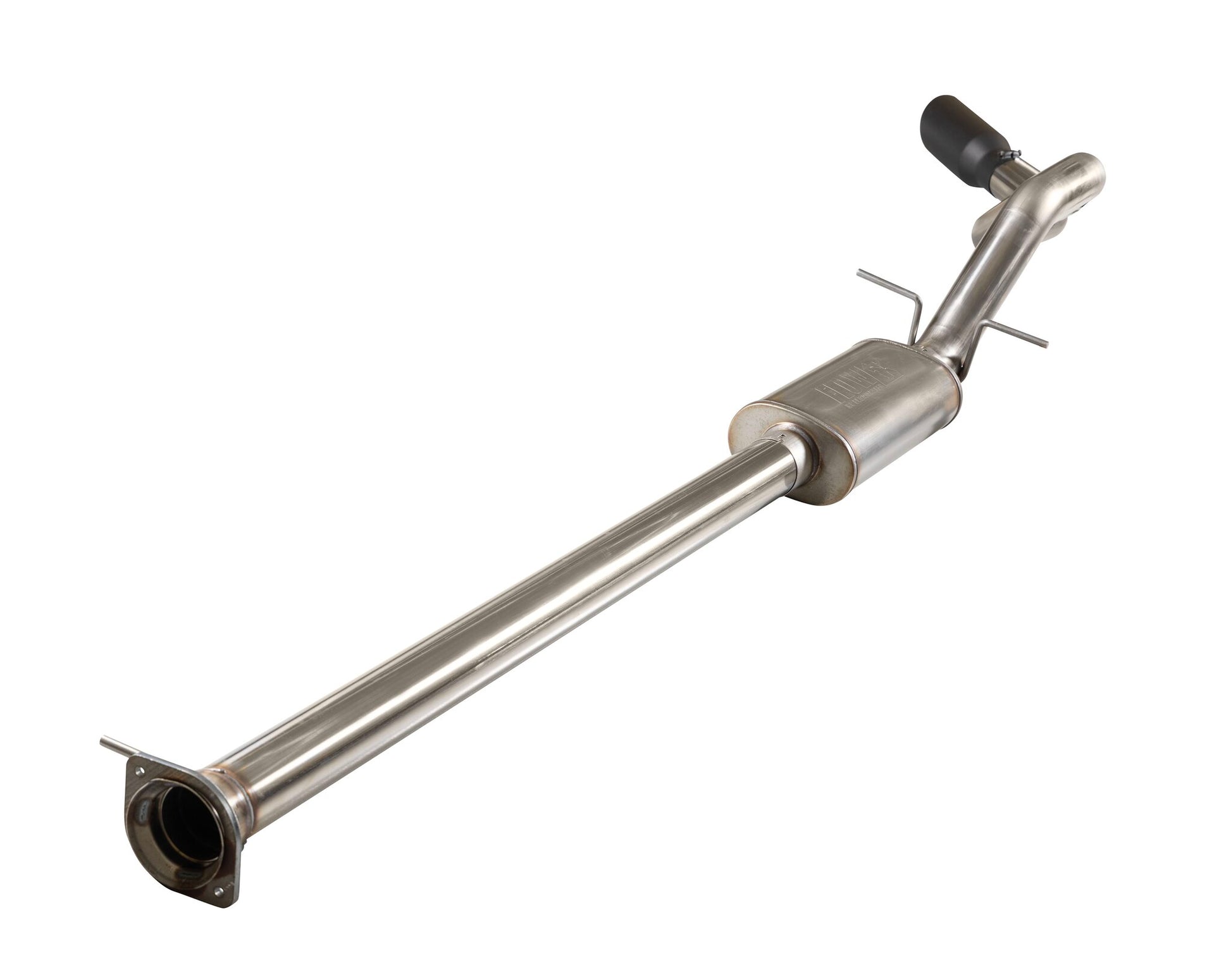

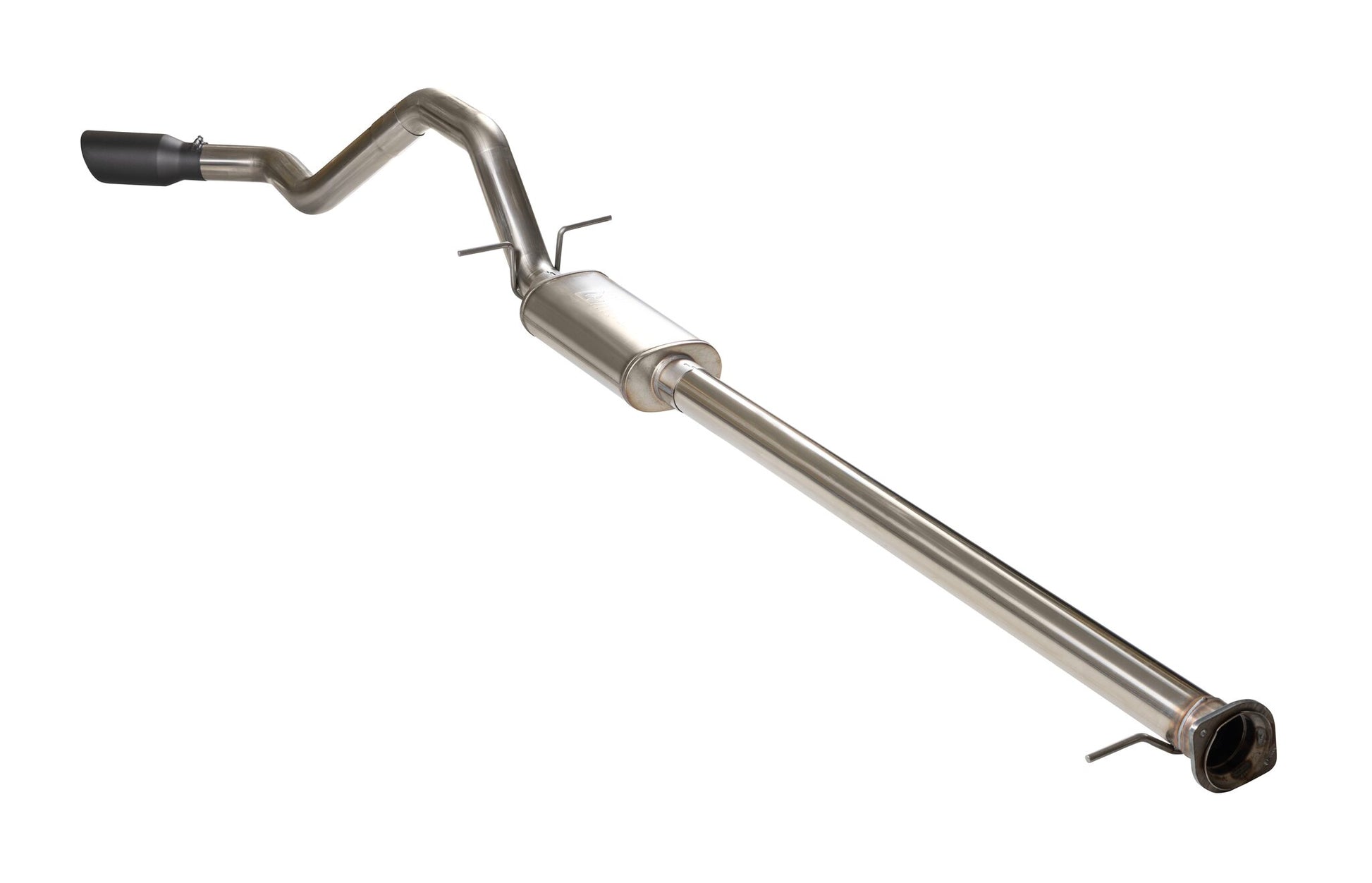

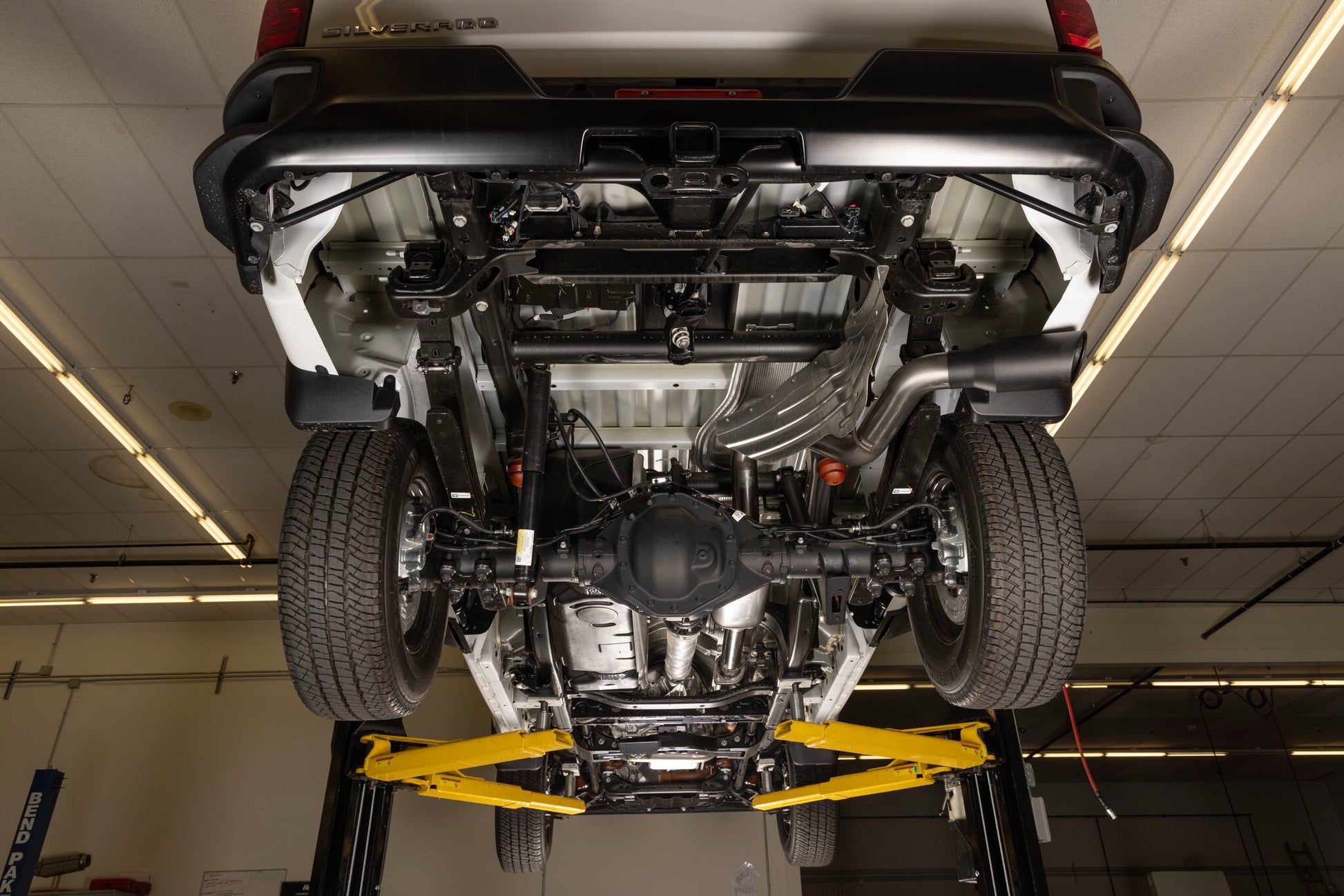

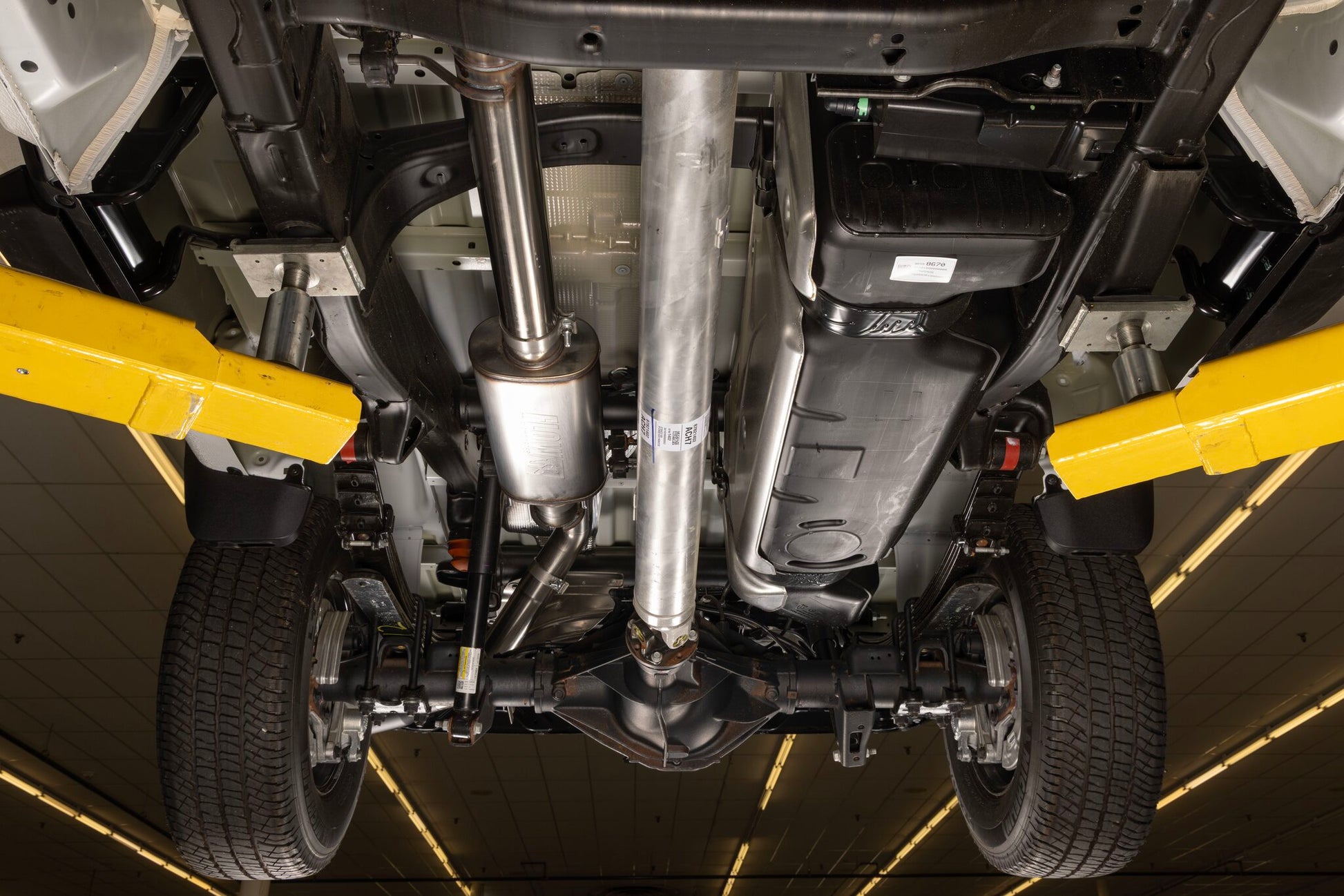

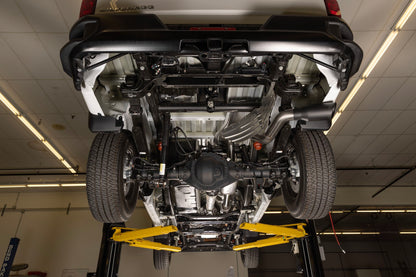

Flowmaster's® Flow FX Cat-Back exhaust system for the 2020-2026 GM 2500HD and 3500HD trucks with the 6.6L gas engines gives you a great way to help you customize your GM truck to your personality. This performance exhaust system fits both 2/4 Wheel drive models and is manufactured from 409 stainless steel for years of trouble-free service and performance. Features include a 3.50-inch inlet pipe leading into a 409 stainless steel Flow FX series "straight-through" muffler for great sound and maximum performance and no drone. The muffler then connects to the factory tailpipe for a simple and effective performance upgrade. Max dyno gains of 11 hp and 10 lb-ft at the rear wheels. This results in better acceleration and towing performance. The system uses all the factory hanger locations and connections for an easy installation that you can do at home. Kits include installation instructions and all necessary hardware. Backed by Flowmaster's Lifetime Limited Warranty.

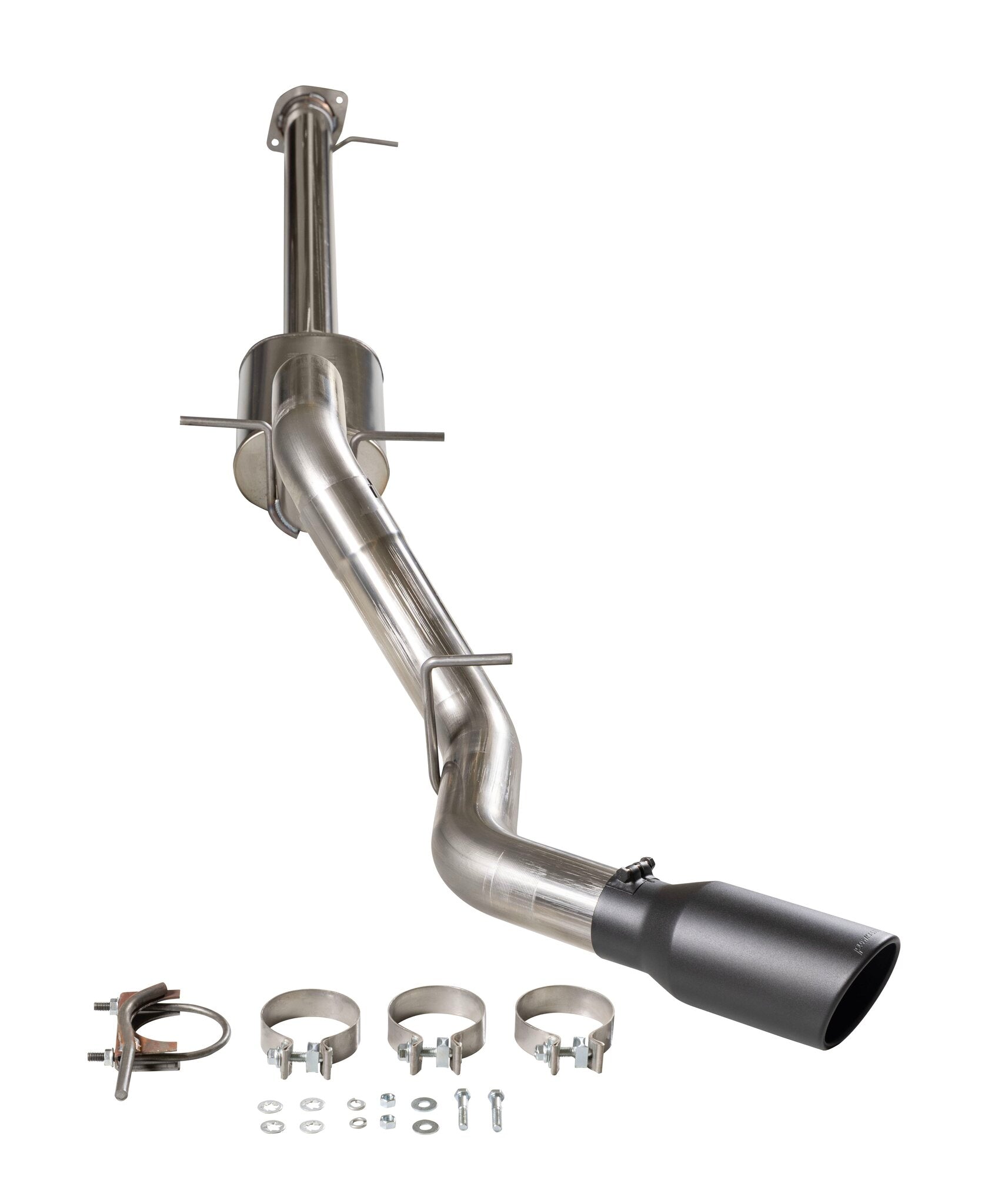

5-inch mandrel bent 16-gauge 409 stainless steel tubing maximizes exhaust flow and improves durability

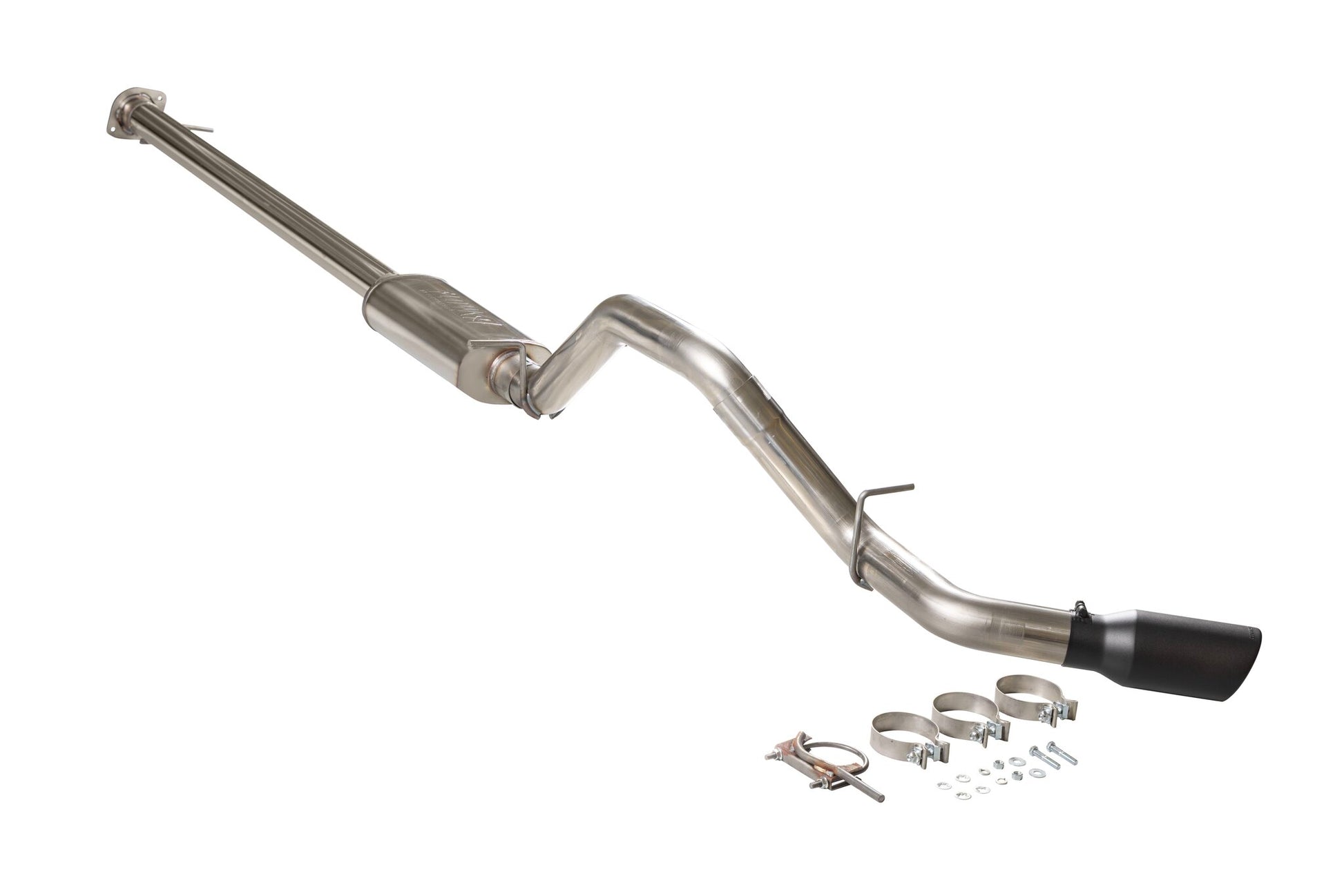

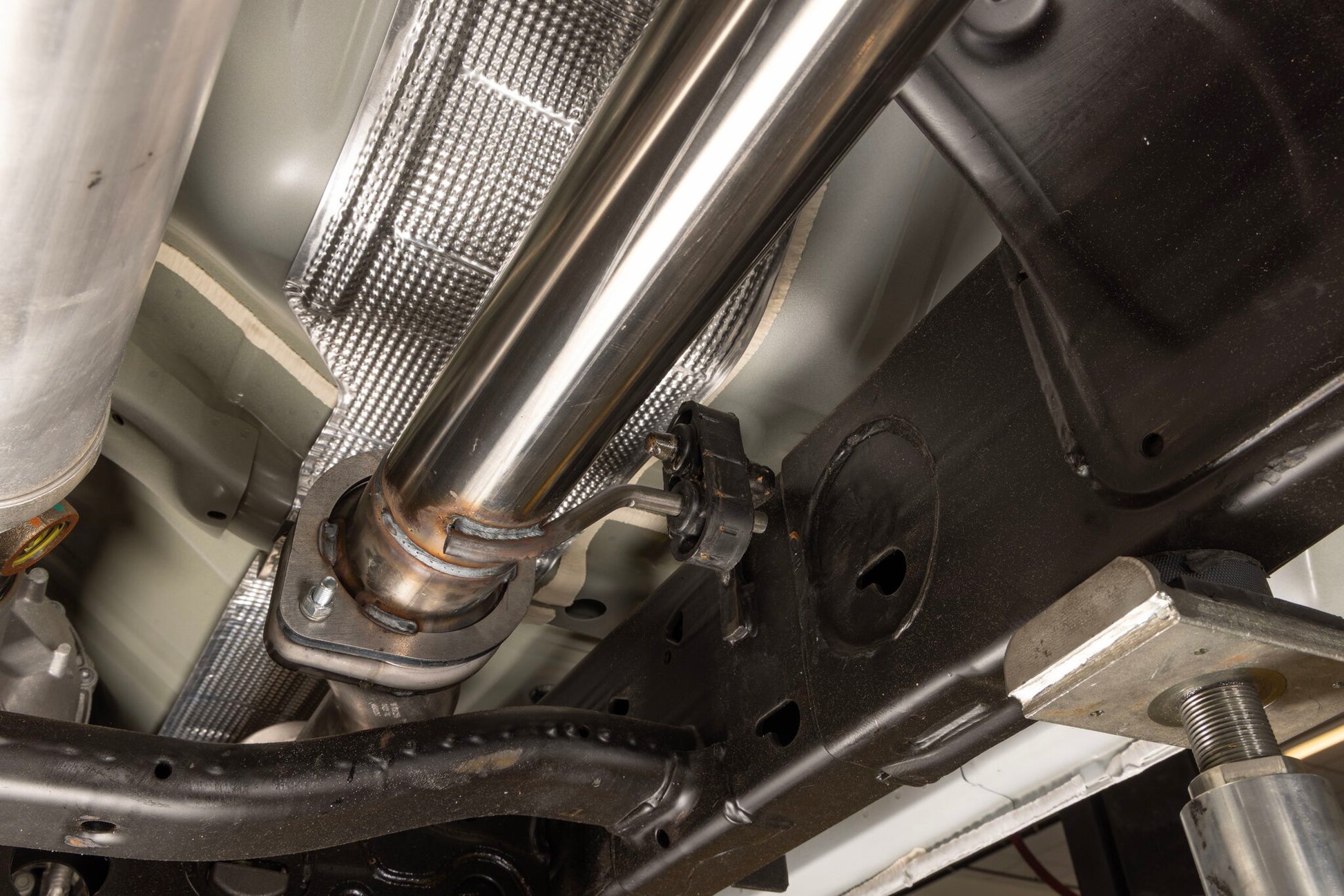

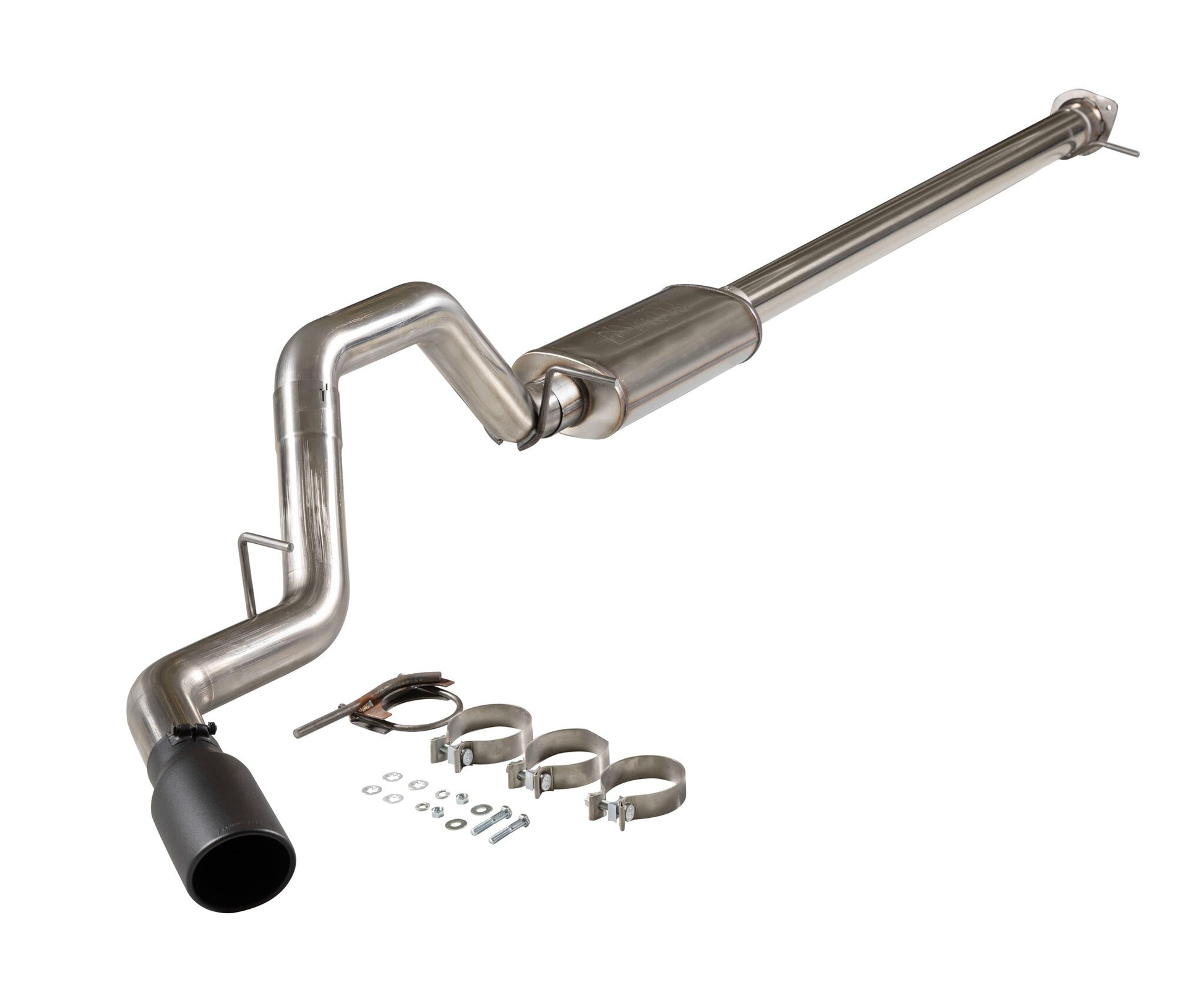

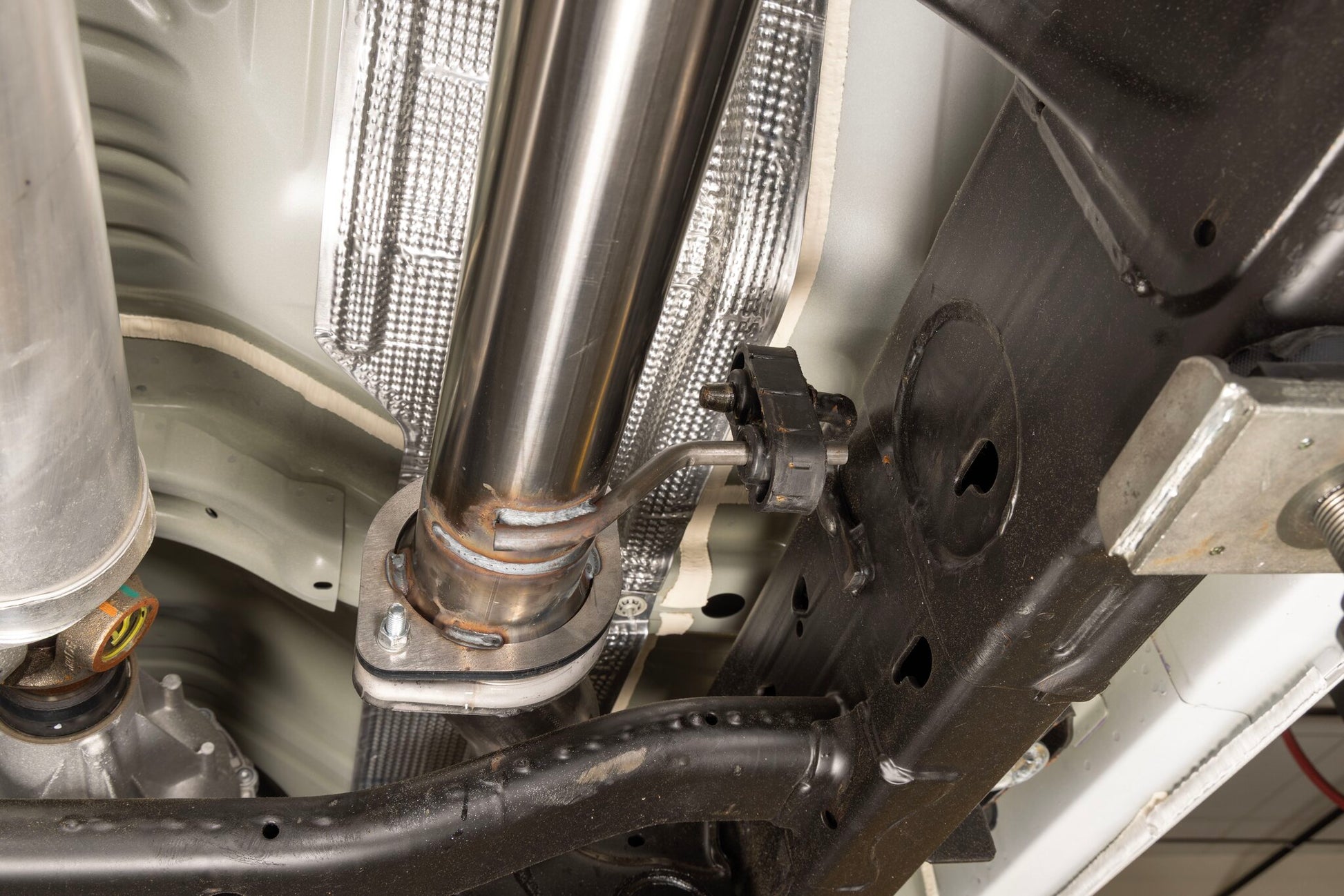

Kit includes complete hardware and factory styled hangers in the stock locations for an easy installation

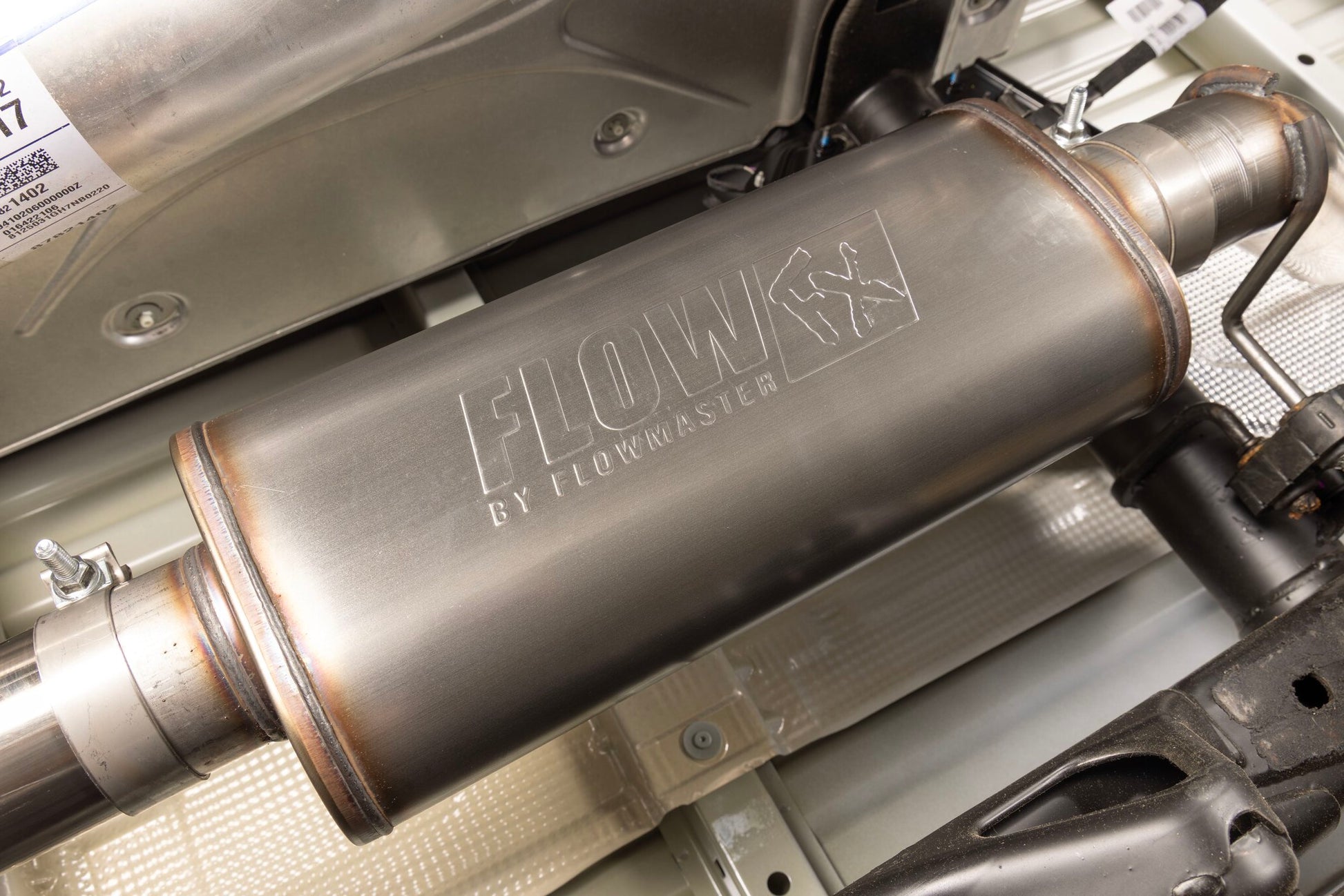

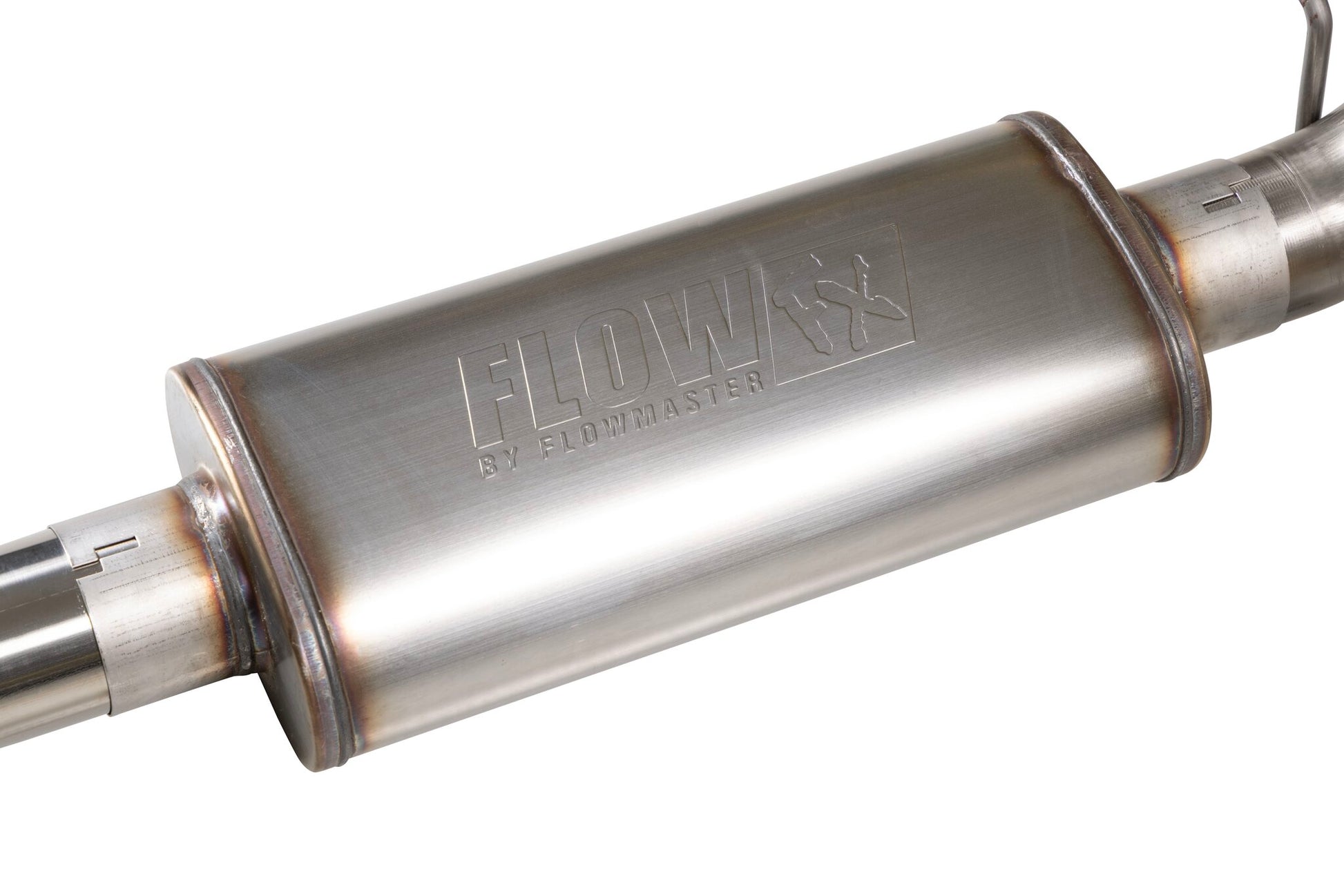

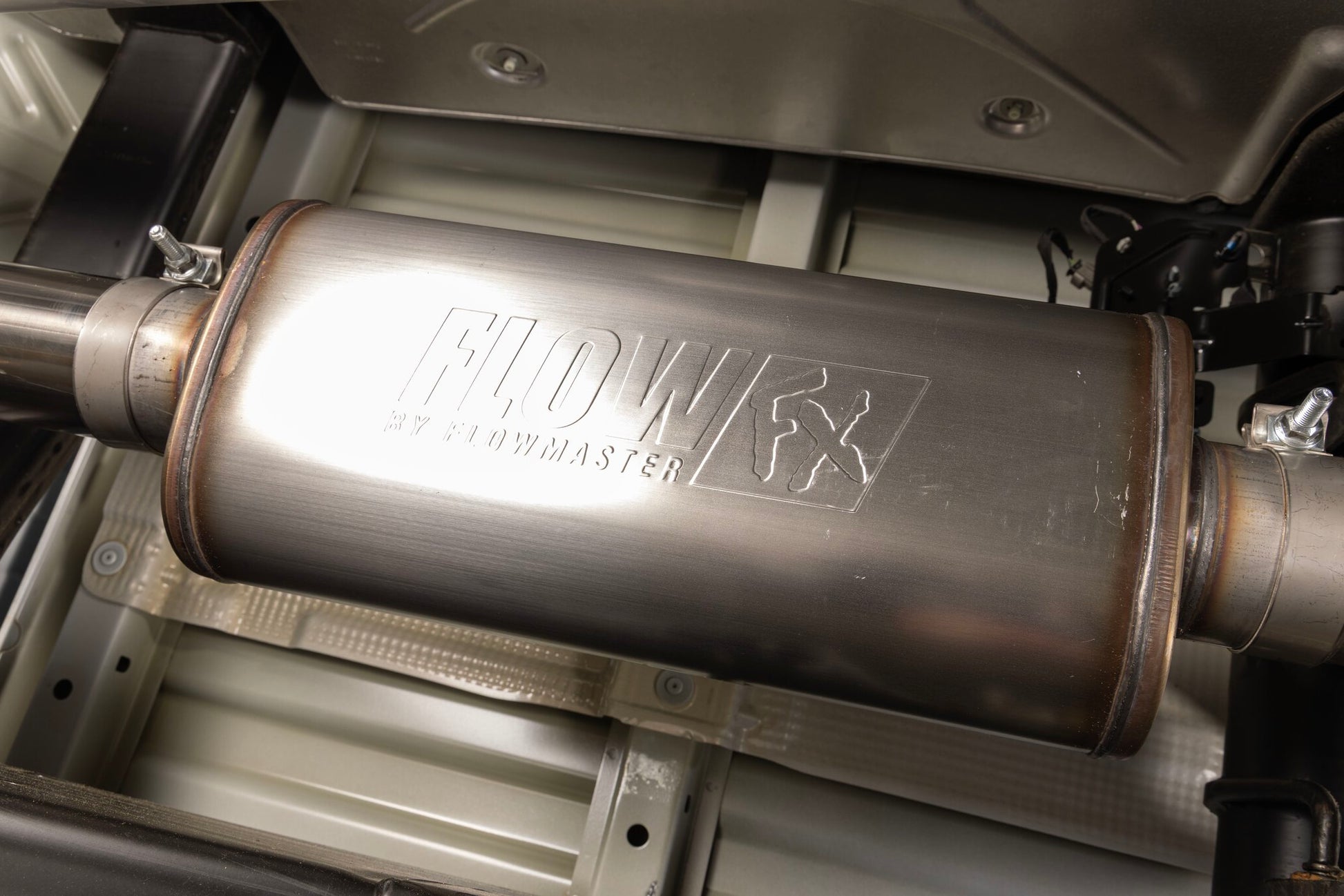

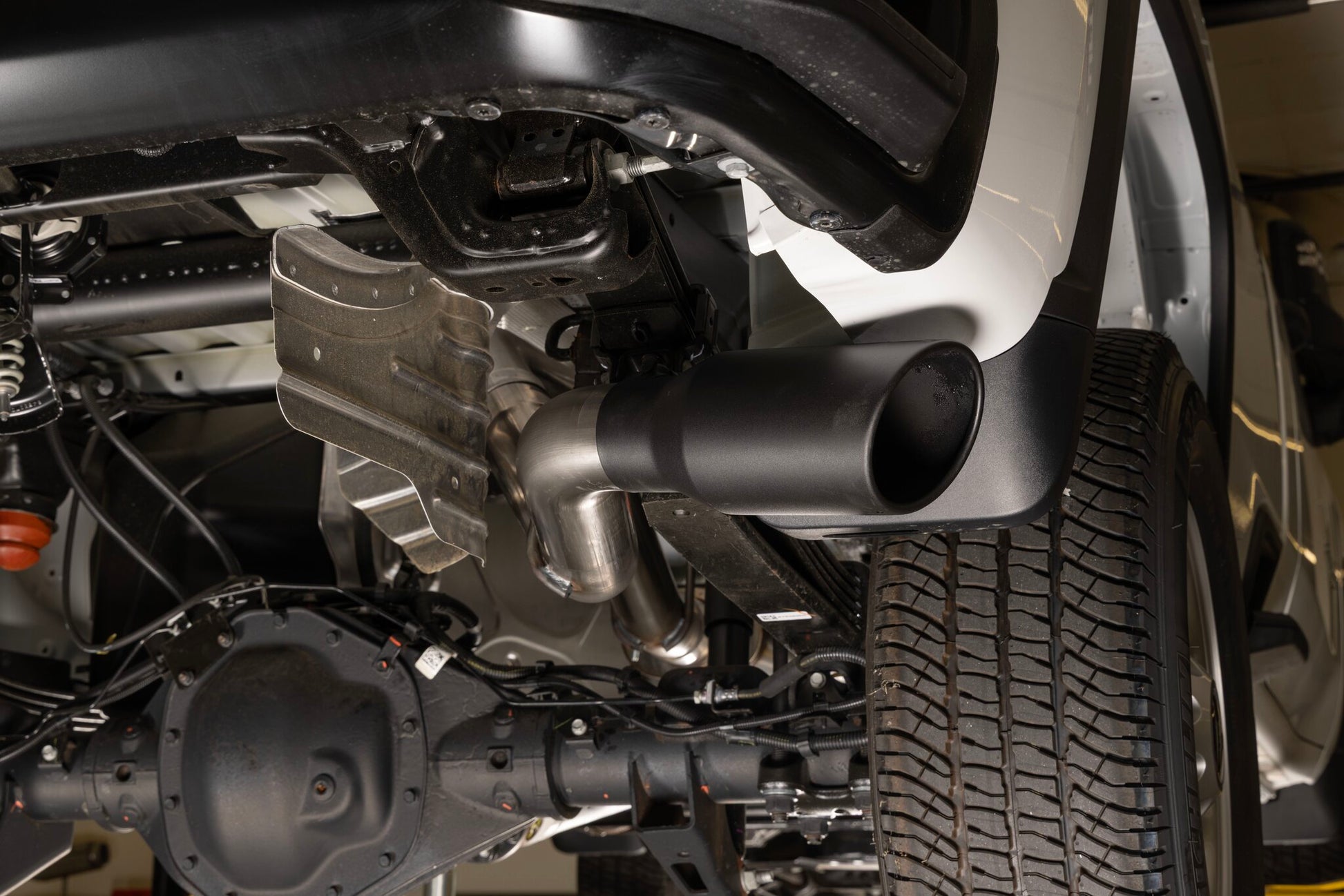

A tuned Flow FX style muffler delivers a deep, aggressive to moderate performance tone and improves exhaust flow with no drone

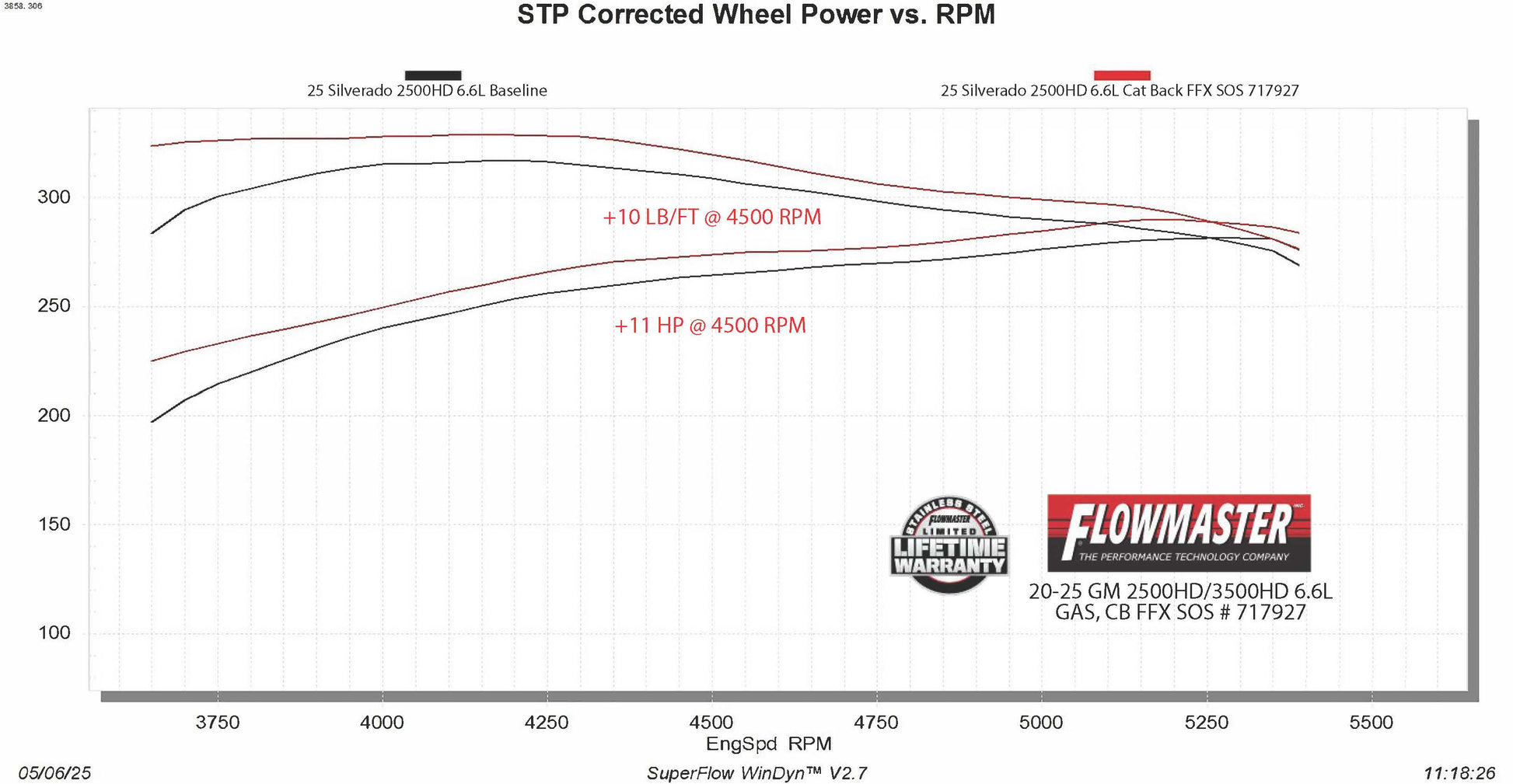

Max increases of up to 11 hp and 10 lb-ft over the stock exhaust at the wheels
Tuned performance muffler eliminates interior drone
Maintains factory warranty
Lifetime Limited Warranty

Specifications

Brand	Flowmaster
California Proposition 65	Yes
California Proposition 65 Chemical Name	Chromium (hexavalent compounds)
CARB (California) Compliant	Yes
Catalytic Converter Included	No
Catalytic Converter Quantity	0
Category	Exhaust
Choose Your Part	Exhaust System
Clamping Type	Flat Band
Clamps Included	Yes
Drive	2WD
Emission Code	5
Exhaust Series	Flow FX

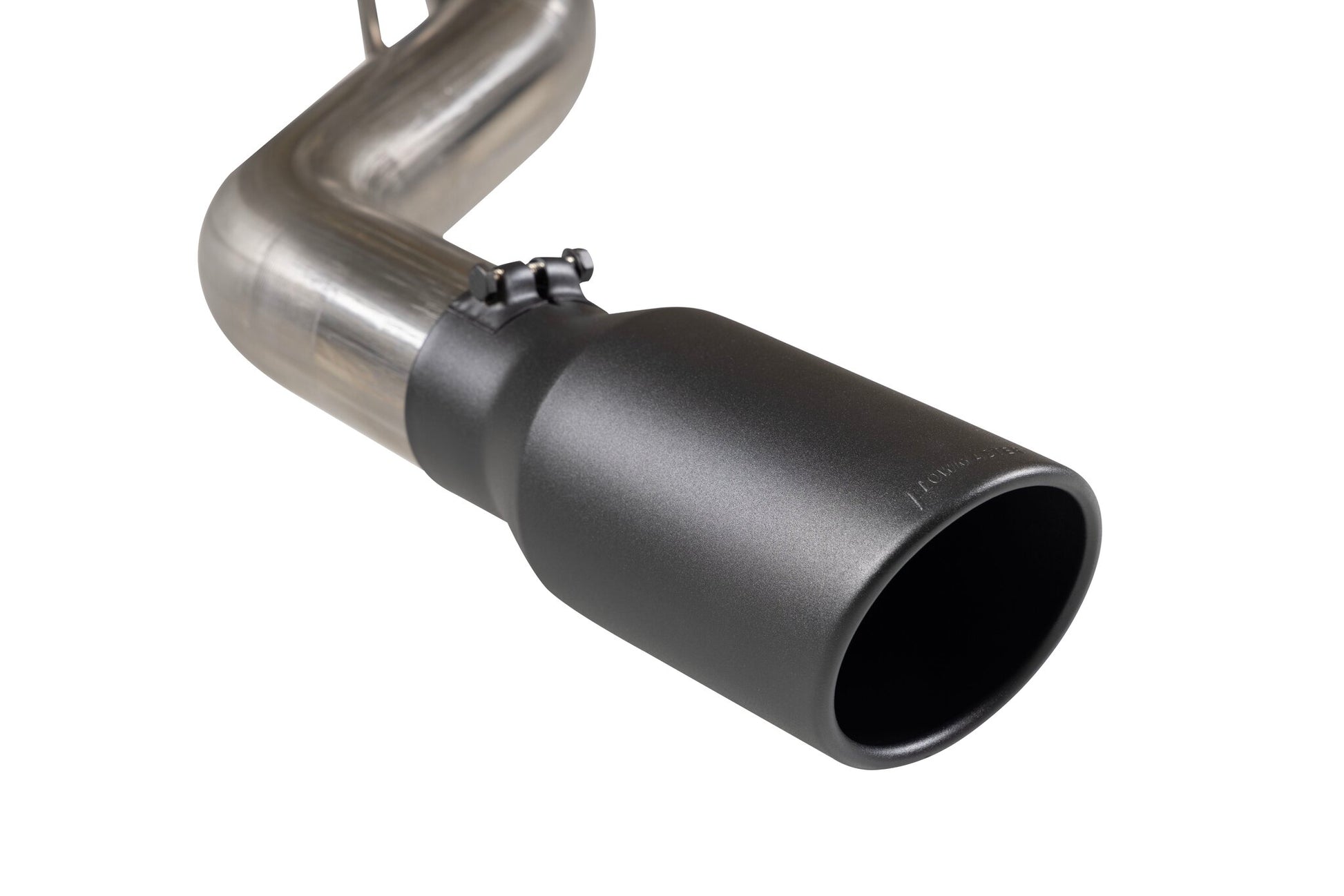

Exhaust Tip Color	Black
Exhaust Tip Connection	Clamp-On
Exhaust Tip Cut	Angled
Exhaust Tip Diameter	5.00
Exhaust Tip Edge	Rolled Edge Angle Cut
Exhaust Tip Finish	Black Ceramic Coating
Exhaust Tip Intercooled	No
Exhaust Tip Length	12.00
Exhaust Tip Material	304 Stainless Steel
Exhaust Tip Quantity	1
Exhaust Tip Resonated	No
Exhaust Tip Shape	Round
Exhaust Tip Wall	Single Wall
Exit Style	Single Out Side
Finish	Natural
Gasket Or Seal Included	No
Grade Type	Performance
Hangers Included	Yes
Heat Shield Included	No
Inlet Diameter	3.50
Inlet Type	Flanged
Main Piping Diameter	3.50
Mount Type	Uses Factory Hanger
Mounting Bracket Included	No
Muffler Body Height	5.00
Muffler Body Length	18.00
Muffler Body Material	409 Stainless Steel
Muffler Body Shape	Oval
Muffler Body Width	8.00
Muffler Color	Natural
Muffler Finish	Natural
Muffler Flanged Inlet	No
Muffler Flanged Outlet	No
Muffler Included	Yes
Muffler Inlet Connection	Slip-Fit
Muffler Inlet Inside Diameter	3.50
Muffler Inlet Location	Center
Muffler Inlet Outside Diameter	3.63
Muffler Outlet Connection	Slip-Fit
Muffler Outlet Diameter	3.50
Muffler Outlet Location	Center
Muffler Outlet Quantity	1
Muffler Quantity	1
Muffler Series	Flow FX
Muffler Type	Absorption
part type	Exhaust System
Pipe Color	Silver
Pipe Material	409 Stainless Steel
Product Type	Exhaust System
Sound Level	Aggressive / Moderate
Spring Bolt Kit Included	No
Sub Category	Exhaust and Tail Pipes
Tail Pipe Outlet Outside Diameter	3.50
Tail Pipe Quantity	1
Tail Pipe Tapered Outlet	No
Type	Cat-Back
Valve Included	No
Valve Type	Not Applicable
Warning	California Proposition 65

Packaging Information

Weight: 64 lbs
Dimensions: 62.5 x 17.5 x 14 IN
