Flowmaster 717935 Flow FX Cat-back Exhaust System
Flowmaster 717935 Flow FX Cat-back Exhaust System
Low stock: 2 left
Couldn't load pickup availability
Description & Features
Flowmaster 717935 Flow FX Cat-back Exhaust System

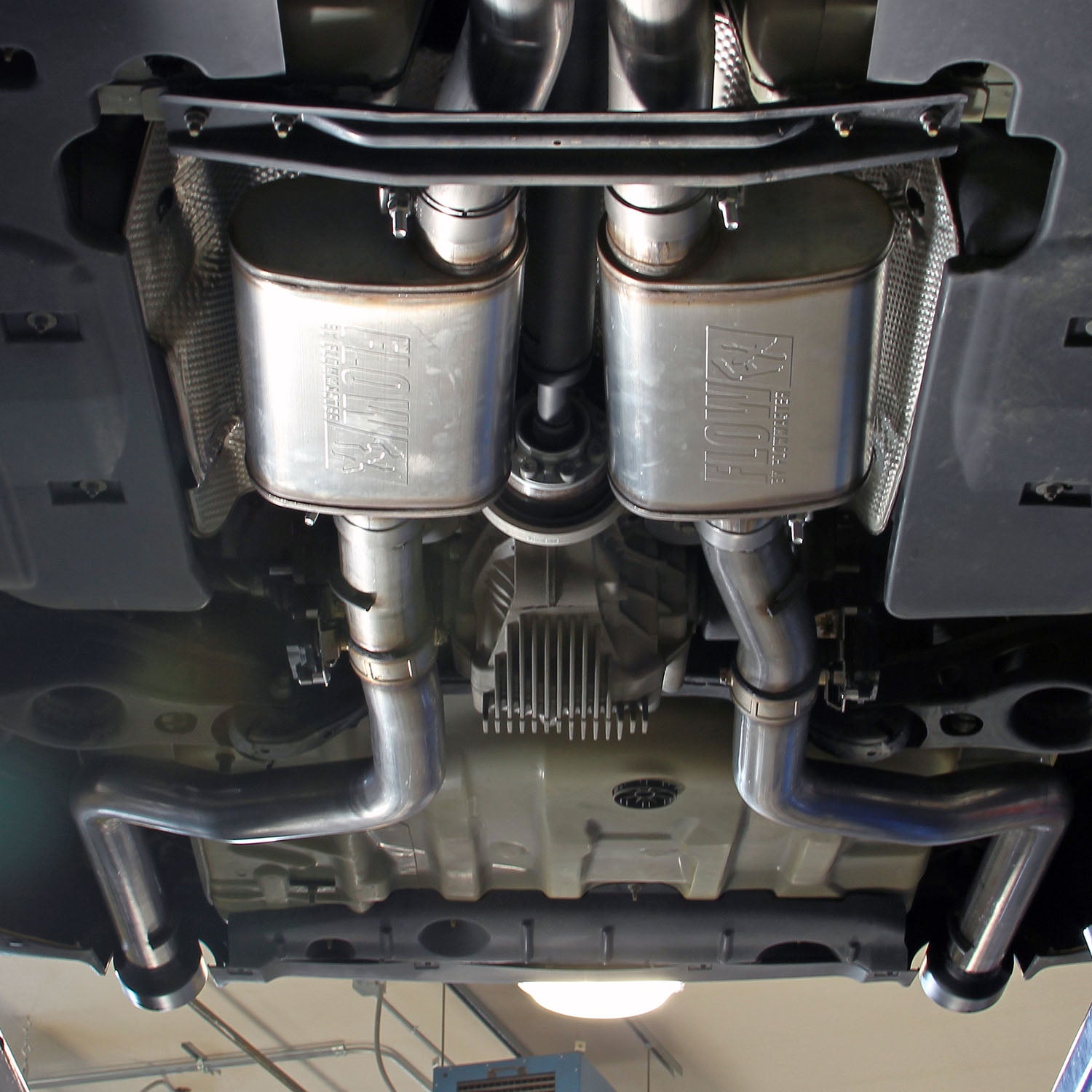

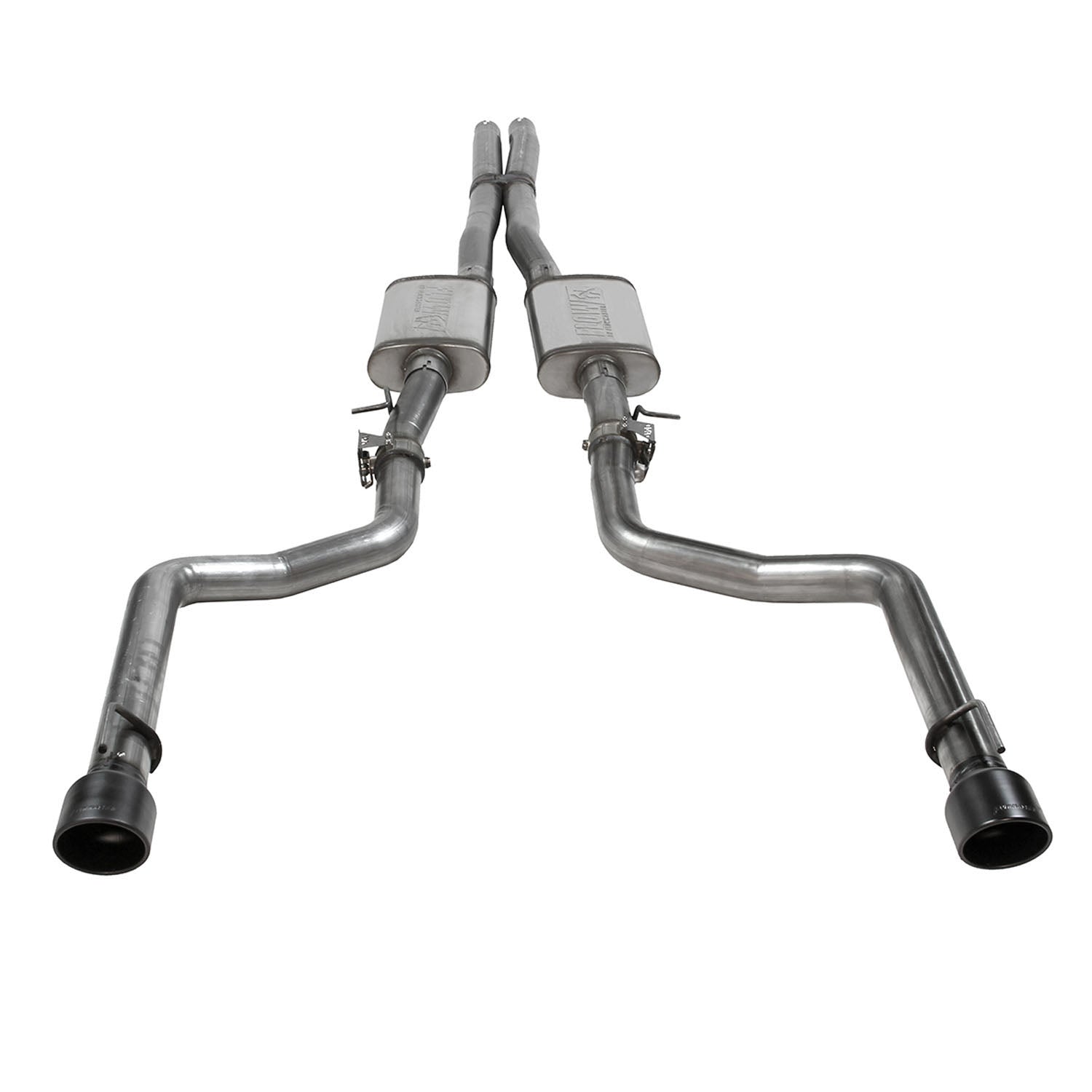

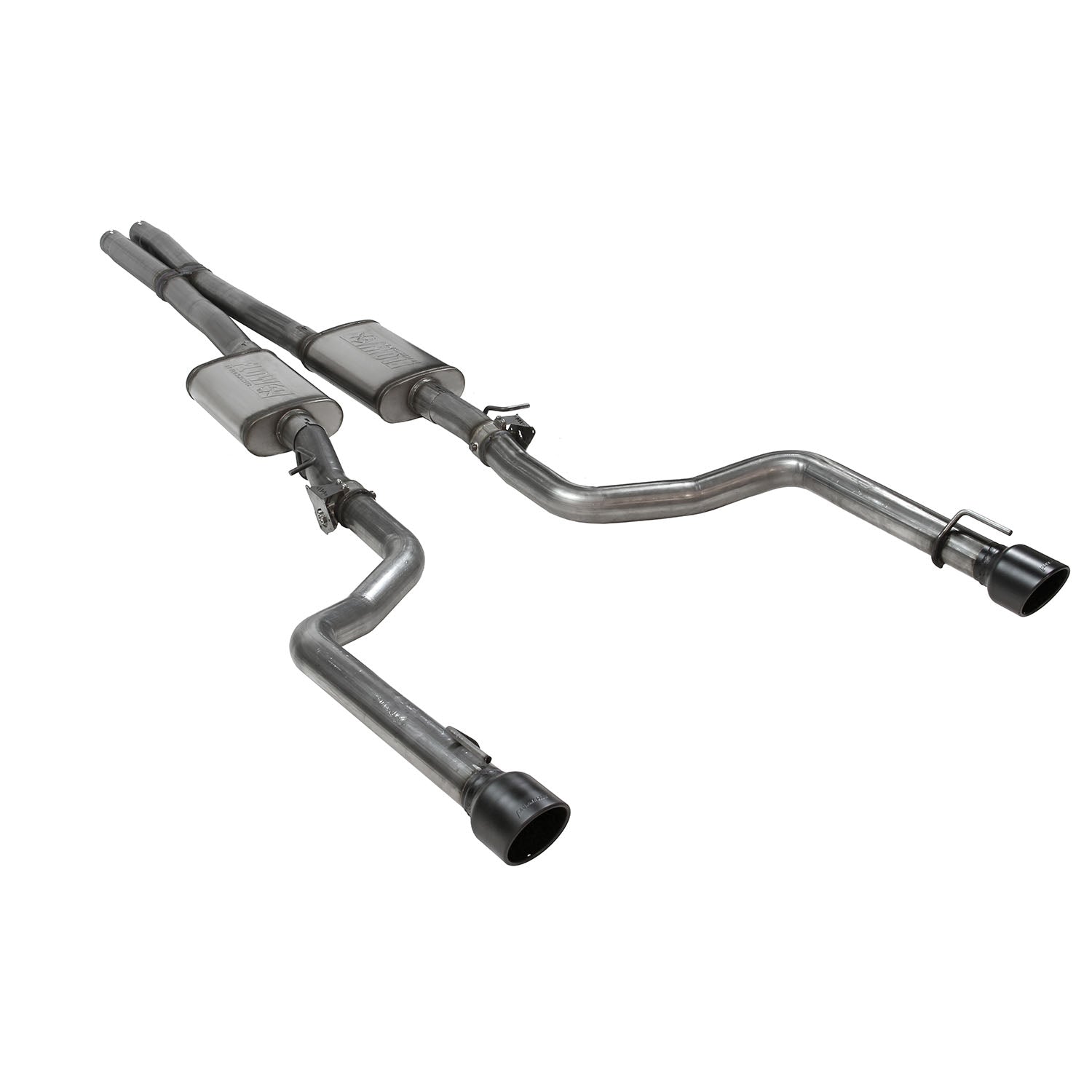

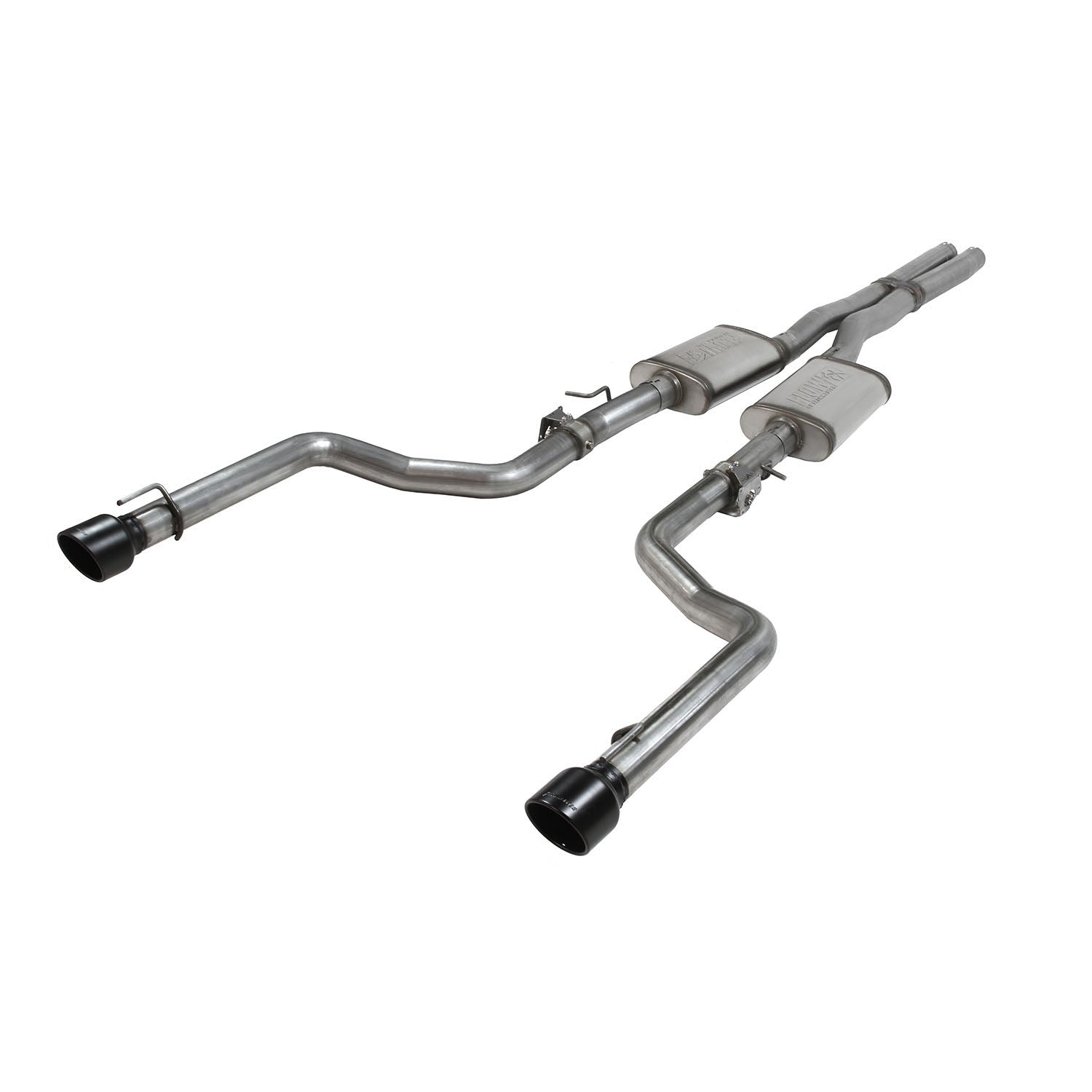

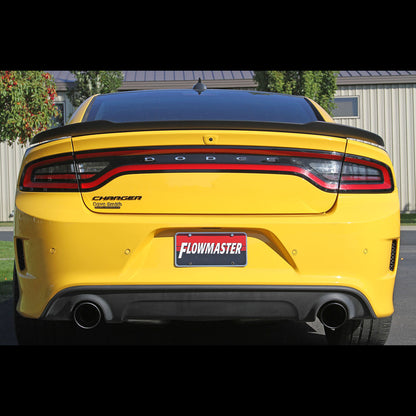

Introducing Flowmaster's new Flow FX® Cat-back exhaust system for the 2015-2023 Dodge Charger Hellcat and SRT cars with the 6.2L or 6.4L Hemi engine and Factory Active Exhaust Valves. This system is perfect for the person looking for a moderately aggressive exterior and interior sound level with all of the performance benefits that you would expect from Flowmaster®. Features include mandrel bent 3.00-inch stainless steel tubing into the Scavenger Series® X-pipe cross-over for maximum performance and tone, flowing into a pair our new Flow FX "straight-through" mufflers for a deep and powerful sound. The dual 3.00-inch mandrel-bent stainless steel tailpipes retain the Factory Active Exhaust Valves and the system is finished off with a pair of aggressive looking 4.50-inch black ceramic coated 304s stainless steel tips embossed with the Flowmaster name. The large tips exit within the rear bumper valance and gives your car the look that it should have come with from the factory. This system is designed to use the factory hanger locations, includes all necessary parts, hardware and detailed instructions for a relatively easy at home installation.

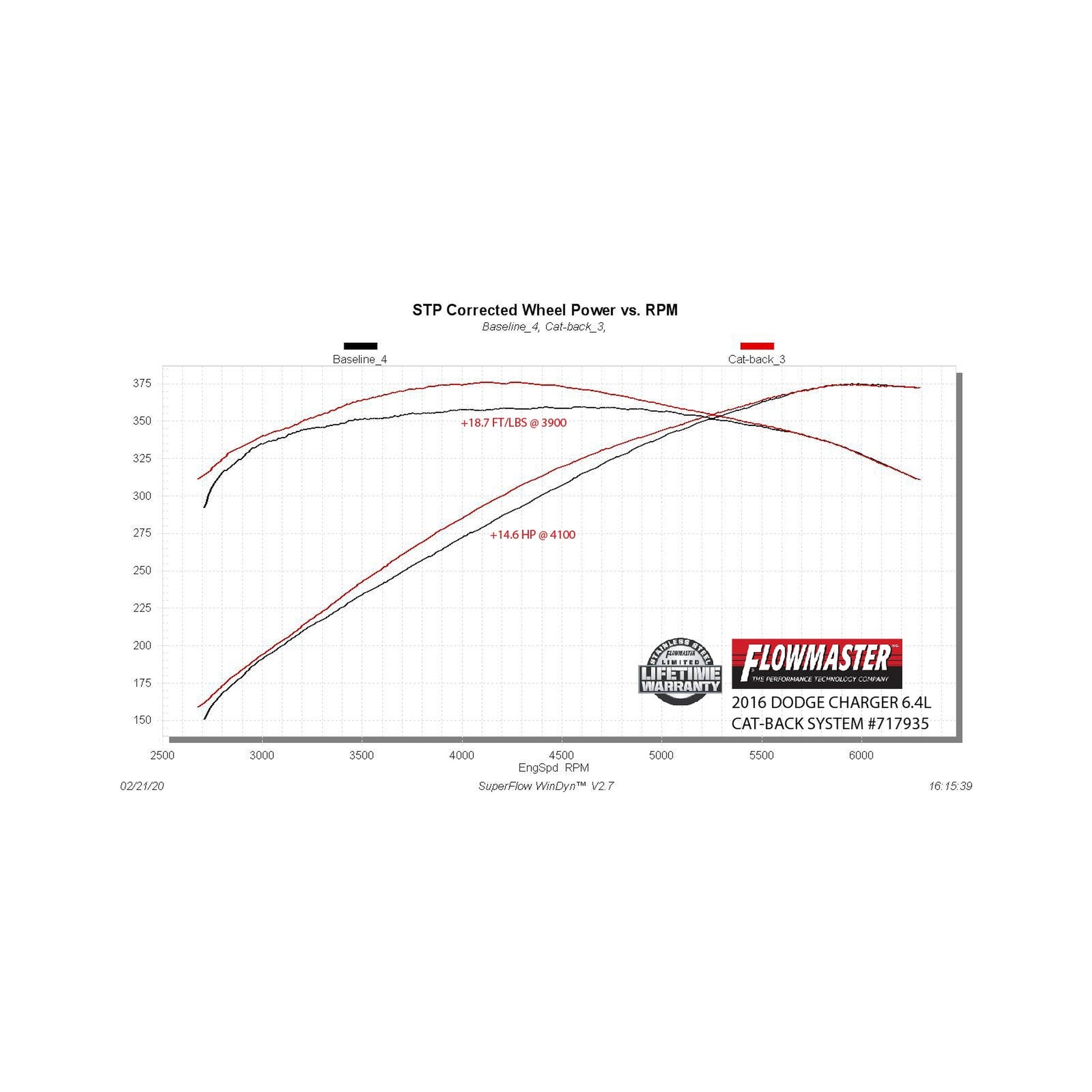

- Max Power Gains of up to 14.6 hp and 18.7 lb/ft of torque

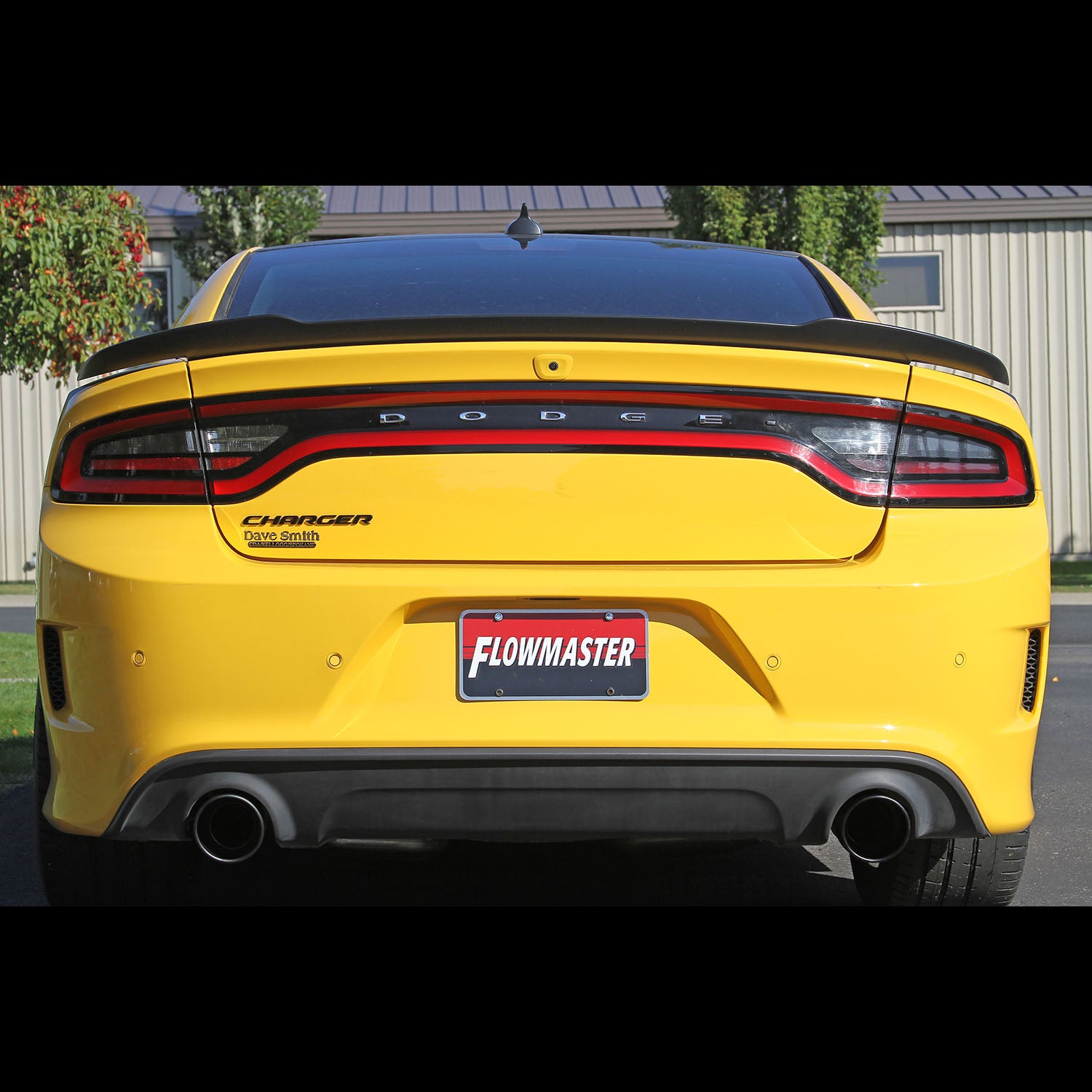

- Large 4.50-inch black ceramic coated stainless steel tips offer a modern appearance
- Scavenger X-pipe for maximum power and deep tone
- Dual 3.00-inch mandrel-bent 16-gauge tubing for better exhaust flow
- Uses factory style active exhaust valves to retain valve function
- All stainless steel construction improves system durability
- Deep powerful exterior sound will make you stand out from the crowd

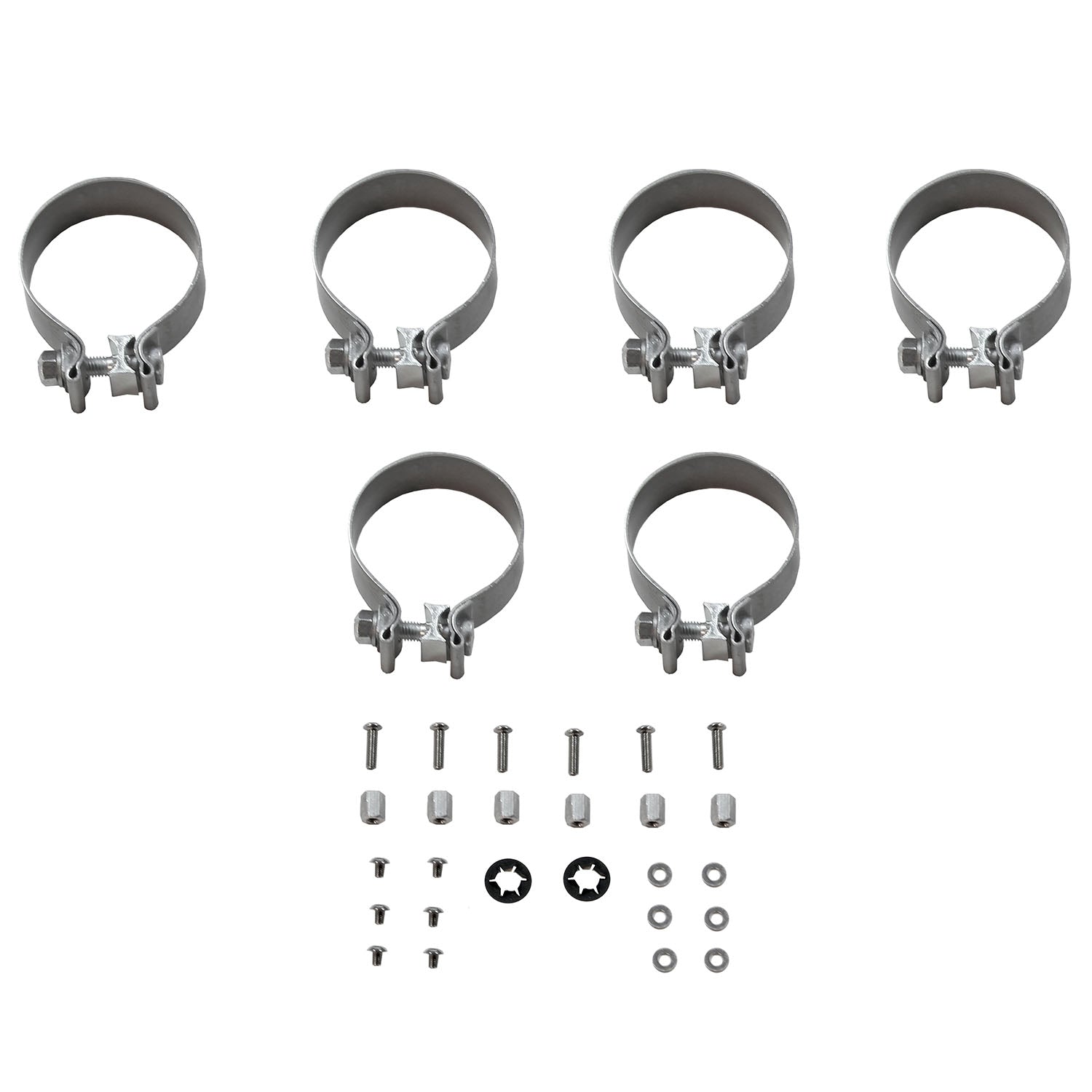

- Includes hangers & hardware for a quick and easy installation
- Lifetime Limited Warranty
Specifications
| Brand | Flowmaster |
| California Proposition 65 | Yes |
| California Proposition 65 Chemical Name | Nickel (Metallic) |
| CARB (California) Compliant | Yes |
| Catalytic Converter Included | No |
| Catalytic Converter Quantity | 0 |
| Category | Exhaust |
| Clamping Type | Flat Band |
| Clamps Included | Yes |
| Emission Code | 5 |
| Exhaust Series | Flow FX |
| Exhaust Tip Color | Black |
| Exhaust Tip Connection | Welded |
| Exhaust Tip Cut | Angled |
| Exhaust Tip Diameter | 4.50 |
| Exhaust Tip Edge | Rolled Edge |
| Exhaust Tip Finish | Black Ceramic Coating |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 5.25 |
| Exhaust Tip Material | 304 Stainless Steel |
| Exhaust Tip Quantity | 2 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Single Wall |
| Exit Style | Dual Out Rear |
| Finish | Natural |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Hangers Included | Yes |
| Heat Shield Included | No |
| Inlet Type | Clamp-On |
| Main Piping Diameter | 3.00 |
| Mount Type | Uses Factory Hangers |
| Mounting Bracket Included | No |
| Muffler Body Height | 4.00 |
| Muffler Body Length | 14.00 |
| Muffler Body Material | 409 Stainless Steel |
| Muffler Body Shape | Oval |
| Muffler Body Width | 9.00 |
| Muffler Color | Silver |
| Muffler Finish | Natural |
| Muffler Flanged Inlet | No |
| Muffler Flanged Outlet | No |
| Muffler Included | Yes |
| Muffler Inlet Connection | Slip-Fit |
| Muffler Inlet Inside Diameter | 3.00 |
| Muffler Inlet Location | Offset |
| Muffler Inlet Outside Diameter | 3.13 |
| Muffler Outlet Connection | Slip-Fit |
| Muffler Outlet Diameter | 3.00 |
| Muffler Outlet Location | Center |
| Muffler Outlet Quantity | 1 |
| Muffler Overall Length | 20.00 |
| Muffler Part Number | Kit Only |
| Muffler Quantity | 2 |
| Muffler Series | Flow FX |
| Muffler Type | Absorption |
| part type | Exhaust System |
| Pipe Color | Silver |
| Pipe Material | 409 Stainless Steel |
| Product Type | Exhaust System |
| Sound Level | Aggressive / Moderate |
| Spring Bolt Kit Included | No |
| Sub Category | Exhaust and Tail Pipes |
| Tail Pipe Outlet Outside Diameter | 3.00 |
| Tail Pipe Quantity | Dual |
| Tail Pipe Tapered Outlet | No |
| Tip Logo | Embossed |
| Type | Cat-Back |
| Valve Actuator Included | No, Reuse OEM |
| Valve Included | Yes |
| Valve Type | OEM-Style Valves |
| Warning | California Proposition 65 |
Packaging Information
Weight: 65.4 lbs
Dimensions: 59.75 x 16.25 x 15.25 IN
Safety
⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov
Warranty
Installation Instructions
⚠ Fitment Notes
- Black Ceramic Tip Finish
- Fits 2015-2023 Dodge Charger Hellcat 6.2l and SRT with the 6.4L Hemi engine and Factory Active Exhaust Valves.
Share
Vehicle Fitment
Vehicle Fitment
- 2017-2018 Dodge Charger Daytona 392
- 2017-2018 Dodge Charger R/T 392
- 2015-2018 Dodge Charger R/T Scat Pack
- 2019-2023 Dodge Charger Scat Pack
- 2019-2023 Dodge Charger Scat Pack 392
- 2022-2023 Dodge Charger Scat Pack 392 Widebody
- 2015-2018 Dodge Charger SRT 392
- 2015-2020 Dodge Charger SRT Hellcat
- 2021-2023 Dodge Charger SRT Hellcat Redeye Widebody
- 2023 Dodge Charger SRT Hellcat Redeye Widebody Jailbreak
- 2021-2023 Dodge Charger SRT Hellcat Widebody
