Flowmaster
Flowmaster 717978 Flow FX Extreme Cat-Back Exhaust System
Flowmaster 717978 Flow FX Extreme Cat-Back Exhaust System
Low stock: 4 left
Couldn't load pickup availability
Description & Features
Flowmaster 717978 Flow FX Extreme Cat-Back Exhaust System

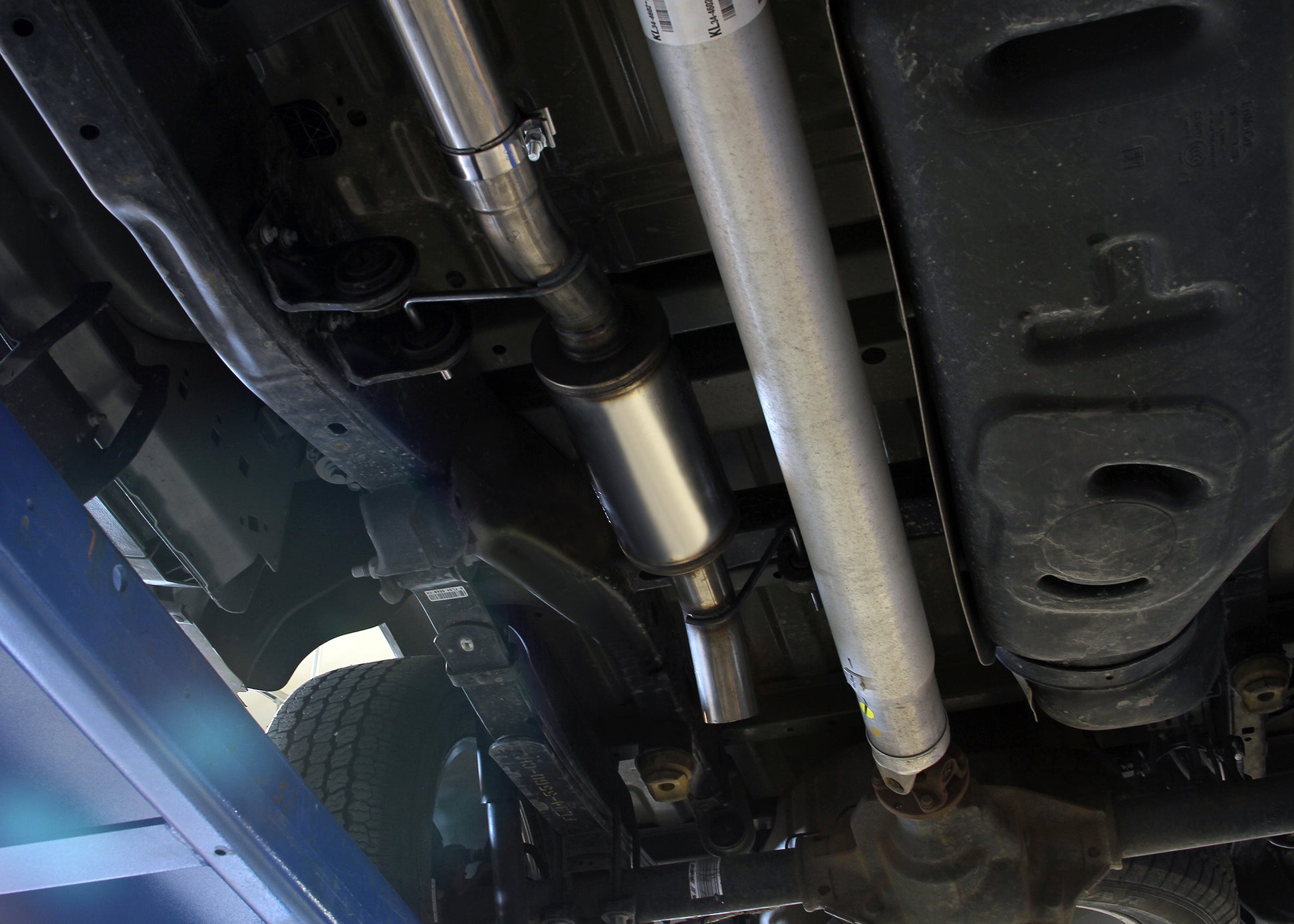

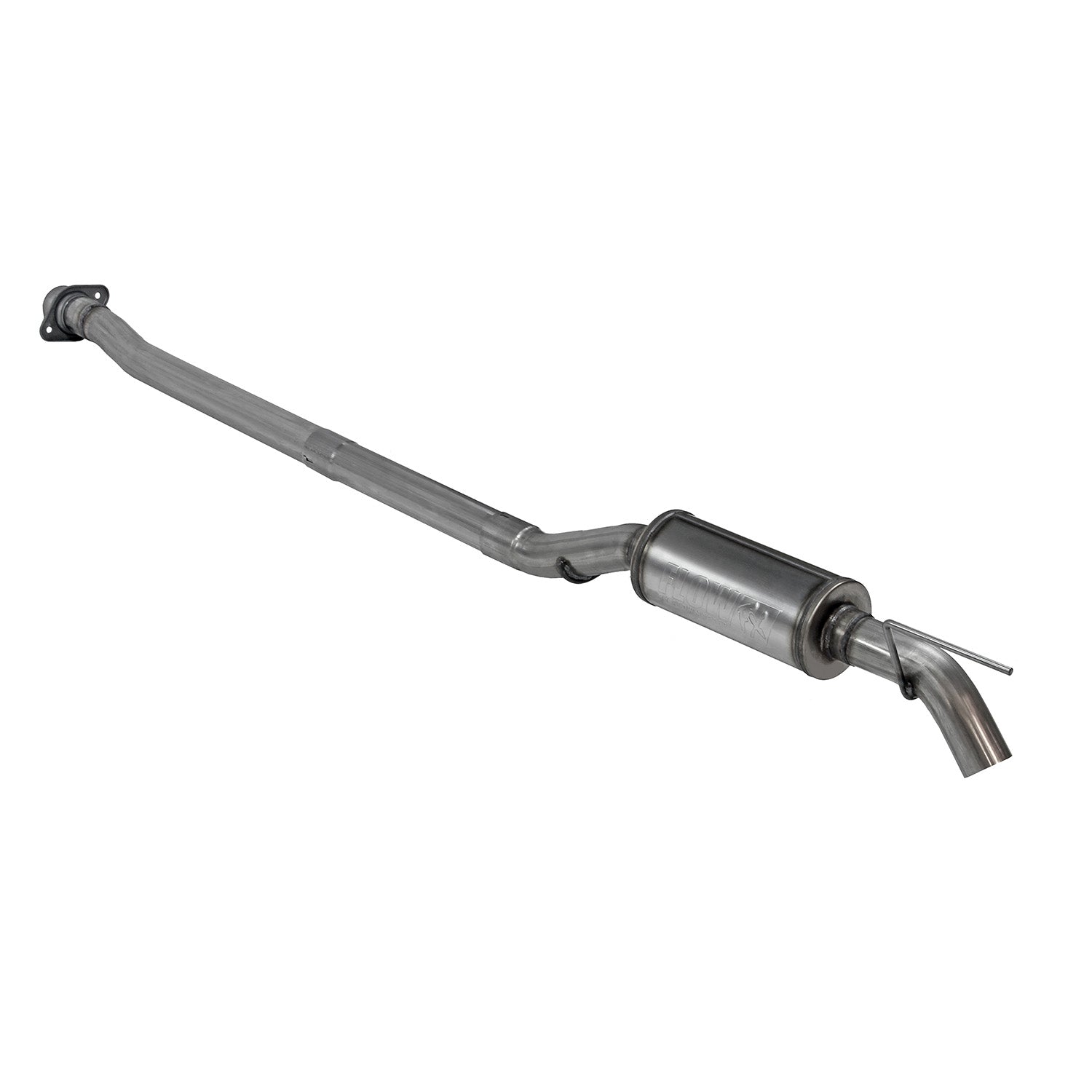

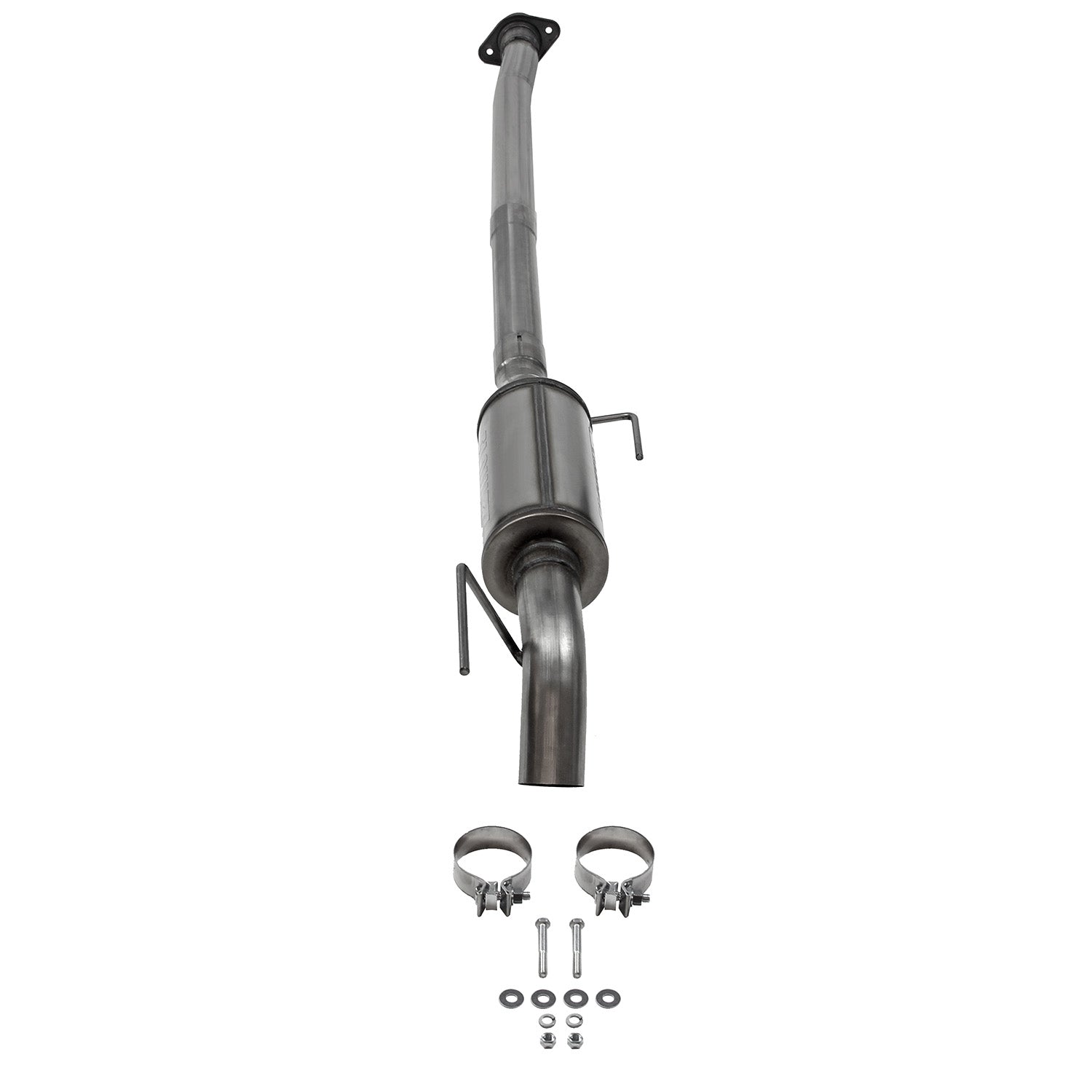

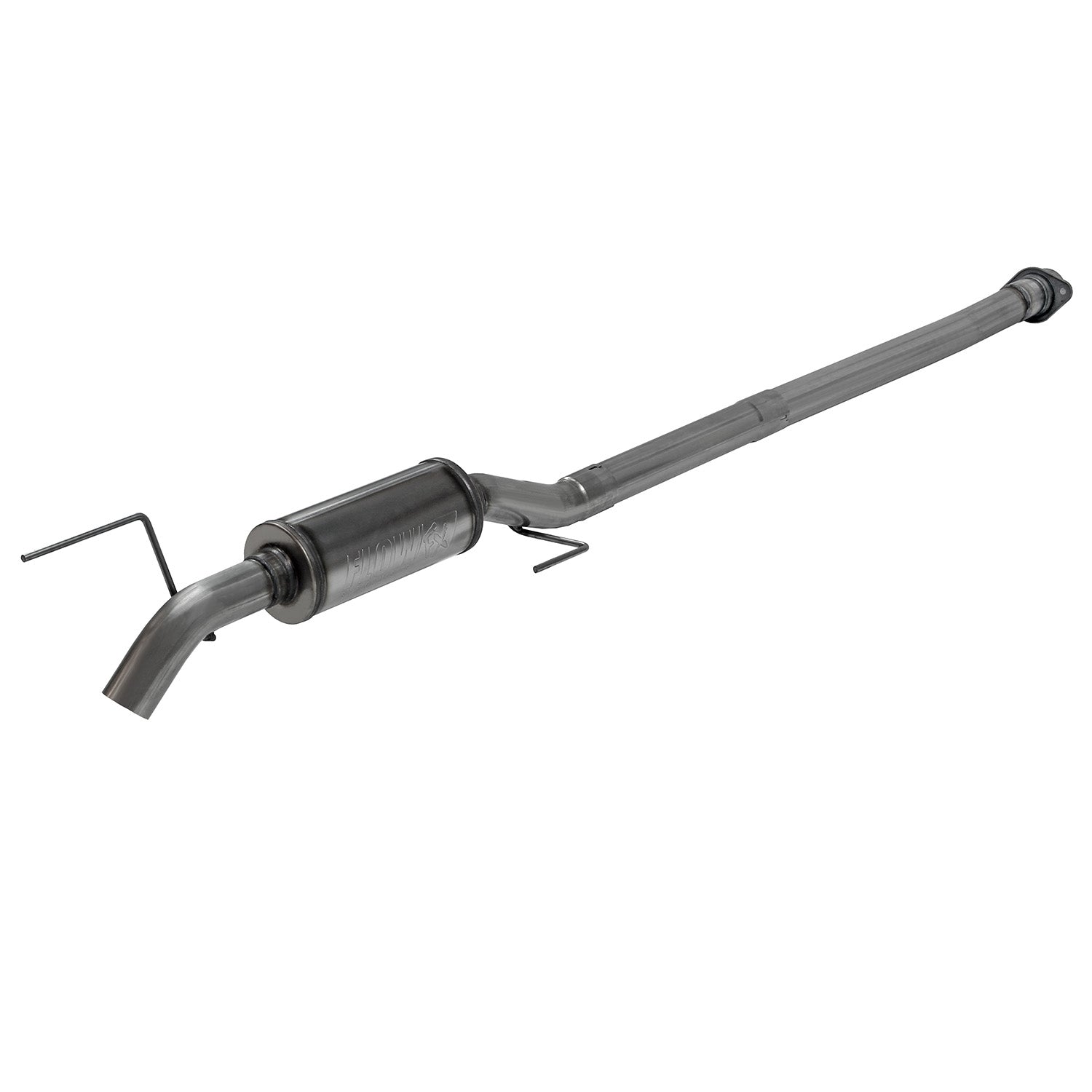

Flowmaster introduces our new Flow FX Extreme stainless steel cat-back exhaust system for the 2015-2020 Ford F-150 with the 2.7L, 3.3L, 3.5L, and 5.0L engines. This system uses a Flow FX series muffler for a deep powerful sound and increased performance. 3.0-inch mandrel bent 409 stainless steel tubing is used for maximum exhaust flow and durability. The system has a turndown style dump exit right after the muffler to eliminate the over-axle tailpipe. This elimination of the tailpipe helps to improve ground clearance and departure angle when you are driving in more extreme off-road situations. All of the necessary hardware is included and factory mounting locations are used for an easy installation. Backed by Flowmaster's Lifetime Limited Warranty.
- Flow FX series performance muffler offers a deep powerful sound and increased performance
- 409 stainless steel construction delivers extra durability and improved long-term corrosion resistance
- Max dyno gains of 18 HP and 9 LB.FT torque over stock at the rear wheels
- Uses factory hanger locations for easy installation
- 0-inch 16-gauge mandrel bent stainless steel tubing helps maintain maximum exhaust flow for better power

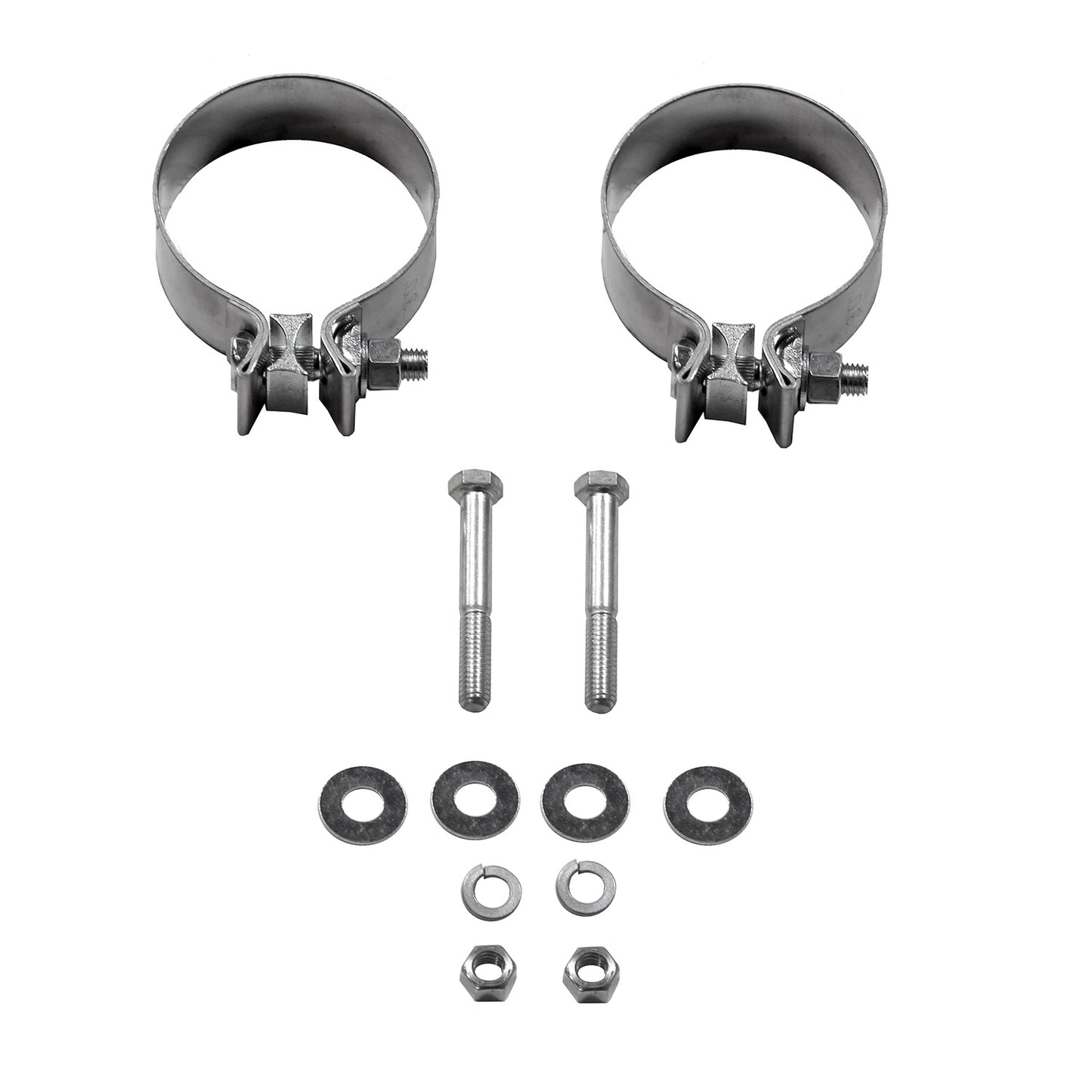

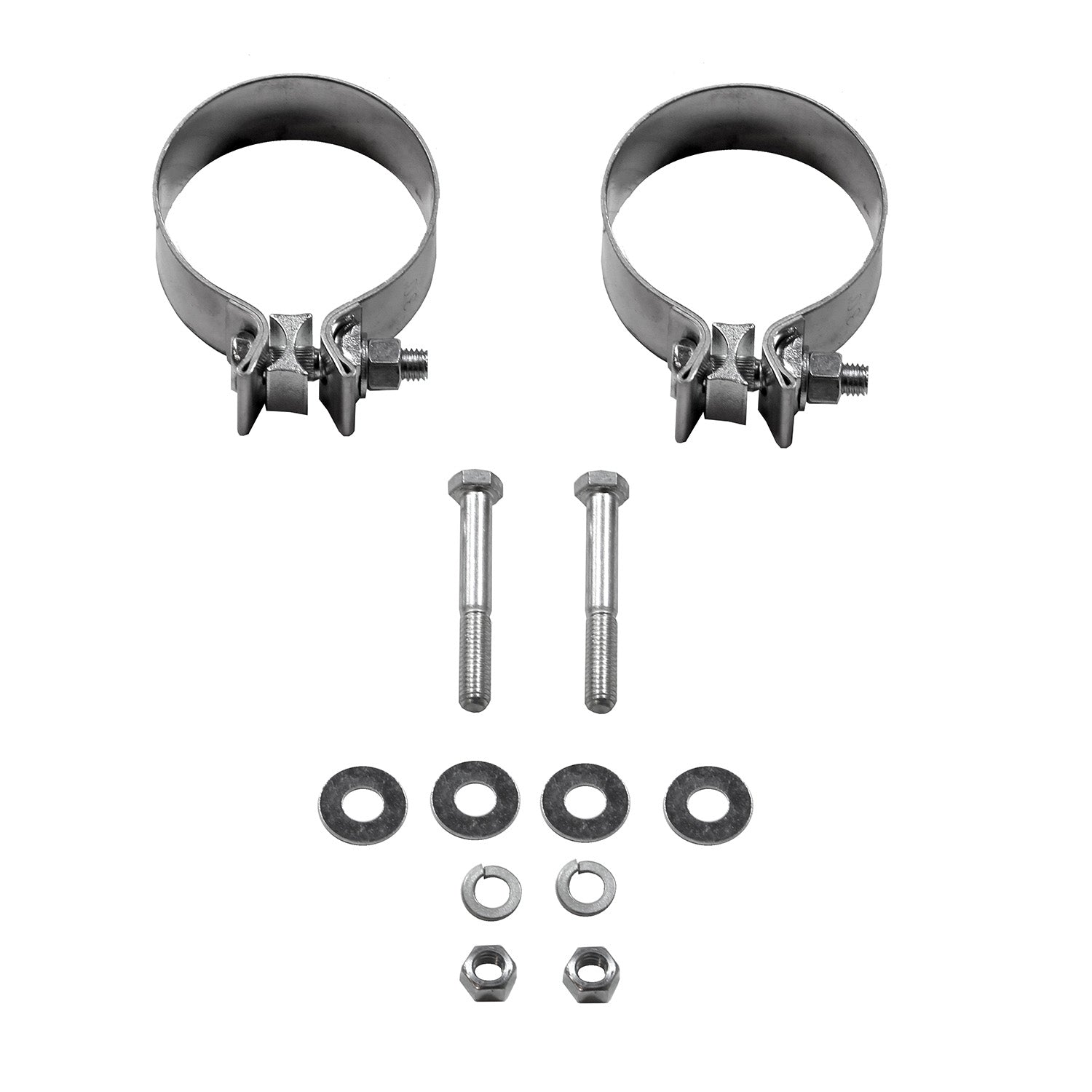

- Includes all necessary hardware for an at home installation
- Dump style exit allows for better ground clearance when in extreme off-road conditions
- Lifetime Limited Warranty
Specifications
| Brand | Flowmaster |
| California Proposition 65 | Yes |
| California Proposition 65 Chemical Name | Nickel (Metallic) |
| CARB (California) Compliant | Yes |
| Catalytic Converter Included | No |
| Catalytic Converter Quantity | 0 |
| Category | Exhaust |
| Clamping Type | Flat Band |
| Clamps Included | Yes |
| Emission Code | 5 |
| Exhaust Series | Flow FX |
| Exhaust Tip Color | Silver |
| Exhaust Tip Connection | Welded |
| Exhaust Tip Cut | Straight |
| Exhaust Tip Diameter | 3.00 |
| Exhaust Tip Edge | Slash Cut |
| Exhaust Tip Finish | Natural |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Material | 409 Stainless Steel |
| Exhaust Tip Quantity | 1 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Single Wall |
| Exit Style | Single Out Dump |
| Finish | Natural |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Hangers Included | Yes |
| Inlet Type | Flanged |
| Main Piping Diameter | 3.00 |
| Mount Type | Uses Factory Hangers |
| Mounting Bracket Included | No |
| Muffler Body Diameter | 6.00 |
| Muffler Body Length | 14.00 |
| Muffler Body Material | 409 Stainless Steel |
| Muffler Body Shape | Round |
| Muffler Color | Silver |
| Muffler Finish | Natural |
| Muffler Flanged Inlet | No |
| Muffler Flanged Outlet | No |
| Muffler Included | Yes |
| Muffler Inlet Connection | Slip-Fit |
| Muffler Inlet Inside Diameter | 3.00 |
| Muffler Inlet Location | Center |
| Muffler Inlet Outside Diameter | 3.13 |
| Muffler Outlet Diameter | 3.00 |
| Muffler Outlet Location | Center |
| Muffler Outlet Quantity | 1 |
| Muffler Overall Length | 44.30 |
| Muffler Part Number | Kit Only |
| Muffler Quantity | 1 |
| Muffler Series | Flow FX |
| Muffler Type | Absorption |
| part type | Exhaust System |
| Pipe Color | Silver |
| Pipe Material | 409 Stainless Steel |
| Product Type | Exhaust System |
| Sound Level | Aggressive / Moderate |
| Spring Bolt Kit Included | No |
| Sub Category | Exhaust and Tail Pipes |
| Tail Pipe Outlet Outside Diameter | 3.00 |
| Tail Pipe Quantity | 1 |
| Tail Pipe Tapered Outlet | No |
| Type | Cat-Back |
| Valve Included | No |
| Valve Type | Not Applicable |
| Warning | California Proposition 65 |
Packaging Information
Weight: 23.85 lbs
Dimensions: 49 x 14.9 x 14 IN
Safety
⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov
Warranty
Installation Instructions
⚠ Fitment Notes
- Does not fit standard cab/short bed trucks.
Share
Vehicle Fitment
Vehicle Fitment
- 2015-2020 Ford F-150 King Ranch
- 2015-2020 Ford F-150 Lariat
- 2016-2020 Ford F-150 Limited
- 2015-2020 Ford F-150 Platinum
- 2018-2019 Ford F-150 Police Responder
- 2016-2020 Ford F-150 SSV
- 2015-2020 Ford F-150 XL
- 2015-2020 Ford F-150 XLT
