Flowmaster 718103 Flow FX Cat-Back Exhaust System
Flowmaster 718103 Flow FX Cat-Back Exhaust System
Low stock: 4 left
Couldn't load pickup availability
Description & Features
Flowmaster 718103 Flow FX Cat-Back Exhaust System

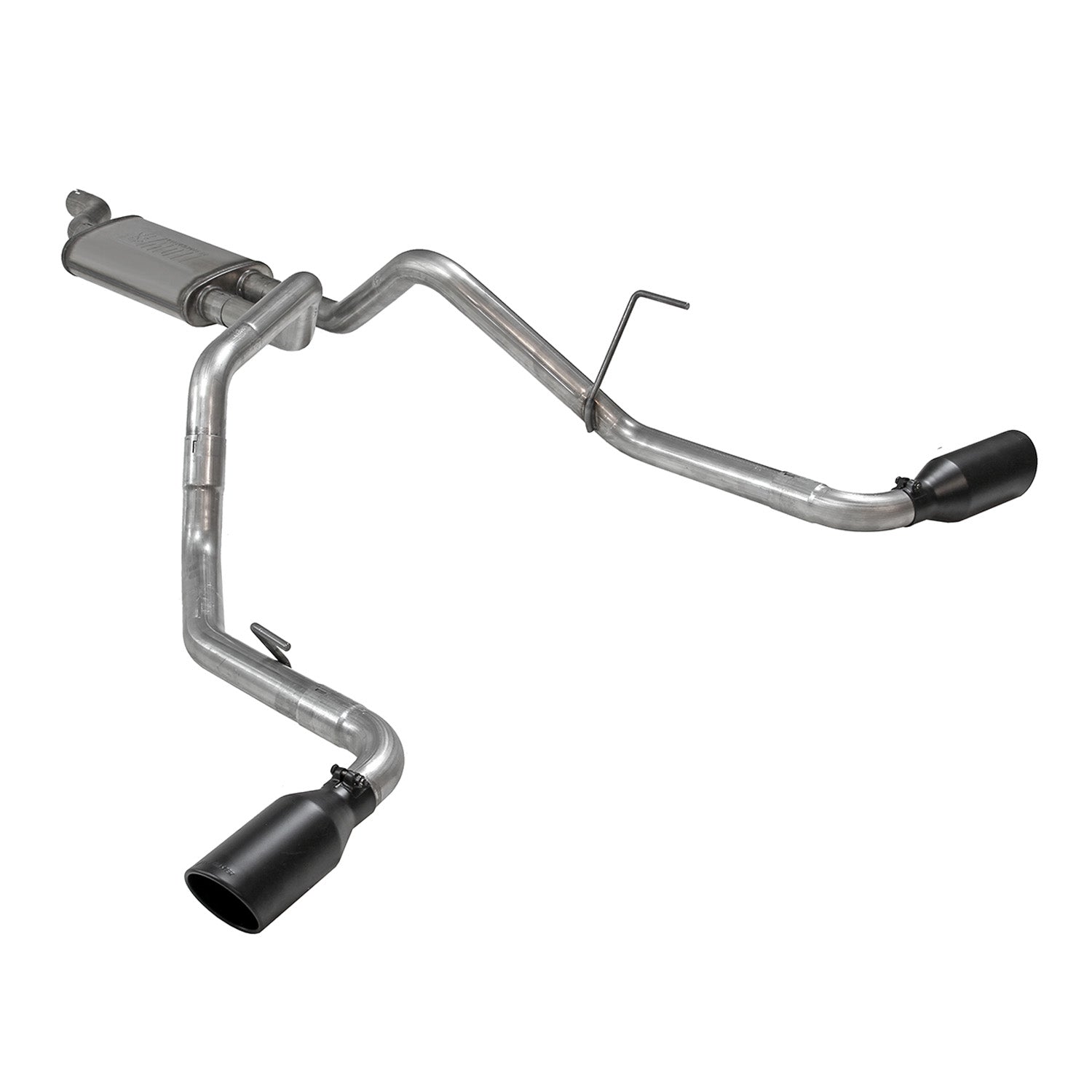

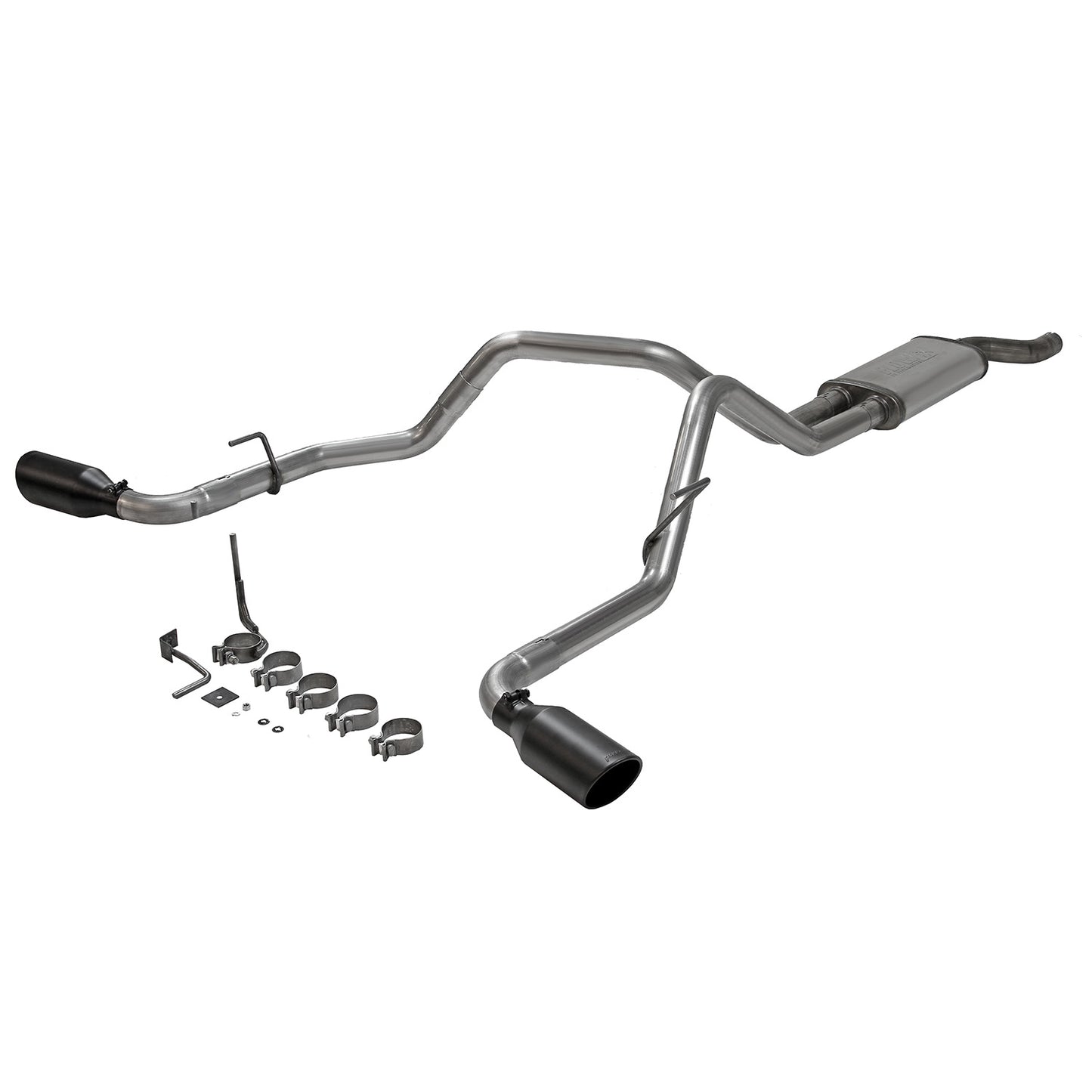

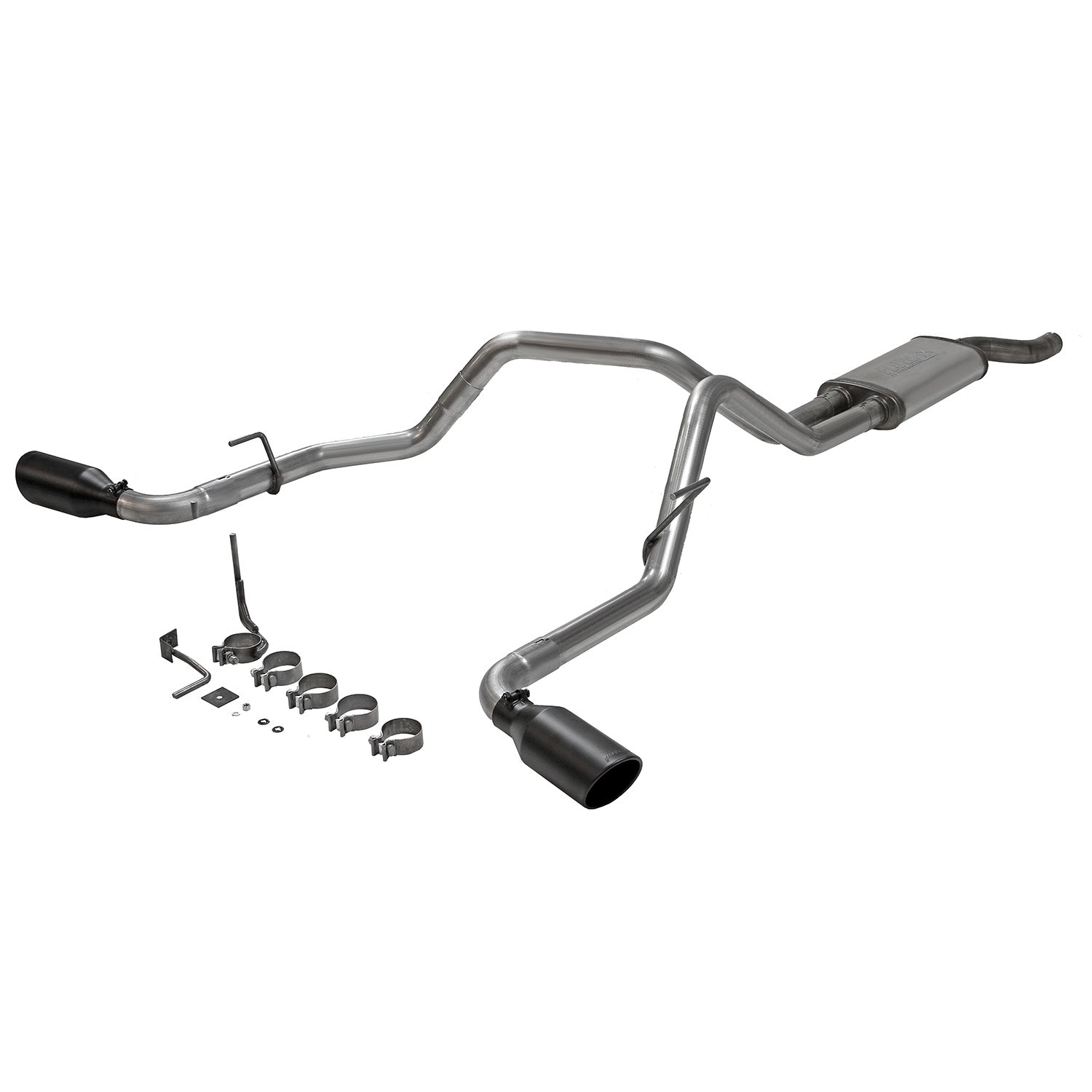

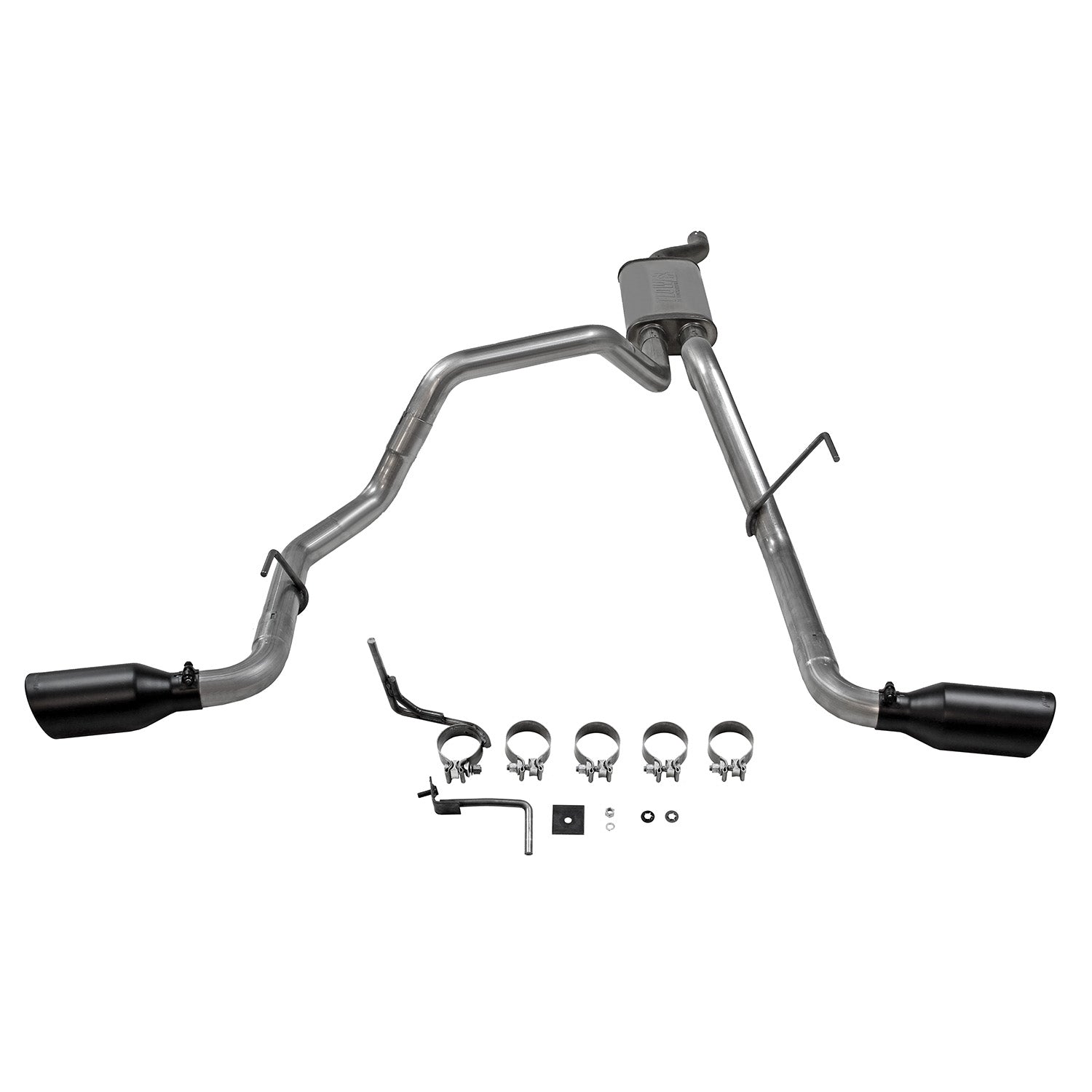

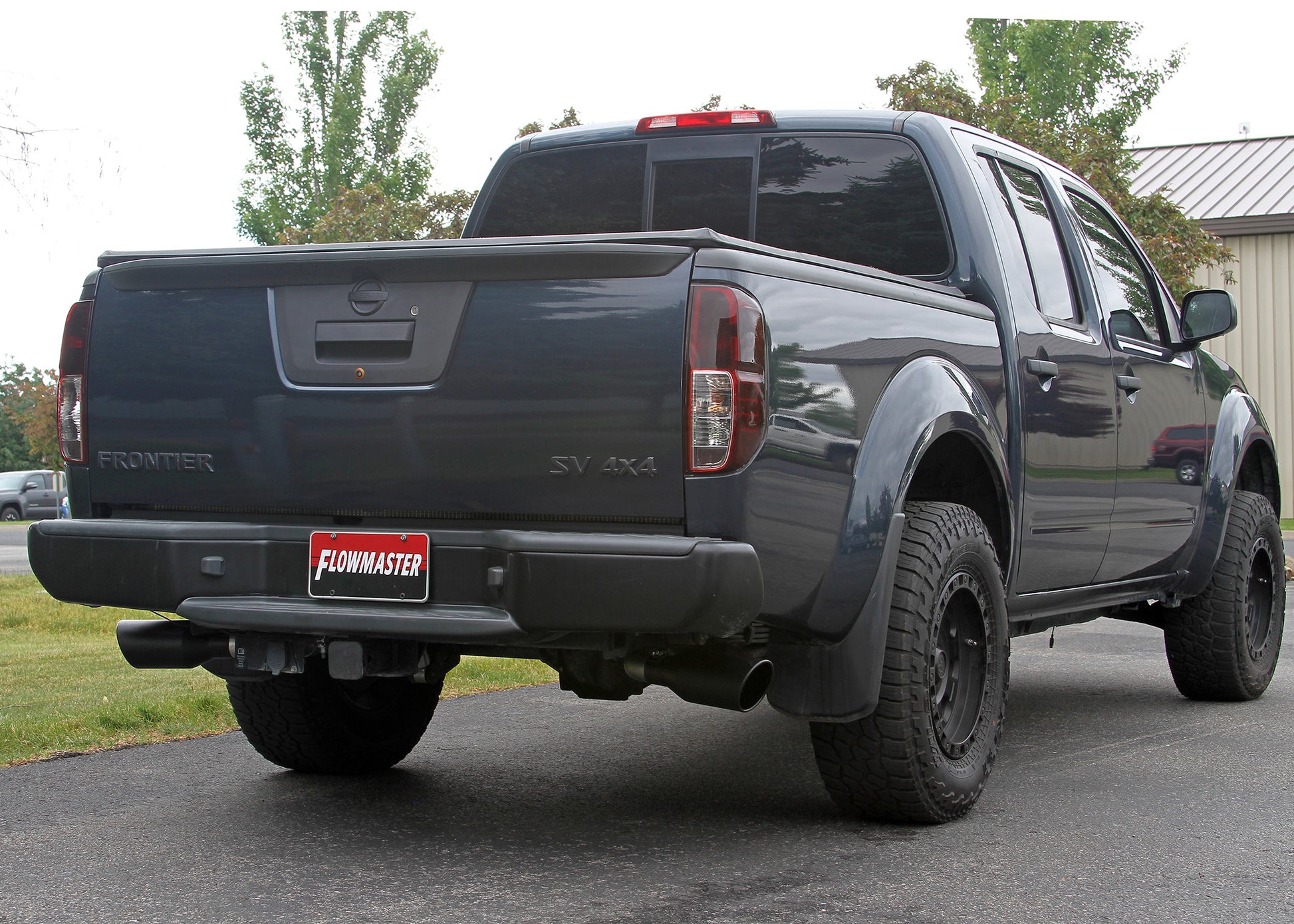

This Flowmaster® Flow FX® cat-back exhaust system for the 2005-2019 Nissan Frontier trucks with the 4.0-liter V6 engine is manufactured using durable 409 stainless steel throughout and features dual 2.50-inch mandrel bent pipes for better exhaust gas flow, and a Flow FX "straight-through" muffler is used for a moderate sound level and maximum performance. Maximum increases on the dyno revealed +8 hp and +6 lb-ft at the rear wheels. This system exits out both sides, behind the rear wheels with 4.50-inch black ceramic tips for added style and a custom look. The system uses all the existing factory hanger locations and includes installation instructions and all necessary hardware for an easy installation that you can do at home. Backed by Flowmaster's Lifetime Limited Warranty.

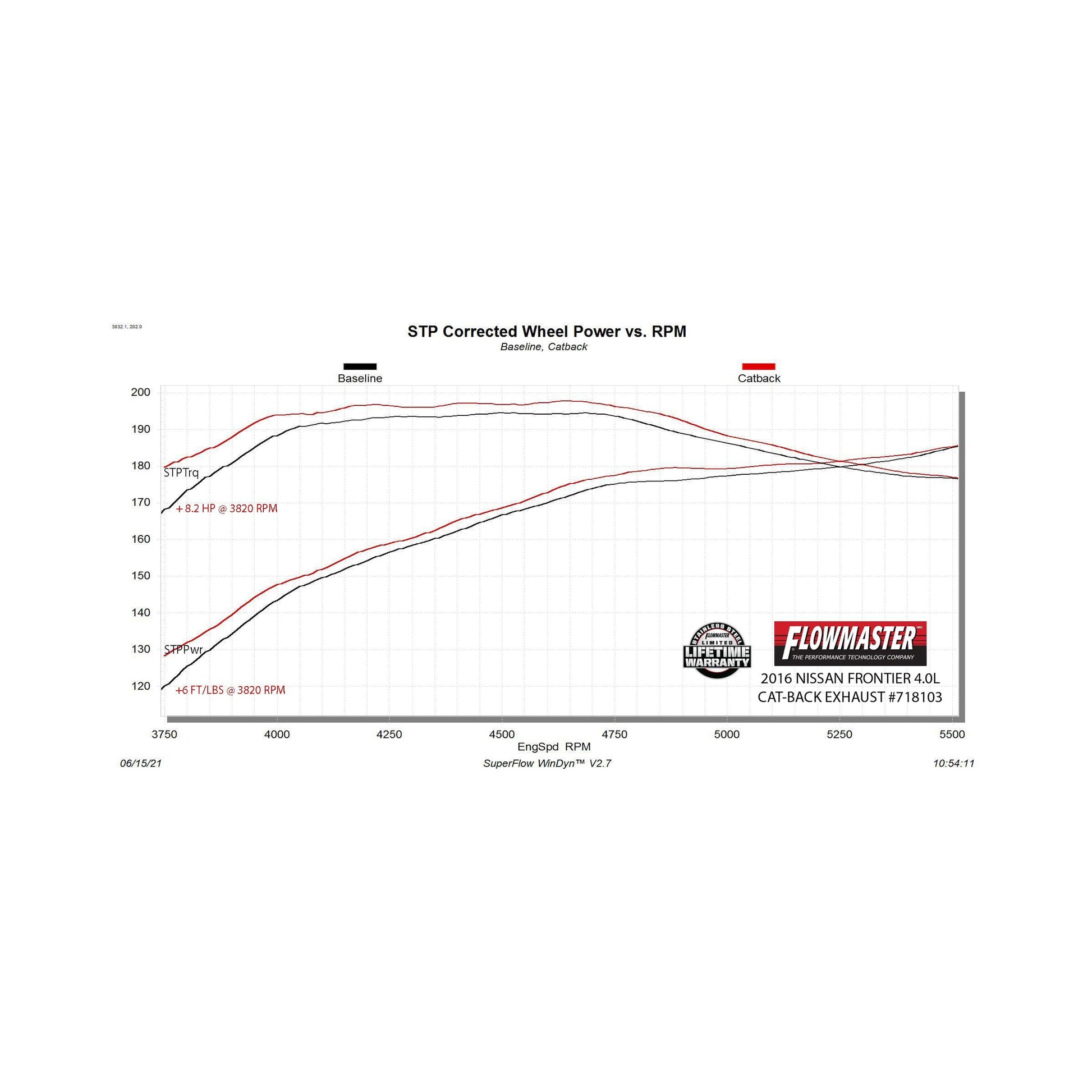

- Max increases of up to 8 hp and 6 lb-ft over the stock exhaust at the rear wheels
- Dual 2.50-inch mandrel bent 16-gauge 409 stainless steel tubing maximizes exhaust flow and improves durability

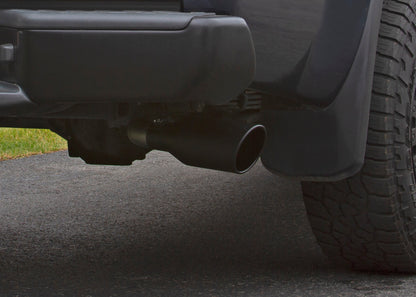

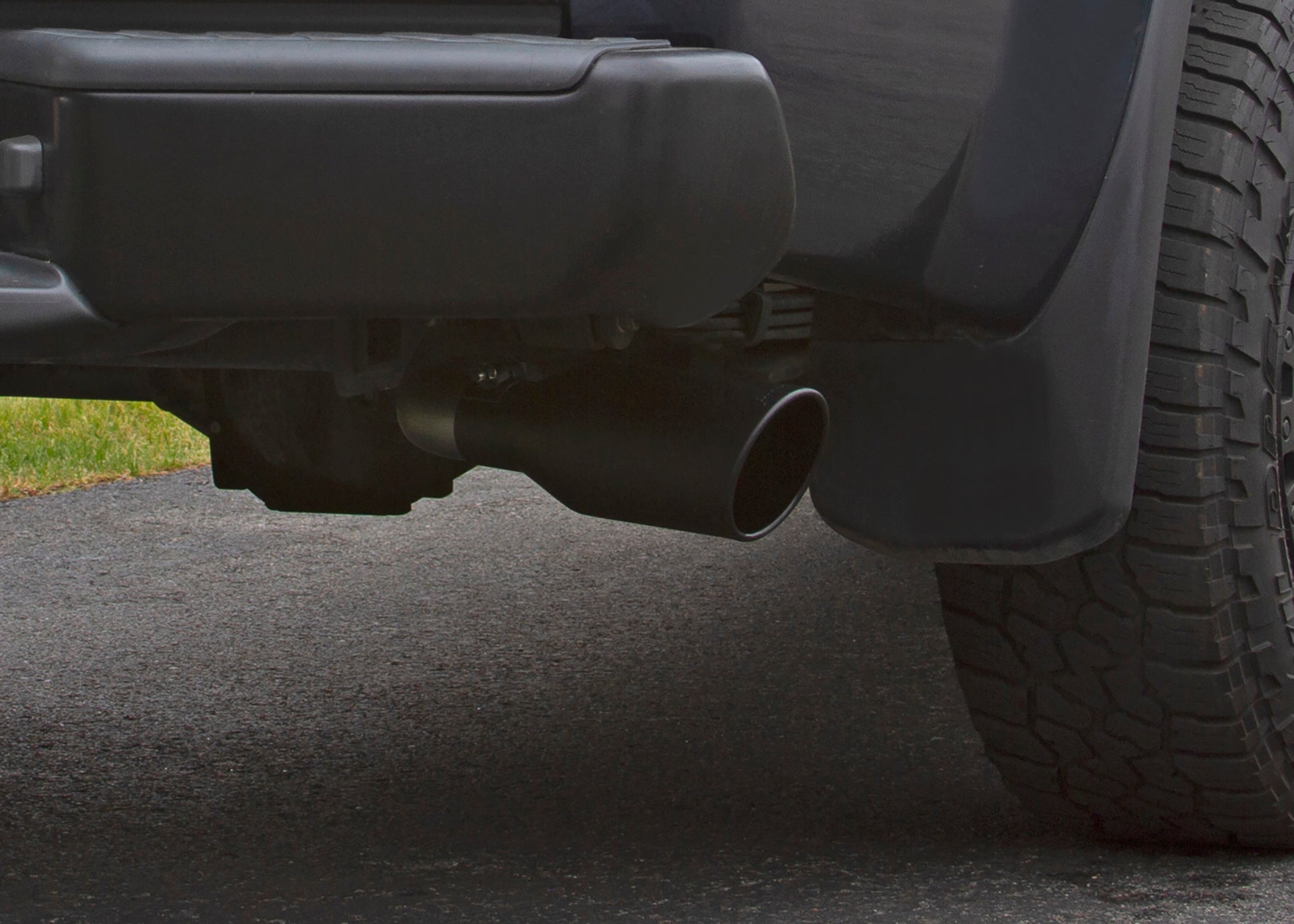

- 50-inch black ceramic coated tips add a custom look to the truck

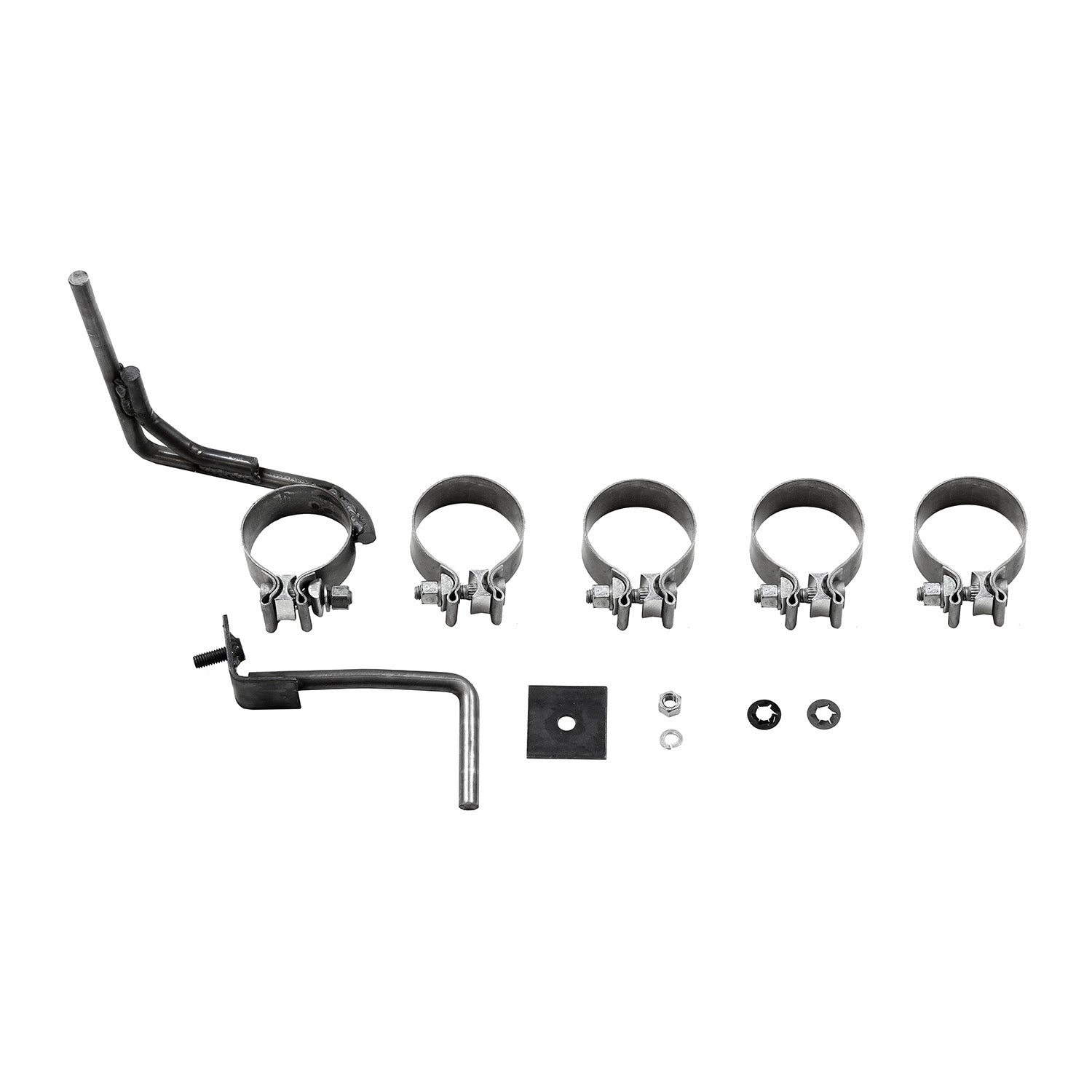

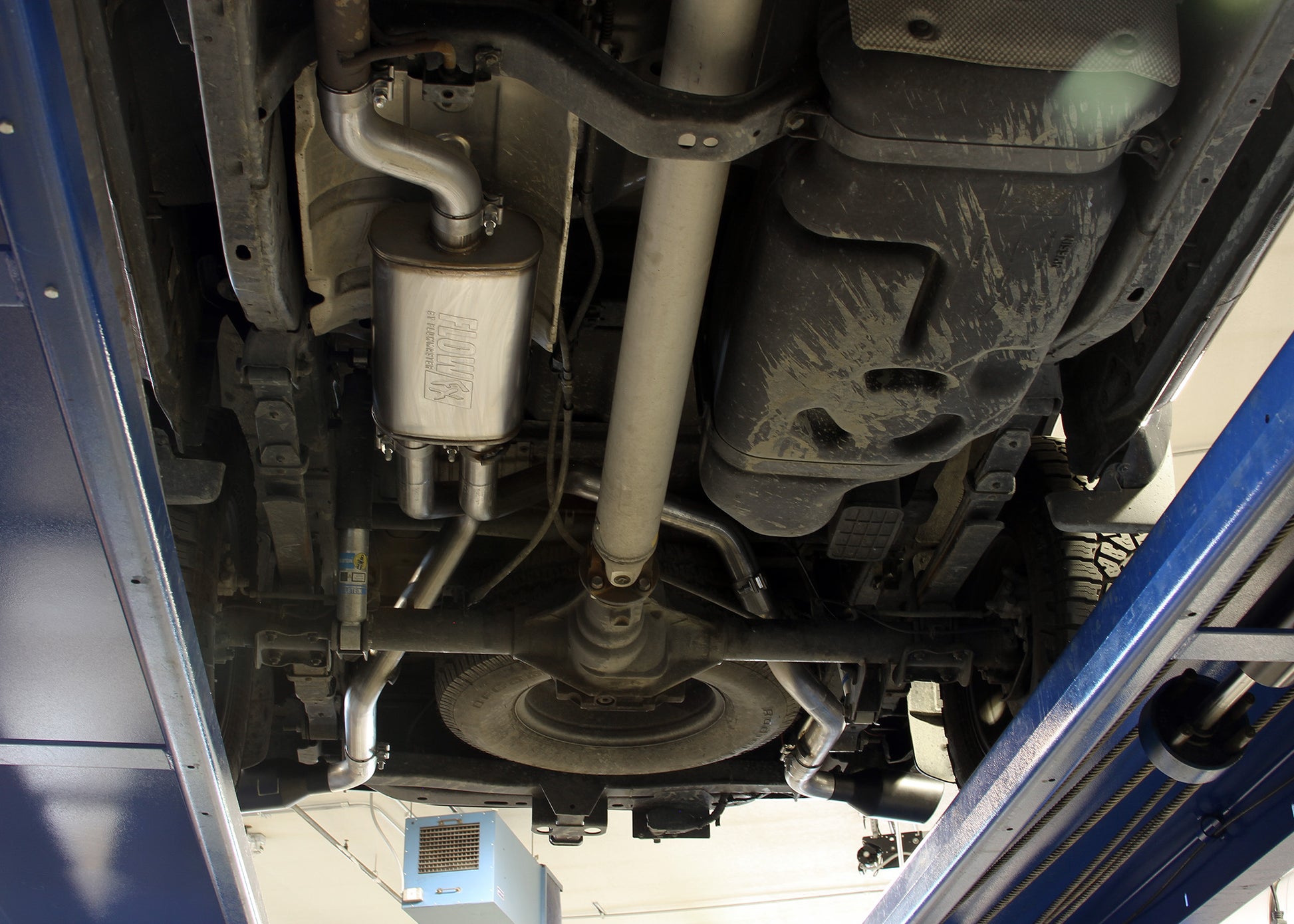

- Includes complete hardware and factory styled hangers in the stock locations for an easy installation

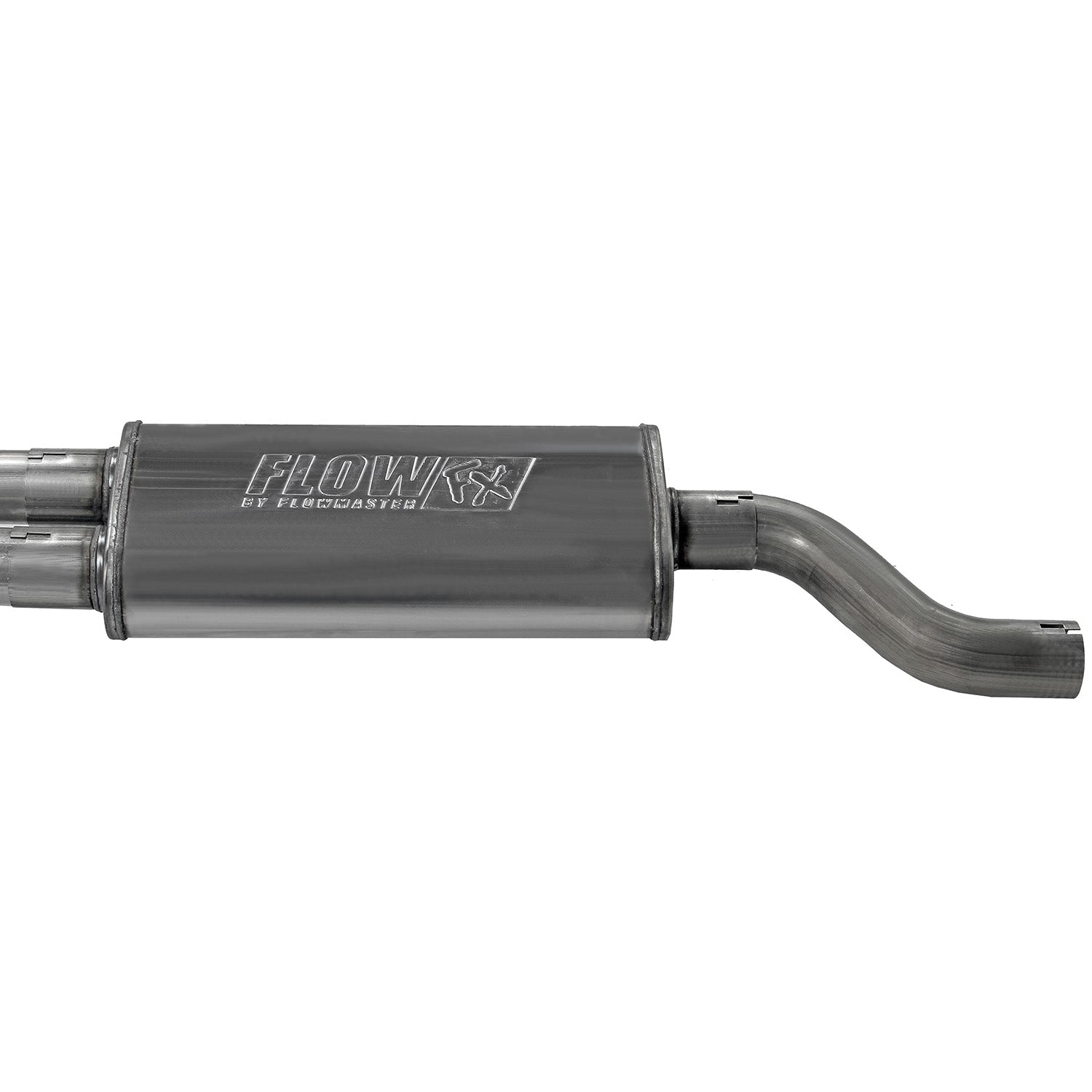

- Flow FX “straight through” performance muffler delivers a deep, moderate performance tone and improves exhaust flow
Specifications
| Brand | Flowmaster |
| California Proposition 65 | Yes |
| California Proposition 65 Chemical Name | Nickel (Metallic) |
| CARB (California) Compliant | Yes |
| Catalytic Converter Included | No |
| Catalytic Converter Quantity | 0 |
| Category | Exhaust |
| Clamping Type | Flat Band |
| Clamps Included | Yes |
| Emission Code | 5 |
| Exhaust Series | Flow FX |
| Exhaust Tip Color | Black |
| Exhaust Tip Connection | Clamp-On |
| Exhaust Tip Cut | Angled |
| Exhaust Tip Diameter | 4.50 |
| Exhaust Tip Edge | Rolled Edge |
| Exhaust Tip Finish | Black Ceramic Coating |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 11.00 |
| Exhaust Tip Material | 304 Stainless Steel |
| Exhaust Tip Quantity | 2 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Single Wall |

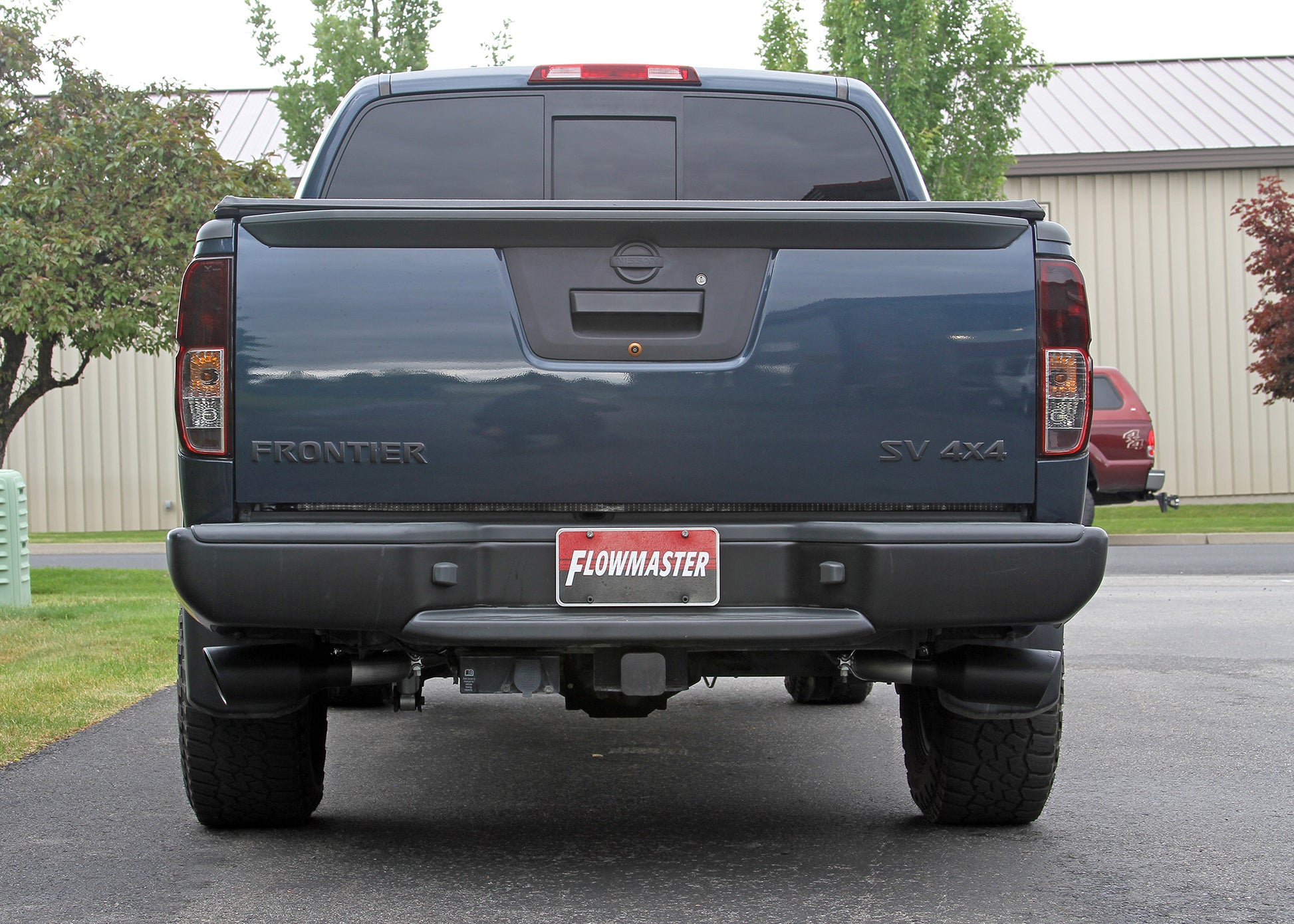

| Exit Style | Dual Out Side |
| Finish | Natural |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Hangers Included | Yes |
| Inlet Type | Clamp-On |
| Main Piping Diameter | 2.50 |
| Mount Type | Uses Factory Hangers |
| Mounting Bracket Included | Yes |
| Muffler Body Height | 4.00 |
| Muffler Body Length | 18.00 |
| Muffler Body Material | 409 Stainless Steel |
| Muffler Body Shape | Oval |
| Muffler Body Width | 4.00 |
| Muffler Color | Silver |
| Muffler Finish | Natural |
| Muffler Flanged Inlet | No |
| Muffler Flanged Outlet | No |
| Muffler Included | Yes |
| Muffler Inlet Connection | Slip-Fit |
| Muffler Inlet Inside Diameter | 2.50 |
| Muffler Inlet Location | Center |
| Muffler Inlet Outside Diameter | 2.63 |
| Muffler Outlet Connection | Slip-Fit |
| Muffler Outlet Diameter | 2.63 |
| Muffler Outlet Quantity | 2 |
| Muffler Overall Length | 24.00 |
| Muffler Part Number | Kit Only |
| Muffler Quantity | 1 |
| Muffler Series | Flow FX |
| Muffler Type | Absorption |
| part type | Exhaust System |
| Pipe Color | Silver |
| Pipe Material | 409 Stainless Steel |
| Product Type | Exhaust System |
| Sound Level | Moderate |
| Spring Bolt Kit Included | No |
| Sub Category | Exhaust and Tail Pipes |
| Tail Pipe Outlet Outside Diameter | 2.50 |
| Tail Pipe Quantity | 2 |
| Tail Pipe Tapered Outlet | No |
| Tip Logo | Embossed |
| Type | Cat-Back |
| Valve Included | No |
| Valve Type | Not Applicable |
| Warning | California Proposition 65 |
Packaging Information
Weight: 45.75 lbs
Dimensions: 60 x 17 x 13 IN
Safety
⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov
Warranty
Installation Instructions
⚠ Fitment Notes
- Black Ceramic Tip Finish
- 2005-2019 Nissan Frontier Trucks with 4.0-liter engines. Fits 2 & 4-wheel drive, All Wheelbases.
Share
Vehicle Fitment
Vehicle Fitment
- 2013-2019 Nissan Frontier Desert Runner
- 2005-2010 Nissan Frontier LE
- 2005-2008 Nissan Frontier Nismo Off-Road
- 2009-2019 Nissan Frontier PRO-4X
- 2011-2019 Nissan Frontier S
- 2005-2010 Nissan Frontier SE
- 2011-2019 Nissan Frontier SL
- 2011-2019 Nissan Frontier SV
