Flowmaster 718117 Flow FX Extreme Cat-Back Exhaust System
Flowmaster 718117 Flow FX Extreme Cat-Back Exhaust System
Low stock: 1 left
Couldn't load pickup availability
Description & Features
Flowmaster 718117 Flow FX Extreme Cat-Back Exhaust System

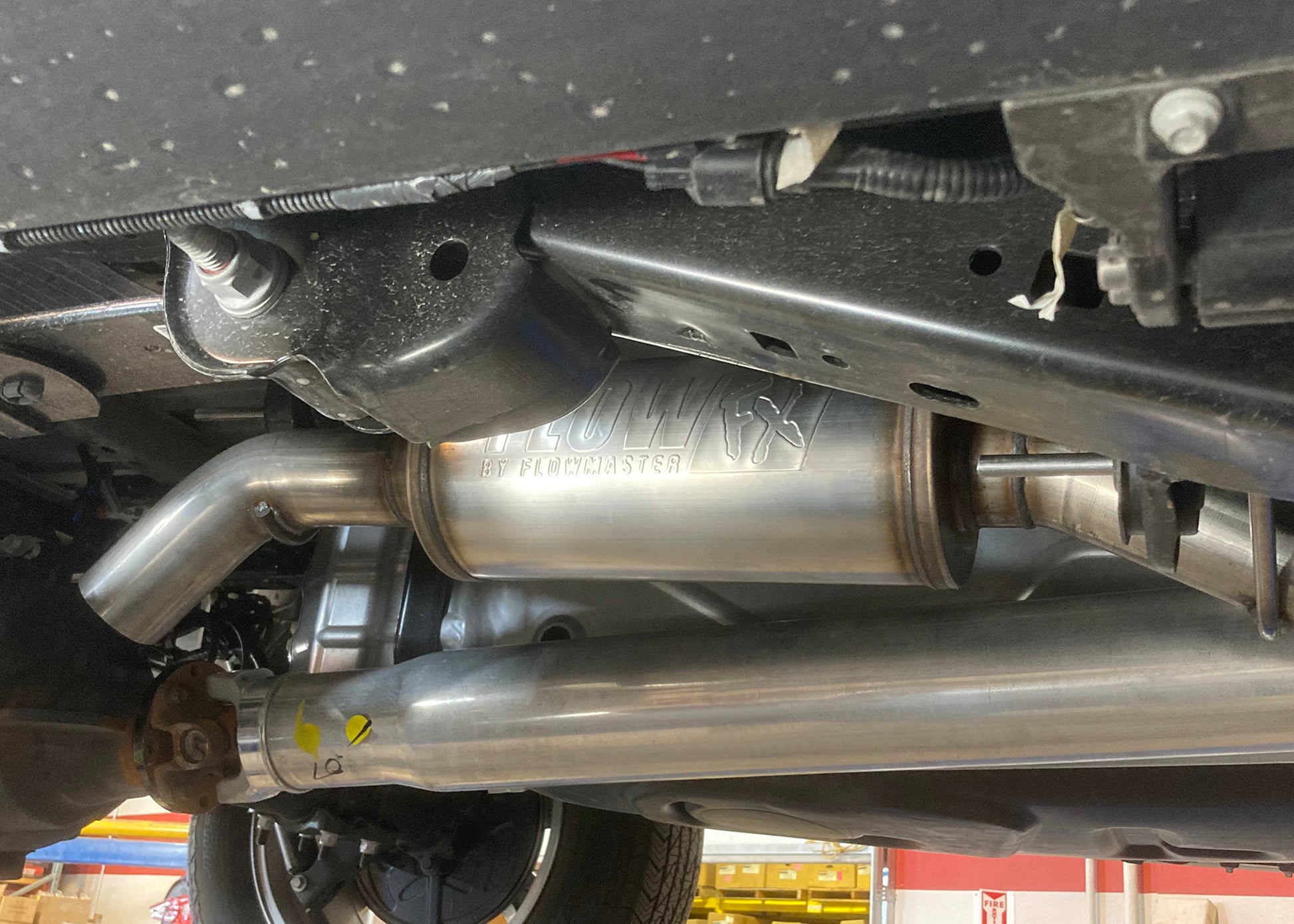

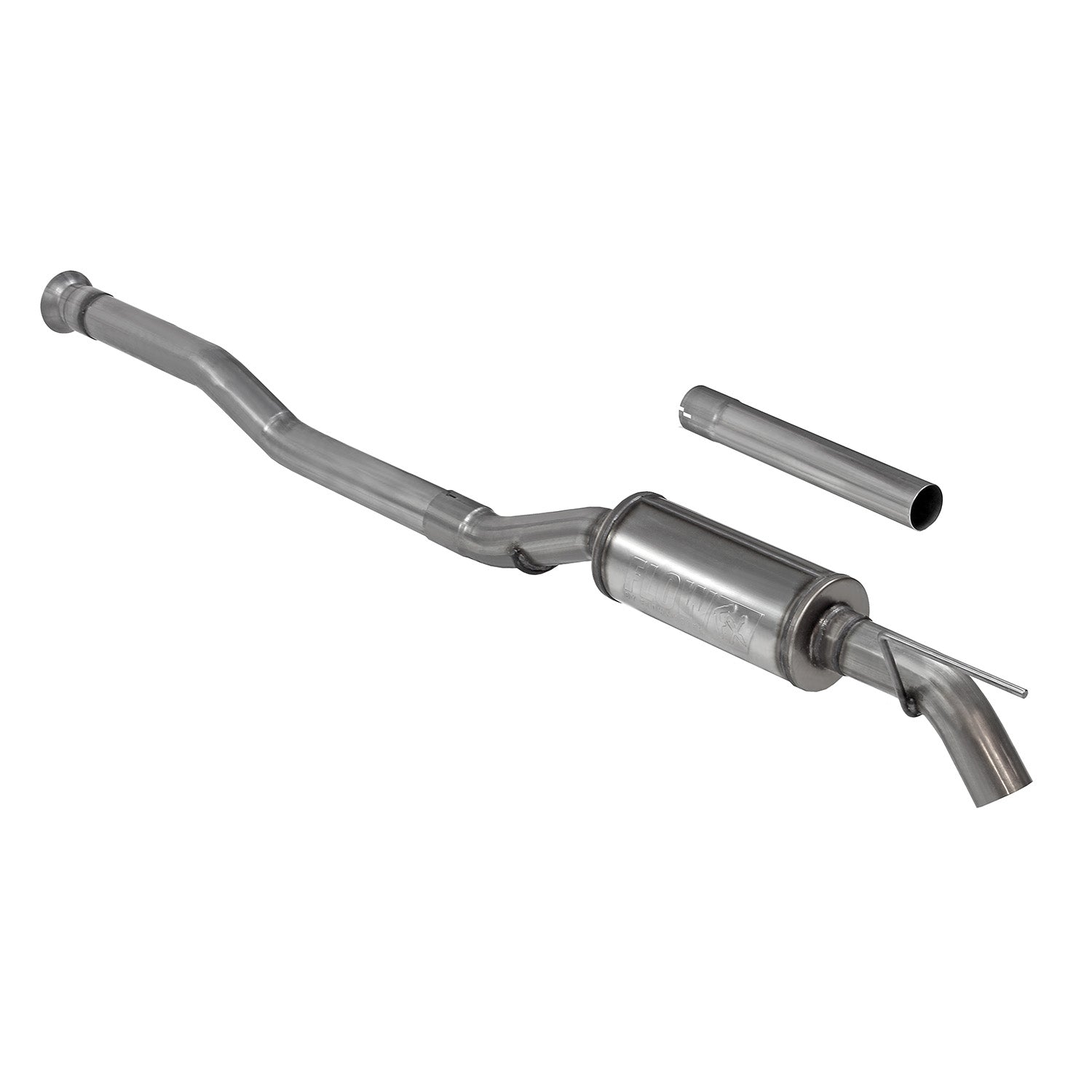

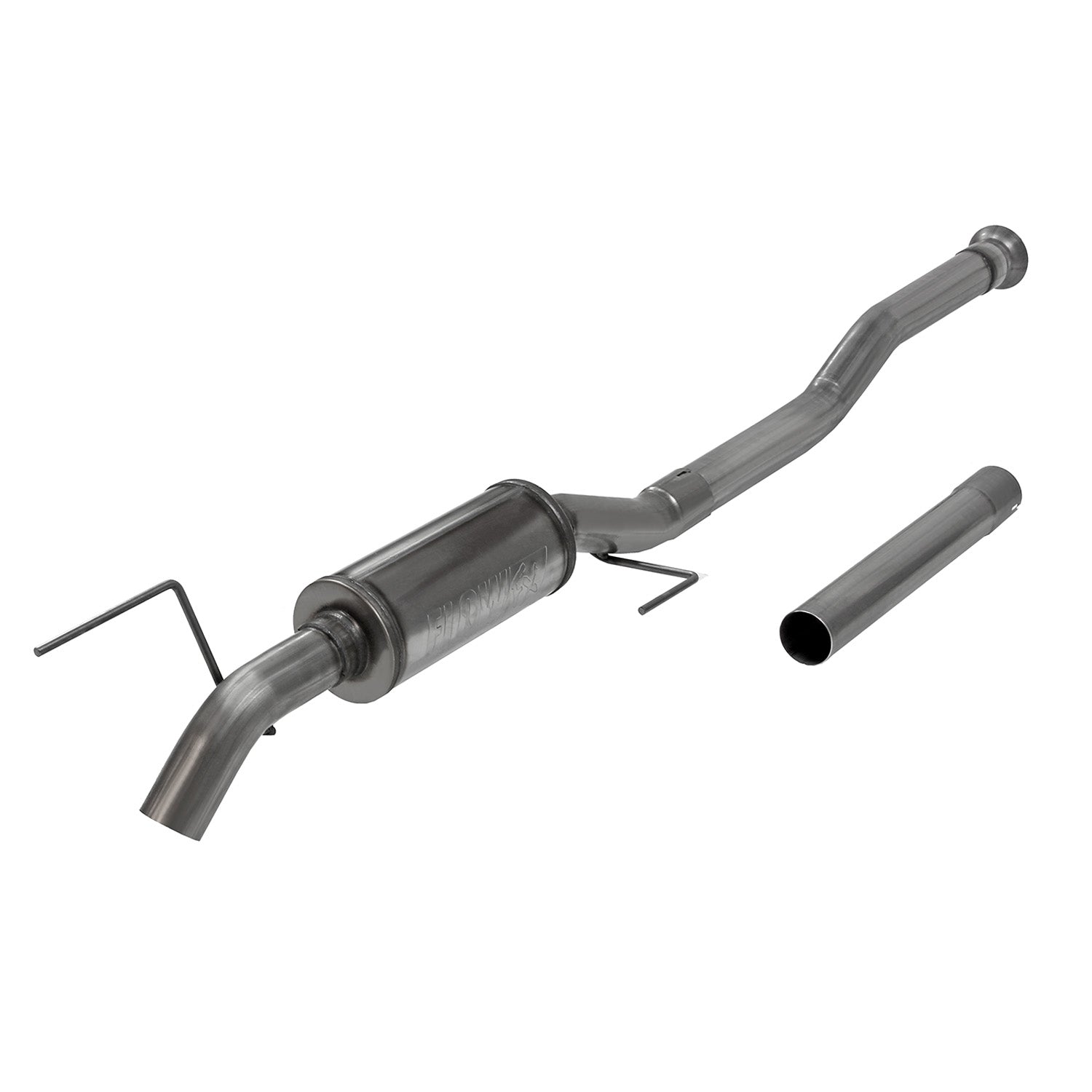

Flowmaster introduces our new Flow FX Extreme stainless steel cat-back exhaust system for the 2021-2026 Ford F-150 with the 2.7L, 3.5L and 5.0L engines. This system uses a Flow FX series muffler for a deep powerful sound and increased performance. 3.0-inch mandrel bent 409 stainless steel tubing is used for maximum exhaust flow and durability. The system has a turndown style dump exit right after the muffler to eliminate the over-axle tailpipe. This elimination of the tailpipe helps to improve ground clearance and departure angle when you are driving in more extreme off-road situations. All of the necessary hardware is included and factory-mounting locations are used for an easy installation. Backed by Flowmaster's Lifetime Limited Warranty.

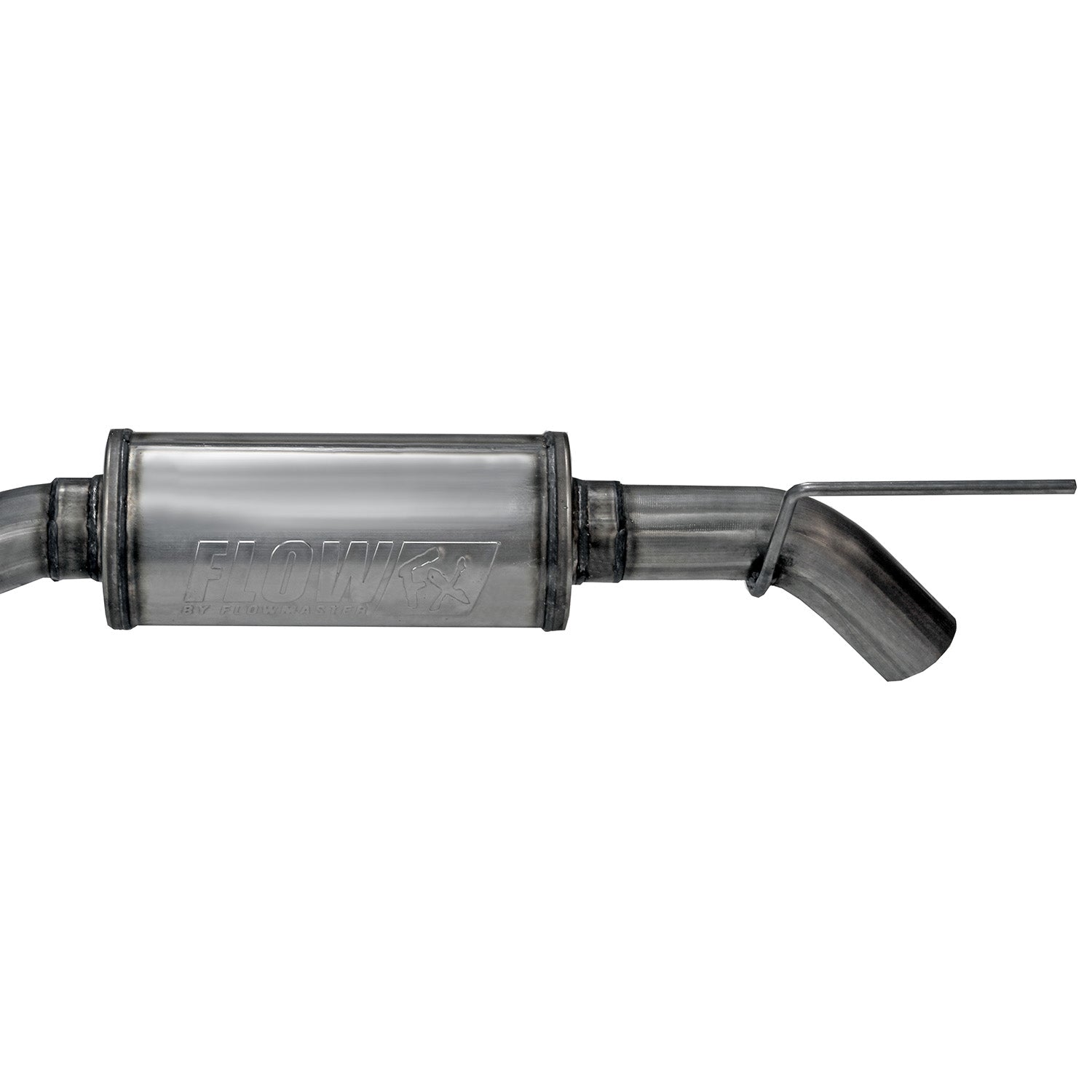

- Flow FX series performance muffler offers a deep powerful sound and increased performance
- 409 stainless steel construction delivers extra durability and improved long-term corrosion resistance
- Max dyno gains of 12 HP and 13 LB.FT. at the rear wheels
- Uses factory hanger locations for easy installation
- 0-inch 16-gauge mandrel bent stainless steel tubing helps maintain maximum exhaust flow for better power

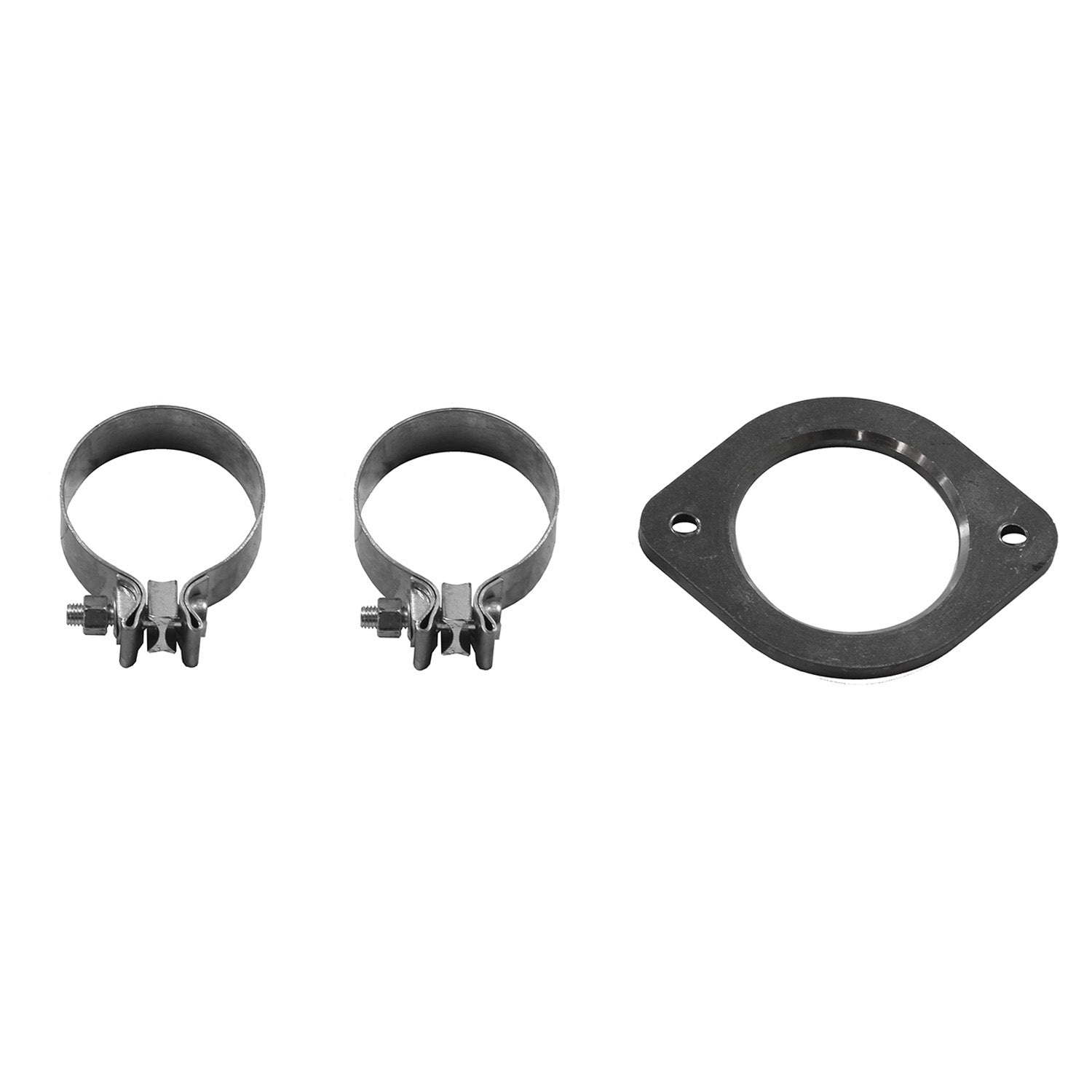

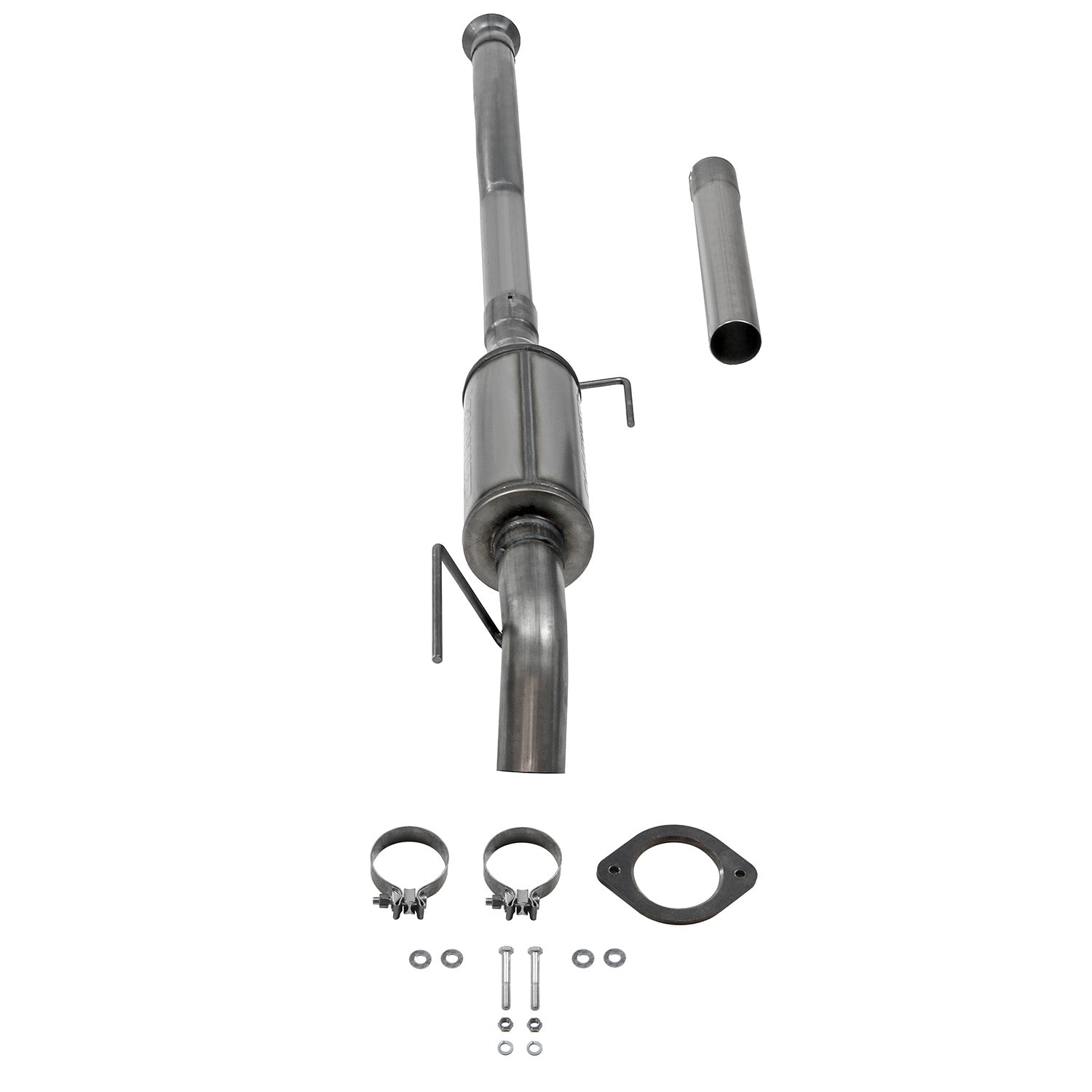

- Includes all necessary hardware for an at home installation
- Dump style exit allows for better ground clearance when in extreme off-road conditions
- Lifetime Limited Warranty
Specifications
| Brand | Flowmaster |
| California Proposition 65 | Yes |
| California Proposition 65 Chemical Name | Chromium (hexavalent compounds) |
| CARB (California) Compliant | Yes |
| Catalytic Converter Included | No |
| Catalytic Converter Quantity | 0 |
| Category | Exhaust |
| Clamping Type | Flat Band |
| Clamps Included | Yes |
| Emission Code | 5 |
| Exhaust Series | Flow FX |
| Exhaust Tip Color | Silver |
| Exhaust Tip Connection | Welded |
| Exhaust Tip Cut | Straight |
| Exhaust Tip Diameter | 3.00 |
| Exhaust Tip Edge | Slash Cut |
| Exhaust Tip Finish | Natural |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Material | 409 Stainless Steel |
| Exhaust Tip Quantity | Sold Separately |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Single Wall |
| Exit Style | Single Out Dump |
| Finish | Natural |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Hangers Included | Yes |
| Inlet Type | Flanged |
| Main Piping Diameter | 3.00 |
| Mount Type | Uses Factory Hangers |
| Mounting Bracket Included | No |
| Muffler Body Diameter | 6.00 |
| Muffler Body Length | 14.00 |
| Muffler Body Material | 409 Stainless Steel |
| Muffler Body Shape | Round |
| Muffler Color | Silver |
| Muffler Finish | Natural |
| Muffler Flanged Inlet | No |
| Muffler Flanged Outlet | No |
| Muffler Included | Yes |
| Muffler Inlet Connection | Slip-Fit |
| Muffler Inlet Inside Diameter | 3.00 |
| Muffler Inlet Location | Center |
| Muffler Inlet Outside Diameter | 3.13 |
| Muffler Outlet Diameter | 3.00 |
| Muffler Outlet Location | Center |
| Muffler Outlet Quantity | 1 |
| Muffler Overall Length | 44.30 |
| Muffler Part Number | Kit Only |
| Muffler Quantity | 1 |
| Muffler Series | Flow FX |
| Muffler Type | Absorption |
| part type | Exhaust System |
| Pipe Color | Silver |
| Pipe Material | 409 Stainless Steel |
| Product Type | Exhaust System |
| Sound Level | Aggressive |
| Spring Bolt Kit Included | No |
| Sub Category | Exhaust and Tail Pipes |
| Tail Pipe Outlet Outside Diameter | 3.00 |
| Tail Pipe Quantity | Single |
| Tail Pipe Tapered Outlet | No |
| Type | Cat-Back |
| Valve Included | No |
| Valve Type | Not Applicable |
| Warning | California Proposition 65 |
Packaging Information
Weight: 27.9 lbs
Dimensions: 49 x 14.5 x 14.4 IN
Safety
⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov
Warranty
Installation Instructions
View Installation Instructions (1) (PDF)
View Installation Instructions (2) (PDF)
⚠ Fitment Notes
- Does not fit regular cab/short bed, does not fit models with factory dual exhaust, active exhaust or hybrid Powerboost
- 2021-2026 Ford f-150 Trucks with 2.7L, 3.5L Ecoboost, 3.5L Ti-VCT and 5.0L engines. Fits 2 & 4-wheel drive. Does not fit Regular Cab/Short Bed models, 122" wheelbases. Does not fit hybrid Powerboost models. Does not fit models with OEM active exhaust option.
Share
Vehicle Fitment
Vehicle Fitment
- 2021-2026 Ford F-150 King Ranch
- 2021-2026 Ford F-150 Lariat
- 2021-2023 Ford F-150 Limited
- 2021-2026 Ford F-150 Platinum
- 2021-2026 Ford F-150 Police Responder
- 2021-2026 Ford F-150 SSV
- 2024-2026 Ford F-150 STX
- 2021-2026 Ford F-150 Tremor
- 2021-2026 Ford F-150 XL
- 2021-2026 Ford F-150 XLT
