Flowmaster
Flowmaster 718172 Flow FX Direct Fit Muffler
Flowmaster 718172 Flow FX Direct Fit Muffler
10 in stock
Couldn't load pickup availability
Description & Features
Flowmaster 718172 Flow FX Direct Fit Muffler

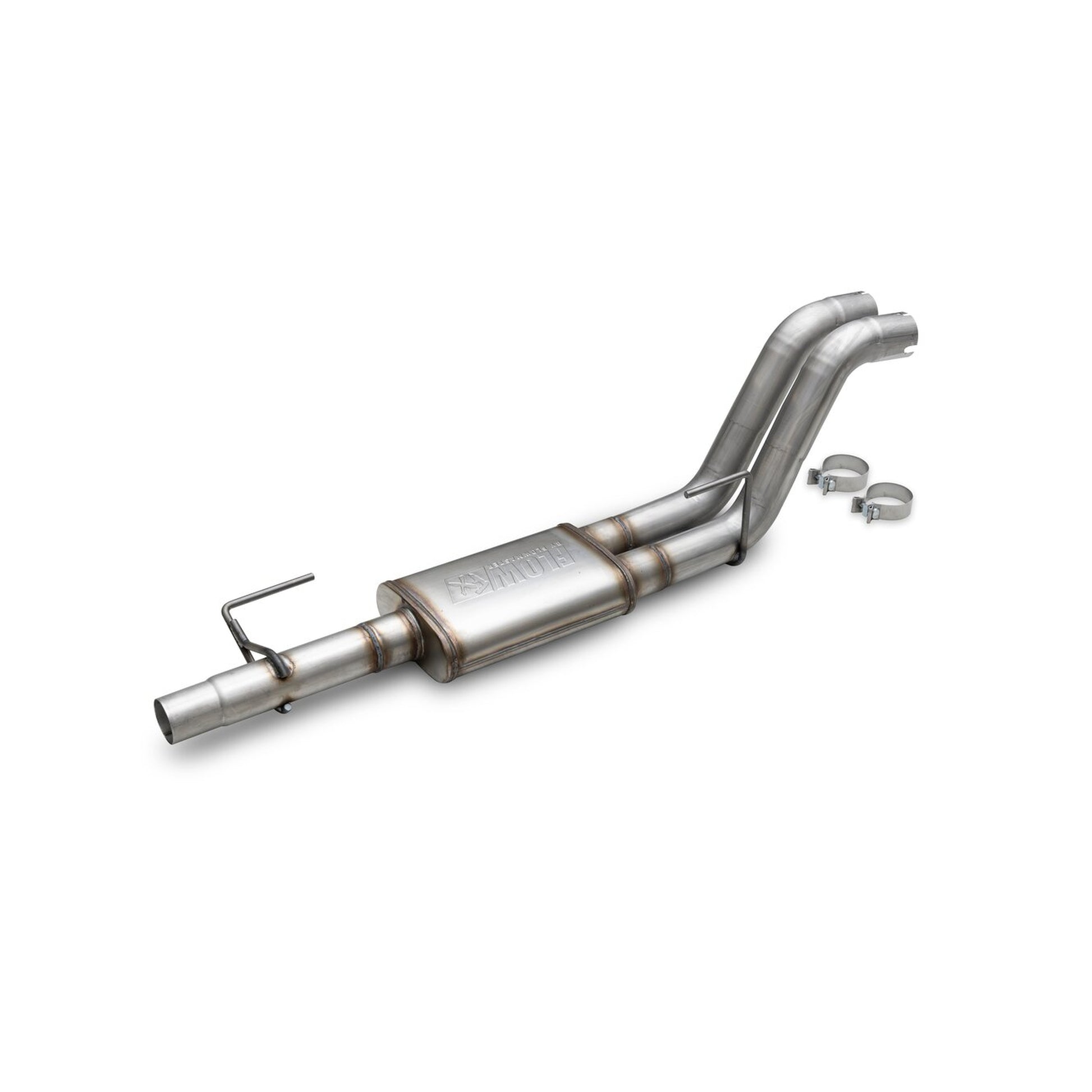

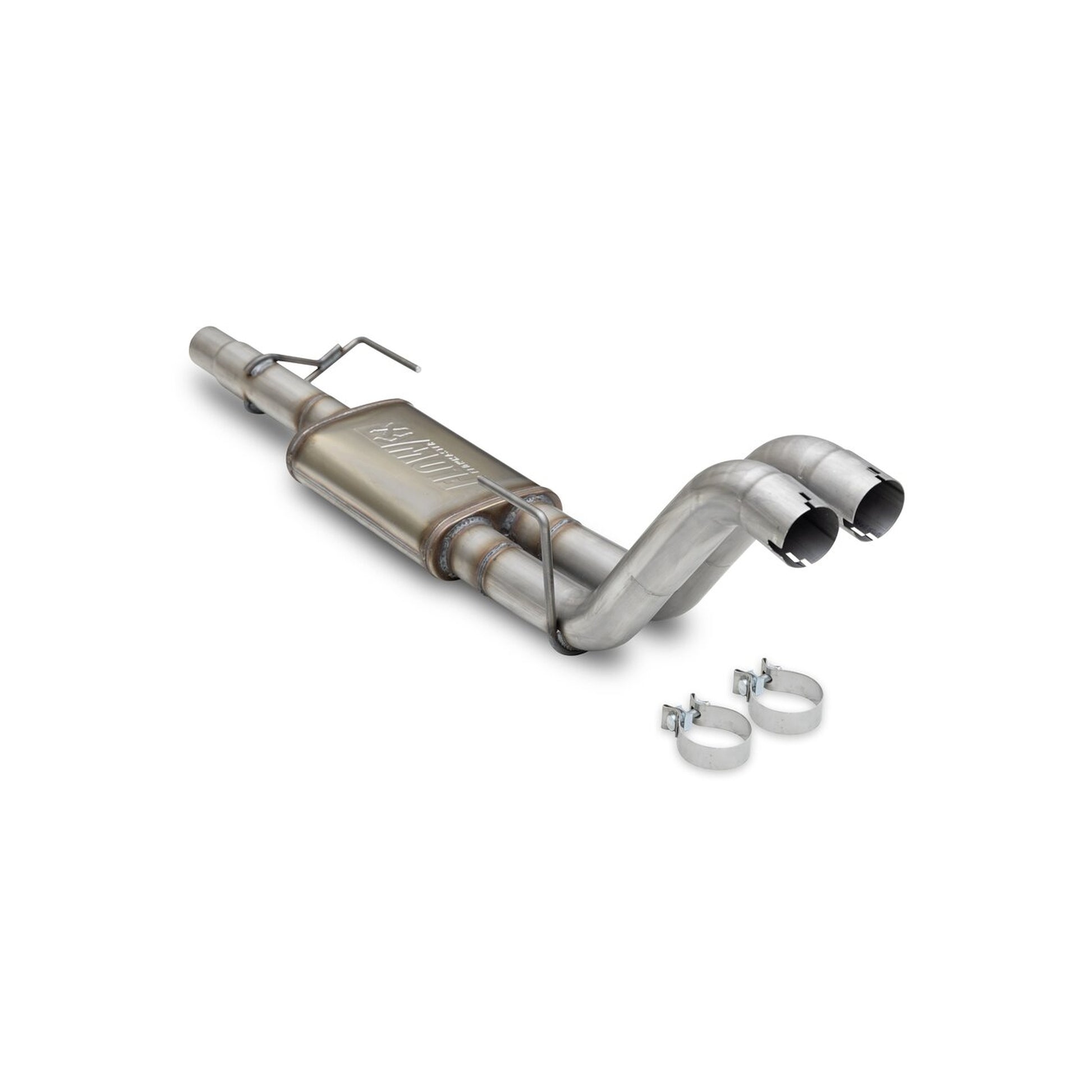

This Flowmaster® Flow FX Direct-Fit Muffler system for the 2021-2026 Ford F-150 trucks with the 2.7, 3.5 or 5.0-liter engines is manufactured using durable 409 stainless steel throughout and features 3.00-inch mandrel bent pipes for optimum exhaust gas flow. A Flowmaster Flow FX Series muffler is used for an aggressive to moderate sound level and maximum performance. Performance increases on the dyno revealed an increase of 18 hp and 14 ft/lbs. at the rear wheels. This system connects directly to the factory dual tail pipes and uses all the existing factory hangers. Includes installation instructions and all necessary hardware for an easy installation that you can do at home. Backed by Flowmaster's One (1) Year Limited Warranty.
- Large 3.00-inch Mandrel bent pipes for superior flow and power

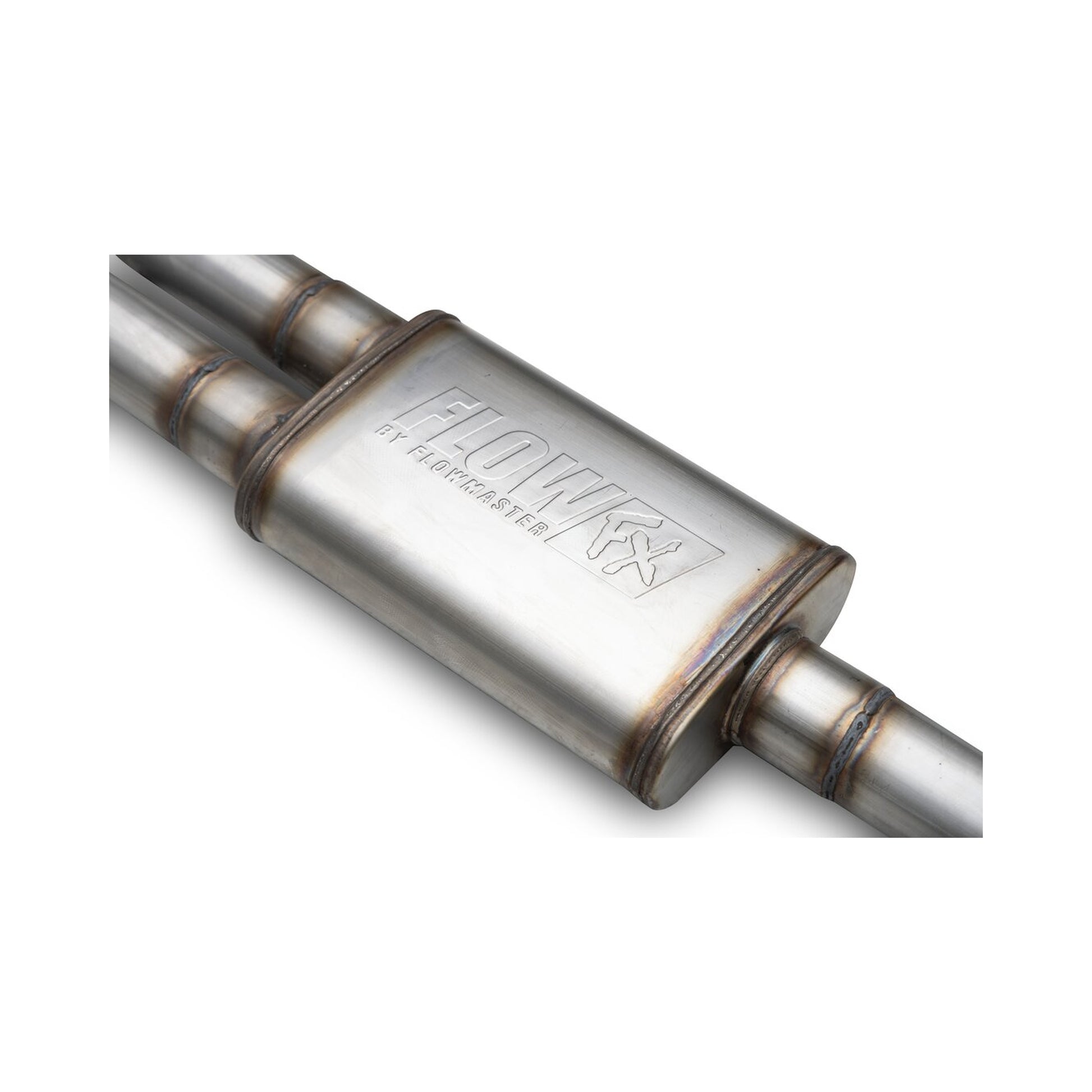

- Flowmaster Flow FX series muffler offers increased performance
- Flow FX straight through design offers a deep powerful sound

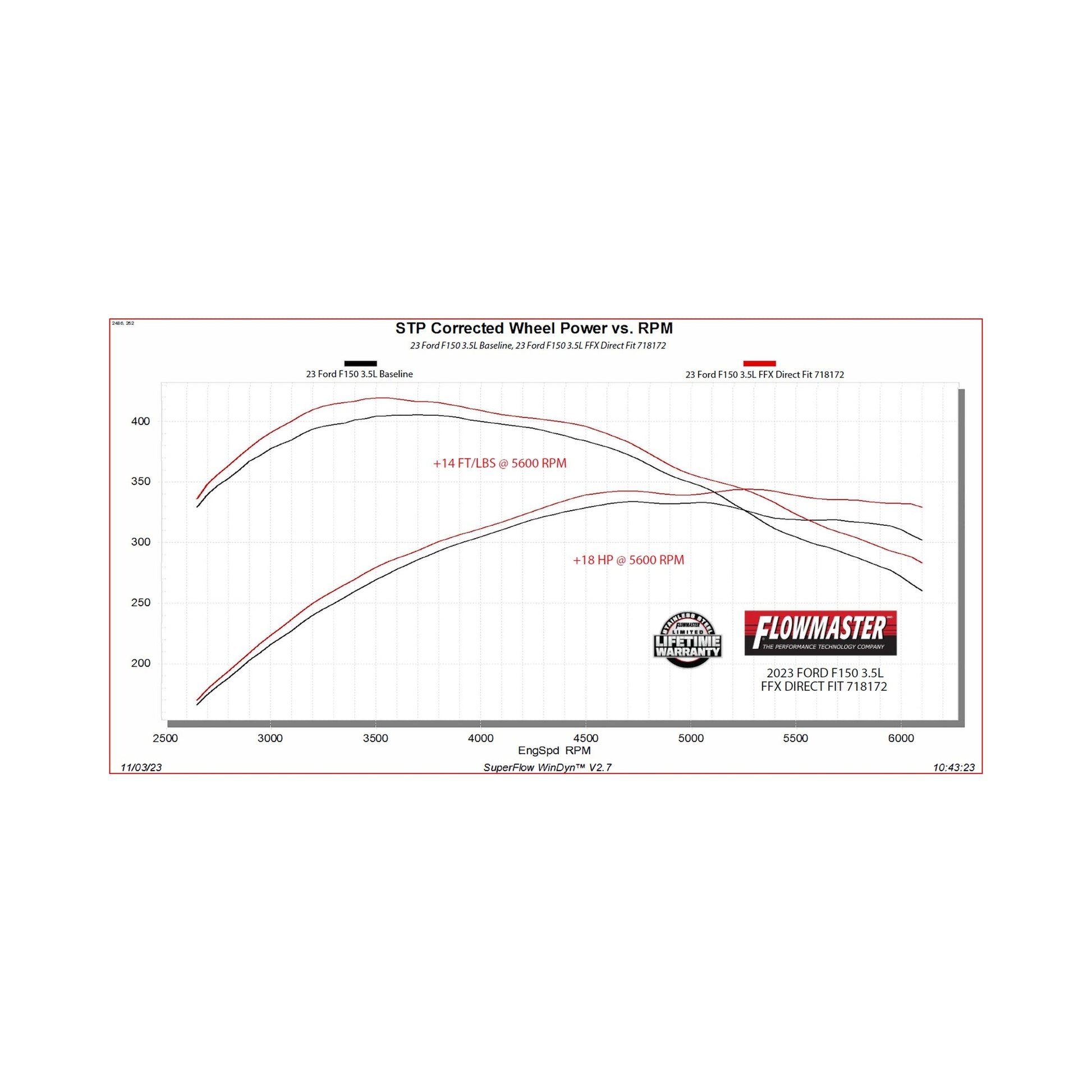

- Max power gains of 18 hp and14 lb-ft at the rear wheels
- 409 stainless steel constuction for extra durability

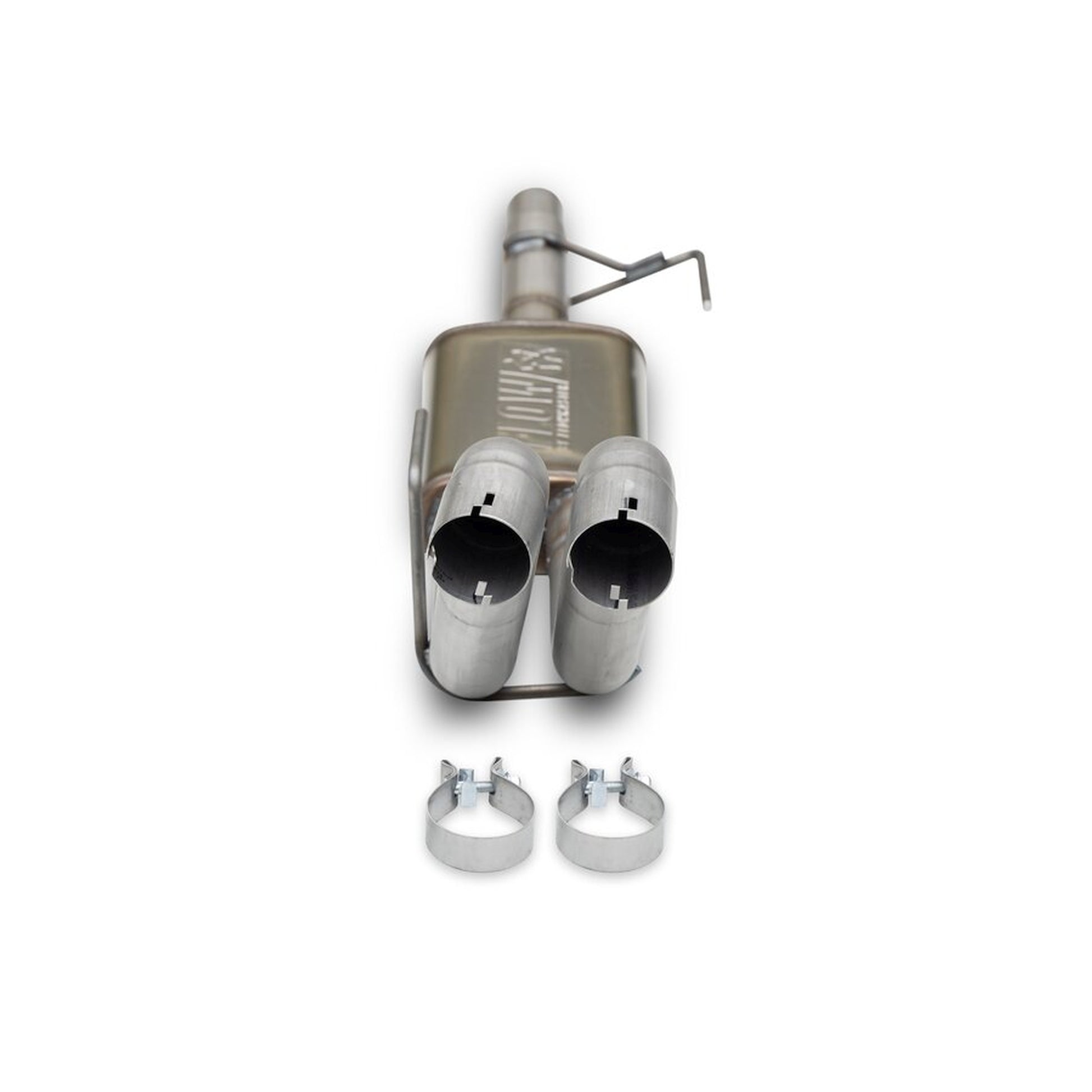

- Connects directly to the factory dual tailpipes for a simple installation
- One (1) Year Limited Warranty
Specifications
| Body Height | 4.00 |
| Body Length | 14.00 |
| Body Material | 409 Stainless Steel |
| Body Width | 9.00 |
| Brand | Flowmaster |
| California Proposition 65 Chemical Name | Chromium (hexavalent compounds) |
| California Proposition 65 Required | Yes |
| Category | Exhaust |
| Clamps Included | Yes |
| Emission Code | 5 |
| Exhaust Series | Flow FX |
| Exhaust Tip Quantity | 0 |
| Exhaust Tip Style | Not Included |
| Exit Style | OEM |
| Finish | Natural |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Hangers Included | Yes |
| Heat Shield Attached | No |
| Inlet Inside Diameter | 2.75 |
| Inlet Location | Center |
| Inlet Outside Diameter | 2.88 |
| Inlet Quantity | 1 |
| Inlet Type | Slip-Fit |
| Main Piping Diameter | 3.00 |
| Material | 409 Stainless Steel |
| Mount Type | Uses factory hangers |
| Muffler Body Length | 14.00 |
| Muffler Color | Silver |
| Muffler Finish | Natural |
| Muffler Inlet Diameter | 3.00 |
| Muffler Inlet Location | Center |
| Muffler Material | 409 Stainless Steel |
| Muffler Outlet Diameter | 3.00 |
| Muffler Outlet Location | Dual |
| Muffler Overall Length | 20.00 |
| Muffler Part Number | Kit Only |
| Muffler Quantity | 1 |
| Muffler Series | Flow FX |
| Muffler Shape | Oval |
| Muffler Type | Absorption |
| Outlet Inside Diameter | 3.00 |
| Outlet Location | Dual |
| Outlet Outside Diameter | 3.13 |
| Outlet Quantity | 2 |
| Outlet Type | Slip-Fit |
| Overall Length | 52.50 |
| part type | Exhaust Muffler Assembly |
| Pipe Material | 409 Stainless Steel |
| Product Type | Exhaust System |
| Single Dual | Dual |
| Sound Level | Aggressive / Moderate |
| Sub Category | Mufflers |
| System Type | Direct-fit Muffler |
| Tubing Diameter | 3.00 |
| Tubing Material | 409 Stainless Steel |
| Type | Direct-fit Muffler |
| Valve Included | No |
| Valve Type | Not Applicable |
| Warning | California Proposition 65 |
Packaging Information
Weight: 33.87 lbs
Dimensions: 58 x 16.3 x 11.6 IN
Safety
⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov
Warranty
Installation Instructions
⚠ Fitment Notes
- Only fits models with factory dual tailpipes, Does not fit PowerBoost Hybrid or models with OEM active exhaust o
- This system replaces ONLY the Factory muffler and over axle pipes and reuses the factory dual tail pipes and tips. Does not fit PowerBoost hybrid models. Does not fit models with OEM active exhaust option.
Share
Vehicle Fitment
Vehicle Fitment
- 2021-2026 Ford F-150 King Ranch
- 2021-2026 Ford F-150 Lariat
- 2021-2023 Ford F-150 Limited
- 2021-2026 Ford F-150 Platinum
- 2021-2026 Ford F-150 Police Responder
- 2021-2026 Ford F-150 SSV
- 2024-2026 Ford F-150 STX
- 2021-2026 Ford F-150 Tremor
- 2021-2026 Ford F-150 XL
- 2021-2026 Ford F-150 XLT
