Flowmaster 817413 Crossmember-Back Exhaust System
Flowmaster 817413 Crossmember-Back Exhaust System
Low stock: 2 left
Couldn't load pickup availability
Description & Features

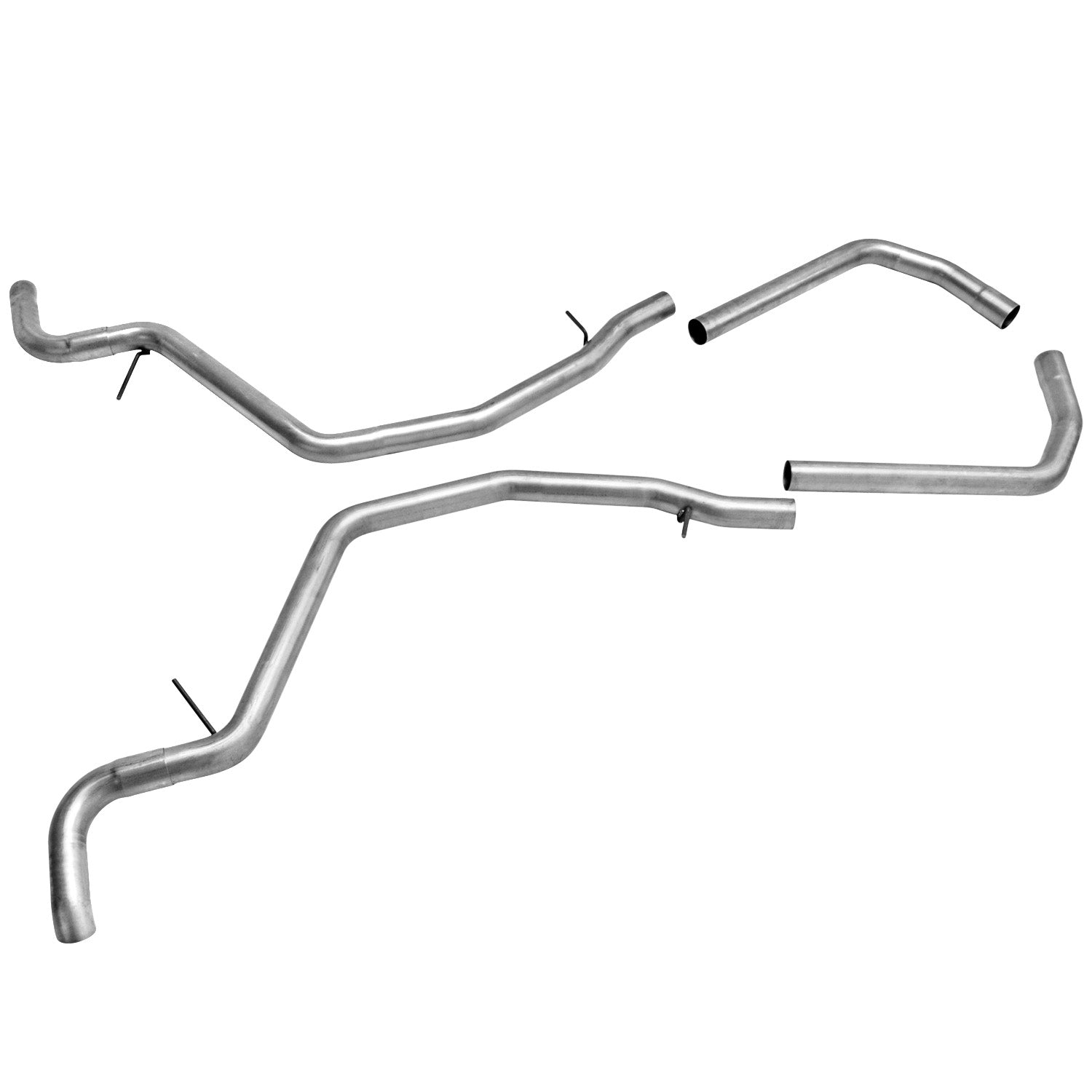

Flowmaster 817413 Crossmember-Back Exhaust System
This mandrel-bent exhaust system is custom designed for 1959-1964 Chevrolet Impala, Biscayne and Bel Air models and is perfect for the person looking for true dual exhaust system. The exhaust system includes all the necessary tubing to the rear axle and does Not include mufflers. This gives you the freedom to choose the sound level of Flowmaster performance mufflers you desire for your vehicle. System features include all mandrel-bent 2.50-inch stainless steel tubing with hangers welded in pre-designated areas to help ease installation and includes short turnouts that exit in front of the rear wheels. Be sure to check out our optional over the axle tailpipe kit #81055 (sold separately) if you want to run the tailpipes out the back of the car. This system includes easy to follow installation instructions and is covered by our Lifetime Limited Warranty. Notes: Does Not include mufflers or header cone adapters. Requires 2.50-inch Offset Inlet/Same side Offset Outlets such as part # 942549 (Super 44 Series) or 942544 (40 Delta Flow) if using an oval case muffler, or for an old school sound a pair of stainless steel Super HP2 mufflers like part # 12518304 or # 12518409, or the Flow FX muffler # 71416.

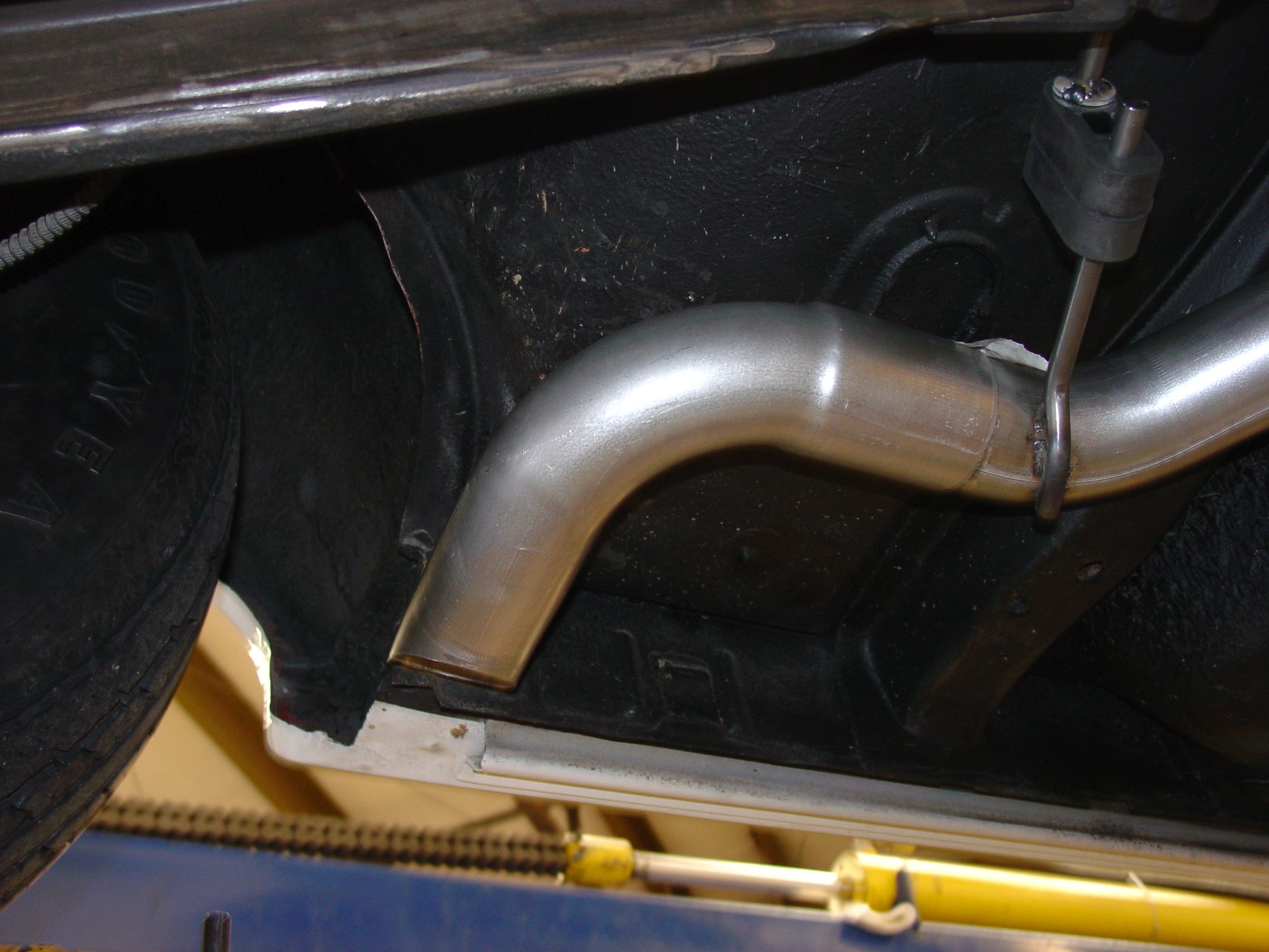

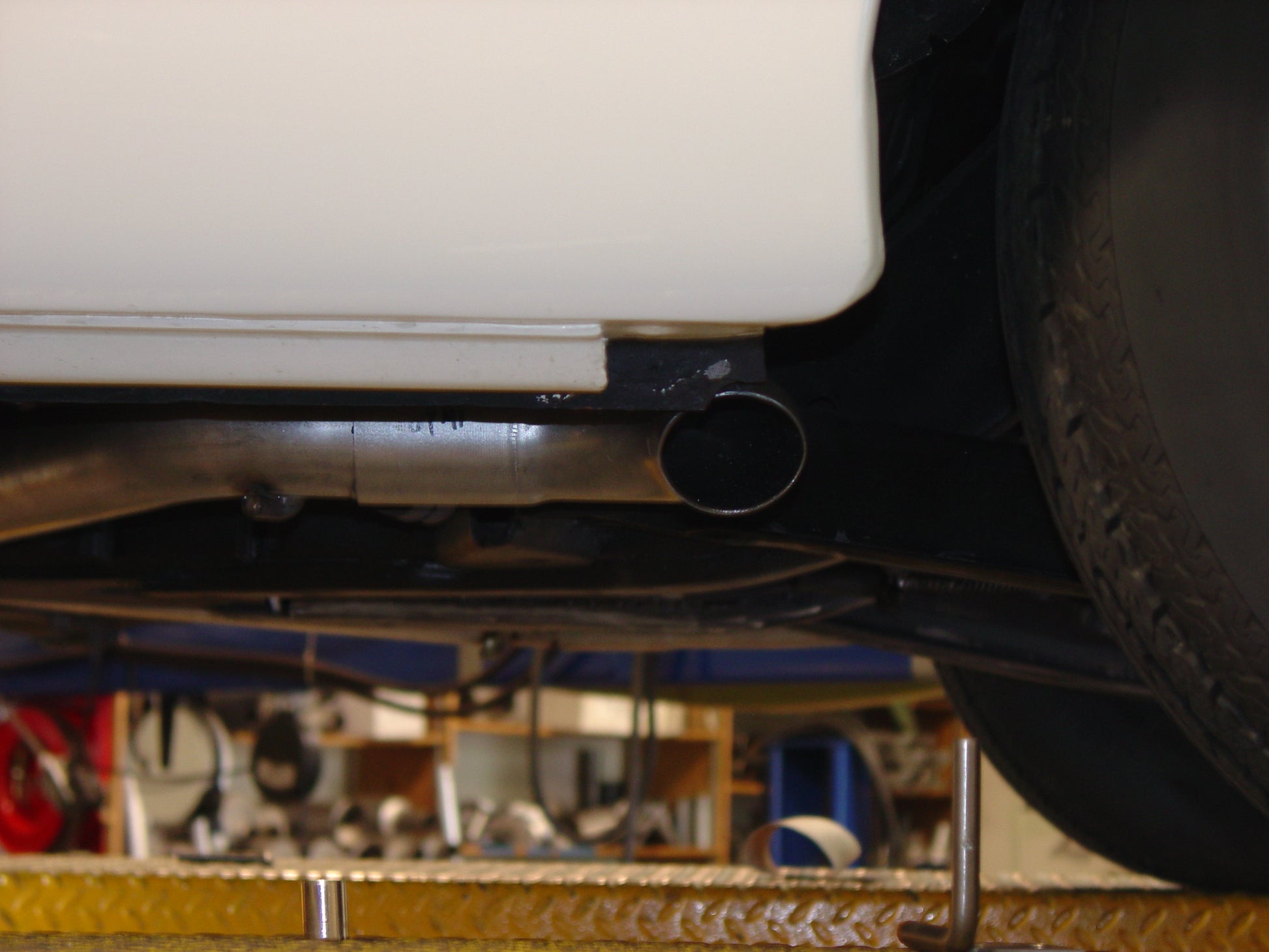

- Exits Out the Sides in Front of the Rear Wheels
- Mandrel-bent for Maximum Performance
- Designed for Same Side Off-set Mufflers
- 16-gauge Stainless Steel Tubing
- Connects at Header Collectors
- Lifetime Limited Warranty
- Mufflers Sold Separately
- Includes Hangers
Specifications
| Brand | Flowmaster |
| California Proposition 65 | Yes |
| California Proposition 65 Chemical Name | Nickel (Metallic) |
| CARB (California) Compliant | Yes |
| Catalytic Converter Included | No |
| Catalytic Converter Quantity | 0 |
| Category | Exhaust |
| Clamping Type | Flat Band |
| Clamps Included | Yes |
| Drive | 2WD |
| Emission Code | 3 |
| Exhaust Series | Pipes Only |
| Exhaust Tip Connection | Clamp-On |
| Exhaust Tip Quantity | Sold Separately |
| Exit Style | Dual Out Side |
| Finish | Natural |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Hangers Included | Yes |
| Heat Shield Included | No |
| Inlet Type | Weld-On |
| Main Piping Diameter | 2.50 |
| Mounting Bracket Included | Yes |
| Muffler Included | Yes |
| Muffler Quantity | Sold Separately |
| Muffler Type | Not Included |
| part type | Exhaust System |
| Pipe Color | Silver |
| Pipe Material | 409 Stainless Steel |
| Product Type | Exhaust System |
| Sound Level | Pipe Only |
| Spring Bolt Kit Included | No |
| Sub Category | Exhaust and Tail Pipes |
| Tail Pipe Outlet Outside Diameter | 2.50 |
| Tail Pipe Quantity | Dual |
| Tail Pipe Tapered Outlet | No |
| Type | Pipe Kit |
| Valve Included | No |
| Valve Type | Not Applicable |
| Warning | California Proposition 65 |
Packaging Information
Weight: 39 lbs
Dimensions: 58 x 16 x 11.7 IN
Safety
⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov
Warranty
Installation Instructions
⚠ Fitment Notes
- Pipes Only, Mufflers Sold Separately, Use Offset Inlet/Offset Outlet Same Side
- "Fits 1959-1964 Impala, Biscayne, Bel Air with V8 engine. Mufflers Sold Separately, Use 2.50-inch Offset Inlet/Same Side Offset Outlet Oval Case Mufflers, or Center/Center Round Case Mufflers.
Share
Vehicle Fitment
Vehicle Fitment
- 1959-1964 Chevrolet Bel Air Base
- 1959-1964 Chevrolet Biscayne Base
- 1960 Chevrolet Biscayne Fleetmaster
- 1959-1964 Chevrolet Impala Base
- 1964 Chevrolet Impala SS
