Flowmaster 817507 American Thunder Cat-back Exhaust System
Flowmaster 817507 American Thunder Cat-back Exhaust System
Low stock: 1 left
Couldn't load pickup availability
Description & Features

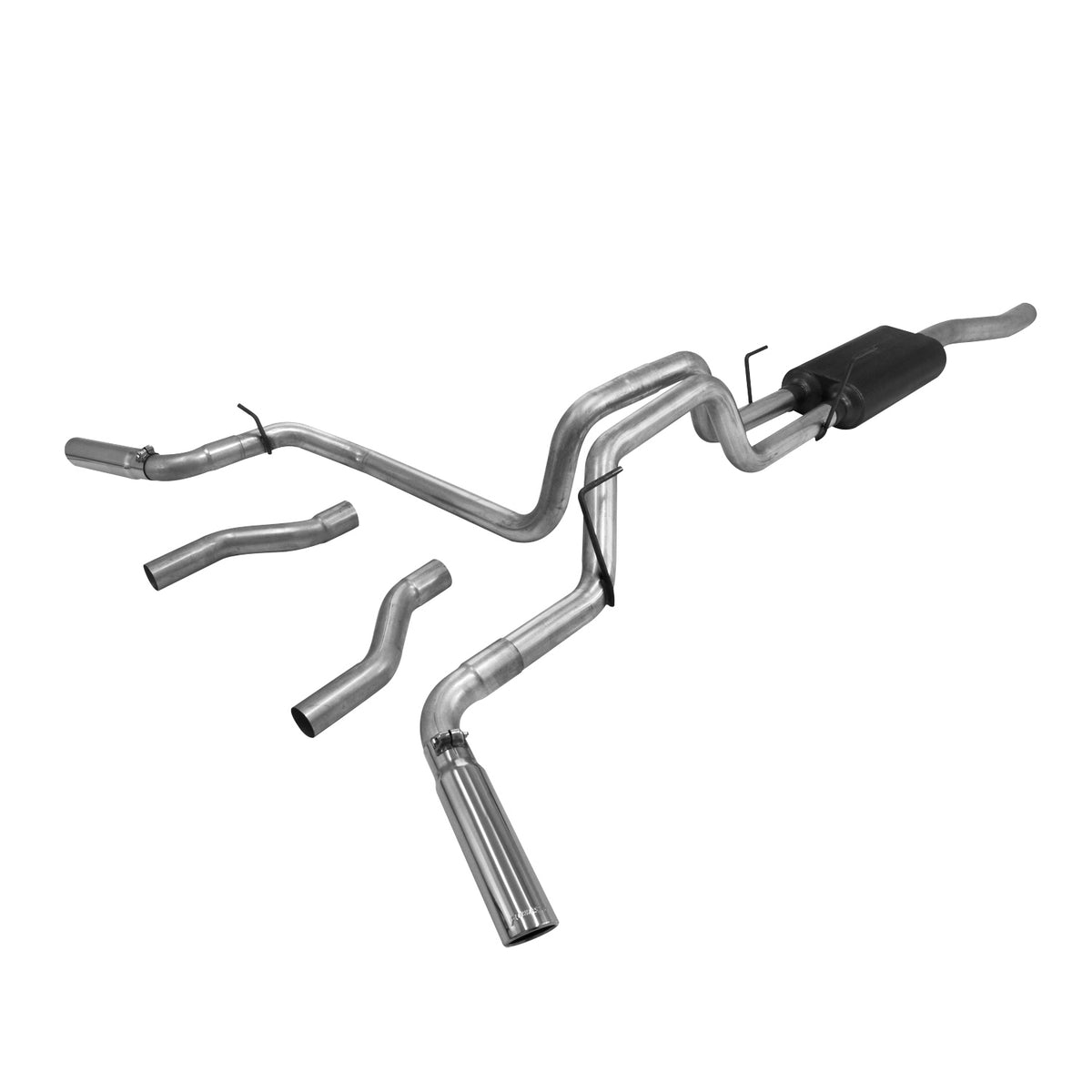

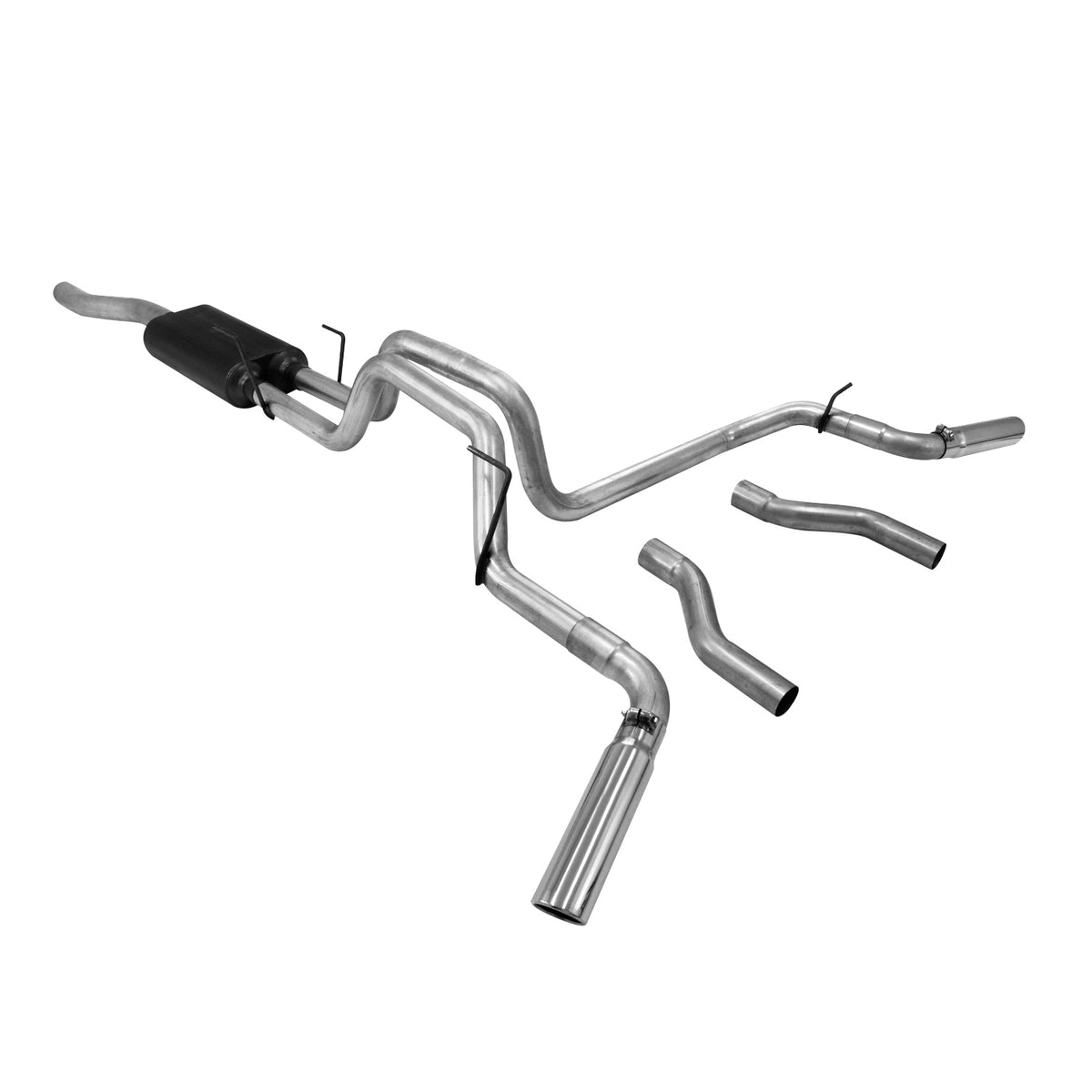

Flowmaster 817507 American Thunder Cat-back Exhaust System
This stainless steel cat-back exhaust system fits 2003-2012 Dodge Ram 2500/3500 with the 5.7L Hemi engine, and also fits 2005-2008 Dodge Ram 1500 MegaCab with 5.7L engine. As an American Thunder system, it will provide improved performance and fuel economy while producing a moderate tone inside and outside the truck. Constructed from 16-gauge mandrel-bent 3.00-inch stainless steel tubing flowing into a 50 Series™ HD performance muffler. The dual 2.50-inch mandrel-bent tailpipes use the factory hanger locations for an easy installation and the system is finished off with a pair of 3.00-inch polished 304 stainless steel tips. The system comes with two sets of tailpipe exits giving you the option of either straight-out the back under the bumper, or out the sides behind the rear wheels, which is ideal for towing applications. Easy to follow instructions and all necessary hardware is provided with the system and its covered by our Lifetime Limited Warranty.

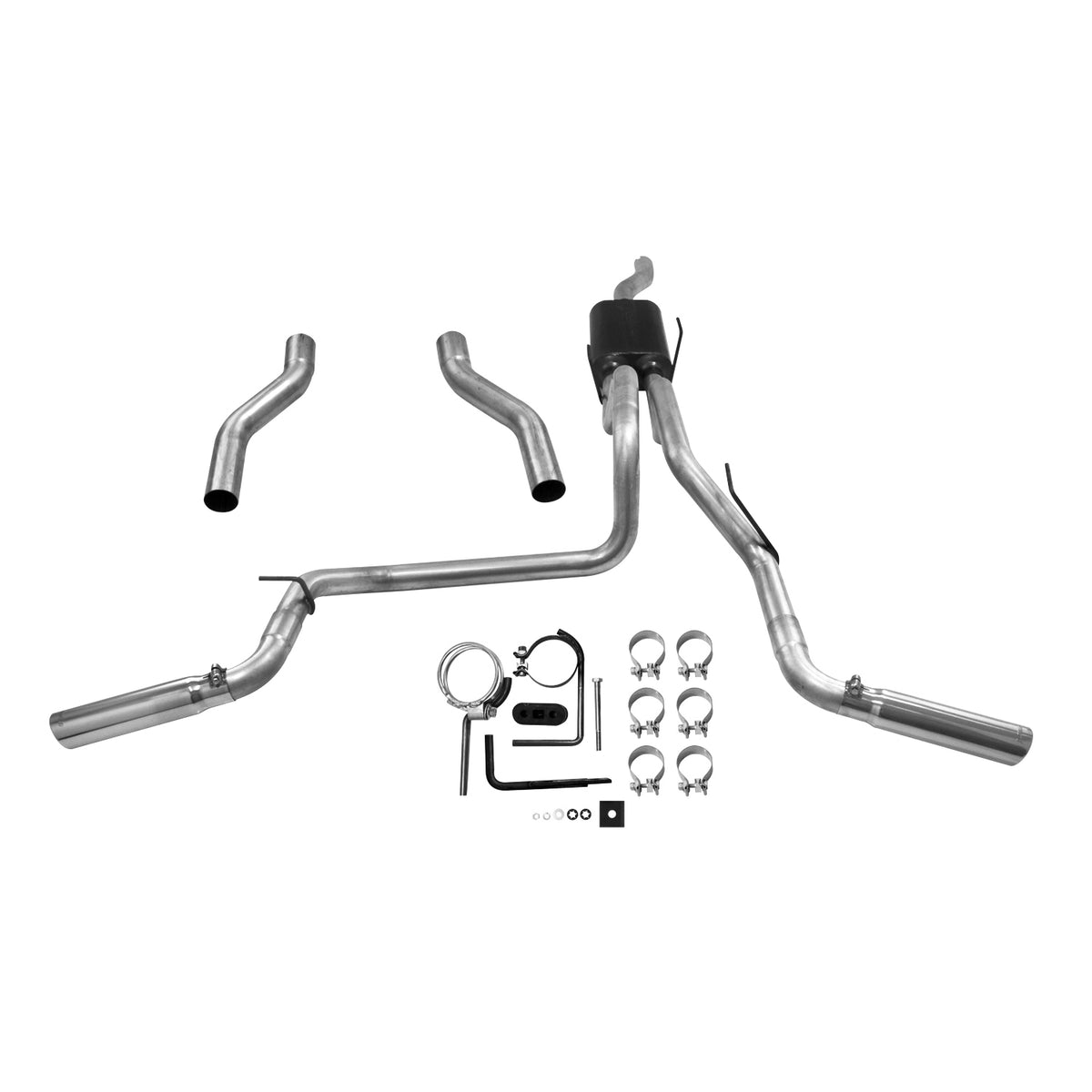

- Includes Hangers and Hardware for an Easy Installation
- Mandrel-bent 16 Gauge Stainless Steel Tubing
- Connects After Factory Catalytic Converter
- Uses the Factory Hanger Locations
- Moderate Exterior Exhaust Tone
- Clears the Factory Spare Tire
- Lifetime Limited Warranty
- Dual Tailpipe Exit Locations
Specifications
| Brand | Flowmaster |
| California Proposition 65 | Yes |
| California Proposition 65 Chemical Name | Chromium (hexavalent compounds) |
| CARB (California) Compliant | Yes |
| Catalytic Converter Included | No |
| Catalytic Converter Quantity | 0 |
| Category | Exhaust |
| Clamping Type | Flat Band |
| Clamps Included | Yes |
| Drive | 2WD |
| Emission Code | 5 |
| Exhaust Series | American Thunder |
| Exhaust Tip Color | Silver |
| Exhaust Tip Connection | Clamp-On |
| Exhaust Tip Cut | Angled |
| Exhaust Tip Diameter | 3.00 |
| Exhaust Tip Edge | Rolled Edge Angle Cut |
| Exhaust Tip Finish | Polished |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 13.00 |
| Exhaust Tip Material | 304 Stainless Steel |
| Exhaust Tip Quantity | 2 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Single Wall |
| Exit Style | Dual Out Rear |
| Finish | Natural |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Hangers Included | Yes |
| Heat Shield Included | No |
| Inlet Diameter | 3.00 |
| Inlet Type | Clamp-On |
| Main Piping Diameter | 2.50 |
| Mounting Bracket Included | Yes |
| Muffler (Left) Body Height | 5.00 |
| Muffler (Left) Body Length | 18.00 |
| Muffler (Left) Body Width | 10.00 |
| Muffler (Left) Type | Chambered |
| Muffler (Right) Body Height | 5.00 |
| Muffler (Right) Body Length | 18.00 |
| Muffler (Right) Body Width | 10.00 |
| Muffler (Right) Type | Chambered |
| Muffler Body Height | 5.00 |
| Muffler Body Length | 18.00 |
| Muffler Body Material | 409 Stainless Steel |
| Muffler Body Shape | Oval |
| Muffler Body Width | 10.00 |
| Muffler Finish | Black High-Temperature Paint Finish |
| Muffler Flanged Inlet | No |
| Muffler Flanged Outlet | No |
| Muffler Included | Yes |
| Muffler Inlet Connection | Slip-Fit |
| Muffler Inlet Inside Diameter | 3.00 |
| Muffler Inlet Outside Diameter | 3.13 |
| Muffler Outlet Connection | Slip-Fit |
| Muffler Outlet Quantity | 2 |
| Muffler Part Number | Kit Only |
| Muffler Quantity | 1 |
| Muffler Series | 50 Series HD |
| Muffler Type | Chambered |
| part type | Exhaust System |
| Pipe Color | Silver |
| Pipe Material | 409 Stainless Steel |
| Product Type | Exhaust System |
| Sound Level | Moderate |
| Spring Bolt Kit Included | No |
| Sub Category | Exhaust and Tail Pipes |
| Tail Pipe Outlet Outside Diameter | 2.50 |
| Tail Pipe Quantity | Dual |
| Tail Pipe Tapered Outlet | No |
| Type | Cat-Back |
| Valve Included | No |
| Valve Type | Not Applicable |
| Warning | California Proposition 65 |
Packaging Information
Weight: 57.1 lbs
Dimensions: 65.25 x 16.5 x 11.75 IN
Safety
⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov
Warranty
Installation Instructions
⚠ Fitment Notes
- Moderate sound
- Fits 2003-2012 Dodge Ram 2500, 3500 trucks with 5.7L Hemi engine and all wheelbases. Also fits 2005-2008 Dodge Ram 1500 with 5.7L engine in Mega Cab configuration only.
Share
Vehicle Fitment
Vehicle Fitment
- 2006-2008 Dodge Ram 1500 Laramie
- 2006-2008 Dodge Ram 1500 SLT
- 2008 Dodge Ram 1500 SXT
- 2003 Dodge Ram 2500 Laramie
- 2005-2010 Dodge Ram 2500 Laramie
- 2003-2010 Dodge Ram 2500 SLT
- 2006-2007 Dodge Ram 2500 Sport
- 2003-2010 Dodge Ram 2500 ST
- 2008-2010 Dodge Ram 2500 SXT
- 2006-2007 Dodge Ram 2500 TRX4
- 2003 Dodge Ram 3500 Laramie
- 2005-2009 Dodge Ram 3500 Laramie
- 2003-2009 Dodge Ram 3500 SLT
- 2006-2007 Dodge Ram 3500 Sport
- 2003-2009 Dodge Ram 3500 ST
- 2008-2009 Dodge Ram 3500 SXT
- 2011 Ram 1500 Big Horn
- 2011 Ram 1500 Laramie
- 2011 Ram 1500 Laramie Longhorn
- 2011 Ram 1500 Outdoorsman
- 2011 Ram 1500 SLT
- 2011 Ram 1500 Sport
- 2011 Ram 1500 ST
- 2011 Ram 1500 SXT
- 2011 Ram 1500 Tradesman
- 2011-2012 Ram 2500 Laramie
- 2011-2012 Ram 2500 Laramie Longhorn
- 2011-2012 Ram 2500 Power Wagon
- 2011-2012 Ram 2500 SLT
- 2011-2012 Ram 2500 ST
- 2011-2012 Ram 3500 Laramie
- 2011-2012 Ram 3500 SLT
- 2011-2012 Ram 3500 ST
