Flowmaster
Flowmaster 817517 Force II Axle-back Exhaust System
Flowmaster 817517 Force II Axle-back Exhaust System
Low stock: 2 left
Couldn't load pickup availability
Description & Features

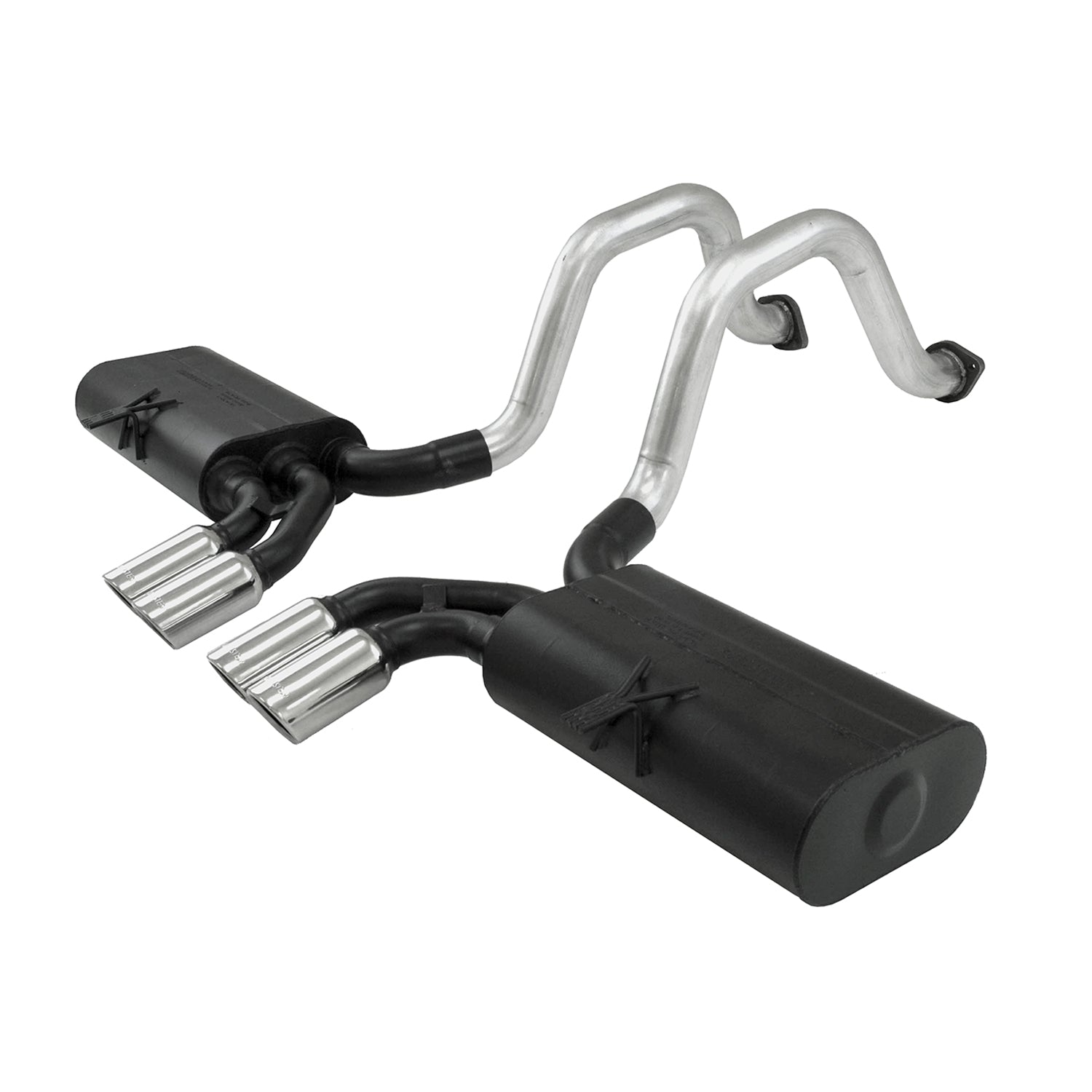

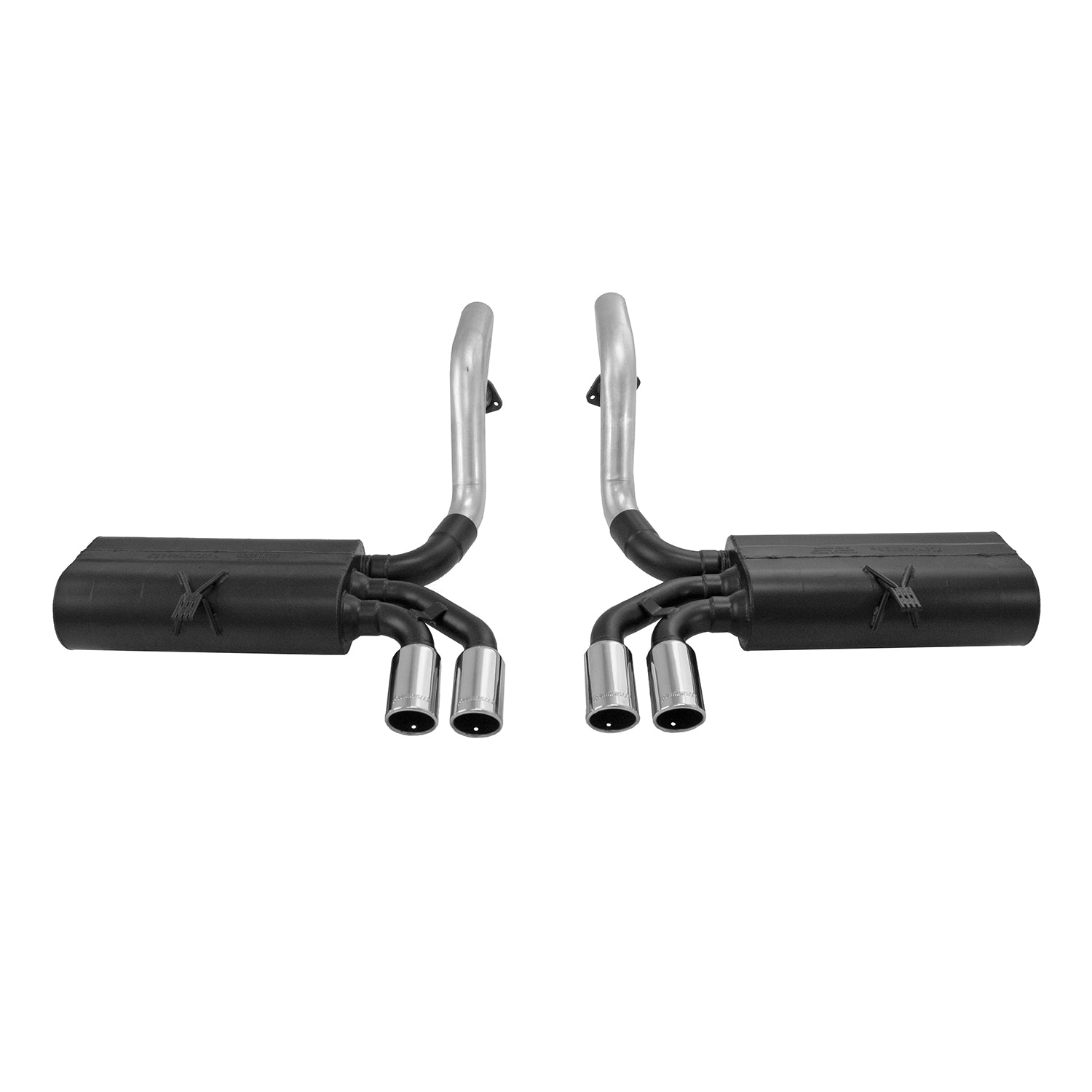

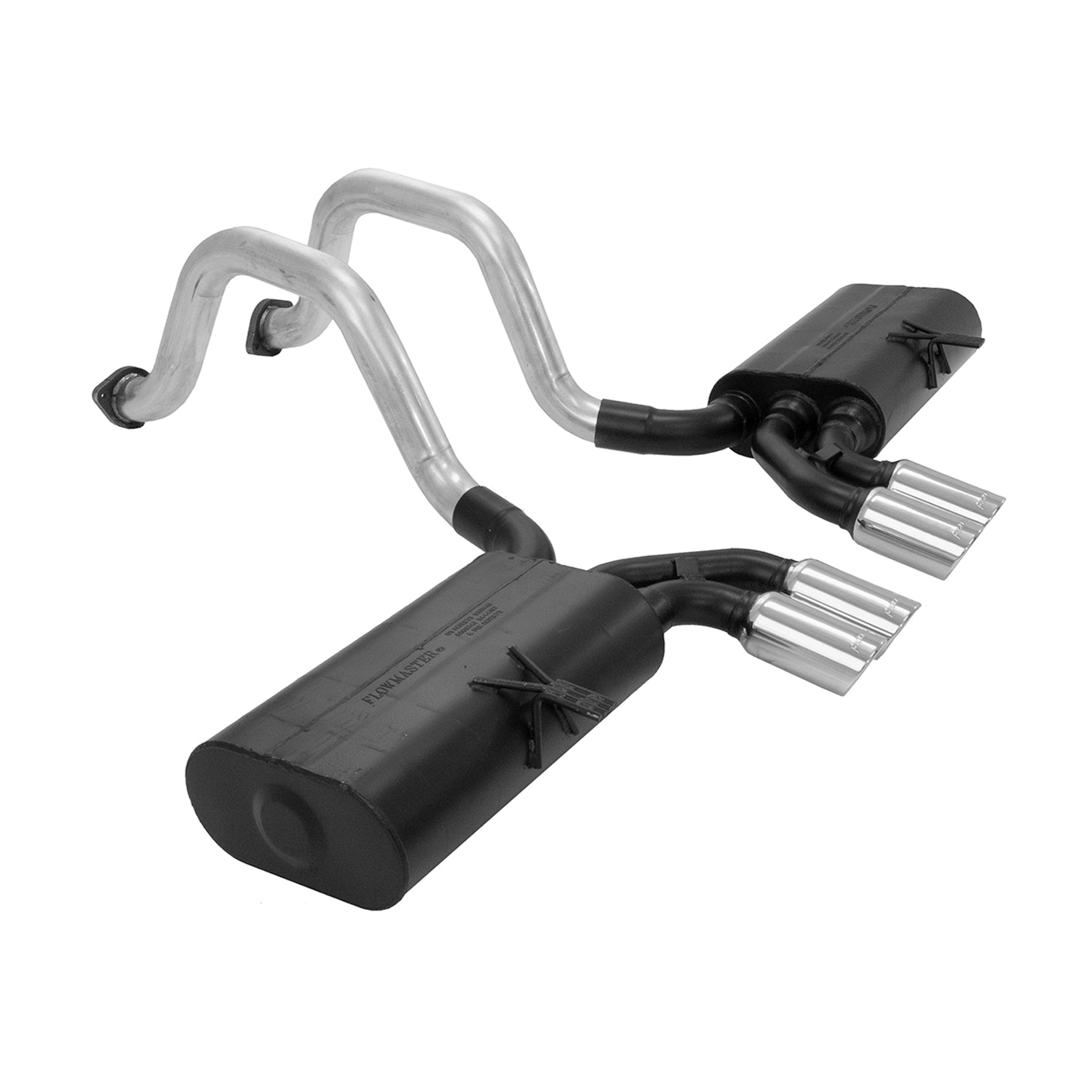

Flowmaster 817517 Force II Axle-back Exhaust System
The Force II® system is designed to replace the original factory mufflers located behind the rear axle using factory style connections. With easy fit in mind, these stainless steel systems are mandrel-bent for maximum performance, feature specially-engineered 80 Series™ mufflers that have a deep moderate performance tone outside the car, with little to no interior resonance in the cab. The system uses the factory hangers and are finished off with quad 3.00-inch polished 304 stainless steel tips. Includes all necessary parts, hardware and instructions for a quick and easy installation. Force II systems are suited to customers looking for efficiency improvements without a lot of noise. Like all Flowmaster® systems, the benefits include improved throttle response, power and mileage.

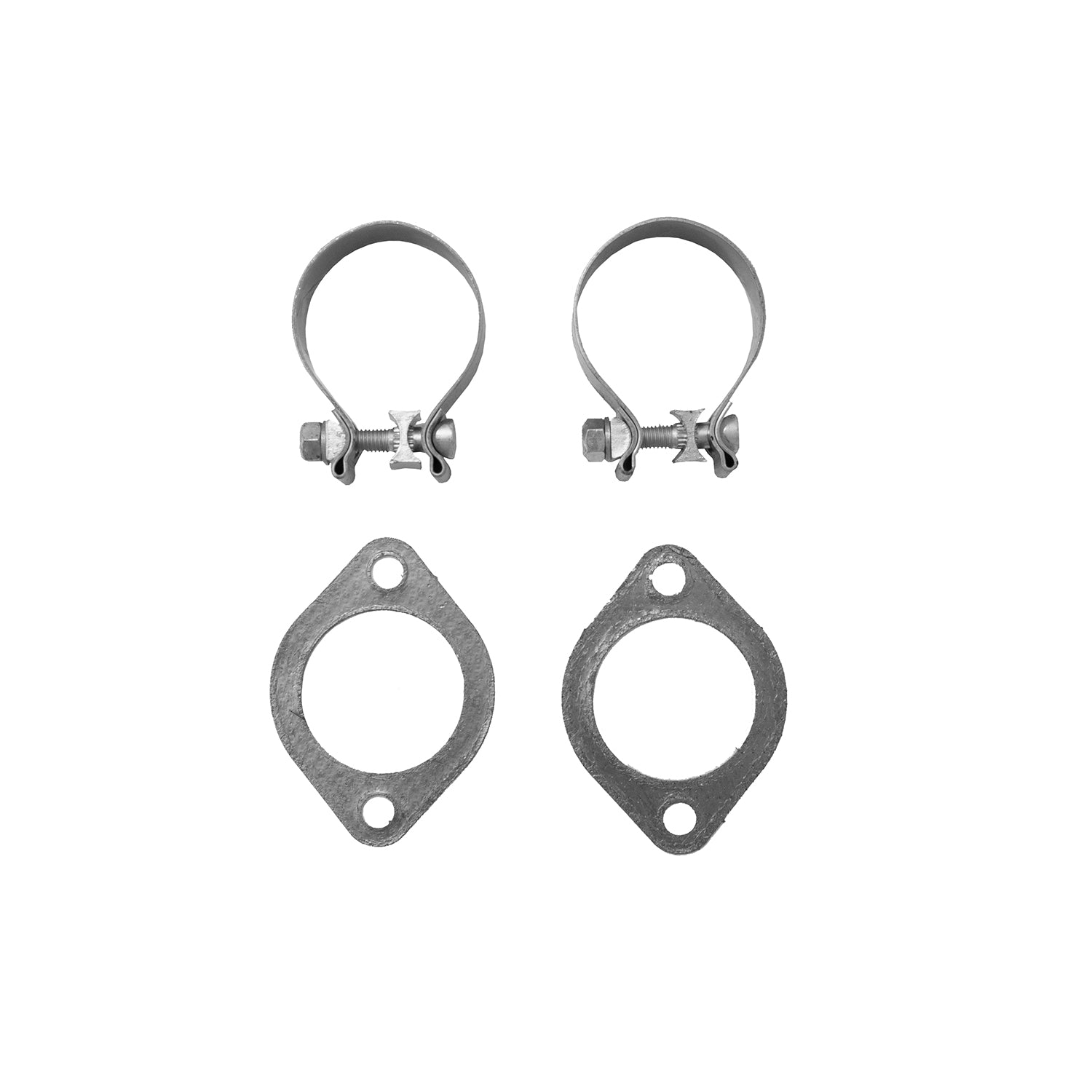

- Includes Hangers and Hardware for an Easy Installation
- Specially Designed 80 Series Performance Mufflers
- Mandrel-bent 16 Gauge Stainless Steel Tubing
- Highly Polished Quad 304 Stainless Steel Tips
- Deep Moderate Exterior Exhaust Tone
- Lifetime Limited Warranty
- Easy Installation
Specifications
| Brand | Flowmaster |
| California Proposition 65 | Yes |
| California Proposition 65 Chemical Name | Nickel (Metallic) |
| CARB (California) Compliant | Yes |
| Catalytic Converter Included | No |
| Catalytic Converter Quantity | 0 |
| Category | Exhaust |
| Clamping Type | Flat Band |
| Clamps Included | Yes |
| Drive | 2WD |
| Emission Code | 5 |
| Exhaust Series | Force II |
| Exhaust Tip Color | Silver |
| Exhaust Tip Connection | Welded |
| Exhaust Tip Cut | Angled |
| Exhaust Tip Diameter | 3.00 |
| Exhaust Tip Edge | Rolled Edge Angle Cut |
| Exhaust Tip Finish | Polished |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 6.00 |
| Exhaust Tip Material | 304 Stainless Steel |
| Exhaust Tip Quantity | 4 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Single Wall |
| Exit Style | Dual Out Rear |
| Finish | Natural |
| Gasket Or Seal Included | Yes |
| Grade Type | Performance |
| Hangers Included | Yes |
| Heat Shield Included | No |
| Inlet Diameter | 2.50 |
| Inlet Type | Flanged |
| Main Piping Diameter | 2.50 |
| Mounting Bracket Included | No |
| Muffler (Left) Body Height | 5.00 |
| Muffler (Left) Body Length | 17.00 |
| Muffler (Left) Body Width | 10.00 |
| Muffler (Left) Type | Chambered |
| Muffler (Right) Body Height | 5.00 |
| Muffler (Right) Body Length | 17.00 |
| Muffler (Right) Body Width | 10.00 |
| Muffler (Right) Type | Chambered |
| Muffler Body Height | 5.00 |
| Muffler Body Length | 23.00 |
| Muffler Body Material | 409 Stainless Steel |
| Muffler Body Shape | Oval |
| Muffler Body Width | 10.00 |
| Muffler Finish | Black High-Temperature Paint Finish |
| Muffler Flanged Inlet | No |
| Muffler Flanged Outlet | No |
| Muffler Included | Yes |
| Muffler Inlet Connection | Slip-Fit |
| Muffler Inlet Inside Diameter | 2.50 |
| Muffler Inlet Outside Diameter | 2.00 |
| Muffler Outlet Quantity | 2 |
| Muffler Part Number | Kit Only |
| Muffler Quantity | 2 |
| Muffler Series | 80 Series Crossflow |
| Muffler Type | Chambered |
| part type | Exhaust System |
| Pipe Color | Black |
| Pipe Material | 409 Stainless Steel |
| Product Type | Exhaust System |
| Sound Level | Moderate/Mild |
| Spring Bolt Kit Included | No |
| Sub Category | Exhaust and Tail Pipes |
| Tail Pipe Outlet Outside Diameter | 2.00 |
| Tail Pipe Quantity | Dual |
| Tail Pipe Tapered Outlet | No |
| Type | Axle-back |
| Valve Included | No |
| Valve Type | Not Applicable |
| Warning | California Proposition 65 |
Packaging Information
Weight: 51.5 lbs
Dimensions: 42 x 21 x 14.25 IN
Safety
⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov
Warranty
Installation Instructions
⚠ Fitment Notes
- Fits 1997-2004 Chevrolet Corvette with 5.7L engine.
Share
Vehicle Fitment
Vehicle Fitment
- 2003 Chevrolet Corvette 50th Anniversary Edition
- 2003 Chevrolet Corvette 50th Anniversary Edition Pace Car
- 1997-2004 Chevrolet Corvette Base
- 1998 Chevrolet Corvette Indianapolis 500 Pace Car
- 2001-2004 Chevrolet Corvette Z06
