Flowmaster
Flowmaster 817567 American Thunder Cat-back Exhaust System
Flowmaster 817567 American Thunder Cat-back Exhaust System
Low stock: 2 left
Couldn't load pickup availability
Description & Features

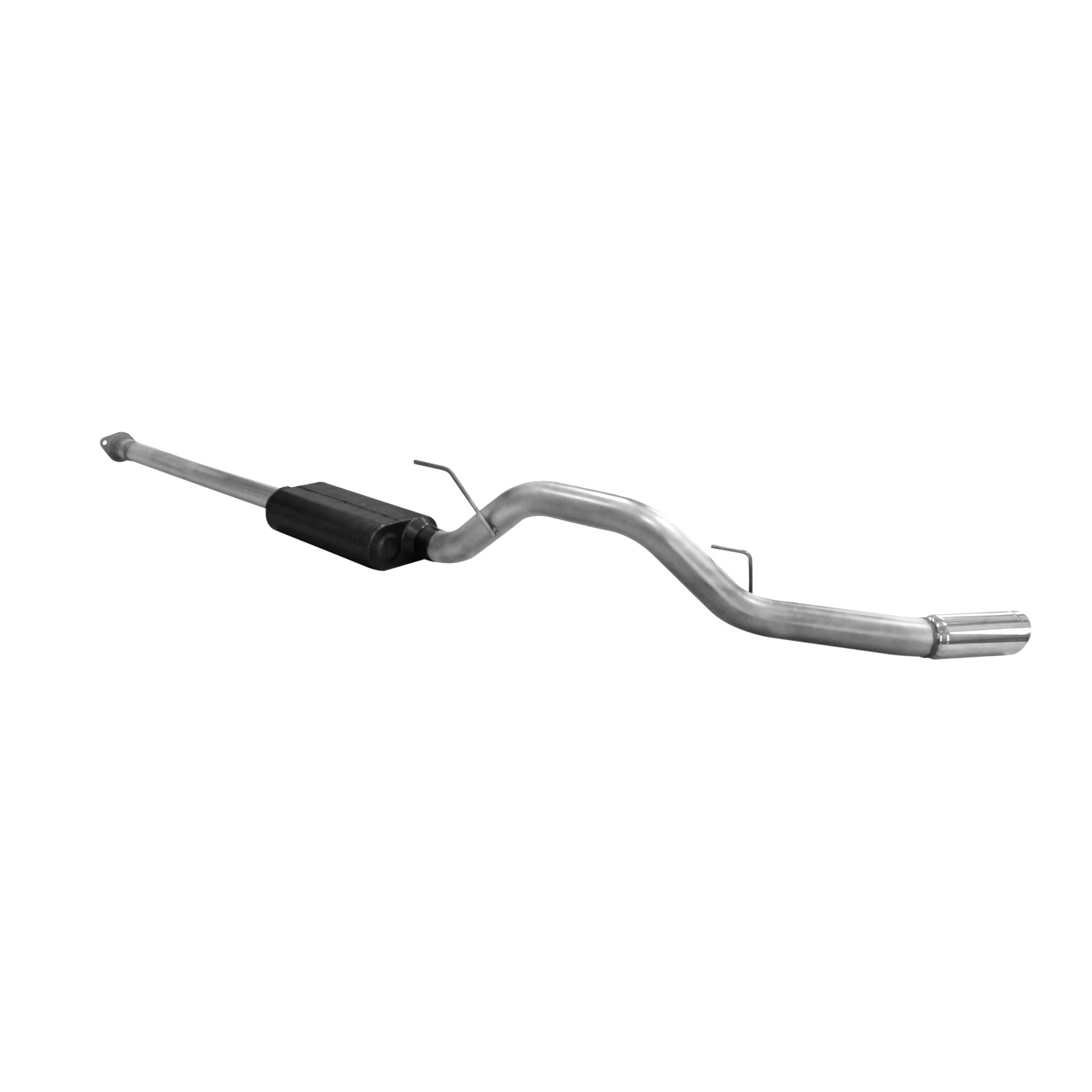

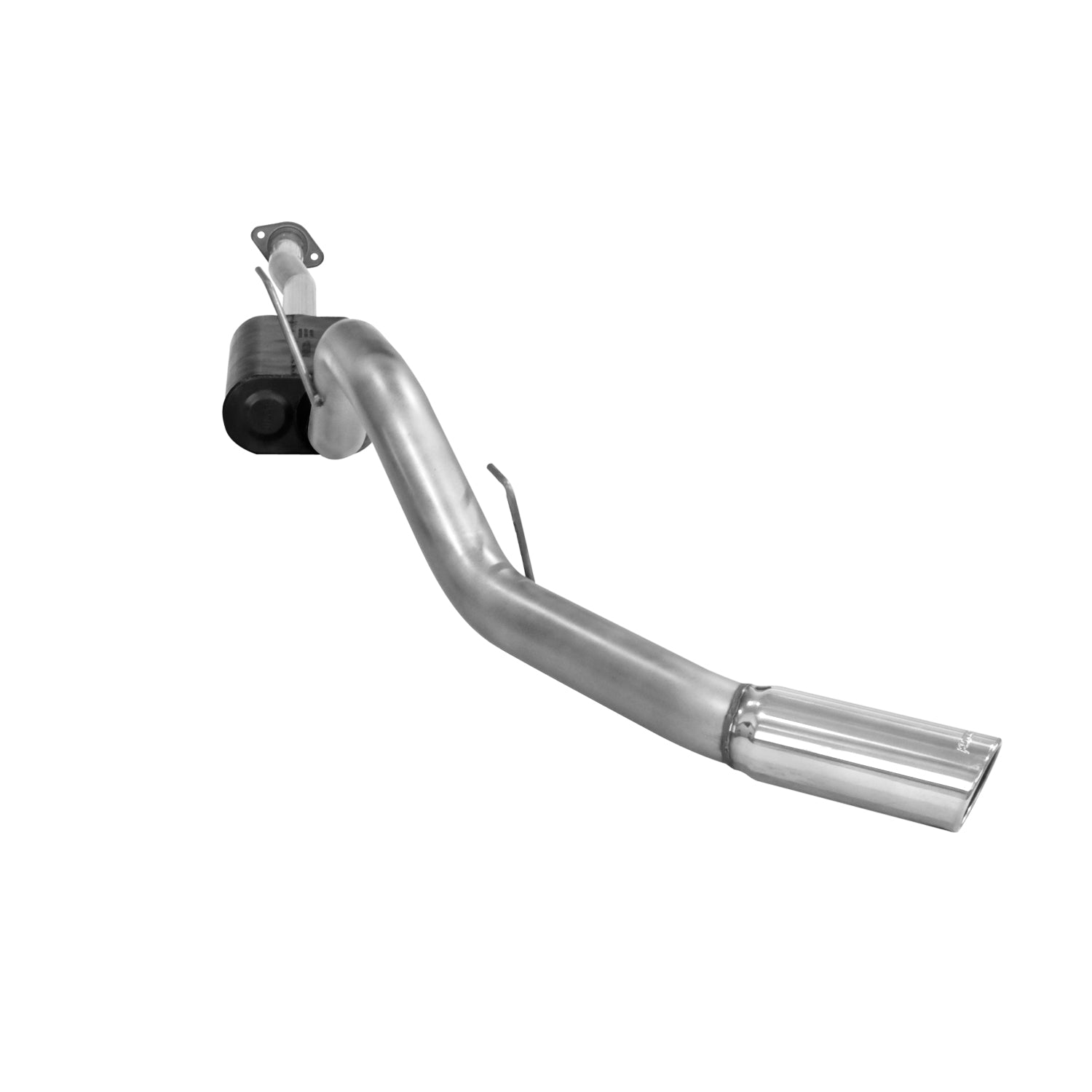

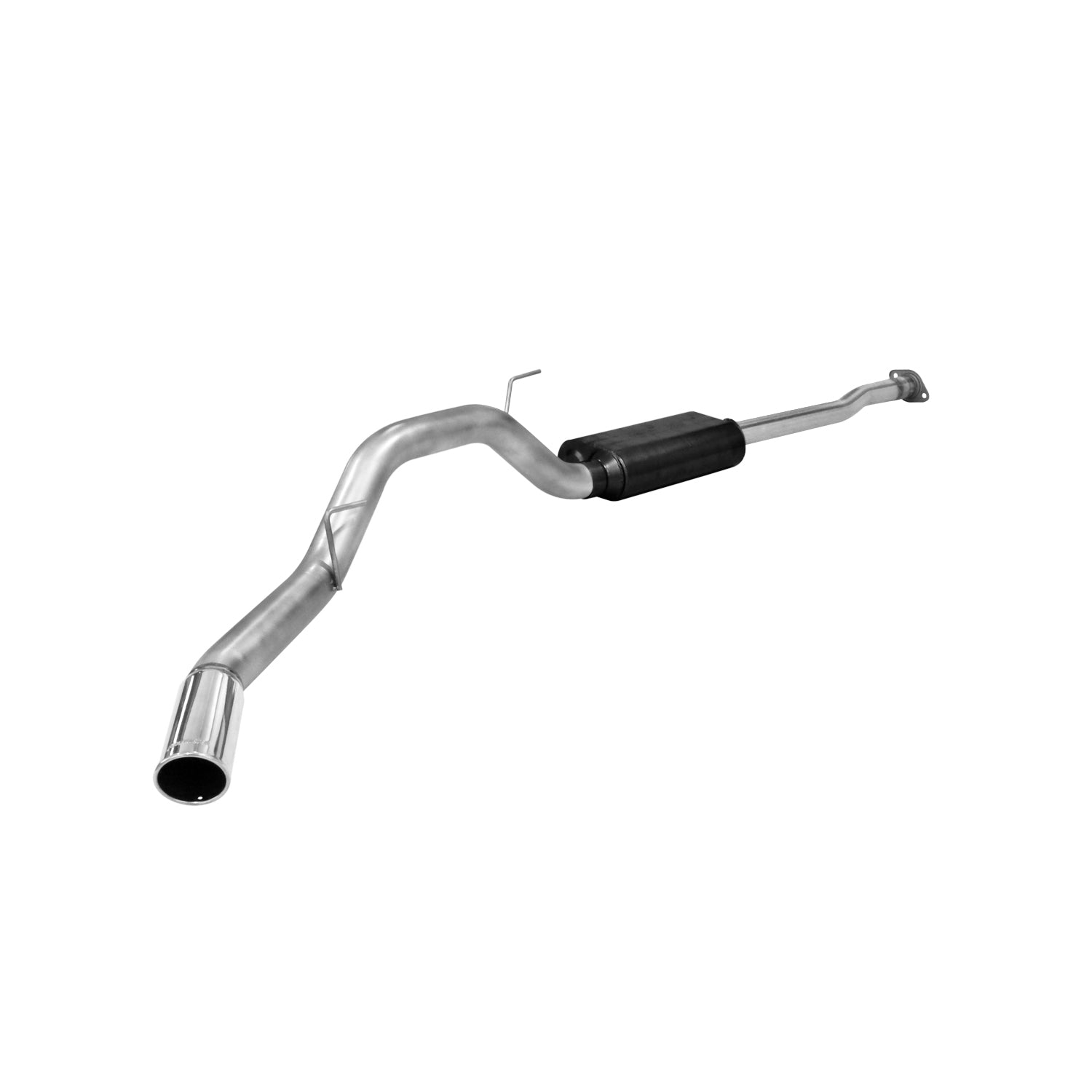

Flowmaster 817567 American Thunder Cat-back Exhaust System
For the person who wants a subtle custom appearance with all the benefits that a Flowmaster Cat-back exhaust system provides, Single Side Exit (Single out side) systems are the perfect choice. American Thunder systems deliver a moderate to aggressive tone and are suited to the enthusiast who wants their performance to be heard. Like all Flowmaster systems, the benefits include improved throttle response, power and mileage. Designed for an easy fit, these systems include all necessary parts and hardware for easy installation.
- Stainless Steel Construction
- Dyno proven performance gains
- Delta Flow Technology
- Lifetime limited warranty
Specifications
| Brand | Flowmaster |
| California Proposition 65 | Yes |
| California Proposition 65 Chemical Name | Chromium (hexavalent compounds) |
| CARB (California) Compliant | Yes |
| Catalytic Converter Included | No |
| Catalytic Converter Quantity | 0 |
| Category | Exhaust |
| Clamping Type | Flat Band |
| Clamps Included | Yes |
| Drive | 2WD |
| Emission Code | 5 |
| Exhaust Series | American Thunder |
| Exhaust Tip Color | Silver |
| Exhaust Tip Connection | Welded |
| Exhaust Tip Cut | Angled |
| Exhaust Tip Diameter | 4.00 |
| Exhaust Tip Edge | Rolled Edge Angle Cut |
| Exhaust Tip Finish | Polished |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 10.00 |
| Exhaust Tip Material | 304 Stainless Steel |
| Exhaust Tip Quantity | 1 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Single Wall |
| Exit Style | Single Out Side |
| Finish | Natural |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Hangers Included | Yes |
| Heat Shield Included | No |
| Inlet Diameter | 3.00 |
| Inlet Type | Flanged |
| Main Piping Diameter | 3.50 |
| Mounting Bracket Included | No |
| Muffler Body Height | 5.00 |
| Muffler Body Length | 18.00 |
| Muffler Body Material | 409 Stainless Steel |
| Muffler Body Shape | Oval |
| Muffler Body Width | 10.00 |
| Muffler Color | Black |
| Muffler Finish | Black High-Temperature Paint Finish |
| Muffler Flanged Inlet | No |
| Muffler Flanged Outlet | No |
| Muffler Included | Yes |
| Muffler Inlet Connection | Slip-Fit |
| Muffler Inlet Inside Diameter | 3.00 |
| Muffler Inlet Outside Diameter | 3.13 |
| Muffler Outlet Connection | Slip-Fit |
| Muffler Outlet Quantity | 1 |
| Muffler Part Number | Kit Only |
| Muffler Quantity | 1 |
| Muffler Series | 50 Series HD |
| Muffler Type | Chambered |
| part type | Exhaust System |
| Pipe Color | Silver |
| Pipe Material | 409 Stainless Steel |
| Product Type | Exhaust System |
| Sound Level | Aggressive / Moderate |
| Spring Bolt Kit Included | No |
| Sub Category | Exhaust and Tail Pipes |
| Tail Pipe Outlet Outside Diameter | 3.50 |
| Tail Pipe Quantity | Single |
| Tail Pipe Tapered Outlet | No |
| Type | Cat-Back |
| Valve Included | No |
| Valve Type | Not Applicable |
| Warning | California Proposition 65 |
Packaging Information
Weight: 49.6 lbs
Dimensions: 62.75 x 18.5 x 14.5 IN
Safety
⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov
Warranty
Installation Instructions
⚠ Fitment Notes
- Aggressive to moderate sound
- Fits 2009-2014 Ford F-150 with 4.6L, 5.0L or 5.4L engines, fits all wheelbases. Also fits 2010 SVT Raptor wit 5.4L.
Share
Vehicle Fitment
Vehicle Fitment
- 2010-2014 Ford F-150 FX2
- 2009-2014 Ford F-150 FX4
- 2010 Ford F-150 Harley-Davidson Edition
- 2009-2014 Ford F-150 King Ranch
- 2009-2014 Ford F-150 Lariat
- 2009-2014 Ford F-150 Platinum
- 2009-2014 Ford F-150 STX
- 2010 Ford F-150 SVT Raptor
- 2009-2014 Ford F-150 XL
- 2009-2014 Ford F-150 XLT
