Flowmaster 817688 Outlaw Cat-back Exhaust System
Flowmaster 817688 Outlaw Cat-back Exhaust System
Low stock: 2 left
Couldn't load pickup availability
Description & Features

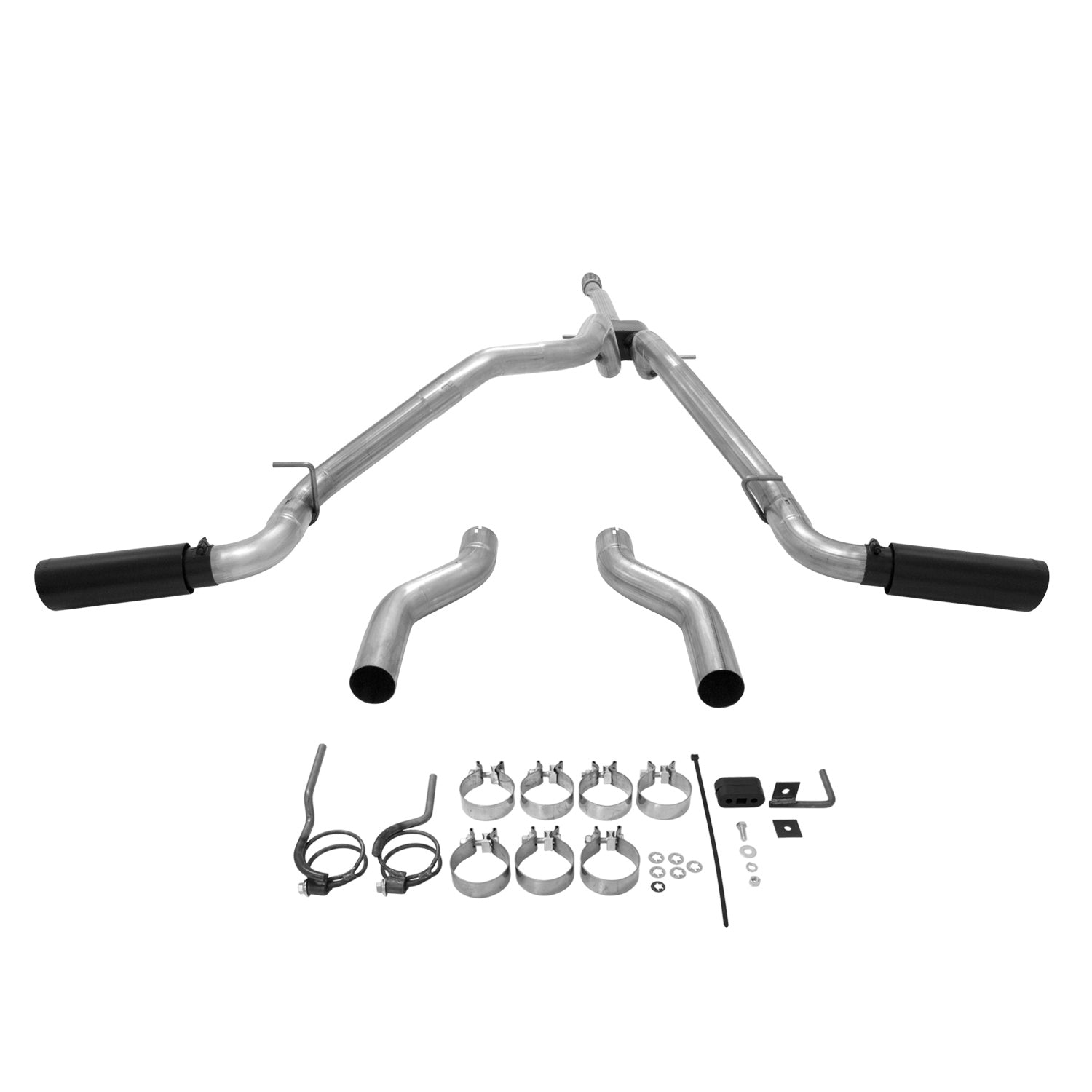

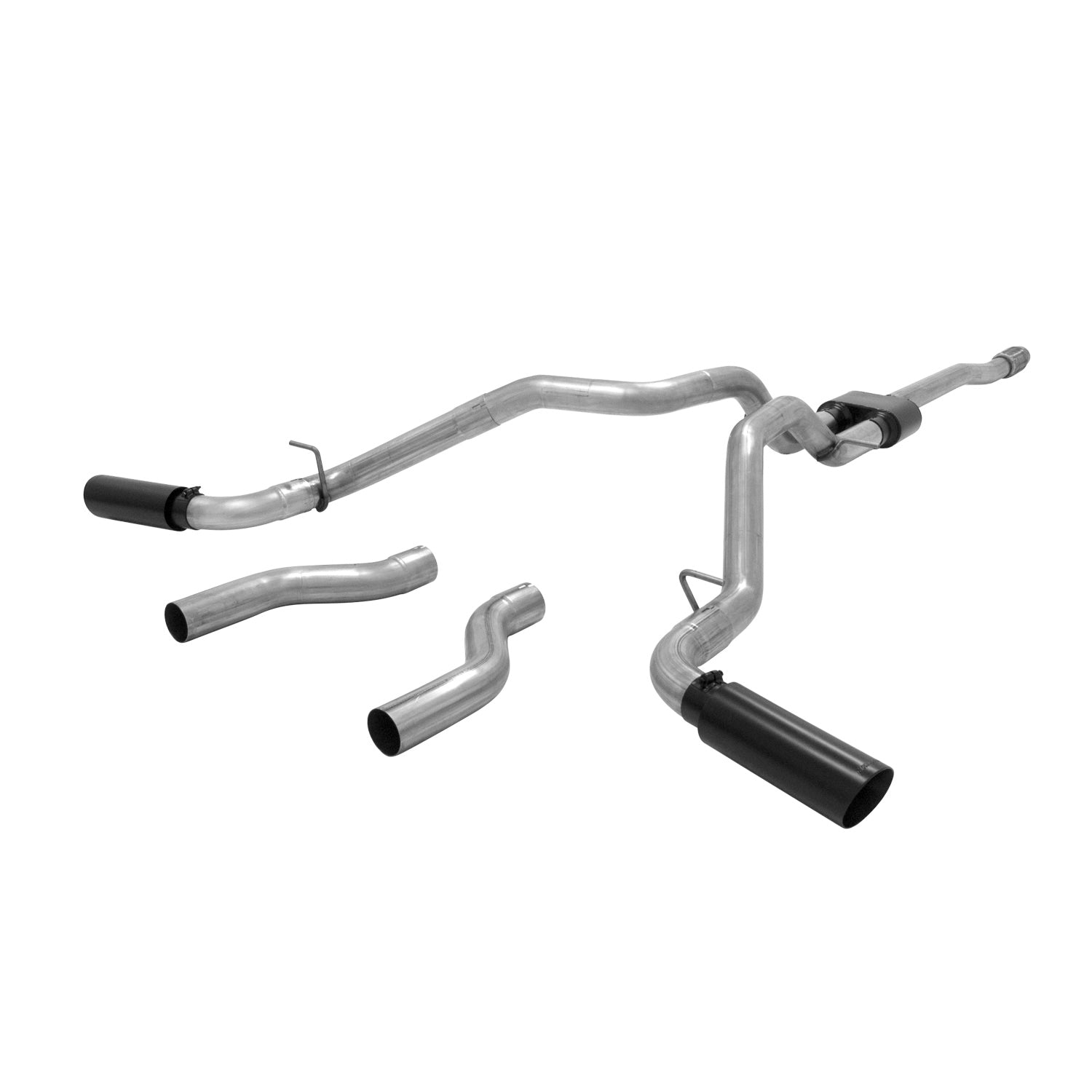

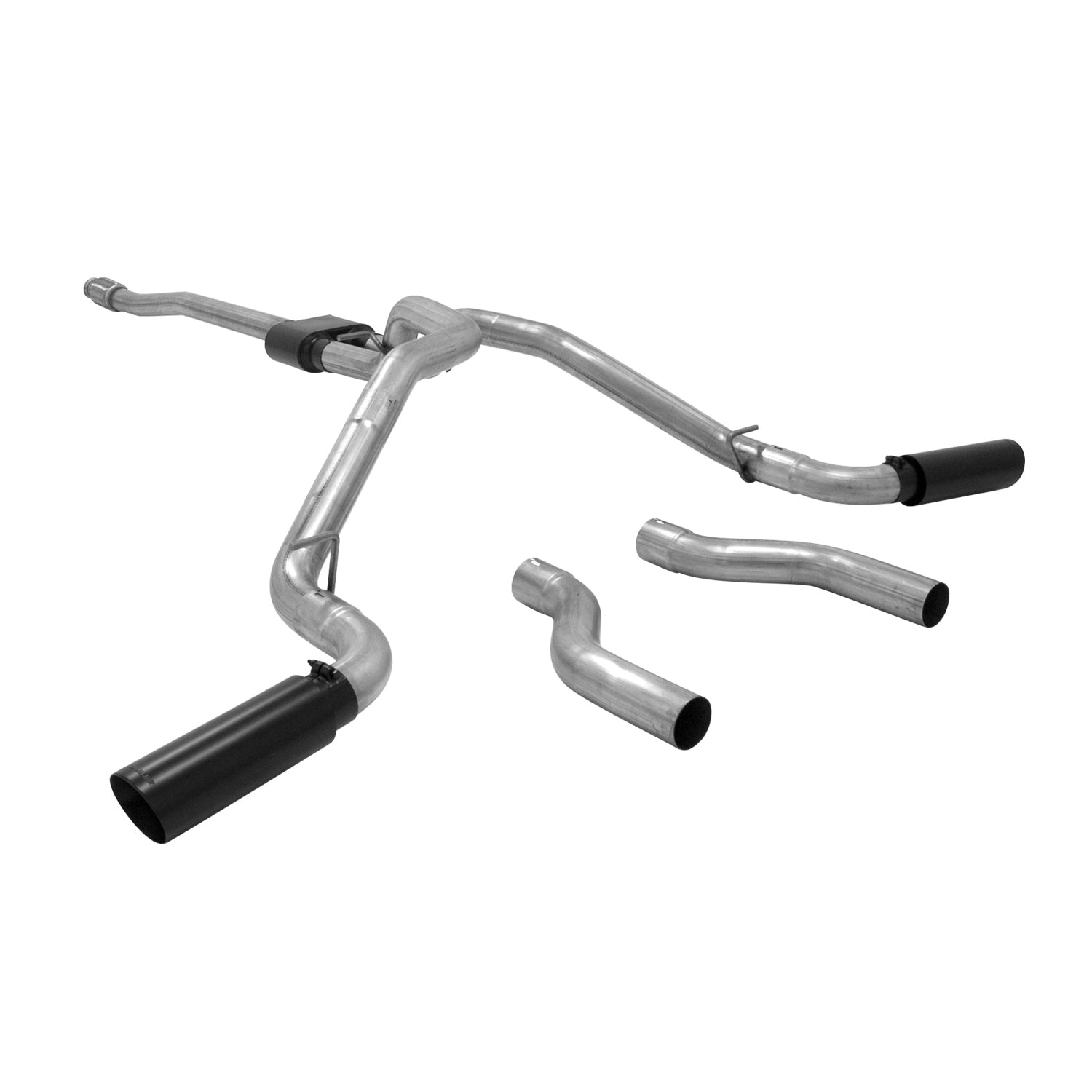

Flowmaster 817688 Outlaw Cat-back Exhaust System
This Outlaw cat-back exhaust system is for 2009-2013 GM Silverado/Sierra 1500 trucks with the 5.3L engine and is perfect for the person looking for an aggressive sound level, both inside and outside of the truck. This bolt-on emissions-legal system features 3.00-inch mandrel-bent stainless steel tubing flowing into a Super 10 Series muffler, for a deep powerful aggressive sound. The large 3.00-inch mandrel-bent stainless steel tailpipes can be configured with your choice of exit locations, either straight out the back under the bumper for a muscular look, or exiting out behind the rear tires on each side of the truck. The side exit tailpipes are the ideal exit location when towing a boat or RV. The tailpipes are finished off with large 4.00-inch black ceramic coated dual-wall stainless steel tips. The system includes all necessary parts and hardware for an easy installation and is covered by our Lifetime Limited Warranty. Notes: Fits all 2/4 wheel drives with 143.5 and 157.5-inch wheelbases.
- Lifetime Limited Warranty
- Stainless Steel Construction
- Black and Ceramic Tips
- Super Aggressive Sound
Specifications
| Brand | Flowmaster |
| California Proposition 65 | Yes |
| California Proposition 65 Chemical Name | Chromium (hexavalent compounds) |
| CARB (California) Compliant | Yes |
| Catalytic Converter Included | No |
| Catalytic Converter Quantity | 0 |
| Category | Exhaust |
| Clamping Type | Flat Band |
| Clamps Included | Yes |
| Drive | 2WD |
| Emission Code | 5 |
| Exhaust Series | Outlaw |
| Exhaust Tip Color | Black |
| Exhaust Tip Connection | Clamp-On |
| Exhaust Tip Cut | Angled |
| Exhaust Tip Diameter | 4.00 |
| Exhaust Tip Edge | Angle Cut |
| Exhaust Tip Finish | Black Ceramic Coating |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 13.00 |
| Exhaust Tip Material | 304 Stainless Steel |
| Exhaust Tip Quantity | 2 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Dual Out Rear |
| Finish | Natural |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Hangers Included | Yes |
| Heat Shield Included | No |
| Inlet Diameter | 3.00 |
| Inlet Type | Flanged |
| Main Piping Diameter | 3.00 |
| Mount Type | Flanged |
| Mounting Bracket Included | Yes |
| Muffler Body Height | 4.00 |
| Muffler Body Length | 6.50 |
| Muffler Body Material | 409 Stainless Steel |
| Muffler Body Shape | Oval |
| Muffler Body Width | 9.50 |
| Muffler Finish | Black High-Temperature Paint Finish |
| Muffler Flanged Inlet | No |
| Muffler Flanged Outlet | No |
| Muffler Included | Yes |
| Muffler Inlet Connection | Slip-Fit |
| Muffler Inlet Inside Diameter | 3.00 |
| Muffler Inlet Outside Diameter | 3.00 |
| Muffler Outlet Connection | Slip-Fit |
| Muffler Outlet Quantity | 2 |
| Muffler Part Number | Kit Only |
| Muffler Quantity | 1 |
| Muffler Series | Super 10 Series |
| Muffler Type | Reflection |
| part type | Exhaust System |
| Pipe Color | Silver |
| Pipe Material | 409 Stainless Steel |
| Product Type | Exhaust System |
| Sound Level | Aggressive |
| Spring Bolt Kit Included | No |
| Sub Category | Exhaust and Tail Pipes |
| Tail Pipe Outlet Outside Diameter | 3.00 |
| Tail Pipe Quantity | Dual |
| Tail Pipe Tapered Outlet | No |
| Tip Logo | Embossed |
| Type | Cat-Back |
| Valve Included | No |
| Valve Type | Not Applicable |
| Warning | California Proposition 65 |
Packaging Information
Weight: 51.85 lbs
Dimensions: 58.5 x 16.5 x 13 IN
Safety
⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov
Warranty
Installation Instructions
⚠ Fitment Notes
- Black Ceramic Tip Finish
- 2009-2013 GM Silverado/Sierra 1500 trucks with the 5.3L engine and fits all 2/4 wheel drives with 143.5 and 157.5-inch wheelbases.
Share
Vehicle Fitment
Vehicle Fitment
- 2010-2013 Chevrolet Silverado 1500 LS
- 2009-2013 Chevrolet Silverado 1500 LT
- 2009-2013 Chevrolet Silverado 1500 LTZ
- 2009-2013 Chevrolet Silverado 1500 WT
- 2010-2013 Chevrolet Silverado 1500 XFE
- 2010-2013 GMC Sierra 1500 SL
- 2009-2013 GMC Sierra 1500 SLE
- 2009-2013 GMC Sierra 1500 SLT
- 2009-2013 GMC Sierra 1500 WT
- 2010-2013 GMC Sierra 1500 XFE
