Flowmaster
Flowmaster 817689 Outlaw Cat-back Exhaust System
Flowmaster 817689 Outlaw Cat-back Exhaust System
10 in stock
Couldn't load pickup availability
Description & Features
Flowmaster 817689 Outlaw Cat-back Exhaust System

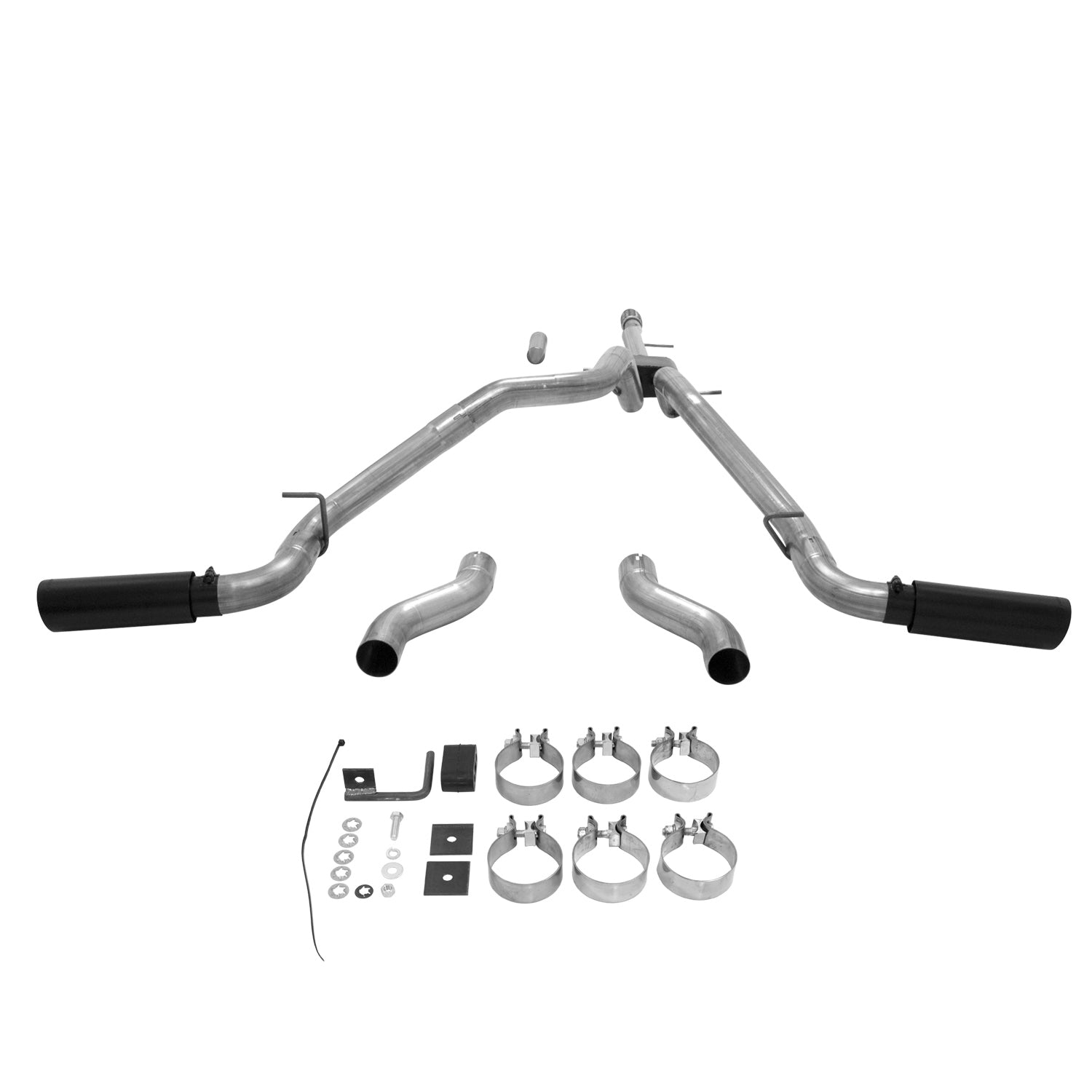

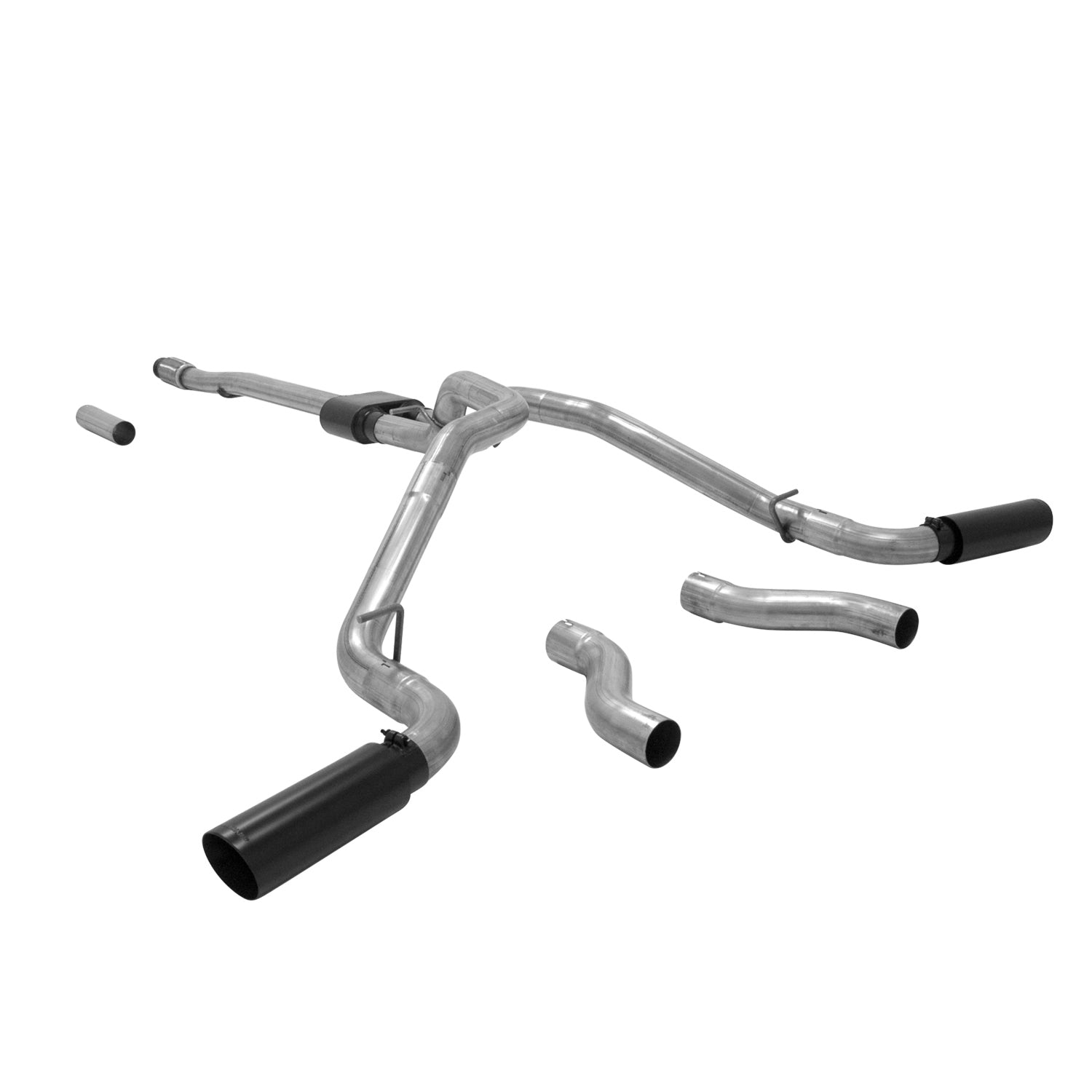

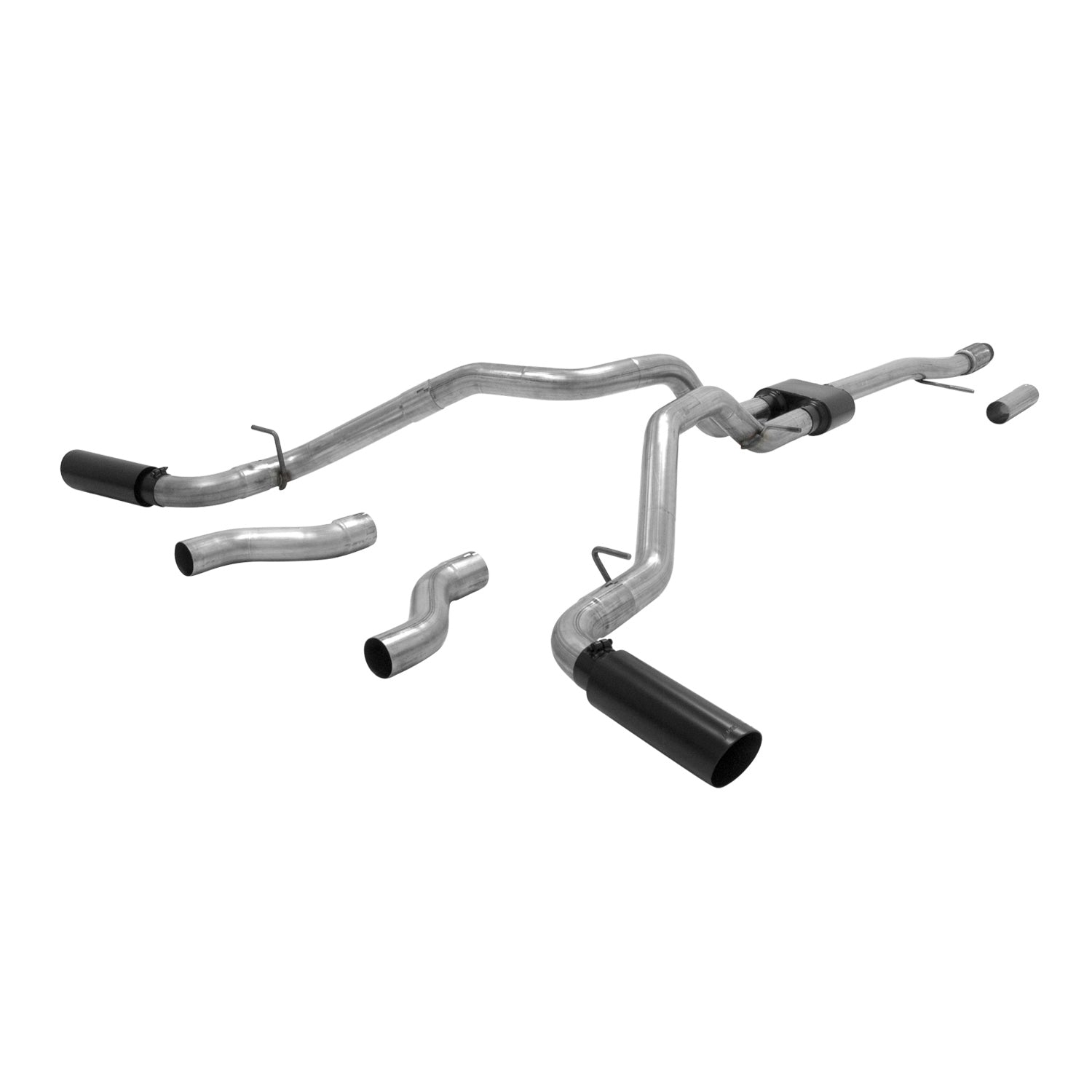

This Flowmaster Outlaw cat-back exhaust system is custom designed for 2014-2019* (*Classic body) GM Silverado/Sierra 1500 trucks with the 4.3L or 5.3L engine and is perfect for the person looking for an aggressive interior and exterior sound levels with all of the performance benefits that you expect from Flowmaster. This bolt-on emissions-legal system is for the Crew Cab and Double Cab models and comes with your choice of tailpipe exits, either dual out the rear under the bumper, or dual out the sides behind the rear tires. System features include stainless steel mandrel bent tubing flowing into a Super 10 series muffler and exiting with dual 3.00-inch stainless steel mandrel bent tailpipes. The system uses the factory hanger locations and is finished off with a pair of large 4.00-inch black ceramic coated stainless steel tips. The exhaust system is covered by our Lifetime Limited Warranty. Designed for an easy fit, this system includes all necessary parts and hardware for installation.
- Dual Out The Rear or Dual Out The Side Exit Options
- Large 4.00-inch Black Ceramic Coated Tips
- All Stainless Steel Construction
- Uses Factory Hanger Locations
- Super 10 Performance Muffler
- Lifetime Limited Warranty
- Deep Aggressive Sound
- Easy Installation
Specifications
| Brand | Flowmaster |
| California Proposition 65 | Yes |
| California Proposition 65 Chemical Name | Chromium (hexavalent compounds) |
| CARB (California) Compliant | Yes |
| Catalytic Converter Included | No |
| Catalytic Converter Quantity | 0 |
| Category | Exhaust |
| Clamping Type | Flat Band |
| Clamps Included | Yes |
| Emission Code | 5 |
| Exhaust Series | Outlaw |
| Exhaust Tip Color | Black |
| Exhaust Tip Connection | Clamp-On |
| Exhaust Tip Cut | Angled |
| Exhaust Tip Diameter | 4.00 |
| Exhaust Tip Edge | Angle Cut |
| Exhaust Tip Finish | Black Ceramic Coating |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 13.00 |
| Exhaust Tip Material | 304 Stainless Steel |
| Exhaust Tip Quantity | 2 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Dual Out Rear |
| Finish | Natural |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Hangers Included | Yes |
| Heat Shield Included | No |
| Inlet Diameter | 3.00 |
| Inlet Type | Flanged |
| Main Piping Diameter | 3.00 |
| Mount Type | Flanged |
| Mounting Bracket Included | Yes |
| Muffler Body Height | 4.00 |
| Muffler Body Length | 6.50 |
| Muffler Body Material | 409 Stainless Steel |
| Muffler Body Shape | Oval |
| Muffler Body Width | 9.50 |
| Muffler Finish | Black High-Temperature Paint Finish |
| Muffler Flanged Inlet | No |
| Muffler Flanged Outlet | No |
| Muffler Included | Yes |
| Muffler Inlet Connection | Slip-Fit |
| Muffler Inlet Inside Diameter | 3.00 |
| Muffler Inlet Outside Diameter | 3.13 |
| Muffler Outlet Connection | Slip-Fit |
| Muffler Outlet Quantity | 2 |
| Muffler Part Number | Kit Only |
| Muffler Quantity | 1 |
| Muffler Series | Super 10 Series |
| Muffler Type | Chambered |
| part type | Exhaust System |
| Pipe Color | Silver |
| Pipe Material | 409 Stainless Steel |
| Product Type | Exhaust System |
| Sound Level | Aggressive |
| Spring Bolt Kit Included | No |
| Sub Category | Exhaust and Tail Pipes |
| Tail Pipe Outlet Outside Diameter | 3.00 |
| Tail Pipe Quantity | Dual |
| Tail Pipe Tapered Outlet | No |
| Tip Logo | Embossed |
| Type | Cat-Back |
| Valve Included | No |
| Valve Type | Not Applicable |
| Warning | California Proposition 65 |
Packaging Information
Weight: 54.75 lbs
Dimensions: 57 x 16.7 x 12 IN
Safety
⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov
Warranty
Installation Instructions
⚠ Fitment Notes
- Black Ceramic Tip Finish
- Black Ceramic Tip Finish, Also fits 2019 Classic model.
- "Does Not Fit Crew Cab 2WD with 2 Pc Driveshaft.
Share
Vehicle Fitment
Vehicle Fitment
- 2014 Chevrolet Silverado 1500 Base
- 2016 Chevrolet Silverado 1500 Base
- 2016-2018 Chevrolet Silverado 1500 Custom
- 2014-2018 Chevrolet Silverado 1500 High Country
- 2019 Chevrolet Silverado 1500 LD Custom
- 2019 Chevrolet Silverado 1500 LD LT
- 2019 Chevrolet Silverado 1500 LD WT
- 2015-2018 Chevrolet Silverado 1500 LS
- 2014-2018 Chevrolet Silverado 1500 LT
- 2014-2018 Chevrolet Silverado 1500 LTZ
- 2015-2018 Chevrolet Silverado 1500 SSV
- 2014-2018 Chevrolet Silverado 1500 WT
- 2014-2018 GMC Sierra 1500 Base
- 2014-2018 GMC Sierra 1500 Denali
- 2019 GMC Sierra 1500 Limited Base
- 2019 GMC Sierra 1500 Limited SLE
- 2014-2018 GMC Sierra 1500 SLE
- 2014-2018 GMC Sierra 1500 SLT
