Flowmaster 817690 Outlaw Cat-back Exhaust System

$1,249.95 USD

Sale Sold out

Shipping calculated at checkout.

10 in stock

Description & Features

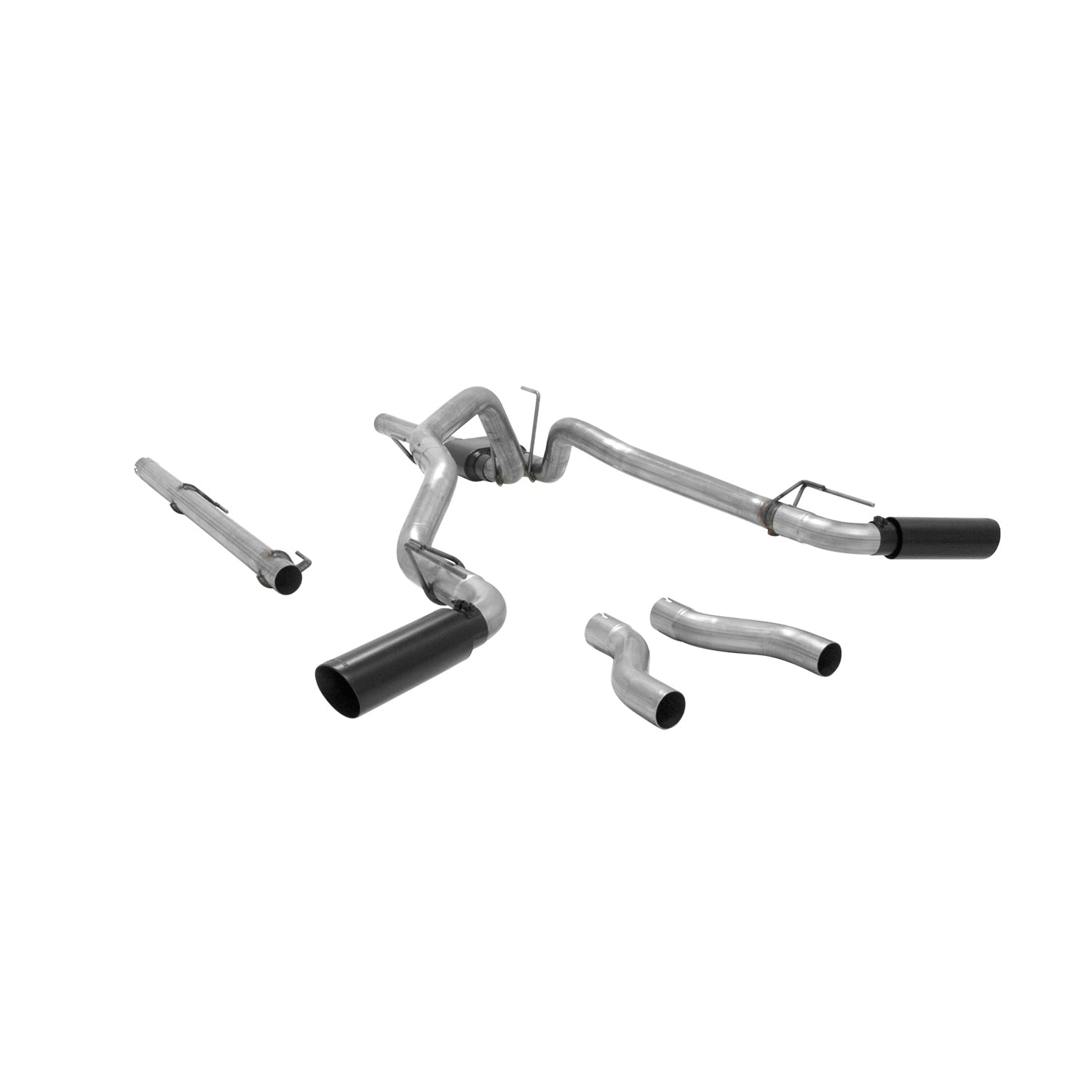

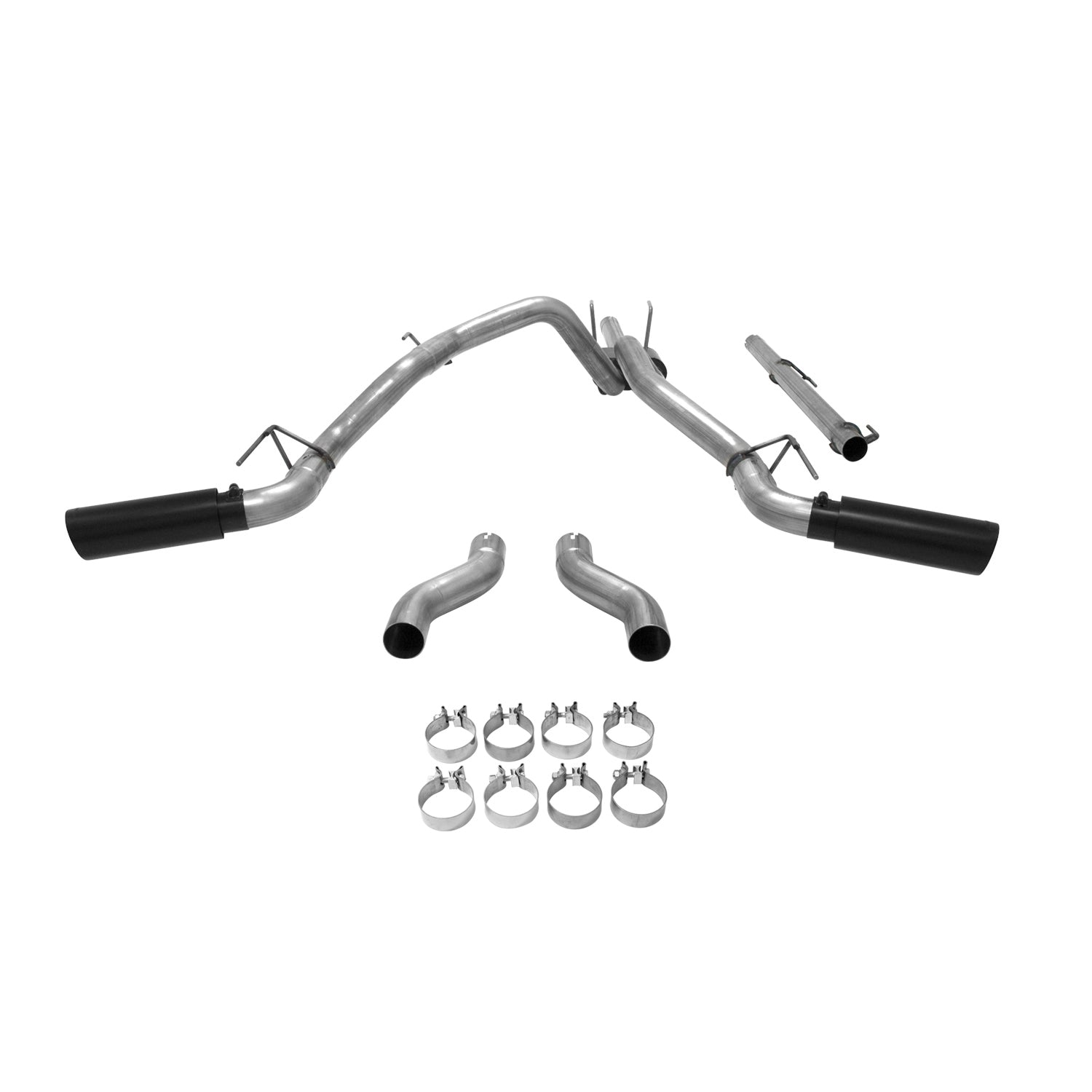

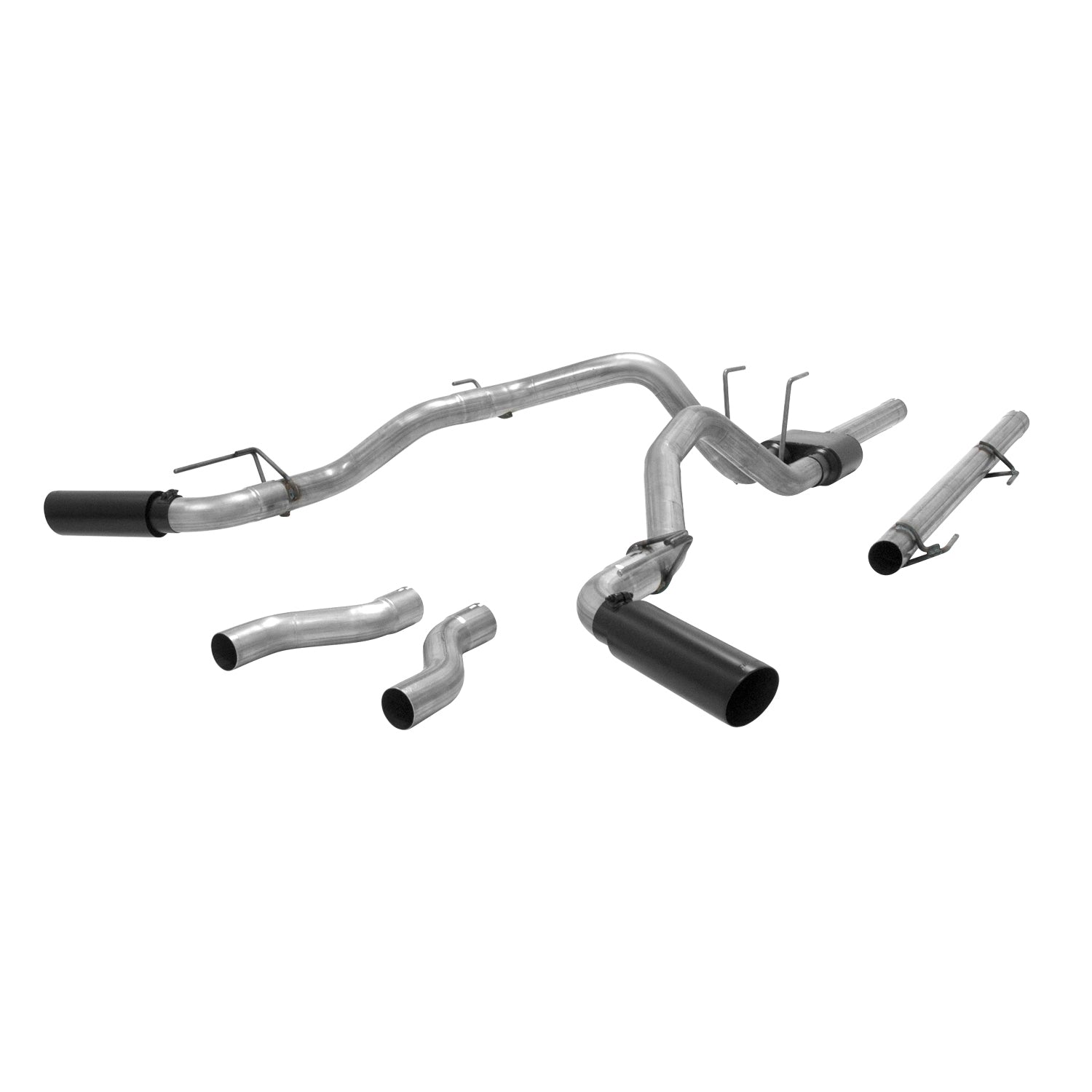

Flowmaster 817690 Outlaw Cat-back Exhaust System

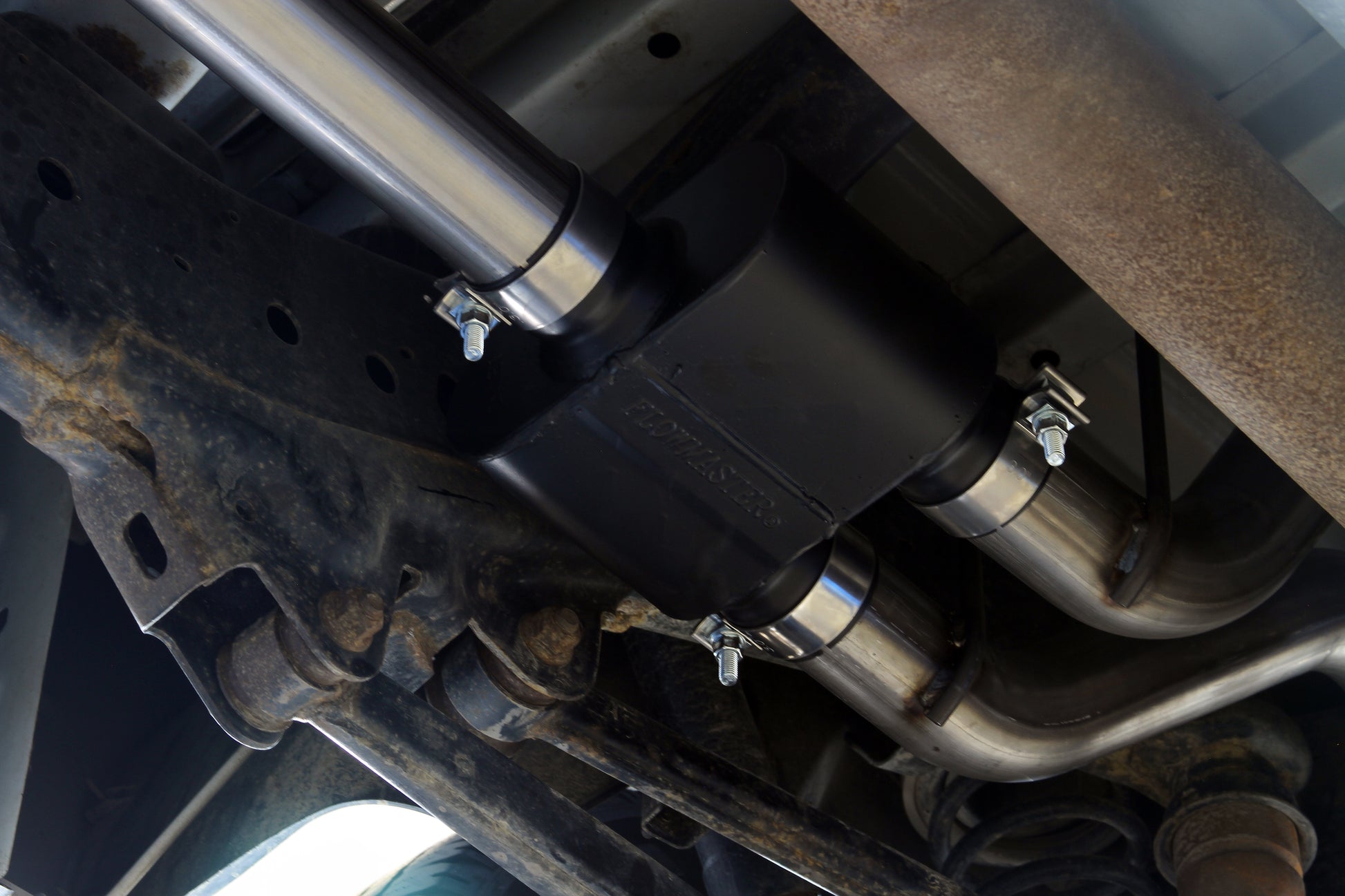

The new Flowmaster® Outlaw® cat-back exhaust system for 2009-2024* (*Classic body) RAM 1500 trucks is perfect for the person looking for maximum sound levels both inside and outside of the truck, with all of the performance benefits that you would expect from Flowmaster. This bolt-on emissions-legal system fits RAM trucks with either the 4.7L, or 5.7L Hemi engines and features all mandrel-bent stainless steel construction, one of our Super 10™ Series mufflers flowing into large 3.00-inch mandrel-bent tailpipes for maximum sound and performance. The system comes with two sets of tailpipe exits, either straight out the back under the bumper, or exiting behind the rear wheels which is perfect for towing applications. The tailpipes are finsihed off with a pair of large 4.00-inch black ceramic coated stainless steel tips and the exhaust system is covered by Flowmaster's Lifetime Limited Warranty. Designed for an easy fit, this system includes all necessary parts and hardware for installation. Note: Fits Std Cab/8' Bed, Crew Cab/5'7" Bed, and Quad Cab/6'4" Bed trucks.

Black Ceramic Coated Stainless Steel Tips
Deep Powerful Aggressive Sound
Uses the Factory Hanger Locations
Clears the Factory Spare Tire
Stainless Steel Construction
Lifetime Limited Warranty

Specifications

Brand	Flowmaster
California Proposition 65	Yes
California Proposition 65 Chemical Name	Chromium (hexavalent compounds)
CARB (California) Compliant	Yes
Catalytic Converter Included	No
Catalytic Converter Quantity	0
Category	Exhaust
Clamping Type	Flat Band
Clamps Included	Yes
Drive	2WD
Emission Code	5
Exhaust Series	Outlaw
Exhaust Tip Color	Black
Exhaust Tip Connection	Clamp-On
Exhaust Tip Cut	Angled
Exhaust Tip Diameter	4.00
Exhaust Tip Edge	Angle Cut
Exhaust Tip Finish	Black Ceramic Coating
Exhaust Tip Intercooled	No
Exhaust Tip Length	13.00
Exhaust Tip Material	304 Stainless Steel
Exhaust Tip Quantity	2
Exhaust Tip Resonated	No
Exhaust Tip Shape	Round
Exhaust Tip Wall	Double Wall
Exit Style	Dual Out Rear
Finish	Natural
Gasket Or Seal Included	No
Grade Type	Performance
Hangers Included	Yes
Heat Shield Included	No
Inlet Diameter	3.00
Inlet Type	Flanged
Main Piping Diameter	3.00
Mount Type	Flanged
Mounting Bracket Included	Yes
Muffler Body Height	4.00
Muffler Body Length	6.50
Muffler Body Material	409 Stainless Steel
Muffler Body Shape	Oval
Muffler Body Width	9.50
Muffler Finish	Black High-Temperature Paint Finish
Muffler Flanged Inlet	No
Muffler Flanged Outlet	No
Muffler Included	Yes
Muffler Inlet Connection	Slip-Fit
Muffler Inlet Inside Diameter	3.00
Muffler Inlet Outside Diameter	3.00
Muffler Outlet Connection	Slip-Fit
Muffler Outlet Quantity	2
Muffler Part Number	Kit Only
Muffler Quantity	1
Muffler Series	Super 10 Series
Muffler Type	Reflection
part type	Exhaust System
Pipe Color	Silver
Pipe Material	409 Stainless Steel
Product Type	Exhaust System
Sound Level	Aggressive
Spring Bolt Kit Included	No
Sub Category	Exhaust and Tail Pipes
Tail Pipe Outlet Outside Diameter	3.00
Tail Pipe Quantity	Dual
Tail Pipe Tapered Outlet	No
Tip Logo	Embossed
Type	Cat-Back
Valve Included	No
Valve Type	Not Applicable
Warning	California Proposition 65

Packaging Information

Weight: 69.85 lbs
Dimensions: 58.5 x 16.25 x 11.25 IN

Safety

⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov

Warranty

View Warranty (PDF)

Installation Instructions

View Installation Instructions (PDF)

⚠ Fitment Notes

Black Ceramic Tip Finish

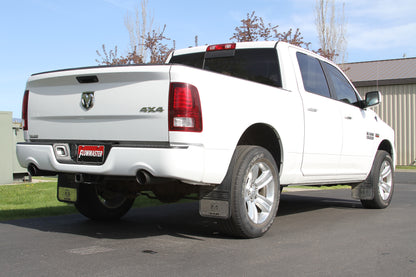

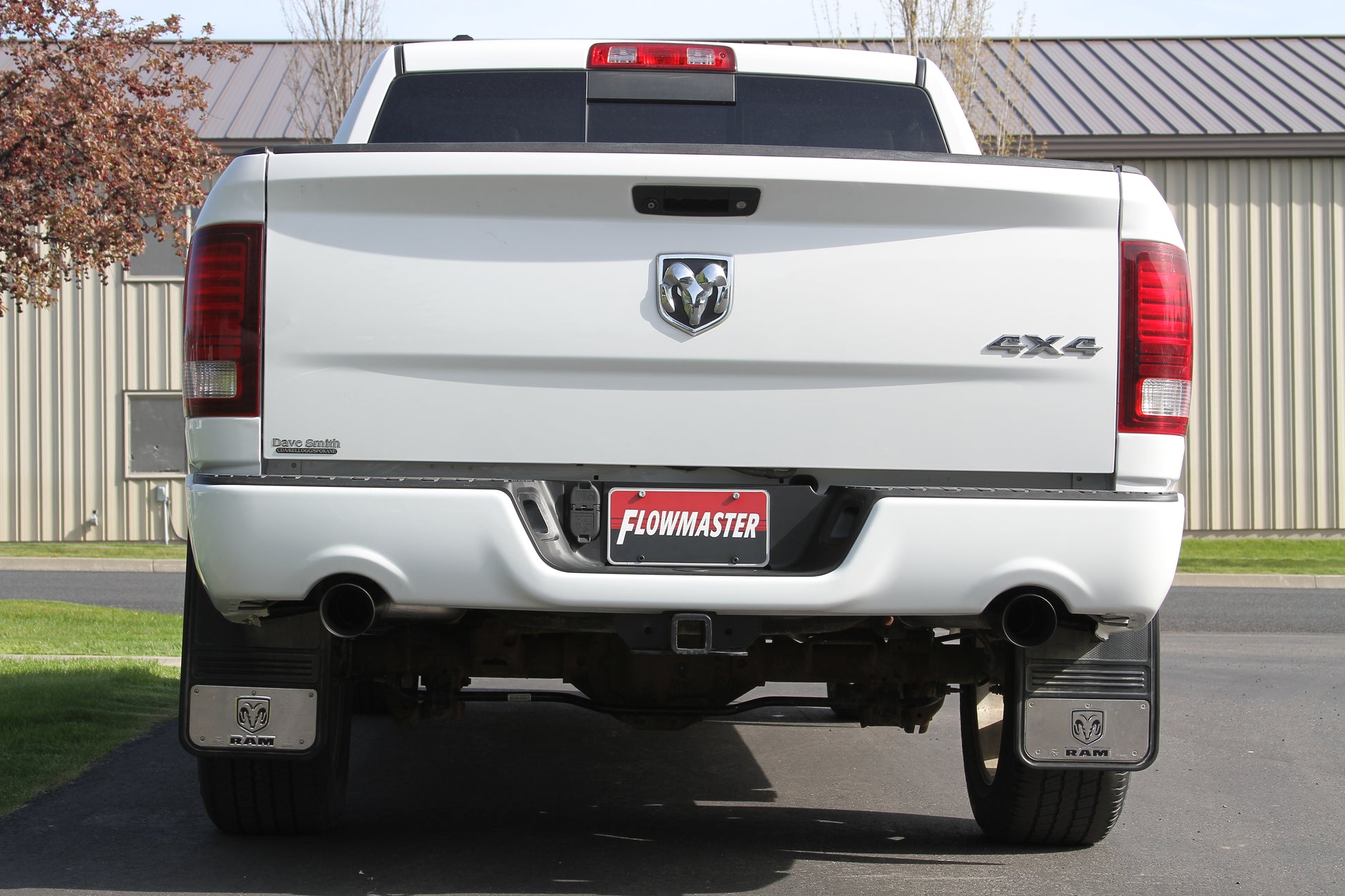

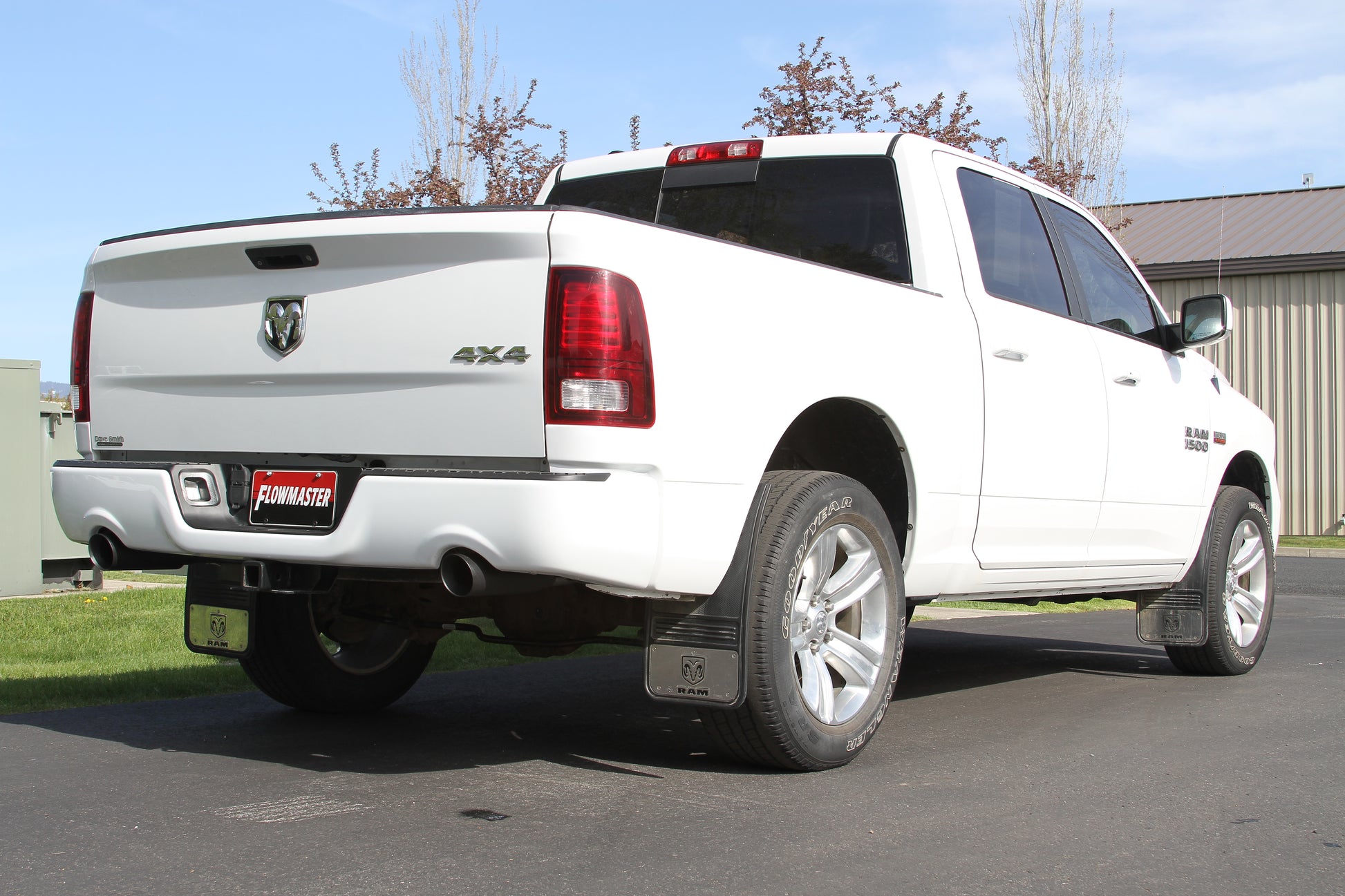

Fits 2009-2024* (*Classic body) Dodge/Ram 1500 Trucks with 4.7L or 5.7L V8 Gas Engine. Only fits Std Cab 8' Bed, Crew Cab 5'7" Bed, Crew Cab/6'4" Bed, and Quad Cab/6'4" Bed. DOR fits with factory bumper cutouts. Note: Does Not Fit 2019-2024 new body style RAM trucks.
