Flowmaster 817696 Outlaw Cat-back Exhaust System
Flowmaster 817696 Outlaw Cat-back Exhaust System
Low stock: 3 left
Couldn't load pickup availability
Description & Features
Flowmaster 817696 Outlaw Cat-back Exhaust System

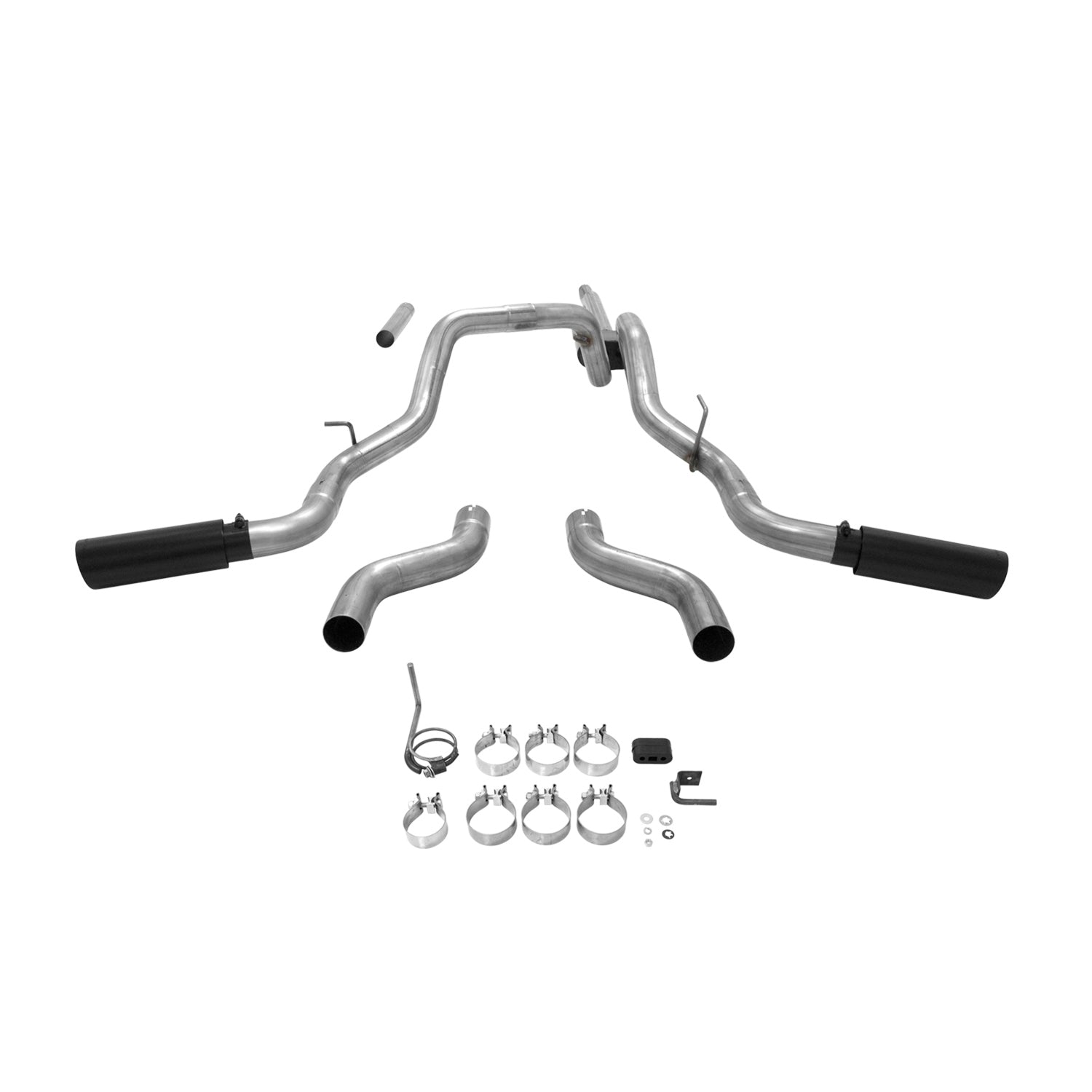

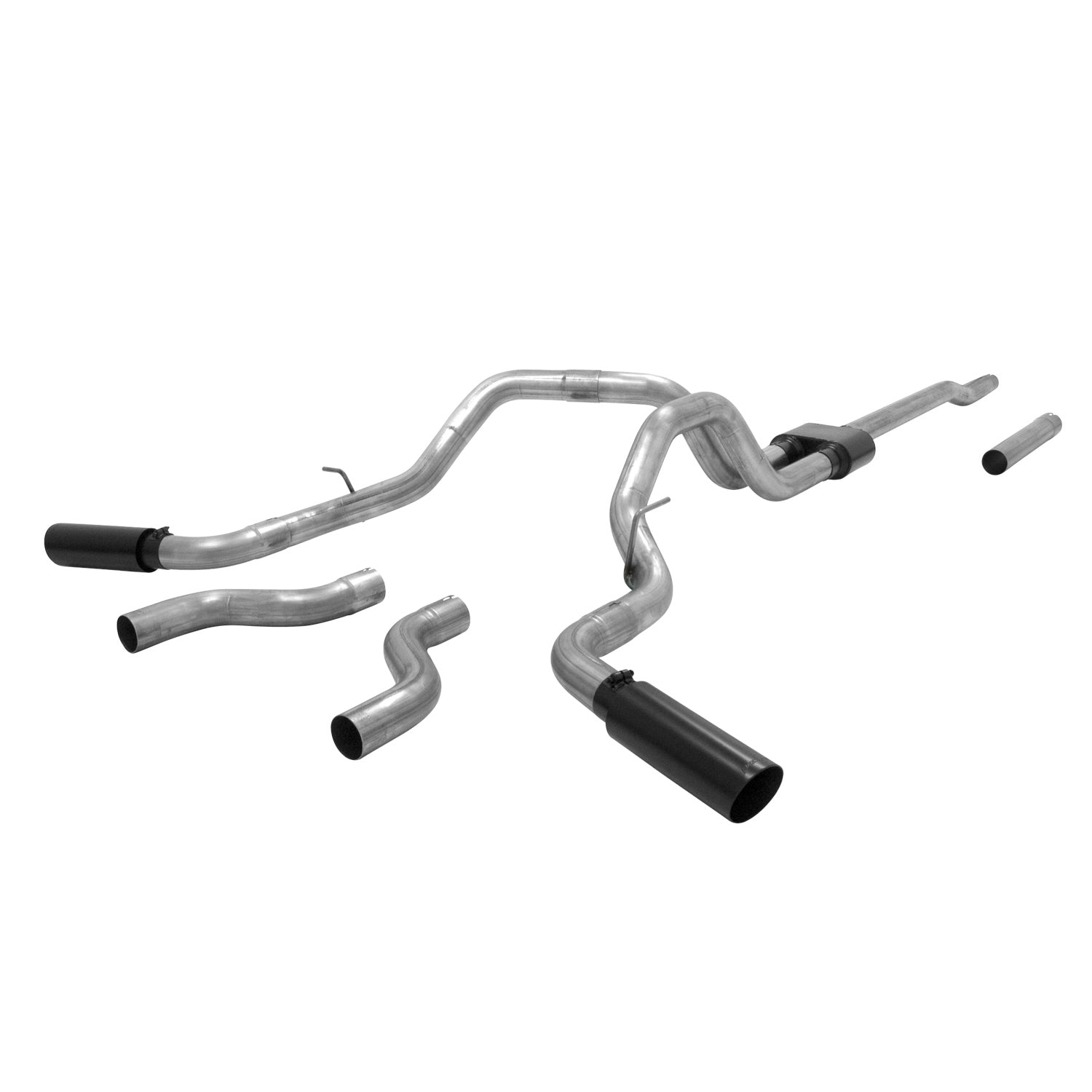

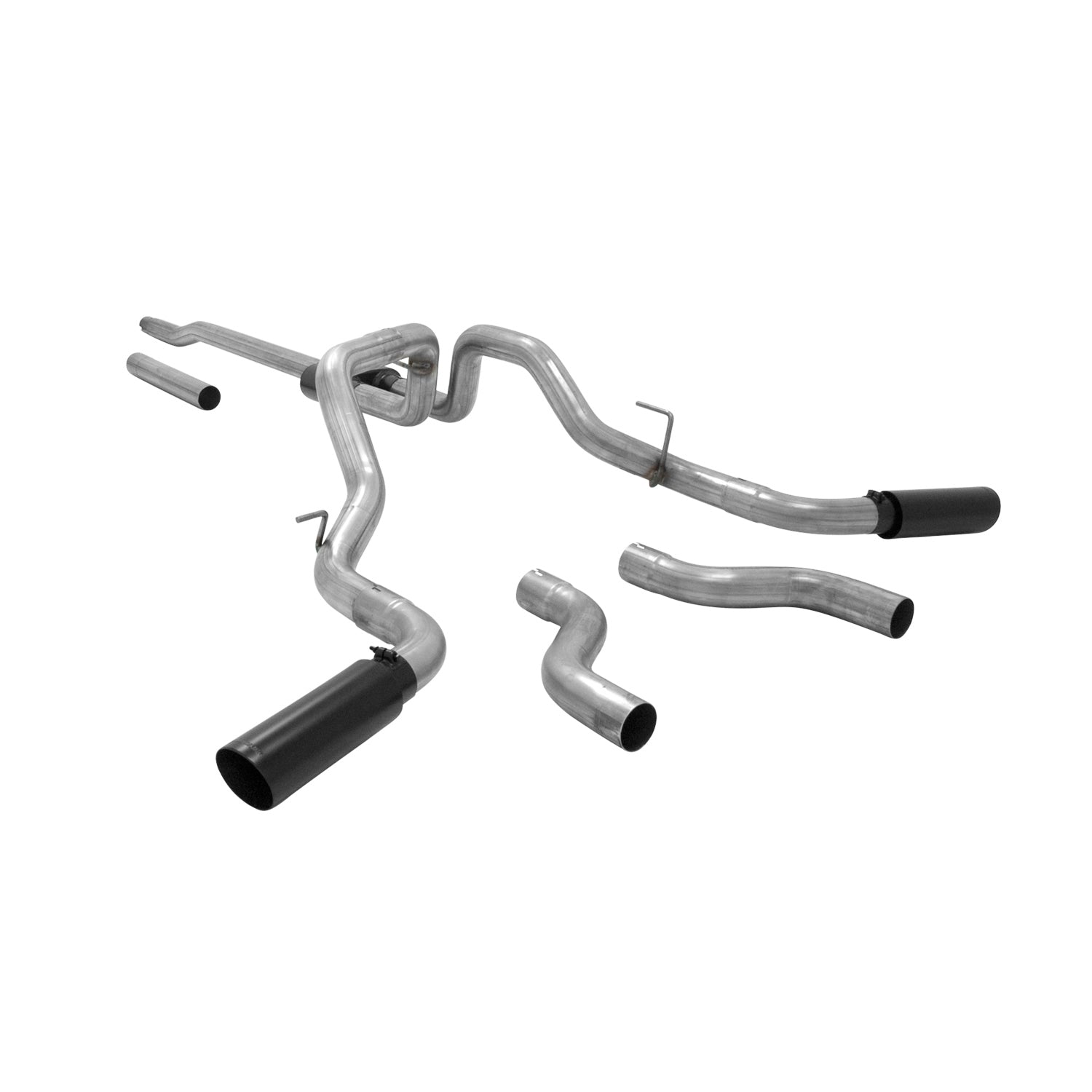

This Flowmaster Outlaw® Cat-back exhaust system for the 2004-2008 Ford F-150 truck is perfect for the person looking for maximum sound levels both inside and outside of the truck, with all of the performance benefits that you would expect from Flowmaster®. This bolt-on DOR/DOS (Dual Out Rear or Dual Out Side) emissions-legal exhaust system for trucks with the 4.6L or 5.4L engine features all mandrel-bent stainless steel tubing flowing into a Super 10™ Series muffler for a deep aggressive exterior and interior sound. The mandrel-bent dual 3.00-inch stainless steel tailpipes use the factory hanger locations for an easy installation and are finished off large 4.00-inch black ceramic coated double wall stainless steel tips. The exhaust system is covered by Flowmaster's Lifetime Limited Warranty and includes all necessary parts and hardware for an easy installation you can do at home. Note: Fits 2/4 wheel drive models all Wheelbases.
- Large 4.00-inch Black Ceramic Coated Stainless Steel Tips
- Super 10 Series Performance Muffler
- Uses the Factory Hanger Locations
- All Stainless Steel Construction
- Lifetime Limited Warranty
- Super Aggressive Sound
- Mandrel-bent Tubing
- Easy Installation
Specifications
| Brand | Flowmaster |
| California Proposition 65 | Yes |
| California Proposition 65 Chemical Name | Chromium (hexavalent compounds) |
| CARB (California) Compliant | Yes |
| Catalytic Converter Included | No |
| Catalytic Converter Quantity | 0 |
| Category | Exhaust |
| Clamping Type | Flat Band |
| Clamps Included | Yes |
| Drive | 4WD |
| Emission Code | 5 |
| Exhaust Series | Outlaw |
| Exhaust Tip Color | Black |
| Exhaust Tip Connection | Clamp-On |
| Exhaust Tip Cut | Angled |
| Exhaust Tip Diameter | 4.00 |
| Exhaust Tip Edge | Angle Cut |
| Exhaust Tip Finish | Black Ceramic Coating |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 13.00 |
| Exhaust Tip Material | 304 Stainless Steel |
| Exhaust Tip Quantity | 2 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Dual Out Rear |
| Finish | Natural |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Hangers Included | Yes |
| Heat Shield Included | No |
| Inlet Diameter | 3.00 |
| Inlet Type | Flanged |
| Main Piping Diameter | 3.00 |
| Mount Type | Flanged |
| Mounting Bracket Included | Yes |
| Muffler Body Height | 4.00 |
| Muffler Body Length | 6.50 |
| Muffler Body Material | 409 Stainless Steel |
| Muffler Body Shape | Oval |
| Muffler Body Width | 9.50 |
| Muffler Finish | Black High-Temperature Paint Finish |
| Muffler Flanged Inlet | No |
| Muffler Flanged Outlet | No |
| Muffler Included | Yes |
| Muffler Inlet Connection | Slip-Fit |
| Muffler Inlet Inside Diameter | 3.00 |
| Muffler Inlet Outside Diameter | 3.00 |
| Muffler Outlet Connection | Slip-Fit |
| Muffler Outlet Quantity | 2 |
| Muffler Part Number | Kit Only |
| Muffler Quantity | 1 |
| Muffler Series | Super 10 Series |
| Muffler Type | Reflection |
| part type | Exhaust System |
| Pipe Color | Silver |
| Pipe Material | 409 Stainless Steel |
| Product Type | Exhaust System |
| Sound Level | Aggressive |
| Spring Bolt Kit Included | No |
| Sub Category | Exhaust and Tail Pipes |
| Tail Pipe Outlet Outside Diameter | 3.00 |
| Tail Pipe Quantity | Dual |
| Tail Pipe Tapered Outlet | No |
| Tip Logo | Embossed |
| Type | Cat-Back |
| Valve Included | No |
| Valve Type | Not Applicable |
| Warning | California Proposition 65 |
Packaging Information
Weight: 56.9 lbs
Dimensions: 55.5 x 15.7 x 11.4 IN
Safety
⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov
Warranty
Installation Instructions
⚠ Fitment Notes
- Black Ceramic Tip Finish
- Fits 2004-2008 Ford F-150 with 4.6L or 5.4L engines, 2 & 4 wheel drives and all wheelbases.
Share
Vehicle Fitment
Vehicle Fitment
- 2007-2008 Ford F-150 FX2
- 2004-2008 Ford F-150 FX4
- 2006-2008 Ford F-150 Harley-Davidson Edition
- 2005-2008 Ford F-150 King Ranch
- 2004-2008 Ford F-150 Lariat
- 2008 Ford F-150 Limited
- 2004-2008 Ford F-150 STX
- 2004-2008 Ford F-150 XL
- 2004-2008 Ford F-150 XLT
- 2006-2008 Lincoln Mark LT Base
