Flowmaster 817699 American Thunder Cat-back Exhaust System
Flowmaster 817699 American Thunder Cat-back Exhaust System
Low stock: 1 left
Couldn't load pickup availability
Description & Features

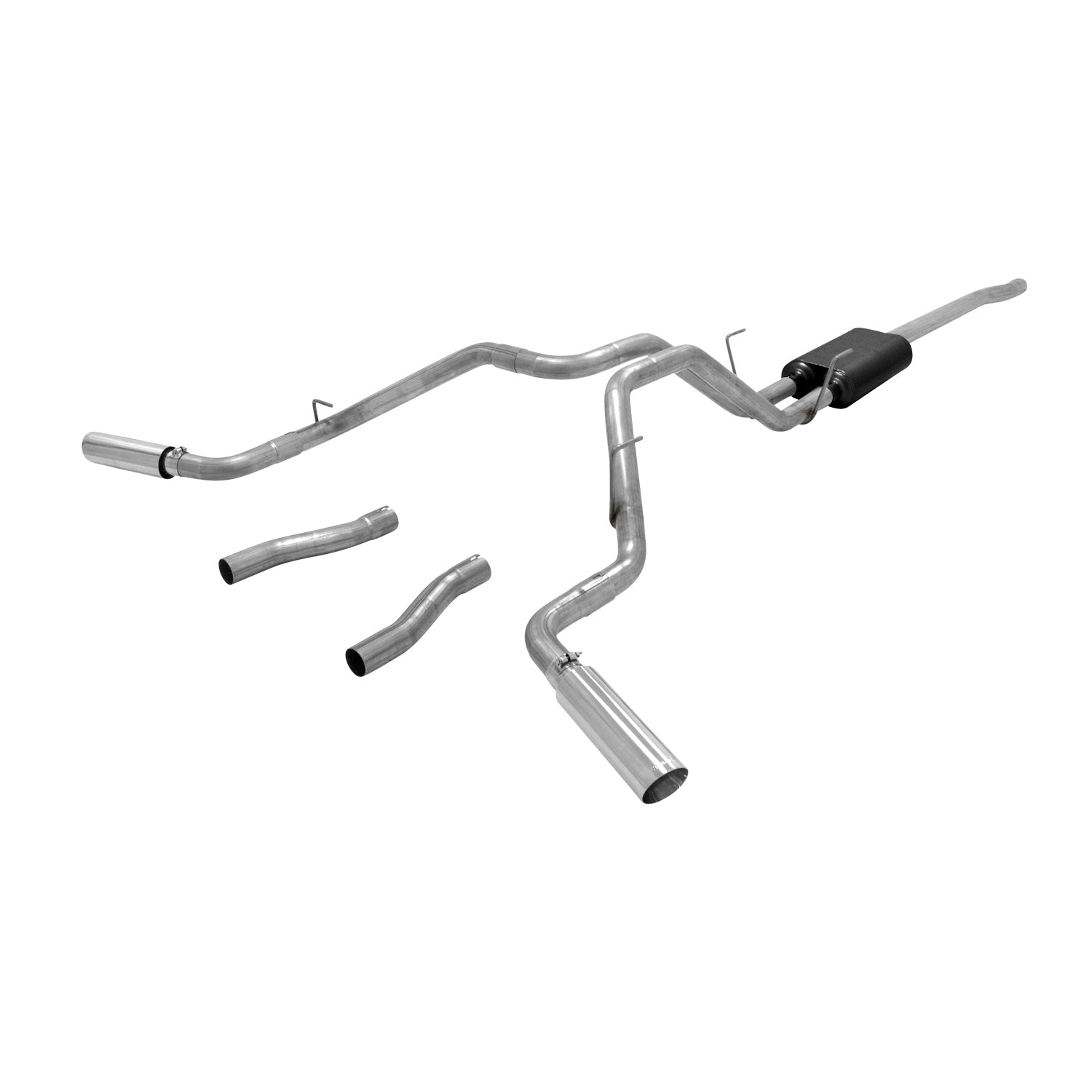

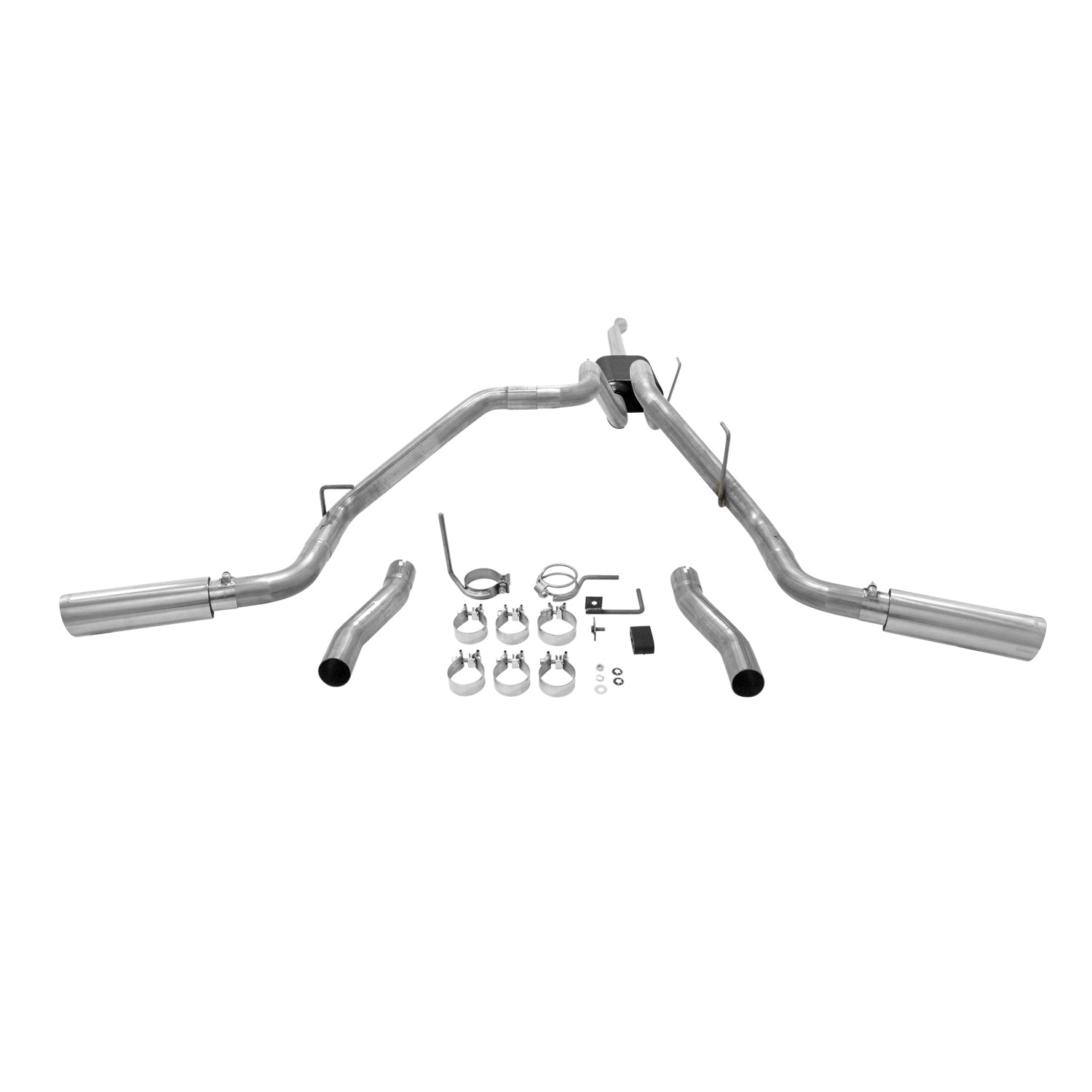

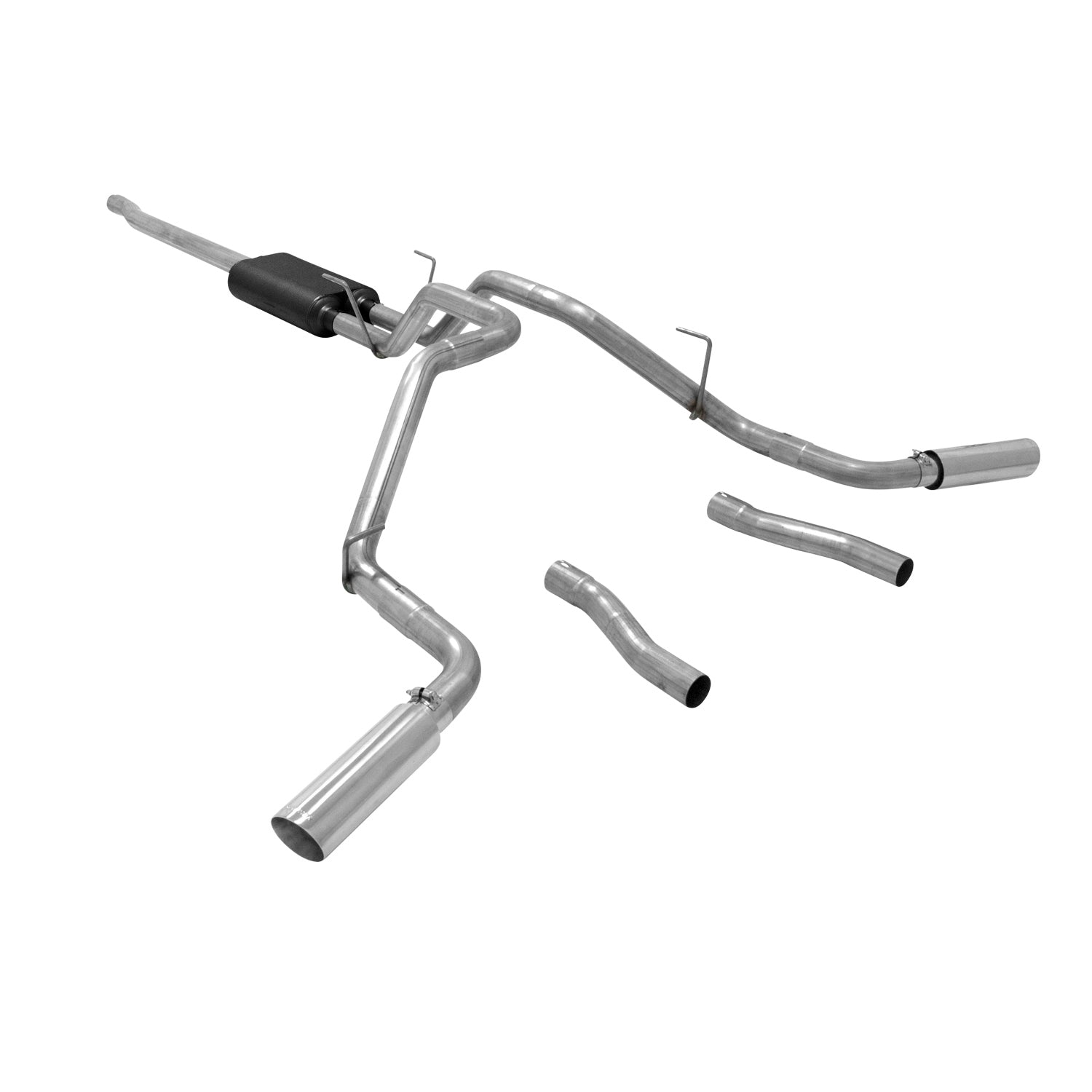

Flowmaster 817699 American Thunder Cat-back Exhaust System
Flowmaster's American Thunder Cat-back exhaust system for the 2014-2018 Ram 2500 truck is perfect for the person looking for an aggressive sound level inside and outside of the truck, with all of the performance benefits that you would expect from Flowmaster. This bolt-on DOR/DOS (Dual Out Rear/ Dual Out Side) emissions-legal system for the Crew Cab Long Bed/Standard Bed models with a 5.7L V8 only, features a stainless steel 50 Series HD muffler and dual 2.50" stainless steel tailpipes. Like all Flowmaster systems the pipes are all mandrel bent to reduce any restrictions and maximize performance. The system finishes off with polished 3.50" stainless steel tips. The exhaust system is covered by Flowmaster's Lifetime Limited Warranty. Designed for an easy fit, this system includes all necessary parts and hardware for installation. Note: Does not fit with optional air bag suspension.
- Designed for an easy fit
- Delta Flow Technology
- Dyno tuned for maximum performance
- Stainless Steel Construction
Specifications
| Brand | Flowmaster |
| California Proposition 65 | Yes |
| California Proposition 65 Chemical Name | Nickel (Metallic) |
| CARB (California) Compliant | Yes |
| Catalytic Converter Included | No |
| Catalytic Converter Quantity | 0 |
| Category | Exhaust |
| Clamping Type | Flat Band |
| Clamps Included | Yes |
| Drive | 4WD |
| Emission Code | 5 |
| Exhaust Series | American Thunder |
| Exhaust Tip Color | Silver |
| Exhaust Tip Connection | Clamp-On |
| Exhaust Tip Cut | Angled |
| Exhaust Tip Diameter | 3.50 |
| Exhaust Tip Edge | Angle Cut |
| Exhaust Tip Finish | Polished |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 13.00 |
| Exhaust Tip Material | 304 Stainless Steel |
| Exhaust Tip Quantity | 2 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Dual Out Rear |
| Finish | Natural |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Hangers Included | Yes |
| Heat Shield Included | No |
| Inlet Diameter | 3.00 |
| Inlet Type | Clamp-On |
| Main Piping Diameter | 2.50 |
| Mount Type | Clamp On |
| Mounting Bracket Included | No |
| Muffler Body Height | 5.00 |
| Muffler Body Length | 18.00 |
| Muffler Body Material | 409 Stainless Steel |
| Muffler Body Shape | Oval |
| Muffler Body Width | 10.00 |
| Muffler Color | Black |
| Muffler Finish | Black High-Temperature Paint Finish |
| Muffler Flanged Inlet | No |
| Muffler Flanged Outlet | No |
| Muffler Included | Yes |
| Muffler Inlet Connection | Slip-Fit |
| Muffler Inlet Inside Diameter | 3.00 |
| Muffler Inlet Outside Diameter | 2.50 |
| Muffler Outlet Connection | Slip-Fit |
| Muffler Outlet Quantity | 2 |
| Muffler Part Number | Kit Only |
| Muffler Quantity | 1 |
| Muffler Series | 50 Series HD |
| Muffler Type | Chambered |
| part type | Exhaust System |
| Pipe Color | Silver |
| Pipe Material | 409 Stainless Steel |
| Product Type | Exhaust System |
| Sound Level | Aggressive / Moderate |
| Spring Bolt Kit Included | No |
| Sub Category | Exhaust and Tail Pipes |
| Tail Pipe Outlet Outside Diameter | 2.50 |
| Tail Pipe Quantity | Dual |
| Tail Pipe Tapered Outlet | No |
| Tip Logo | Embossed |
| Type | Cat-Back |
| Valve Included | No |
| Valve Type | Not Applicable |
| Warning | California Proposition 65 |
Packaging Information
Weight: 62.55 lbs
Dimensions: 65.25 x 16.5 x 11.75 IN
Safety
⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov
Warranty
Installation Instructions
⚠ Fitment Notes
- Polished Tip Finish
- Fits 2014-2018 Ram 2500 Crew Cab Models with 5.7L gas engine and coil spring rear suspension.
Share
Vehicle Fitment
Vehicle Fitment
- 2014-2018 Ram 2500 Big Horn
- 2015-2016 Ram 2500 Hemi Sport
- 2014-2018 Ram 2500 Laramie
- 2017 Ram 2500 Laramie HD
- 2014-2017 Ram 2500 Laramie Limited
- 2014-2018 Ram 2500 Laramie Longhorn
- 2016-2017 Ram 2500 Limited
- 2018 Ram 2500 Limited Tungsten
- 2014-2015 Ram 2500 Lone Star
- 2014-2018 Ram 2500 Outdoorsman
- 2015-2018 Ram 2500 R/T
- 2014-2018 Ram 2500 SLT
- 2017 Ram 2500 SLT HD
- 2017-2018 Ram 2500 Sport
- 2015-2018 Ram 2500 ST
- 2014-2018 Ram 2500 Tradesman
