Flowmaster
Flowmaster 817701 Force II Cat-back Exhaust System
Flowmaster 817701 Force II Cat-back Exhaust System
Low stock: 2 left
Couldn't load pickup availability
Description & Features

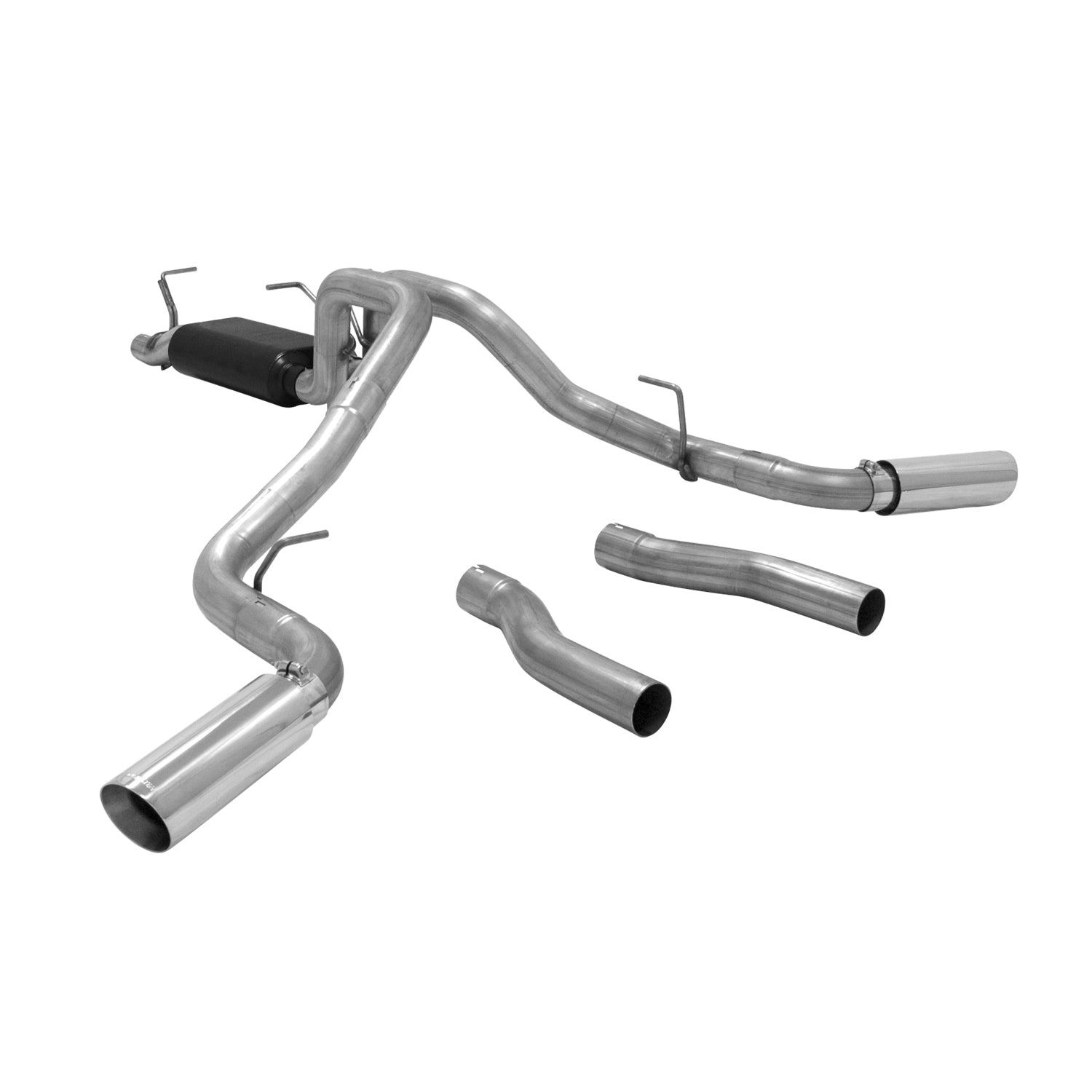

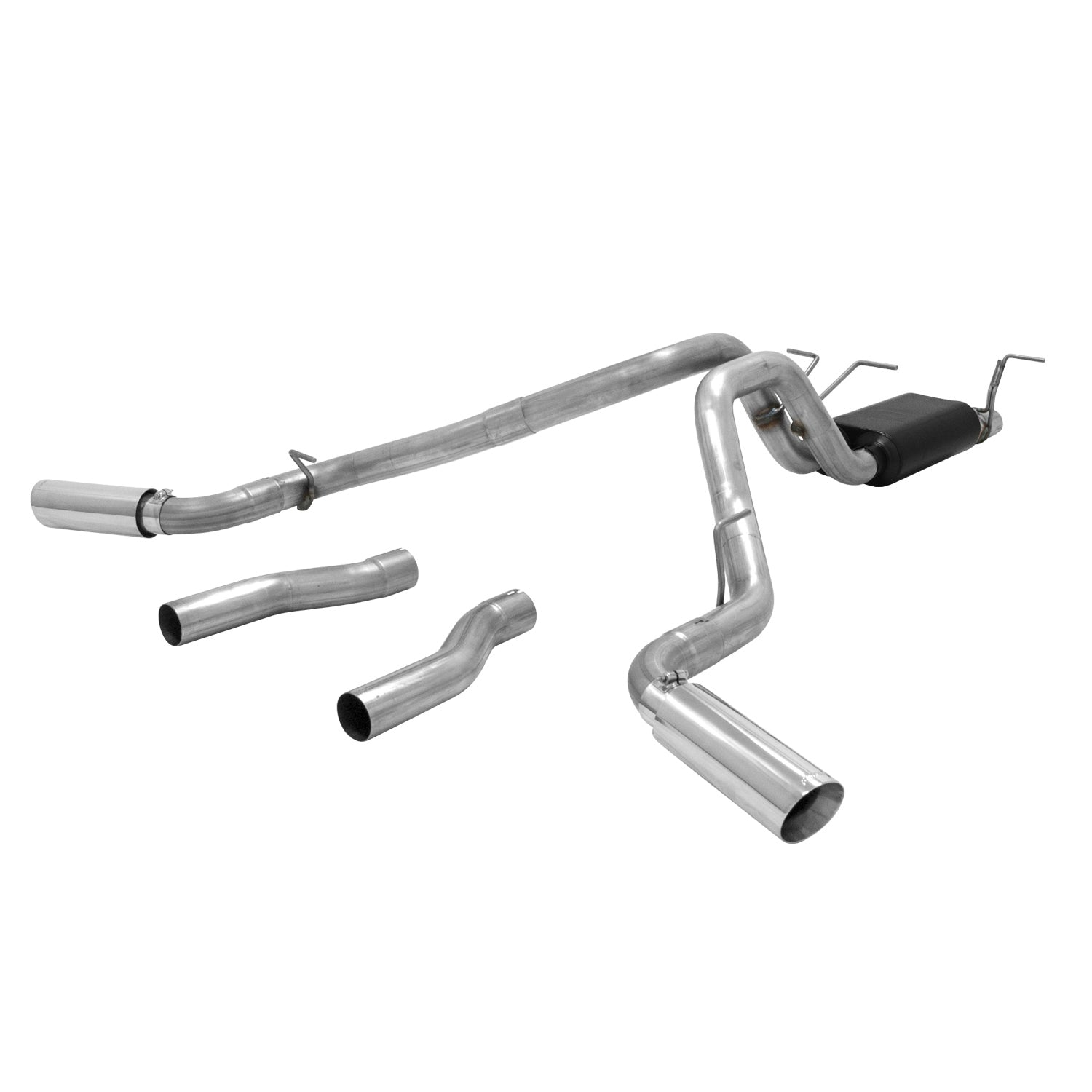

Flowmaster 817701 Force II Cat-back Exhaust System
The Force II® Cat-back exhaust system for 2014-2016 Ford F-250/F-350 Super Duty trucks with the 6.2L gas engine is perfect for the person looking for mild to moderate sound levels with all of the performance benefits that you would expect from Flowmaster®. This bolt-on emissions-legal system features a 50 Series HD™ performance muffler and dual mandrel-bent 3.00-inch stainless steel tailpipes for maximum performance and a deep powerful sound. The system comes with your choice of tailpipe exits and can be configured for either straight out the back under the rear bumper for a muscular look, or out the sides behind the rear wheels which is ideal for towing. The tailpipes are finished off with large 4.00-inch polished stainless steel tips and is covered by our Lifetime Limited Warranty. Designed for an easy fit, this system includes all necessary parts and hardware for easy installation you can do at home. Note: Mounts after the factory resonator.
- 50 Series HD Performance Muffler with Large 4.00-inch Internals
- Choice of Side Exit or Straight out the Back Tailpipe Exit

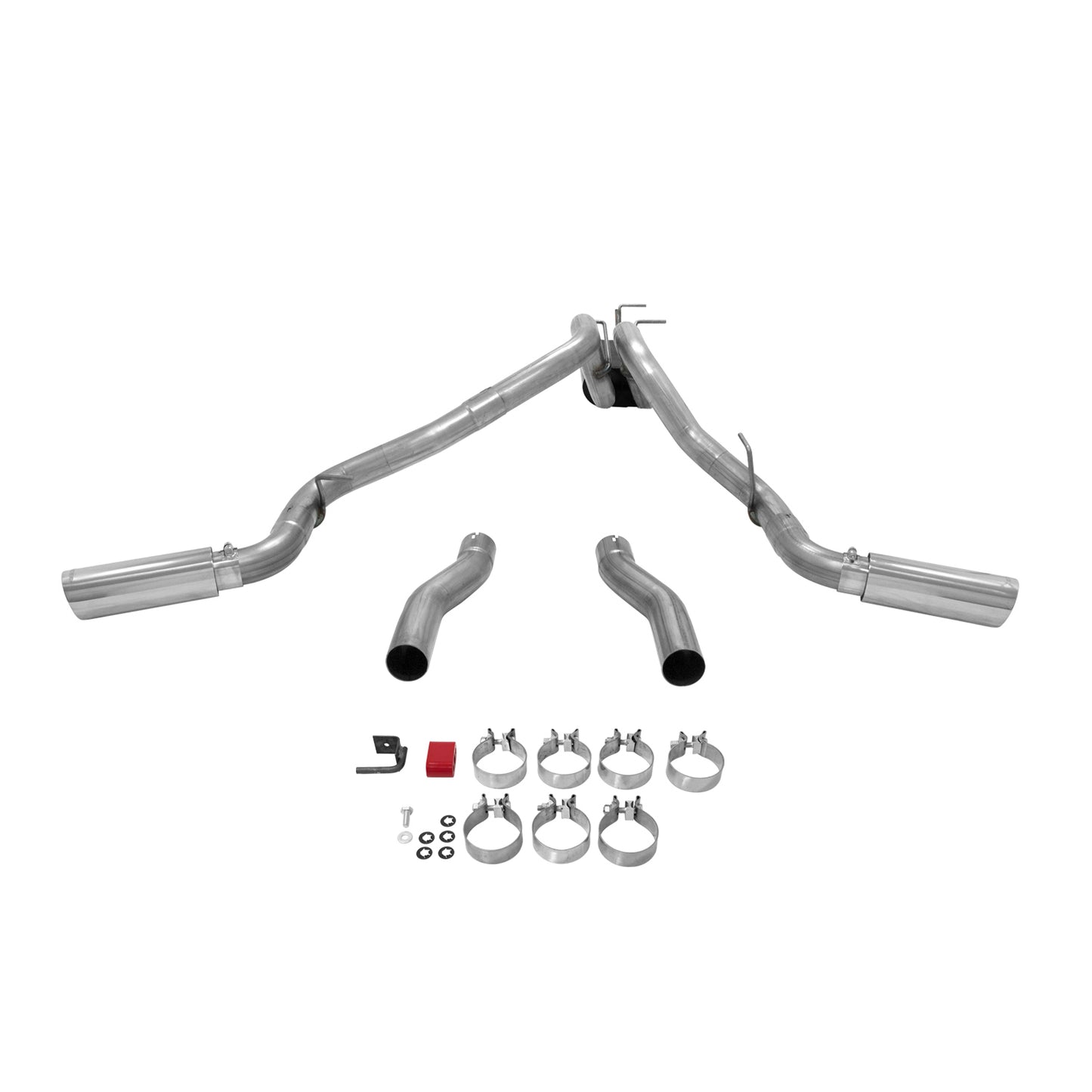

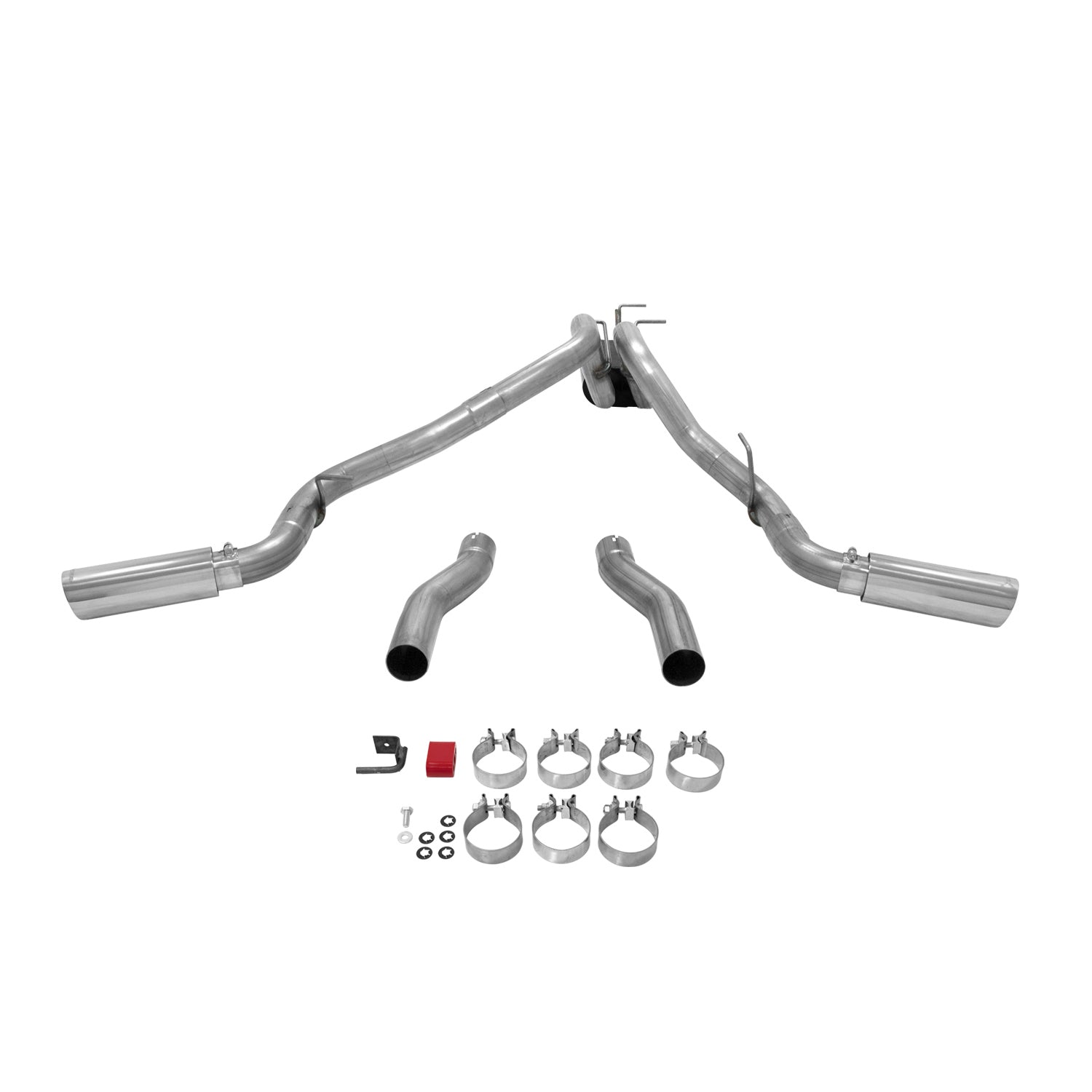

- Includes all Necessary Parts & Hardware
- Dual 3.00-inch Mandrel-bent Tailpipes
- Uses the Factory Hanger Locations
- Stainless Steel Construction
- Lifetime Limited Warranty
- Large 3.50-inch Inlet Tubing
Specifications
| Brand | Flowmaster |
| California Proposition 65 | Yes |
| California Proposition 65 Chemical Name | Chromium (hexavalent compounds) |
| CARB (California) Compliant | Yes |
| Catalytic Converter Included | No |
| Catalytic Converter Quantity | 0 |
| Category | Exhaust |
| Clamping Type | Flat Band |
| Clamps Included | Yes |
| Drive | 2WD |
| Emission Code | 5 |
| Exhaust Series | Force II |
| Exhaust Tip Color | Silver |
| Exhaust Tip Connection | Clamp-On |
| Exhaust Tip Cut | Angled |
| Exhaust Tip Diameter | 4.00 |
| Exhaust Tip Edge | Angle Cut |
| Exhaust Tip Finish | Polished |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 13.00 |
| Exhaust Tip Material | 304 Stainless Steel |
| Exhaust Tip Quantity | 2 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Dual Out Rear |
| Finish | Natural |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Hangers Included | Yes |
| Heat Shield Included | No |
| Inlet Diameter | 3.00 |
| Inlet Type | Flanged |
| Main Piping Diameter | 3.00 |
| Mount Type | Flanged |
| Mounting Bracket Included | Yes |
| Muffler Body Height | 5.00 |
| Muffler Body Length | 18.00 |
| Muffler Body Material | 409 Stainless Steel |
| Muffler Body Shape | Oval |
| Muffler Body Width | 10.00 |
| Muffler Color | Black |
| Muffler Finish | Black High-Temperature Paint Finish |
| Muffler Flanged Inlet | No |
| Muffler Flanged Outlet | No |
| Muffler Included | Yes |
| Muffler Inlet Connection | Slip-Fit |
| Muffler Inlet Inside Diameter | 3.00 |
| Muffler Inlet Outside Diameter | 3.00 |
| Muffler Outlet Connection | Slip-Fit |
| Muffler Outlet Quantity | 2 |
| Muffler Part Number | Kit Only |
| Muffler Quantity | 1 |
| Muffler Series | 50 Series HD |
| Muffler Type | Reflection |
| part type | Exhaust System |
| Pipe Color | Silver |
| Pipe Material | 409 Stainless Steel |
| Product Type | Exhaust System |
| Sound Level | Moderate/Mild |
| Spring Bolt Kit Included | No |
| Sub Category | Exhaust and Tail Pipes |
| Tail Pipe Outlet Outside Diameter | 3.00 |
| Tail Pipe Quantity | Dual |
| Tail Pipe Tapered Outlet | No |
| Tip Logo | Embossed |
| Type | Cat-Back |
| Valve Included | No |
| Valve Type | Not Applicable |
| Warning | California Proposition 65 |
Packaging Information
Weight: 59.3 lbs
Dimensions: 59 x 17 x 12.2 IN
Safety
⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov
Warranty
Installation Instructions
⚠ Fitment Notes
- Polished Tip Finish, Mounts after the factory resonator.
- Fits 2014 -2016 Ford F-250 Super Duty and F-350 Super Duty with 6.2L V8 Gas Engine. NOTE: Mounts after the factory resonator.
Share
Vehicle Fitment
Vehicle Fitment
- 2014-2016 Ford F-250 Super Duty King Ranch
- 2014-2016 Ford F-250 Super Duty Lariat
- 2014-2016 Ford F-250 Super Duty Platinum
- 2014-2016 Ford F-250 Super Duty XL
- 2014-2016 Ford F-250 Super Duty XLT
- 2014-2016 Ford F-350 Super Duty King Ranch
- 2014-2016 Ford F-350 Super Duty Lariat
- 2014-2016 Ford F-350 Super Duty Platinum
- 2014-2016 Ford F-350 Super Duty XL
- 2014-2016 Ford F-350 Super Duty XLT
