Flowmaster 817709 American Thunder Cat-back Exhaust System

$1,399.95 USD

Sale Sold out

Shipping calculated at checkout.

Low stock: 2 left

Ships by freight — oversized item. Exact shipping is calculated in your cart.

Description & Features

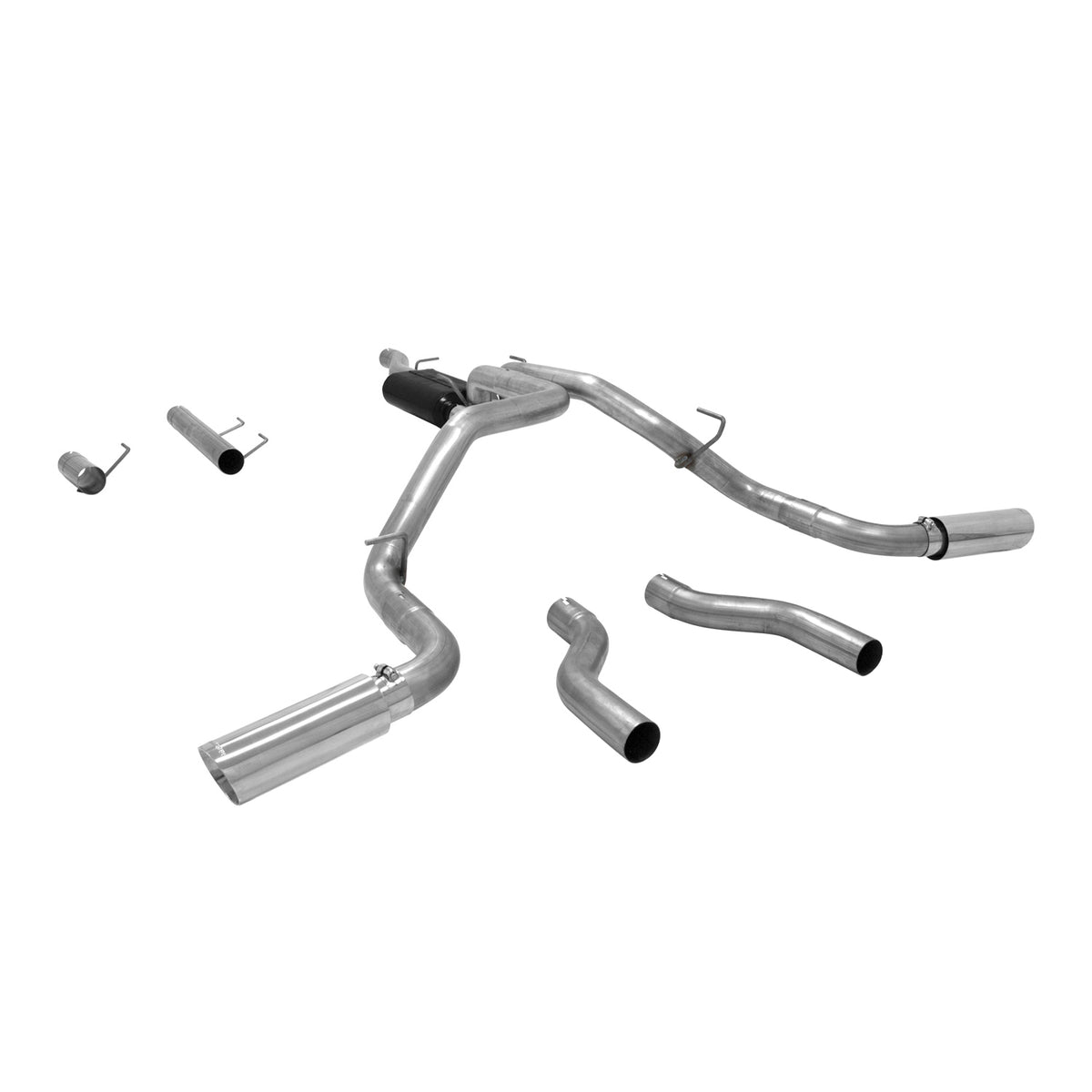

Flowmaster 817709 American Thunder Cat-back Exhaust System

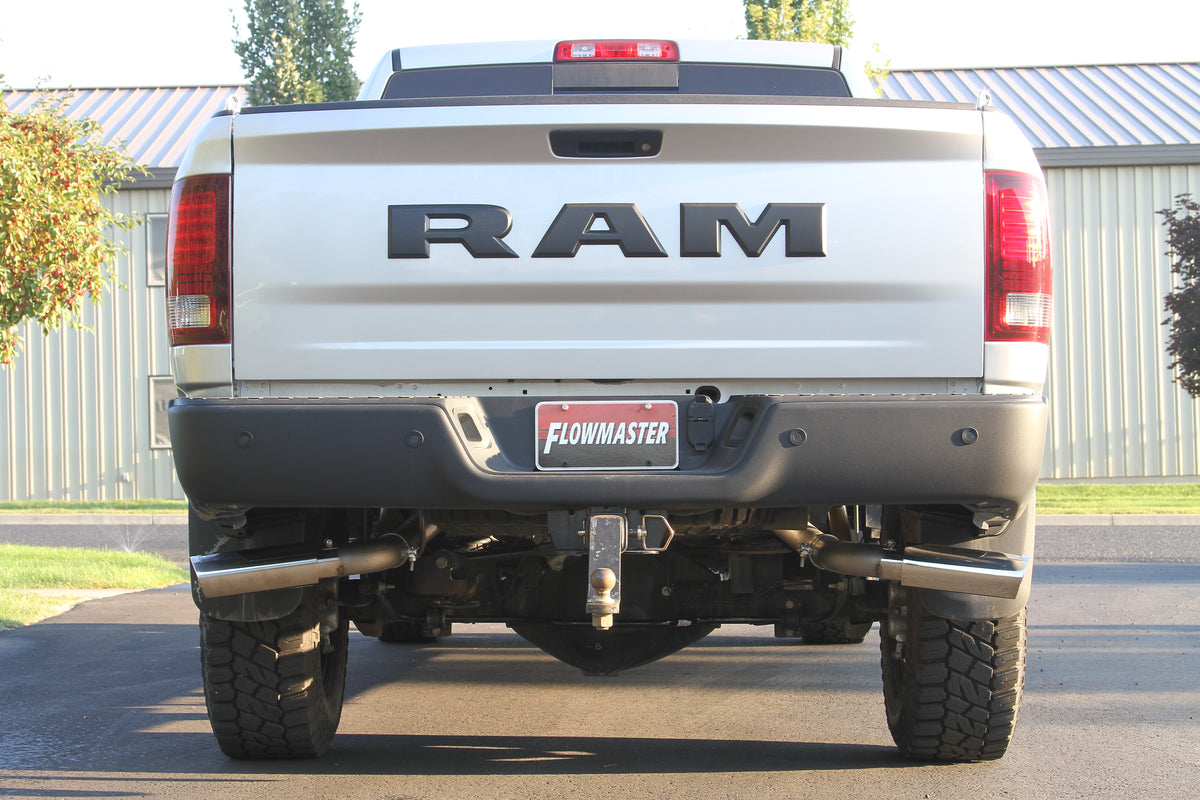

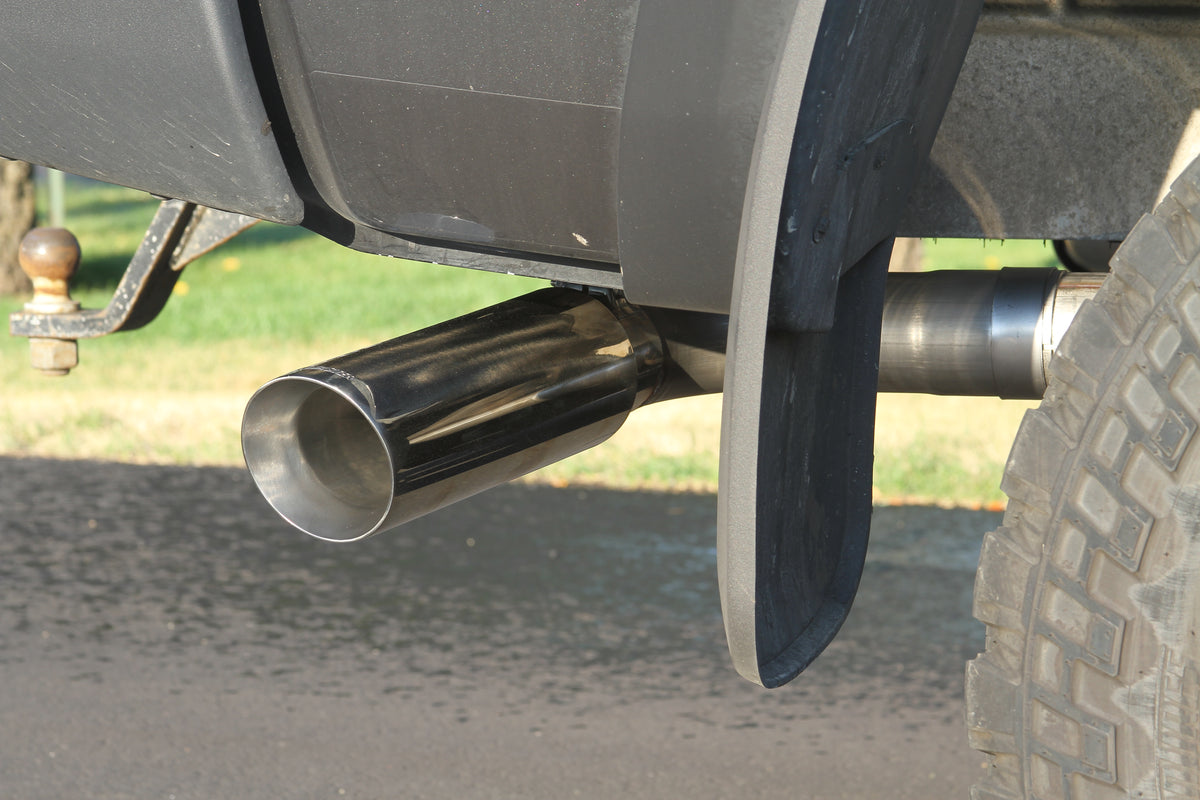

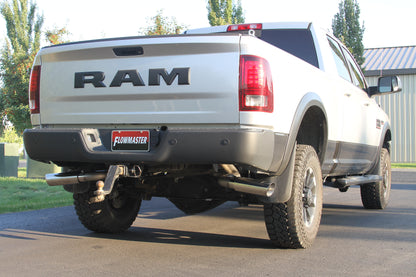

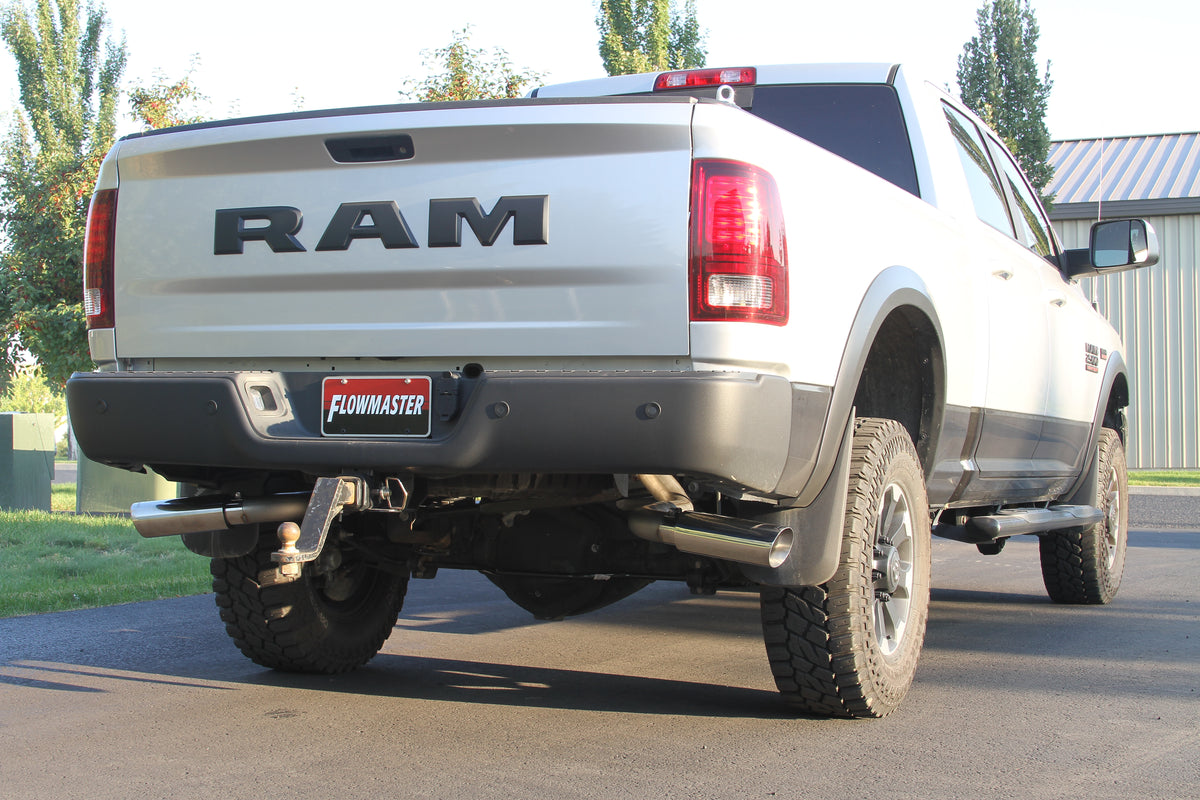

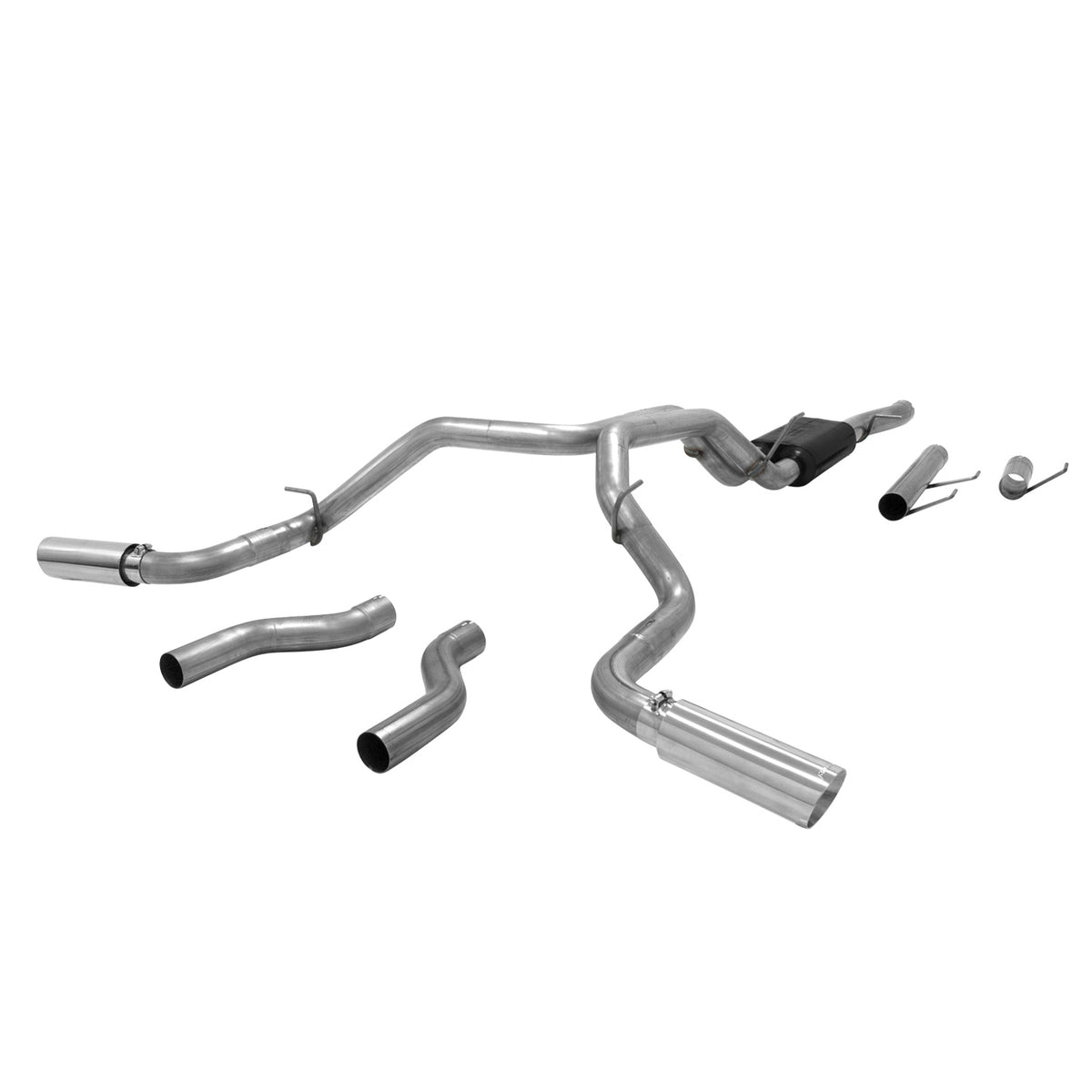

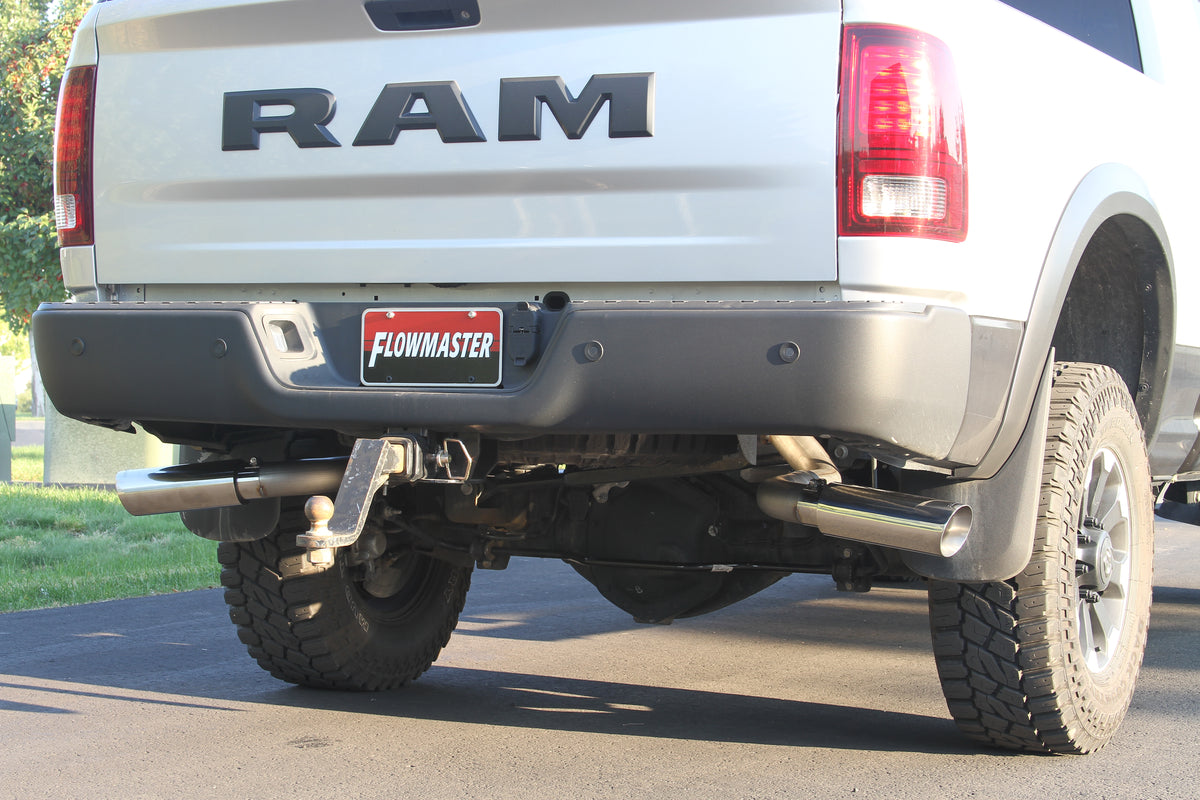

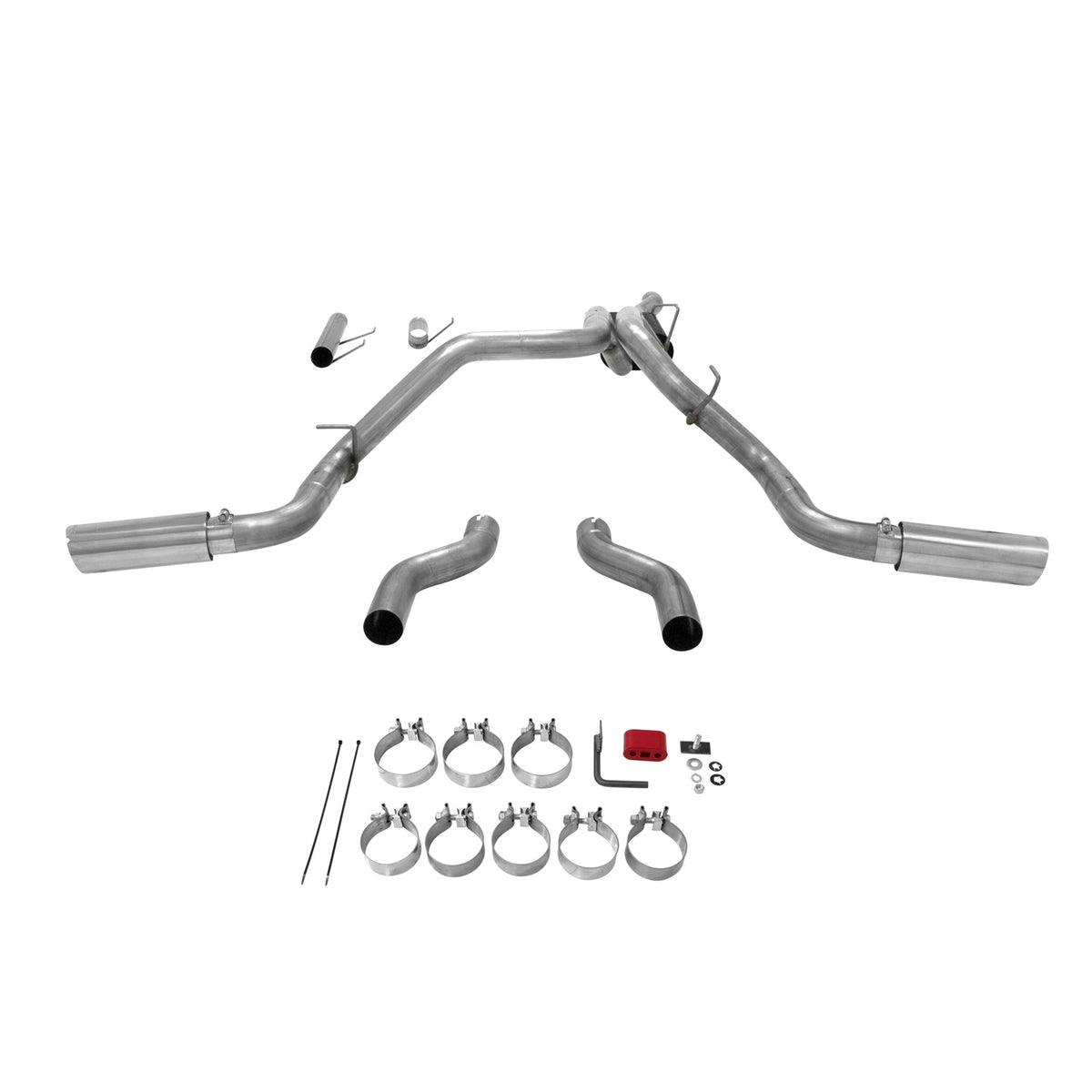

The American Thunder® cat-back exhaust system for 2014-2024 Ram 2500 trucks is perfect for the person looking for moderately aggressive interior and aggressive exterior sound levels, with all of the performance benefits that you would expect from Flowmaster®. This bolt-on emissions-legal system fits the Crew Cab Standard Bed/Long Bed and Mega Cab models with a 6.4L engine and coil spring rear suspension. The system features a stainless steel 50 Series HD™ muffler with large 4.00-inch internals. The large dual 3.00-inch stainless steel tailpipes are mandrel-bent to reduce restrictions and maximize performance. The kit has two options for tailpipe exits, either out the sides behind the rear wheels for towing, or straight out the back under the rear bumper. They are finished off with a pair of large 4.00-inch polished stainless steel tips. The exhaust system is covered by our Lifetime Limited Warranty and includes all necessary parts, hardware and easy to follow installation instructions. Note: Fits 149.4, 160.5 and 169.4-inch wheelbases. Does not fit trucks with the optional factory airbag suspension.

Stainless Steel 50 Series HD Performance Muffler
Dyno Tuned For Maximum Performance
Mandrel-bent Stainless Steel Tubing
Uses the Factory Hanger Locations
Clears the Factory Spare Tire
Stainless Steel Construction
Includes Two Tailpipe Exits
Lifetime Limited Warranty

Specifications

Brand	Flowmaster
California Proposition 65	Yes
California Proposition 65 Chemical Name	Nickel (Metallic)
CARB (California) Compliant	Yes
Catalytic Converter Included	No
Catalytic Converter Quantity	0
Category	Exhaust
Clamping Type	Flat Band
Clamps Included	Yes
Drive	2WD
Emission Code	5
Exhaust Series	American Thunder
Exhaust Tip Color	Silver
Exhaust Tip Connection	Clamp-On
Exhaust Tip Cut	Angled
Exhaust Tip Diameter	4.00
Exhaust Tip Edge	Angle Cut
Exhaust Tip Finish	Polished
Exhaust Tip Intercooled	No
Exhaust Tip Length	13.00
Exhaust Tip Material	304 Stainless Steel
Exhaust Tip Quantity	2
Exhaust Tip Resonated	No
Exhaust Tip Shape	Round
Exhaust Tip Wall	Double Wall
Exit Style	Dual Out Rear
Finish	Natural
Gasket Or Seal Included	No
Grade Type	Performance
Hangers Included	Yes
Heat Shield Included	No
Inlet Diameter	3.50
Inlet Type	Flanged
Main Piping Diameter	3.00
Mount Type	Flanged
Mounting Bracket Included	No
Muffler Body Height	5.00
Muffler Body Length	18.25
Muffler Body Material	409 Stainless Steel
Muffler Body Shape	Oval
Muffler Body Width	10.00
Muffler Color	Black
Muffler Finish	Black High-Temperature Paint Finish
Muffler Flanged Inlet	No
Muffler Flanged Outlet	No
Muffler Included	Yes
Muffler Inlet Connection	Slip-Fit
Muffler Inlet Inside Diameter	3.00
Muffler Inlet Outside Diameter	3.00
Muffler Outlet Connection	Slip-Fit
Muffler Outlet Quantity	2
Muffler Part Number	Kit Only
Muffler Quantity	1
Muffler Series	50 Series HD
Muffler Type	Reflection
part type	Exhaust System
Pipe Color	Silver
Pipe Material	409 Stainless Steel
Product Type	Exhaust System
Sound Level	Aggressive / Moderate
Spring Bolt Kit Included	No
Sub Category	Exhaust and Tail Pipes
Tail Pipe Outlet Outside Diameter	3.00
Tail Pipe Quantity	Dual
Tail Pipe Tapered Outlet	No
Tip Logo	Embossed
Type	Cat-Back
Valve Included	No
Valve Type	Not Applicable
Warning	California Proposition 65

Packaging Information

Weight: 83.55 lbs
Dimensions: 62.75 x 18.5 x 14.5 IN

Safety

⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov

Warranty

View Warranty (PDF)

Installation Instructions

View Installation Instructions (1) (PDF)
View Installation Instructions (2) (PDF)

⚠ Fitment Notes

Polished Tip Finish, inFits Crew Cab/Short Bed (149in WB), Crew Cab/Long Bed (169in WB) and Mega Cab (160.5in WB). Does not fit trucks with factory air bag option.in
Fits 2014-2024 Ram 2500 with 6.4L engine and coil spring rear suspension. Fits crew cab/short Bed, crew cab/long bed and mega cab. Does not fit with factory air bag option.
